AP310i WiFi6 AX3000 Dual-band Indoor Ceiling WiFi Access Point

  • $159.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

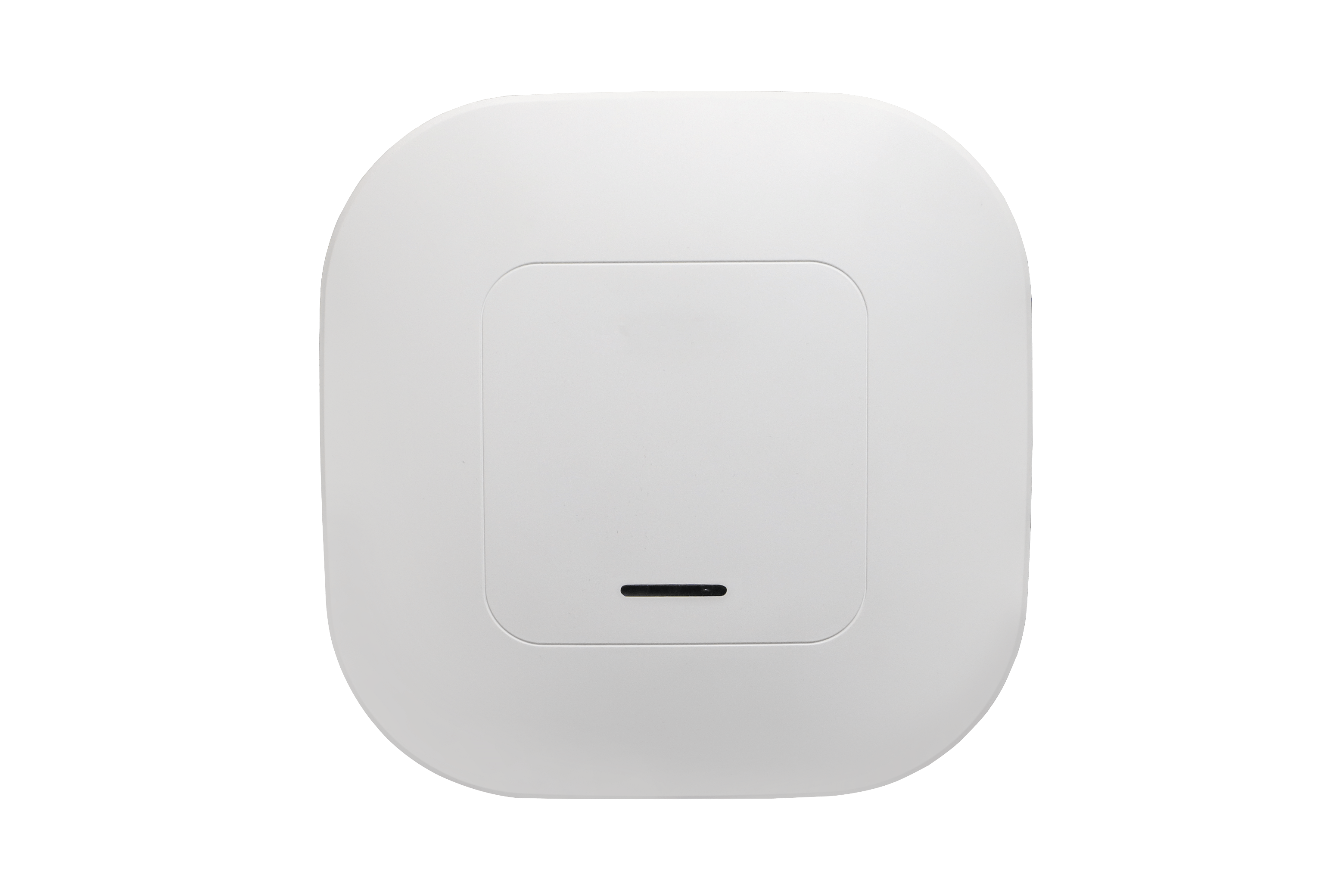

    AP310i WiFi6 AX3000 Dual-band Indoor Ceiling WiFi Access Point

    WiFi rate up to 2974.5Mbps, 2.5G WAN/LAN Port, 802.3at PoE

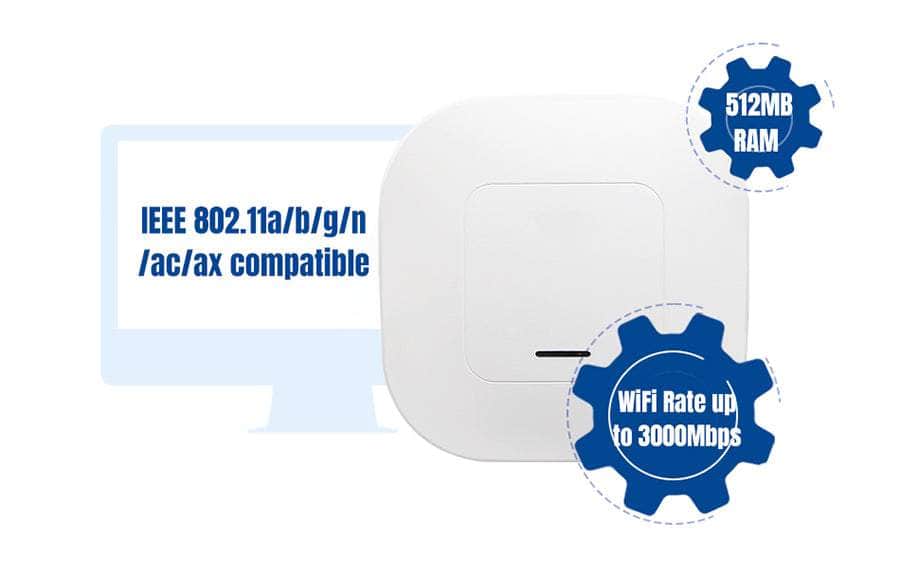

    AP310i is a WiFi6 dual-band ceiling-mounted commercial access point. The product is based on the powerful Qualcomm wireless core platform, with 24dBm TX power and 5dBi high-gain built-in antennas. It supports IEEE 802.11a/b/g/n/ac/ax, the maximum WiFi rate reaches almost 3000Mbps. The product comes with a standard configuration of a 512MB RAM(supports customization from 256MB to 1GB). The product can be widely used in industries and scenarios such as offices, education and training, smart medical care, apartments, dormitories, exhibition halls and auditoriums.

    Enterprise WiFi6 ceiling-mounted wireless access point for indoor coverage:

    • Simplifies the deployment - a single network cable is used to complete power supply and data transmission at the same time, reducing the complexity of network wiring, time and cost are saved.
    • Support for high-density scenarios - MU-MiMo technology supports simultaneous access by a large number of users. In crowded places, such as conference rooms, exhibition halls, railway stations, and airports, the ceiling AP can provide stable wireless connections
    • Greater coverage - the ceiling installation is more conducive to expanding WiFi coverage
    • Suitable for commercial scenarios - the ceiling installation perfectly integrates the equipment with the surroundings

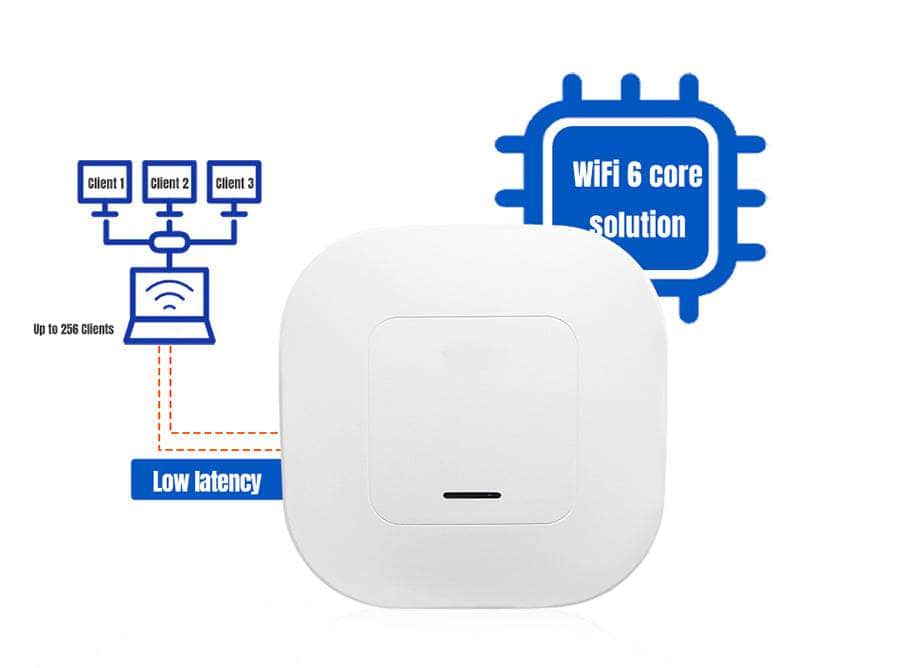

    Powerful core solution

    The product adopts the powerful WiFi6 wireless core solution of Qualcomm, which supports the latest WiFi6 features such as OFDMA, MU-MIMO and 160Mhz bandwidth, and supports up to 256 wireless clients. With the support of MU-MIMO technology, multi-user wireless access does not require queuing and access delay can be minimized.

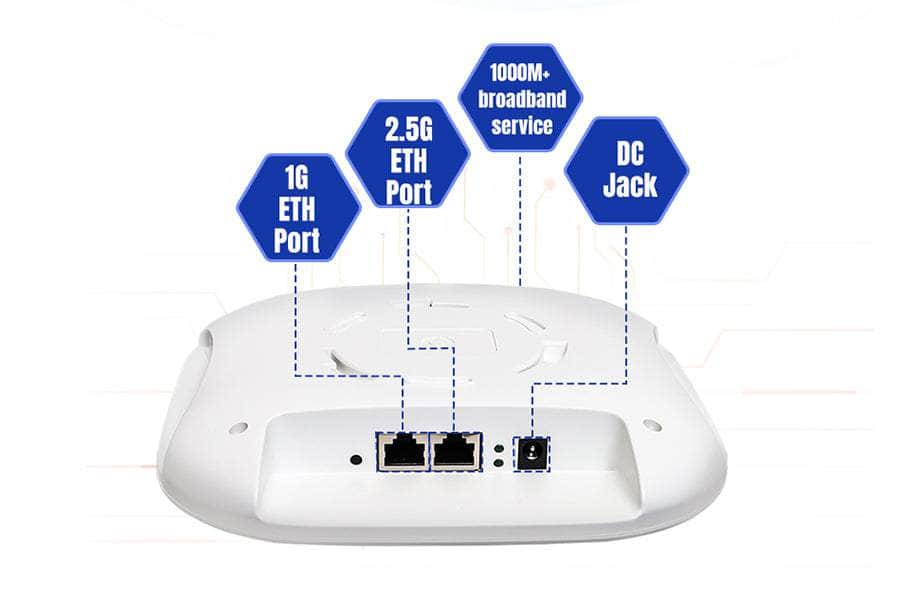

    2.5G high-speed Ethernet port

    Compared with the traditional Gigabit Ethernet port that is standard on general gigabit APs, the 2.5G high-speed Ethernet port provides 2.5 times the wired speed, further breaking through the bottleneck of the network port. With broadband services over 1000M, the AX3000 AP performance can be fully utilized. The wireless speed brings significant improvements to large-scale data transmission, high-definition video streaming and real-time interactive application experience.

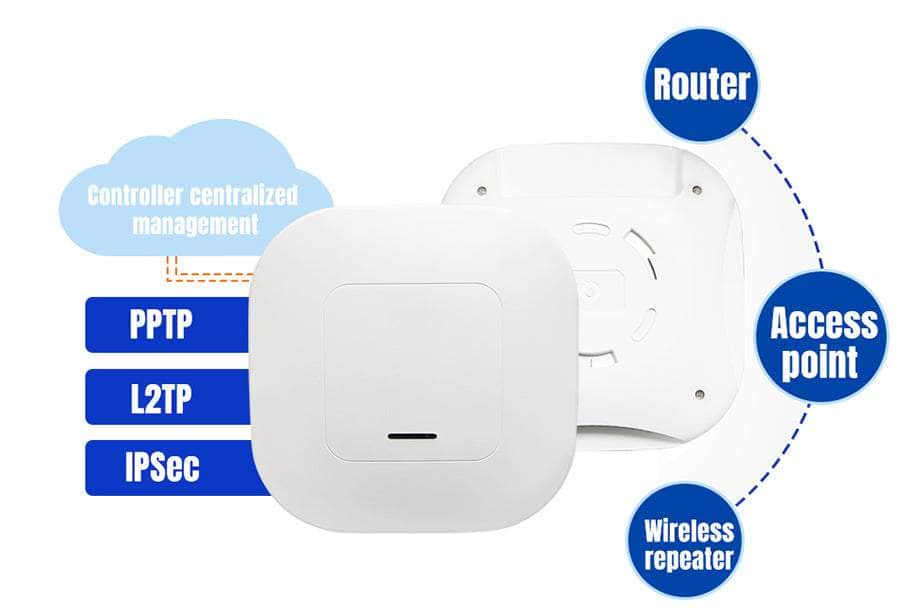

    Fat&thin AP in one, supporting centralized controller management

    The device supports two AP modes: fat and thin, different modes can be selected for different scenarios. In fat AP mode, each AP can be managed flexibly and independently, which is suitable for small networks with only a few APs and can be deployed flexibly and quickly; In thin AP mode, all APs are centrally managed by the controller, which is suitable for medium-sized and above networks. The controller delivers configurations to all APs remotely and supports remote upgrade of AP firmware.

    Enterprise-grade software features:

    Supporting three working modes: router, access point and wireless repeater, flexibly adapting to different usage scenarios.
    Flexible software-controlled WAN/LAN interchange
    Supports multiple VPN functions such as IPSec, L2TP, PPTP, etc.

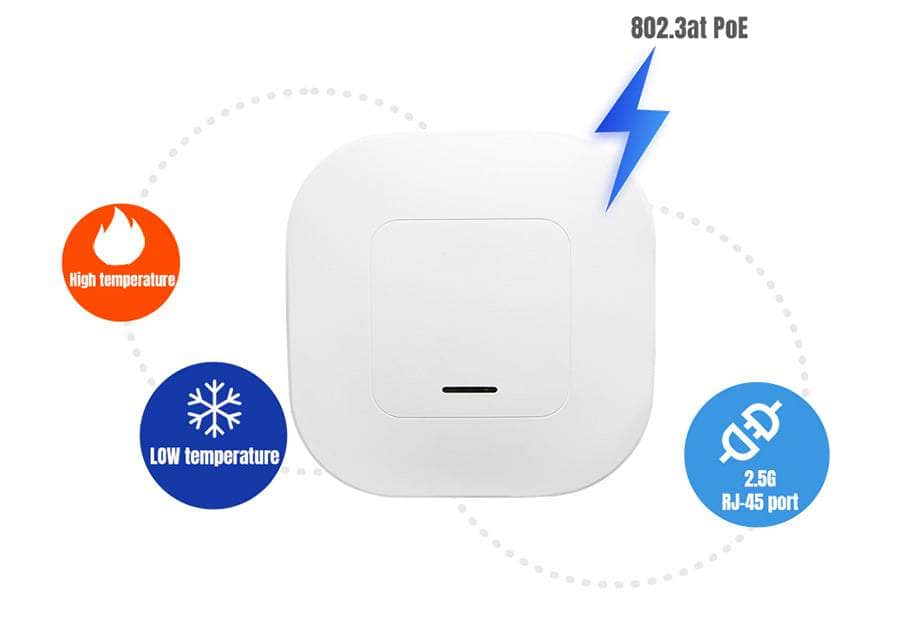

    Enterprise-grade design, quick installation

    • Operating temperature: 0℃~40℃
    • Operating humidity: 5%~90% RH non-condensing
    • Power supply mode: 802.3at PoE
    • Network port: 2.5G high capacity RJ-45 port

    Built-in surge protection

    Built-in 2kv surge protection design can protect the device in complex electrical environments to provide long-term service to users

    Specifications:

    Wi-Fi Interface

    Wi-Fi Chipsets

    2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53@1GHz)

    5GHz: Qualcomm QCN6102

    Memory

    Flash:SPI NAND 128MB + SPI NOR 8MB

    RAM:512MB DDR3L SDRAM

    Wi-Fi Standards

    2.4 GHz: IEEE802.11b/g/n/ax

    5.8 GHz: IEEE 802.11a/n/ac/ax

    Frequency

    2.4 GHz(2.412GHz - 2.484GHz)

    5 GHz(5.15GHz~5.85GHz)

    Antennas

    Internal high gain antenna*4

    Wi-Fi Security

    Open, WPA, WPA2PSK TKIPAES,WAP2 EAP.WPA3

    Operating Modes

    Wireless router mode

    Access point mode

    Repeater mode

    End Users

    256

    Wi-Fi Data Rates

    802.11a : up to 54 Mbps

    802.11b : up to 11 Mbps

    802.11g : up to 54 Mbps

    WiFi 4 (802.11n) : up to 300 Mbps

    WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps

    WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

    WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps+4804Mbps

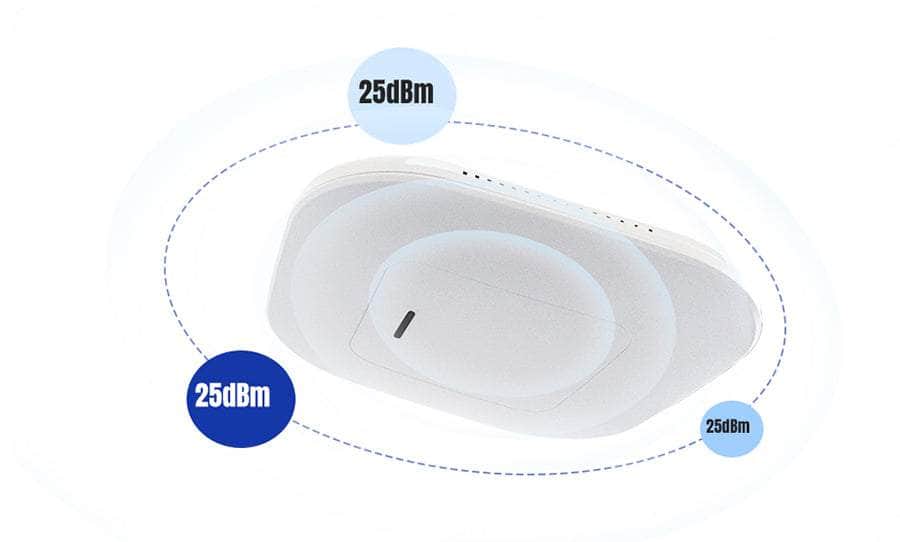

    TX Power

    24dBm

    Ethernet Interface

    WAN

    1 x 2.5Gigabit  WAN RJ45, 10/100/1000 Mbps, auto MDI/MDIX

    LAN

    1 x 1Gigabit  LAN RJ45, 10/100/1000 Mbps, auto MDI/MDIX

    Mode

    Full or Half Duplex (Auto-Sensing)

    Power Supply

    Power Input

    48V PoE input over WAN

    Power Consumption

    15W

    Standard

    IEEE 802.3at standard

    Physical Characteristics

    Housing

    Plastic

    Dimension

    190*190*42mm(L*W*H)

    Installation

    Ceiling  mounting

    Operating Temperature

    0℃~ +40℃

    Storage Temperature

    -40℃~+70℃

    Ingress Protection

    IP30

    Weight

    500g

    Software

    VPN Client

    IPSec Client
    PPTP VPN Client
    L2TP VPN Client

    Others

    Button

    Press and hold 5s to restore factory Settings

    Indicators LED

    WAN, LAN, Internet



    Documents:

    AP310i-user-manual-V1.0.0
    AP310i Specification V1.0.0
