AP520X WiFi6 AX3000 dual-band Outdoor WiFi Access Point

AP520X WiFi6 AX3000 dual-band Outdoor WiFi Access Point

WiFi rate up to 2974.5Mbps, 2.5G WAN/LAN Port, 802.3at PoE

AP520X is an outdoor WiFi6 dual-band AP that supports 5G NR. which is also called FWA (Fixed Wireless Access) AP. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas. It supports the IEEE 802.11a/b/g/n/ac /ax protocols, the maximum WiFi access rate reaches 2975Mbps. The product comes with a standard configuration of a 512MB RAM(customizable from 256MB to 1GB). The product can be widely used in industries and scenarios such as park coverage, mine sites, smart warehousing and logistics, smart cities, exhibition halls and venues.

Powerful core solution

The product adopts the powerful WiFi6 wireless core solution of Qualcomm, which supports the latest WiFi6 features such as OFDMA, MU-MIMO and 160Mhz bandwidth, and supports up to 256 wireless clients. With the support of MU-MIMO technology, multi-user wireless access does not require queuing and access delay can be minimized.

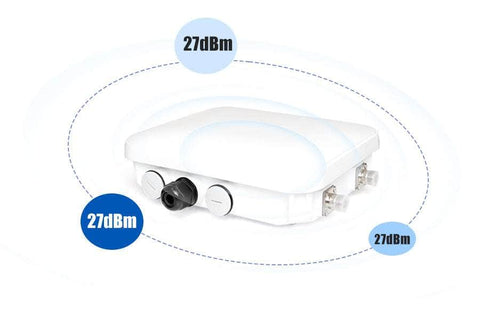

High-power WiFi

The wireless transmission power of up to 27dBm ensures stronger signals, greater coverage, and stronger penetration capabilities.

2.5G high-speed Ethernet port

Compared with the traditional Gigabit Ethernet port that is standard on general gigabit APs, the 2.5G high-speed Ethernet port provides 2.5 times the wired speed, further breaking through the bottleneck of the network port. With broadband services over 1000M, the AX3000 AP performance can be fully utilized. The wireless speed brings significant improvements to large-scale data transmission, high-definition video streaming and real-time interactive application experience.

Fat&thin AP in one, supporting centralized controller management

The device supports two AP modes: fat and thin, different modes can be selected for different scenarios. In fat AP mode, each AP can be managed flexibly and independently, which is suitable for small networks with only a few APs and can be deployed flexibly and quickly; In thin AP mode, all APs are centrally managed by the controller, which is suitable for medium-sized and above networks. The controller delivers configurations to all APs remotely and supports remote upgrade of AP firmware.

Enterprise-grade software features:

Supporting three working modes: router, access point and wireless repeater, flexibly adapting to different usage scenarios.
Flexible software-controlled WAN/LAN interchange
Supports multiple VPN functions such as IPSec, L2TP, PPTP, etc.

Enterprise-grade design, quick installation

• Operating temperature: 0℃~40℃
• Operating humidity: 5%~90% RH non-condensing
• Power supply mode: 802.3at PoE
• Network port: 2.5G high capacity RJ-45 port

Built-in surge protection

Built-in 2kv surge protection design can protect the device in complex electrical environments to provide long-term service to users

Specifications:

Documents:

AP(NR)520X-user-manual-V1.0.0
OutDoor AP AP520 NR520 Specification V1.0.0
