Arducam 16MP Autofocus USB Camera 4K Webcam Mic with Mini Metal Case

  • $119.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    Arducam 16MP Autofocus USB Camera with Mini Metal Case, 1/2.8" IMX298 Mini UVC USB2.0 4K Video Webcam with Microphone

    Arducam B029001 is a new member of the Arducam's USB camera family. It's a 16MP, based on the 1/2.8" IMX298 image sensor, UVC compliant, autofocus USB 2.0 camera.

    No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

    This 16MP IMX298 high resolution color COMS sensor and the autofocus feature make it can be widely used in the home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.

    Feature

    • High-Quality Imaging: This small camera module adopts a 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.

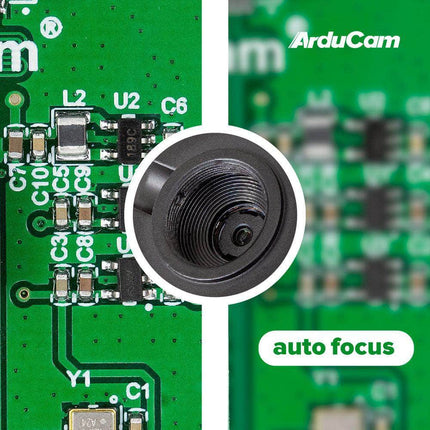

    • Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
    • Capture Video with Audio: Built-in single Microphone for smooth video at a fluid 30 frames (optional dual/single channel). Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@1024x768/800x600/640x480.

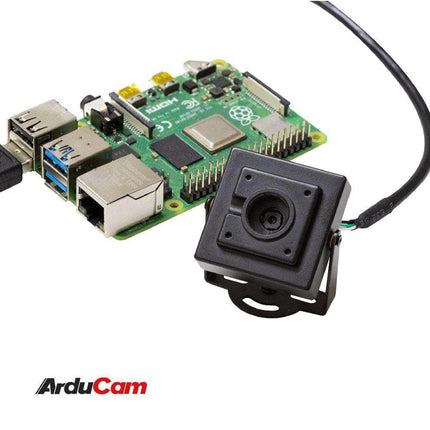

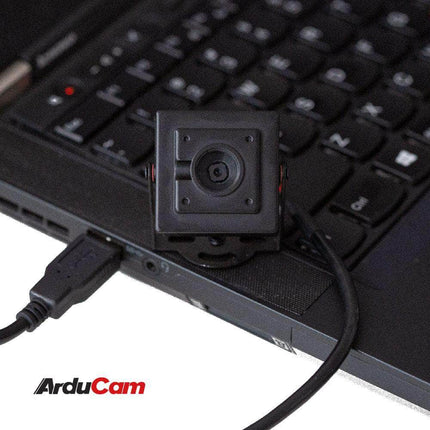

    • Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
    • Applications: Comes with a metal case and rotatable bracket, this mini-sized camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision applications which demand high resolution.

     Specification

    Camera

    - Sensor: 1/2.8” IMX298

    - Resolution: 16MP 4656H x 3496V

    - Data Format: MJPG/YUY2

    - Frame Rate:
    MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720;
    YUY2 10fps@1024x768/800x600/640x480

    Lens

    - Field of View (FOV):H= 60°

    - Focusing Range: 100mm to infinity

    - IR Sensitivity: Integral IR filter, visible light only

    Functionality and Compatibility

    - Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

    - System Compatibility: Windows, Linux, and Mac with UVC

    Power

    - Power Supply: DC 5V

    - Working Current: MAX 200mA

    Physical

    - Operating Temp.: -4°F~158°F (-20°C~+70°C)

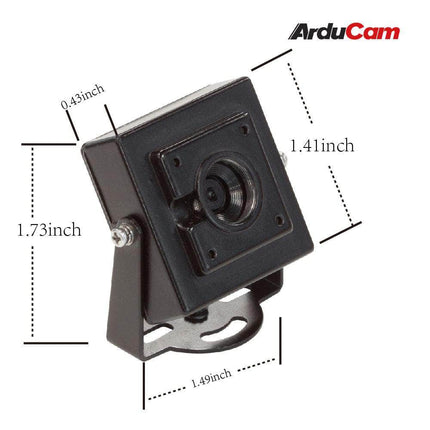

    - Dimension: 38mmx38mmx44mm

    - Cable Length: 3.3ft (1M)

    Documentation

    Manual

    Datasheet
