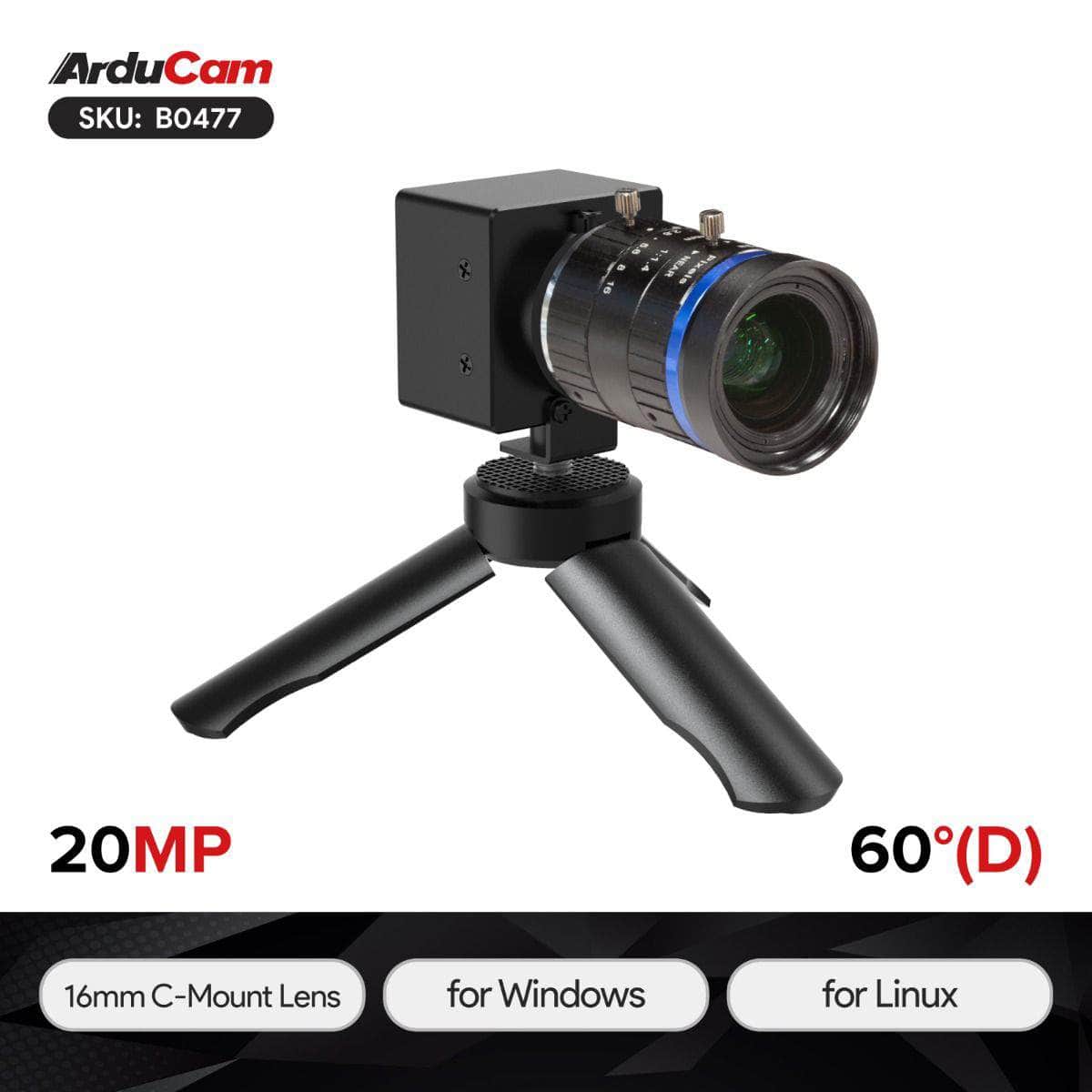

    Arducam 20MP IMX283 USB 3.0 Camera 16mm C-Mount Lens B0477

    Arducam IMX283 USB 3.0 camera equipped with a 1-inch IMX283 CMOS. It achieves astonishing image clarity at a max resolution of 5472x3648. This camera offers programmable frame rates, providing the flexibility to reach up to 120fps at 720p resolution for dynamic video capture.

    The camera features an onboard ISP and center-weighted exposure. This intelligent combination ensures uncompromised output in uncompressed YUY2 format. The camera's 16mm C-mount lens, boasting a 60° FOV, guarantees telephoto excellence, capturing scenes with precision and detail.

    Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

    Applications

    • Machine Vision
    • Video Surveillance
    • 3D Scanning and Metrology
    • Live Streaming
    • Video Conferencing

    Features

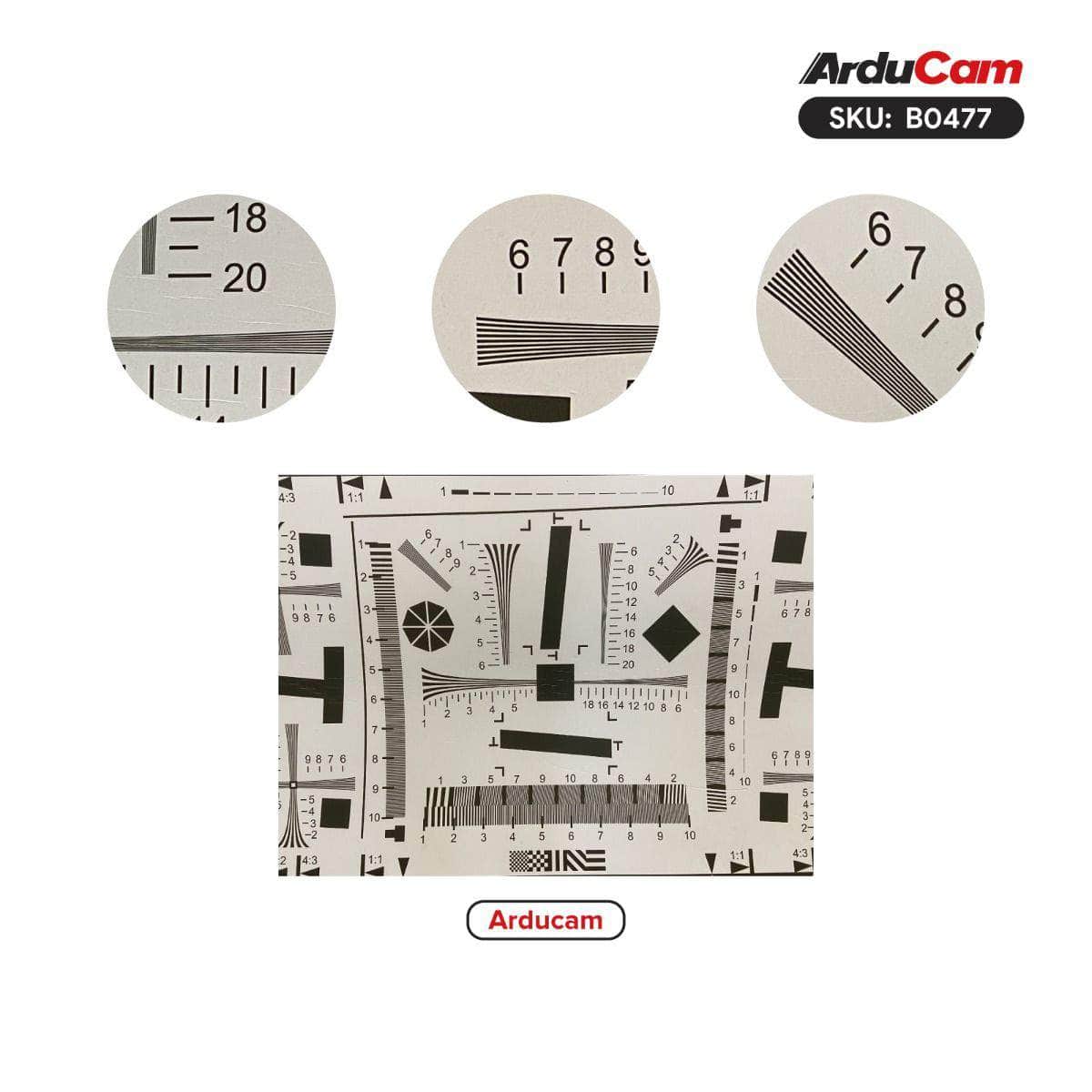

    • Superior Imaging: Utilizing a 1-inch IMX283 CMOS sensor, achieve sharpness at max still resolution 5472x3648.
    • Flexible Frame Rates: Program your desired frame rates, even reaching 120fps at 720p.
    • Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
    • Telephoto Precision: Capture brilliance with a 16mm C-mount lens offering a 60° DFOV.
    • Plug and Play: Encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity.

    Specifications

    Image Sensor
    SENSOR IMX283
    Still Resolution 20 Megapixels
    Colour Filter Type Colour
    Shutter Type Rolling
    Optical Size 1"
    Output Format YUY2
    Pixel Size 2.4 µm x 2.4 µm
    Sensor Active Area 5496(H)×3672(V)
    IR Sensitivity Integral IR-cut Filter, visible light only
    Frame Rate (USB 3.0) 1280×720@120fps, 1920×1080@60fps, 2720×1536@40fps, 3840×2160@20fps, 5472×3648@9fps
    Frame Rate (USB 2.0) 1280×720@10fps

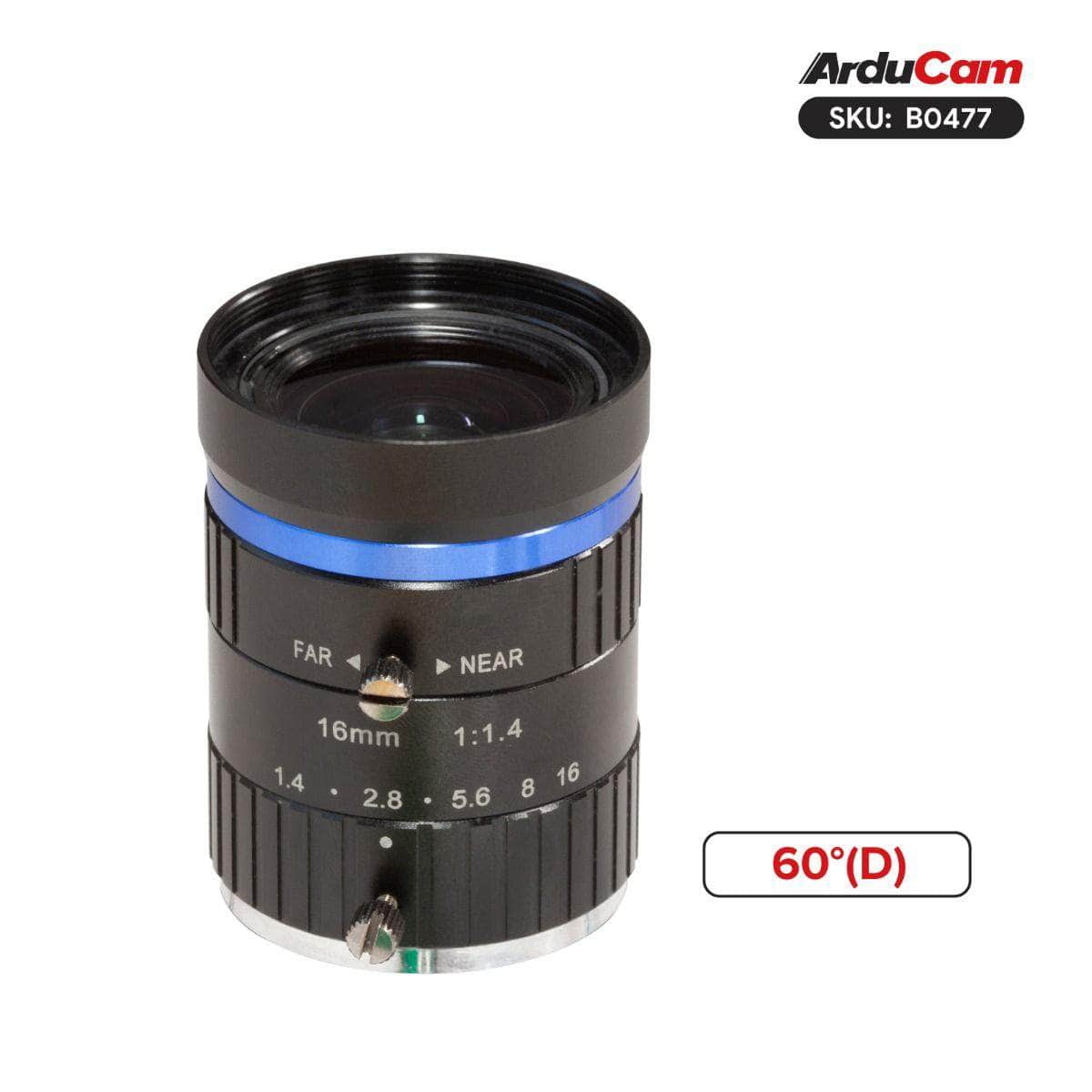

    Lens
    Focus Type Manual Focus
    FOV 60°(D)×49°(H)×38°(V)
    Lens Mount C-Mount
    F.NO F1.4-16
    E.F.L 16mm
    Default Focus Range 5m-∞
    IR Sensitivity Integral IR-cut Filter, visible light only
    USB Interface
    Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts

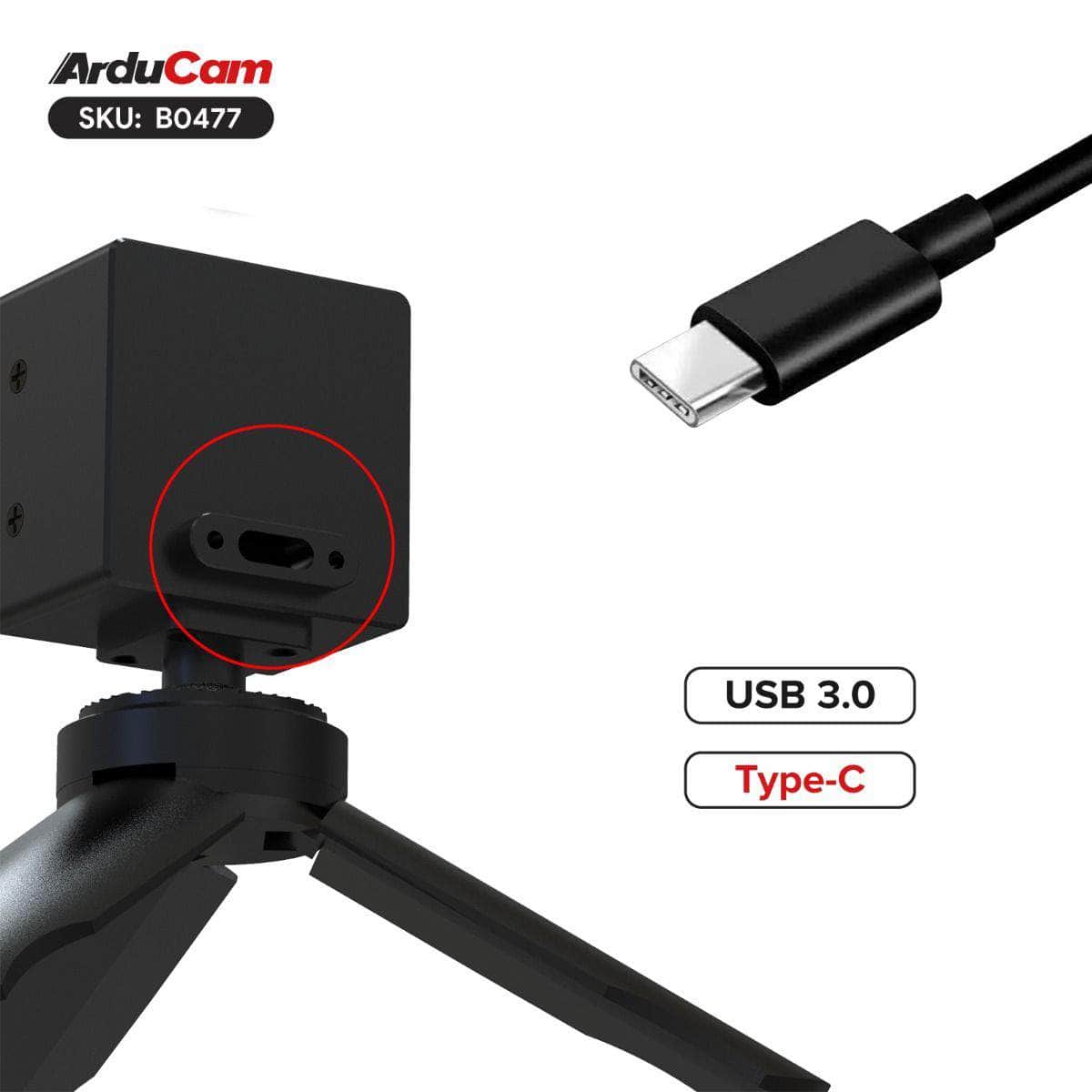

    Connector Type-C reversible interface connector
    UVC Compliant No additional drivers required
    Electrical and Mechanical
    Operating Voltage 5 V +/- 5%
    Operating Temp. 32°F-158°F (0°C to 70°C)
    Power Requirements Max: 1.38W , Min: 0.75W
    Camera Board Size 34×34 mm
    Functionality and Compatibility

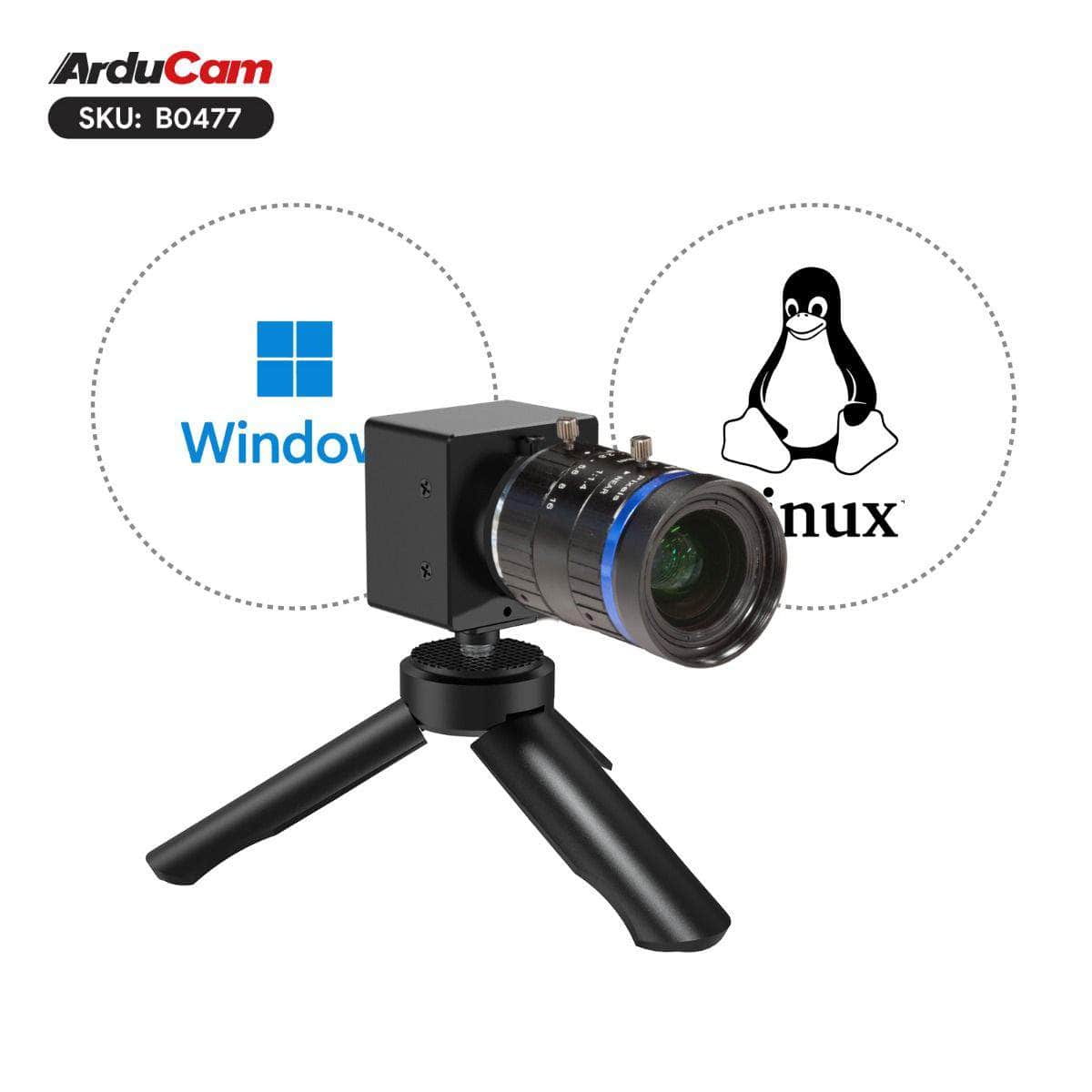

    Supported OS Windows, Linux
    Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux
    UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain,  Exposure (Manual/Auto)


    Package Including

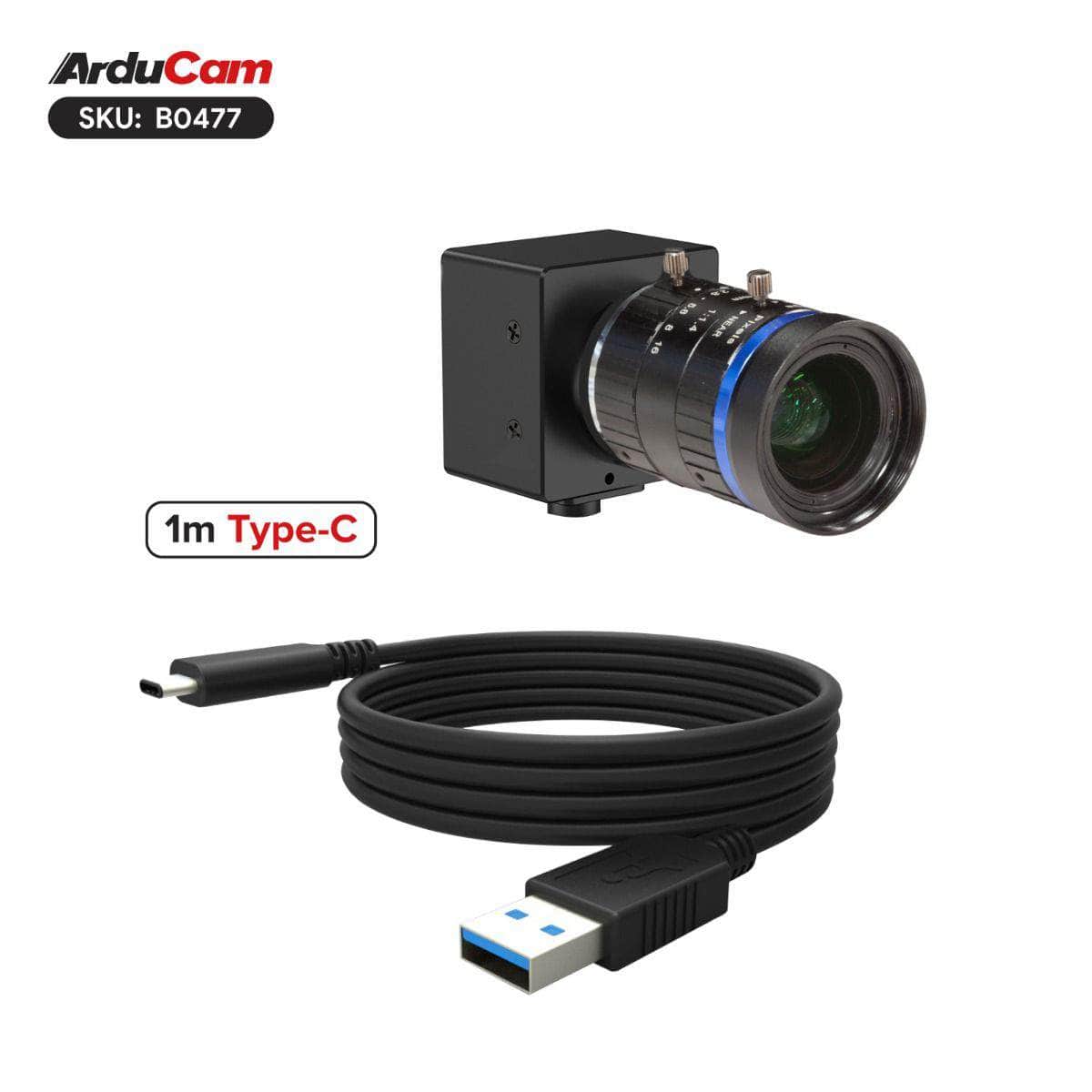

    • 1 x IMX283 USB3.0 Camera Module with Metal Case
    • 1 x 1m USB A to Type-C Cable

    Notes

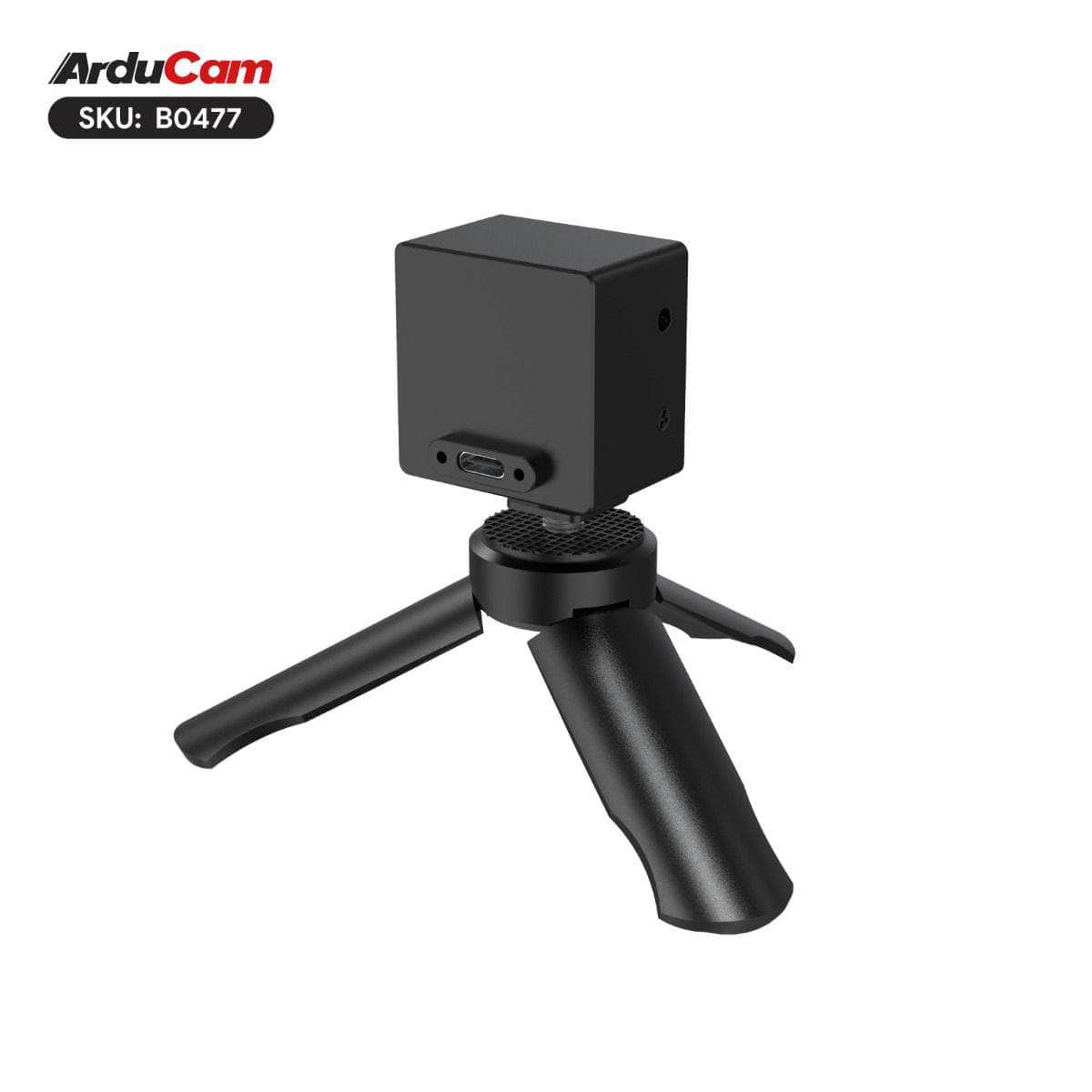

    • Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
