Arducam 5MP Synchronized Stereo Camera Bundle Kit for Raspberry Pi (B0195S5MP)

  • $135.00
  • Save $15
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

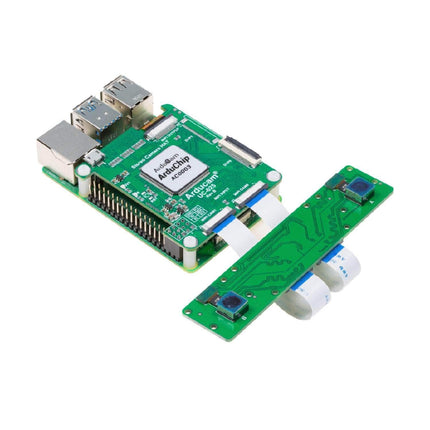

    Arducam 5MP Synchronized Stereo Camera Bundle Kit for Raspberry Pi (B0195S5MP)

    Arducam released a stereo camera HAT for Raspberry Pi which allows you to connect two 5MP OV5647 or two 8MP IMX219 pi cameras to a single standard pi board, and takes images or video at the same time, even more important they are fully synchronized. The highlight of this stereo camera HAT is that it incorporates Arducam proprietary ArduChip solution, and extends the usage of the single pi camera port, it cheats the Raspberry pi as if only one camera connected. It supports Raspistill command for preview and Raspivid command for video capture/processing with Rpi default camera driver for its 5MP and 8MP cameras.

    It also supports other Arducam Raspberry Pi cameras and proprietary camera driver that works up to two 16MP. With the shared oscillator and I2C broadcasting, the two cameras are fully synchronized in the nano-second level. With the latest new coming Pi 4 hardware, Arducam makes more camera applications possible for Raspberry Pi.

    Combined with the stereo camera board, you are no need to modify your current Raspberry Pi V1.3 or V2 camera board with solder iron and hot air gun.

    Features

    • Support all series Raspberry Pi boards, Pi HAT board style
    • Two MIPI camera inputs and one MIPI camera output
    • Support 1, 2 and 4 lane MIPI cameras input up-to 800Mbps/lane
    • Support 2 lane MIPI output
    • Support Raspistill (preview) and Raspivid (processing) commands for 5MP/8MP pi cameras with half resolution combine
    • Support Arducam RPI cameras up to 16MP with proprietary camera driver with full resolution combine
    • Support camera side-by-side combine, channel 0 and channel 1 software switching on the fly
    • Support digital pan in half resolution combine, programmable pan speed control
    • HAT size: 65 x 56 mm

    Application

    Note

    • Contact us for other platform support

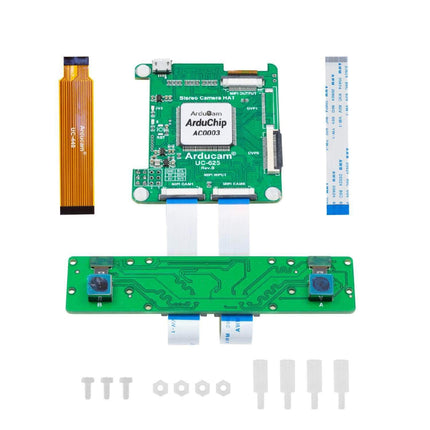

    Package Includes

    • 1pcs Arducam Synchronized Stereo Camera HAT for Raspberry Pi
    • 1pcs 5MP Arducam Stereo Camera Board
    • 3pcs Arducam 80mm 22pin Ribbon FPC flat Wire Cable
    • 1pcs Arducam 73mm 15pin to 22pin Ribbon FPC flat Wire Cable
    • 4pcs M2.5*11mm Nylon Hex Standoffs
    • 4pcs M2.5 Nylon Nuts
    • 3pcs M2.5*6mm Nylon Screws
