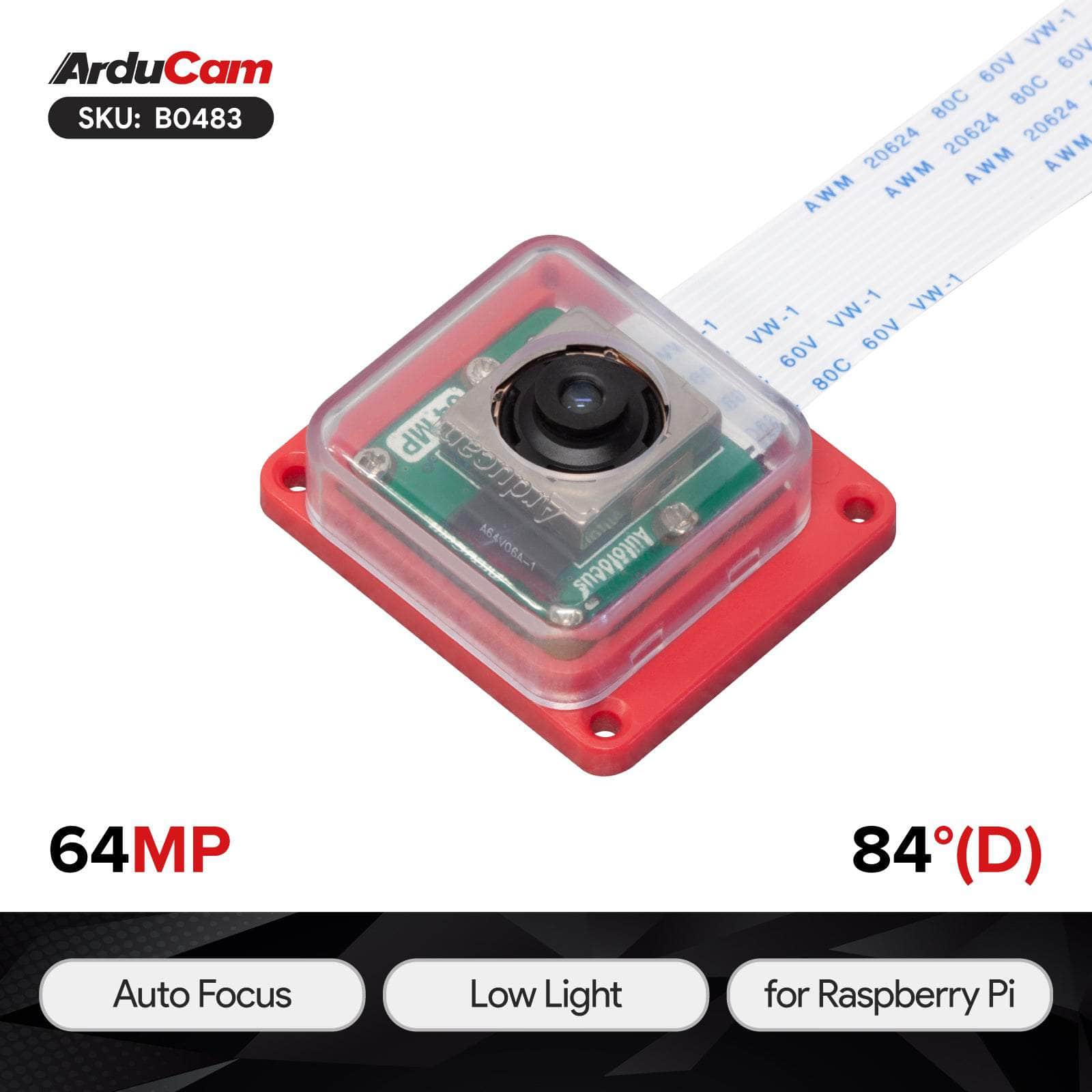

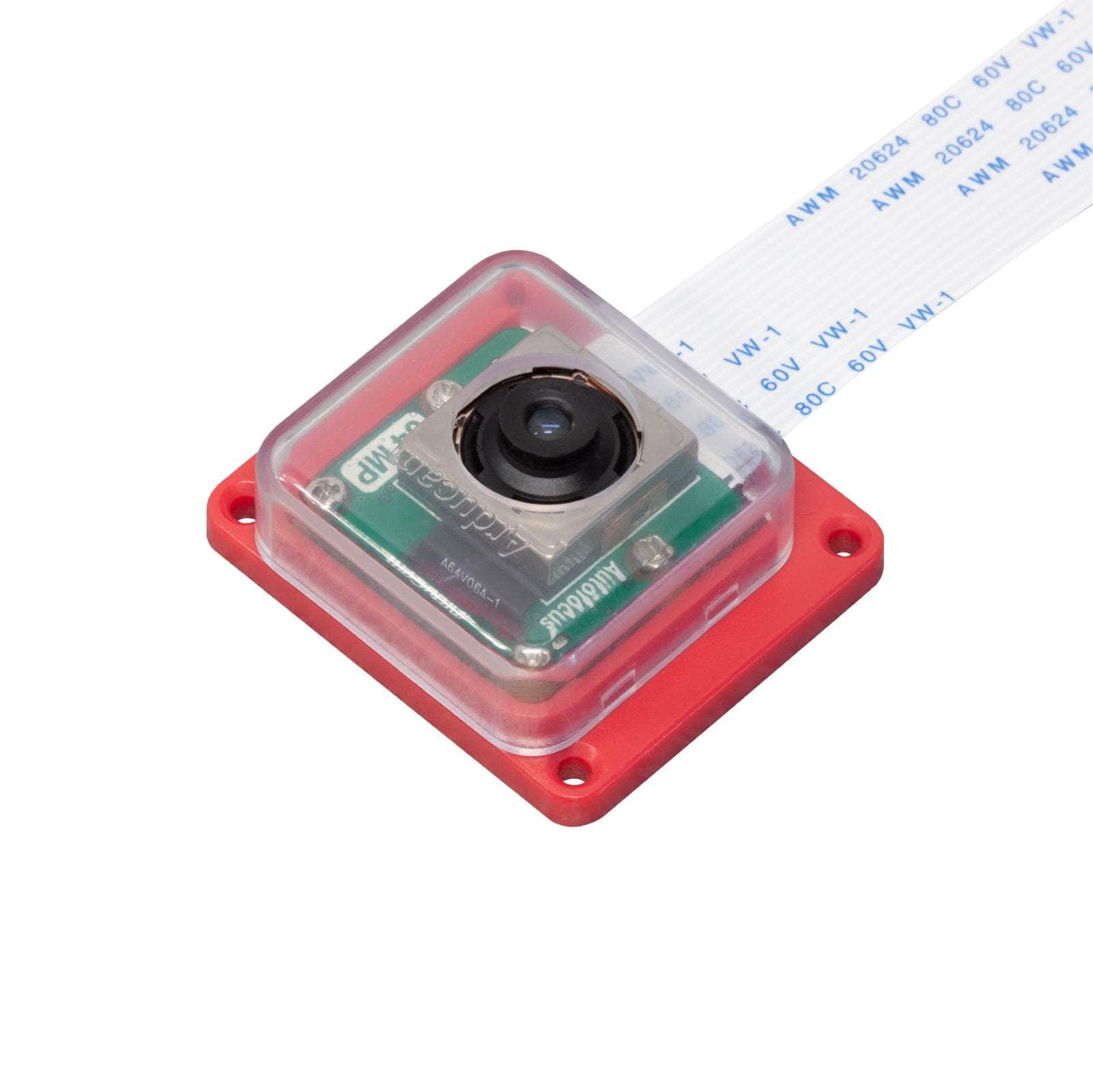

Arducam 1/1.32" 64MP Auto Focus Camera Module for Raspberry Pi B0483
Arducam's latest 64MP camera sets new standards with the largest sensor size available for Raspberry Pi cameras, boasting an impressive resolution of 9248 x 6944 pixels. Additionally, it supports an impressive 10x digital zoom, allowing for flexibility in framing and capturing subjects at varying distances. What's more, the product boasts a maximum exposure value of 900s at maximum resolution. This sensor size empowers exceptional light-sensitive performance, even in complex lighting conditions.
This camera offers seamless compatibility with libcamera, delivering a hassle-free experience for Raspberry Pi users.
The camera presents a variety of focus options, including auto-focus, manual focus, and continuous focus. Whether you require meticulous control over focus or prefer a hands-off approach, this camera can cater to your specific needs.
Applications
- Wildlife Photograph
- Machine Learning
- Home Security System
- AI applications
- DSLR Camera Control
Features
- Libcamera Ready: Easy setup with native libcamera support.

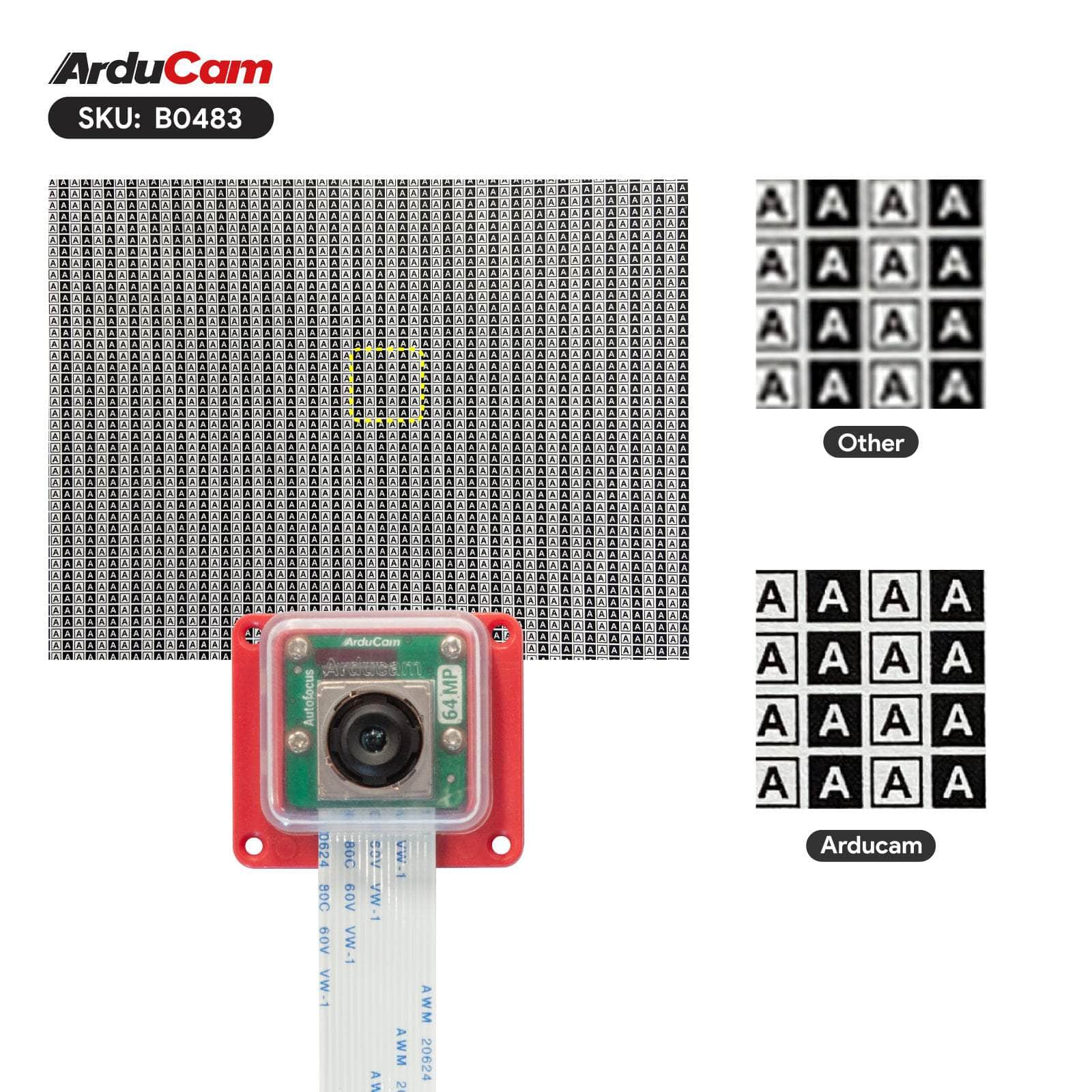

- Largest Sensor, Superb light sensitivity: Massive 9248×6944 sensor excels, ideal for night shots.
- 64MP & 10x Digital Zoom: High-resolution 64MP and 10x digital zoom for impeccable detail.

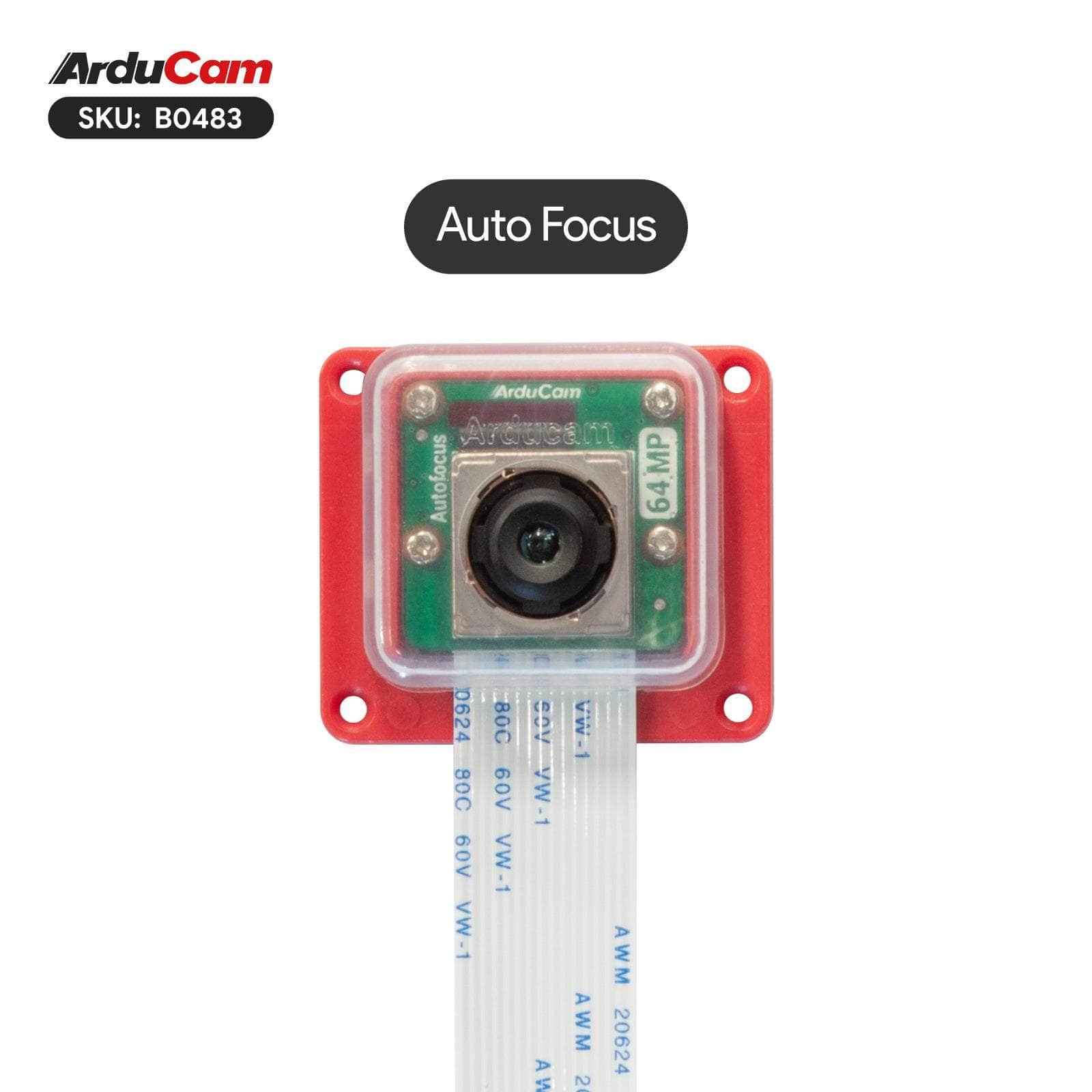

- Flexible Focus Choices: Auto, manual, and continuous focus options for diverse environments.

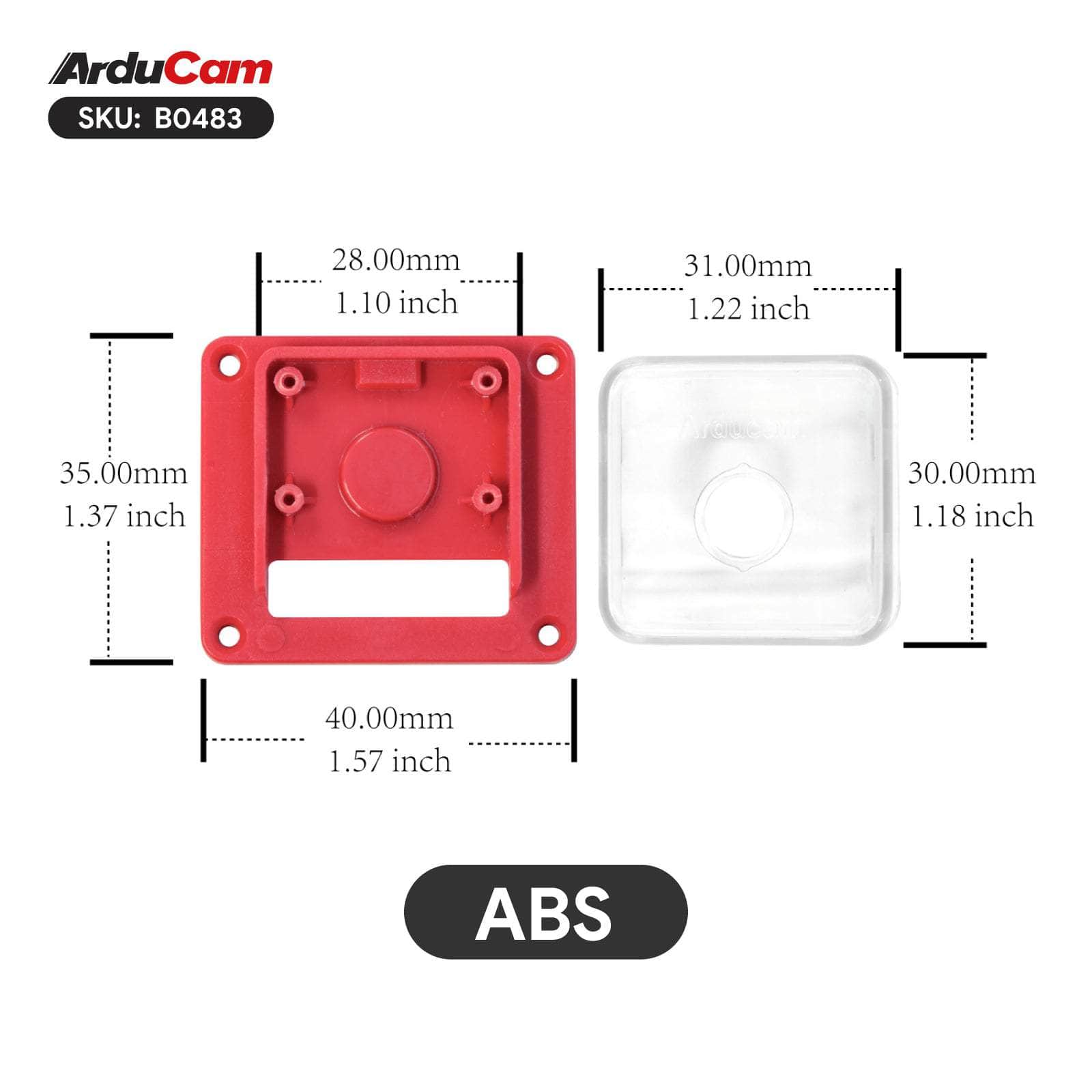

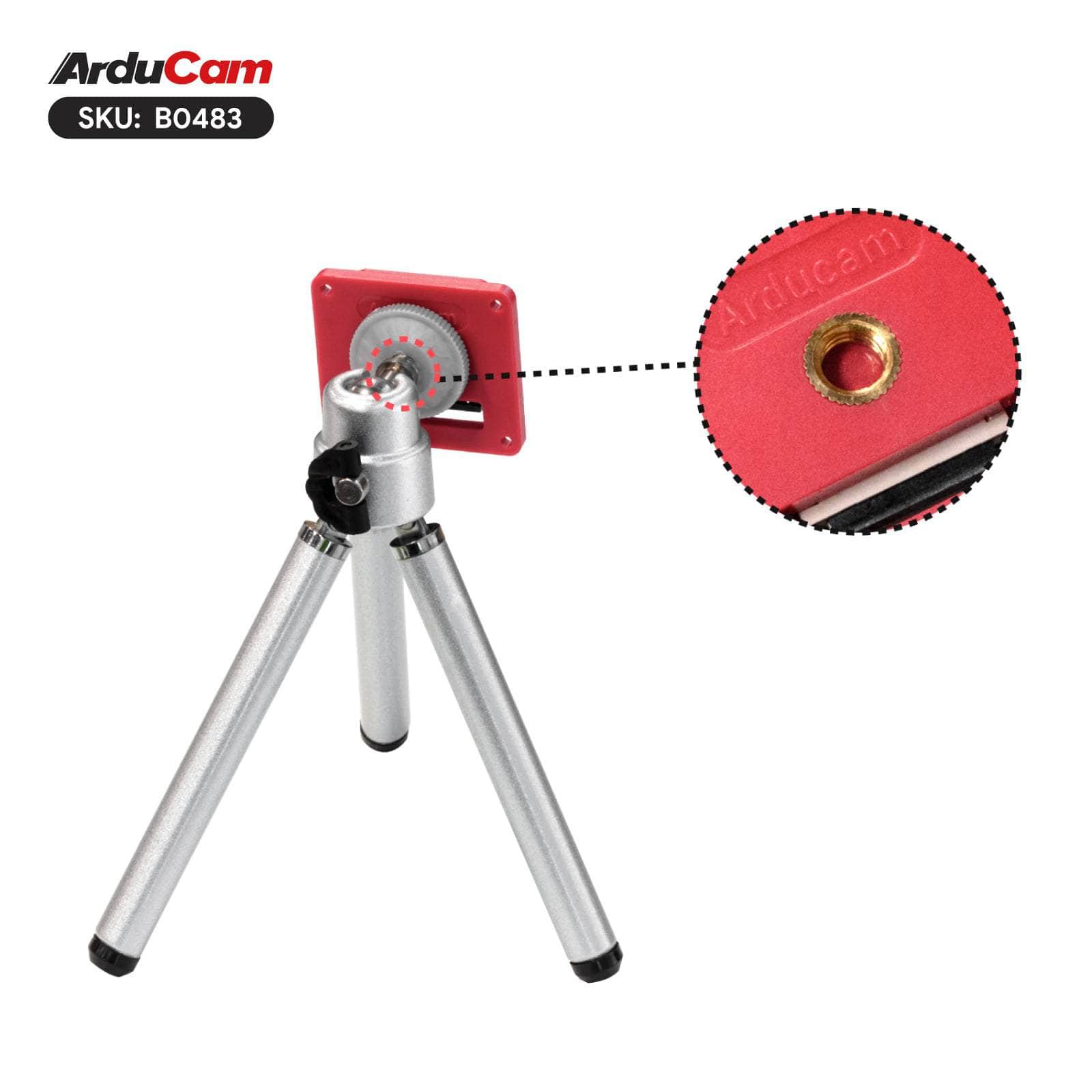

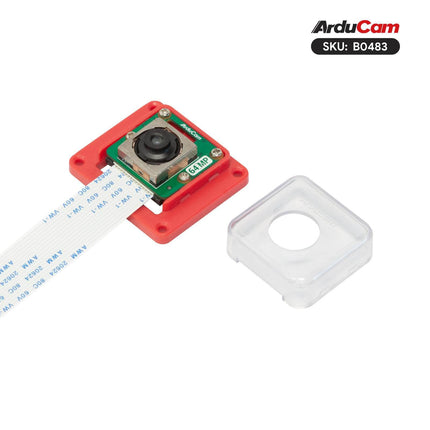

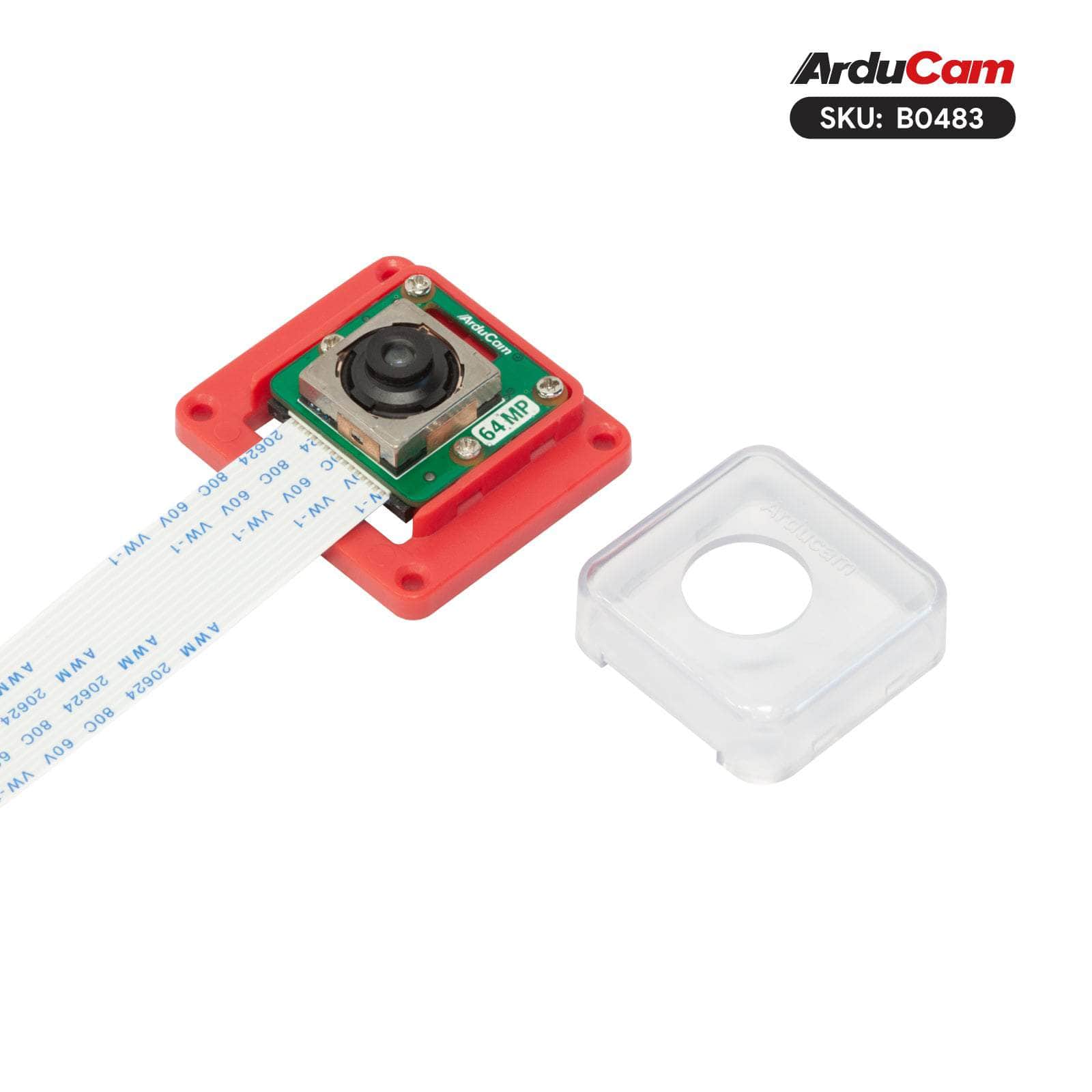

- Compact & Compatible Design: Small 24x25mm size with ABS case, and tripod (UB0224) compatibility for seamless use.
Specifications
| Image Sensor |
| Image Sensor |
OV64A40 |
| Still Resolution |
64 Megapixels |
| Color Filter Type |
Color |
| Shutter Type |
Rolling |
| Optical Size |
1/1.32" |
| Pixel Size |
1.008 µm x 1.008 µm |
| Sensor Active Area |
9248(H)×6944(V) |
| Output Format |
JPEG/YUV/RGB/RAW10 |
| Video Modes (on Raspberry Pi) |
1080p30,720p60 and 640×480p60/90 |
| Video Modes (Camera Module) |
9152×6944@2fps, 8000×6000@2.5fps, 4624×3472@7.6fps, 3840×2160@14.8fps, 2312×1736@26.7fps, 1920×1080@45fps. |
| IR Sensitivity |
Integral IR-cut Filter, visible light only |
| Lens |
| Focus Type |
Manual/Auto |
| Focal Length |
6.65mm |
| F.NO |
F1.9 |
| Field of View (FOV) |
84°(D)×68°(H)×56°(V) |
| Lens Mount |
Stock Lens |
| Default Focus Range |
12cm~∞ |
| Electrical and Mechanical |
| Power Requirements |
3.3V/300mA |
| Camera Board Size |
25×24 mm |
| Functionality and Compatibility |
| Supported OS |
Raspberry Pi OS (bookworm) |

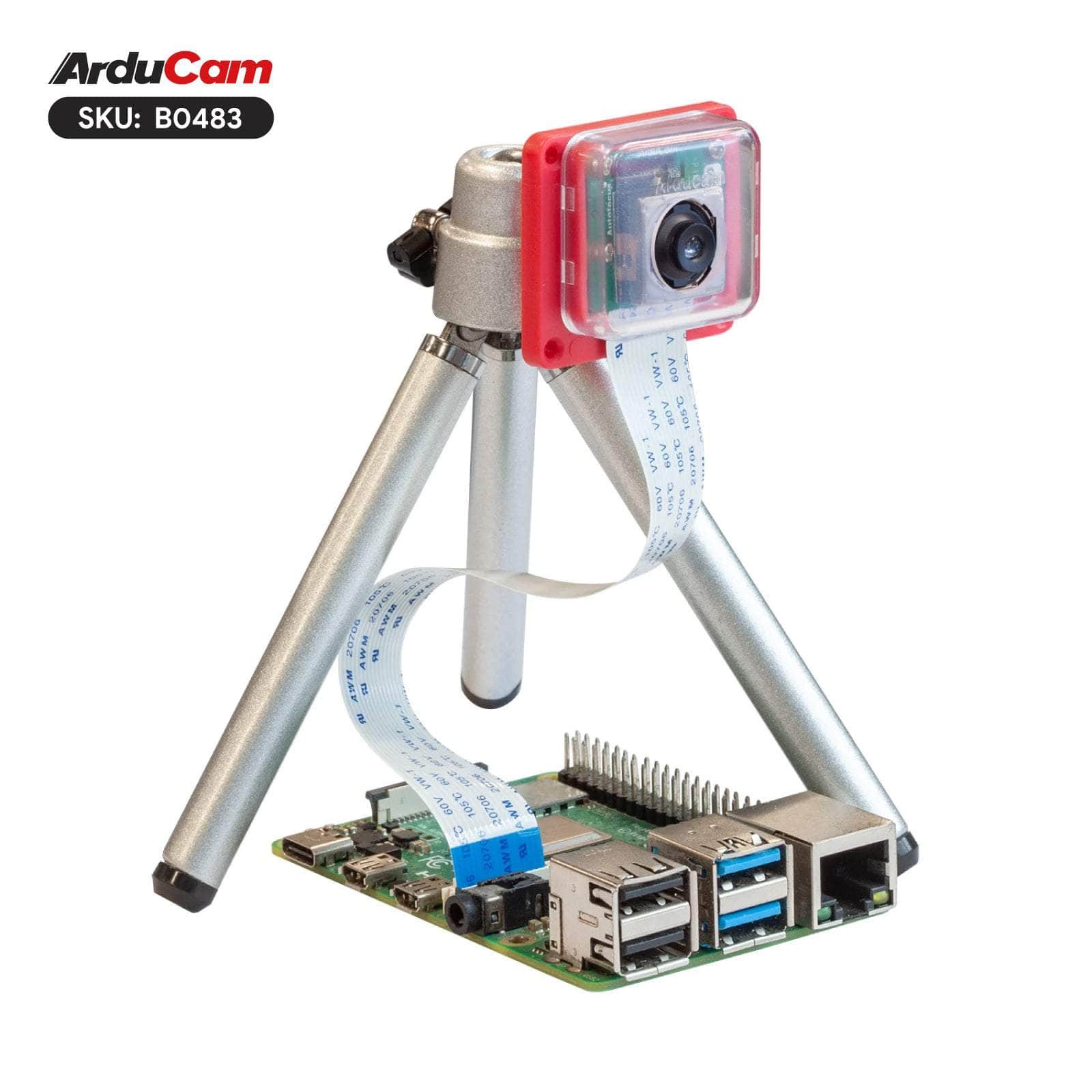

| Supported Platforms* |
Raspberry Pi 5/4B/3B+/3/2/CM3/CM4
/Zero W/Zero 2 W
|
*Raspberry Pi 2/3/Zero W may not be able to enable maximum resolution due to RAM, please make sure your platform has RAM greater than or equal to 1G. Capturing maximum resolution on the Pi 4 and CM4 may be impacted by CMA, which can be fixed by switching the GUI mode to terminal mode.

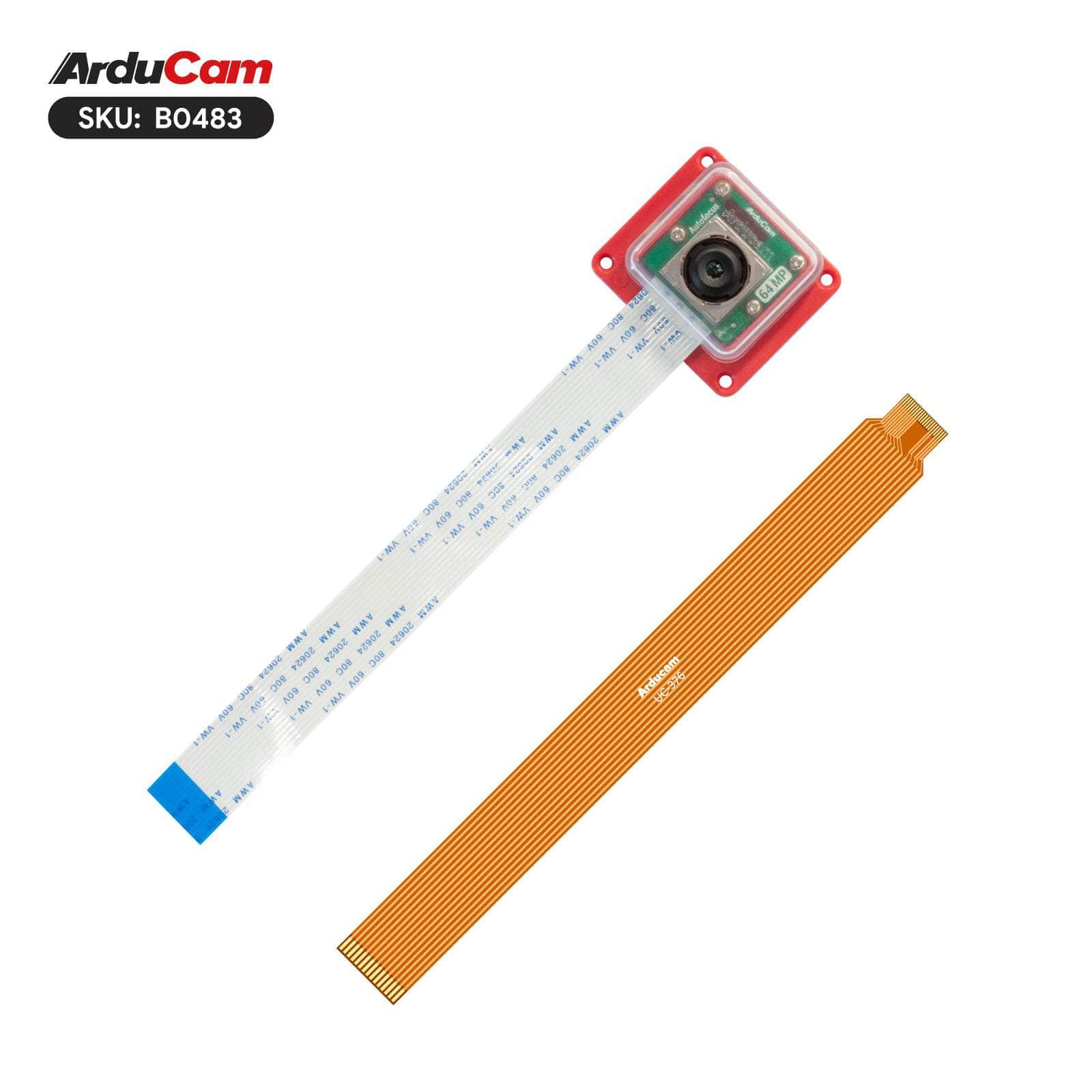

Package Including
- 1 x 64MP Camera Module
- 1 x 15cm 15-22pin FPC
- 1 x 15cm 15-15pin FFC
