Arducam 12.3MP 477M MINI Wide Angle Camera for Raspberry Pi B0303R
Arducam 12.3MP 477M MINI Wide Angle Camera for Raspberry Pi B0303R
IMX477 camera modules have high resolution. But most IMX477 cameras generally have larger camera boards and larger lenses. In order to make the IMX477 camera more flexible and space-saving, we have developed this camera based on the 477M image sensor. The 477M and IMX477 have exactly the same optical size and pixels, and the frame rate at different resolutions is also the same. We equipped a 1/2.3 inch 6p lens on this basis. The camera board is about 24x25mm, which is the size of the Raspberry Pi v1/v2 camera board. Through the specially equipped lens and 477M sensor, we have achieved the compatibility of high pixels and tiny sizes.
Applications
- DSLR Camera Control
- Time-lapse Machine
- Security System
- Smart Video Doorbell
- Face Recognition
- Instant (Polaroid-Style) Camera, etc.
Specifications
Image Sensor | Sony IMX477 |
Optical Format | 1/2.3''(diagonal 7.857mm) |
Resolution | 12.3MP |
Active Pixels | 4072(H)x3176(V) |
Pixel Size | 1.55um x 1.55um |
Frame Rates | 4072x3176@30fps, 1920x1080@60fps, 480x640@90fps |
Shutter Type | Rolling Shutter |
Interface | 2-lane MIPI CSI-2 |
Lens Type | 1/2.3inch 6p |
Lens Focus Length | 2.75mm |
F.NO | 2.8/±5% |
Distortion | <-14.6% |
Focus Type | Fixed Focus |
Field of View(FOV) | 120°(D) |
IR Sensitivity | Integral IR-cut filter, visible light only |

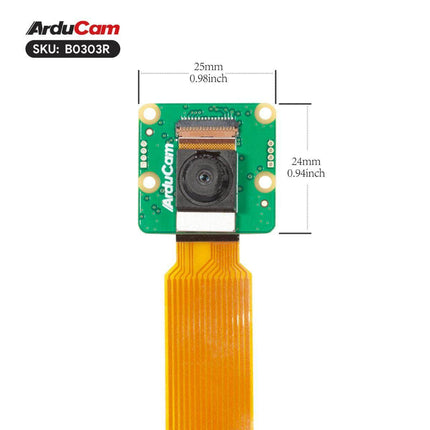

Camera Board Size | 24mm x 25mm |
Peak Current | 300mA |
Package Including

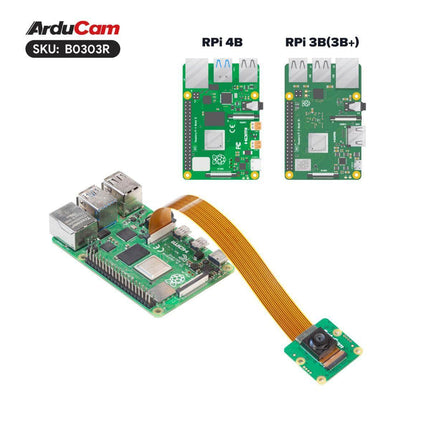

- 1 x 12.3MP 477M Camera Module for Raspberry Pi
- 1 x 150mm 15pin to 22pin flex cable
Note
- Raspberry Pi board is not included in the package
- This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users, contact us at sales@arducam.com
