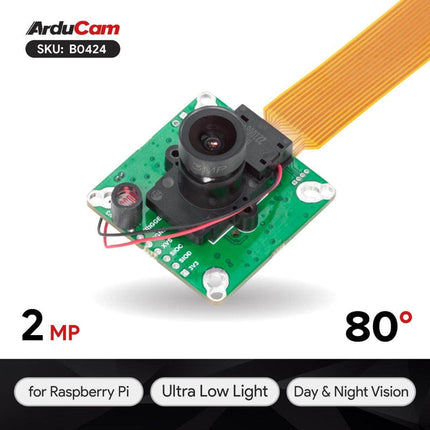

Arducam 2MP Ultra Low Light STARVIS IMX290 Motorized IR-CUT Camera B0424
Arducam 2MP Ultra Low Light STARVIS IMX290 Motorized IR-CUT Camera B0424
The camera uses the Sony Low Light STARVIS IMX290 sensor which is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 million effective pixels. The chip uses analog 2.9 V, digital 1.2 V, and interface 1.8 V. This highly sensitive low-light camera can capture extremely sharp images with minimal noise at extremely low light conditions. It features low power consumption and high functionality. It can achieve high sensitivity, low dark current and no smear. The sensor applies R, G, and B primary color mosaic filters, as well as a variable electronic shutter.
Applications
- Surveillance cameras
- FA cameras
- Industrial cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Features
- Input frequency: 74.25 MHz / 37.125 MHz
- Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
- Maximum frame rate in Full HD 1080p mode: 30 fps
- Wide Dynamic Range (WDR) function: Multiple exposure WDR, Digital Overlay WDR
- 10-bit/12-bit A/D converter
- CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output
Specifications
| SENSOR | SONY STARVIS IMX290 |
|---|---|
| Optical Size | Type 1/2.8'' (Diagonal 6.46 mm) |
| Pixel Size | 2.9μm×2.9μm |
| Shutter Type | Rolling Shutter |
| Number of the Active Pixels | 1920x1080 |
| Color Filter | Bayer RGB |
| Frame Rates | RAW10:1920x1080@46fps;1280x720@90fps RAW12:1920x1080@46fps;1280x720@90fps |

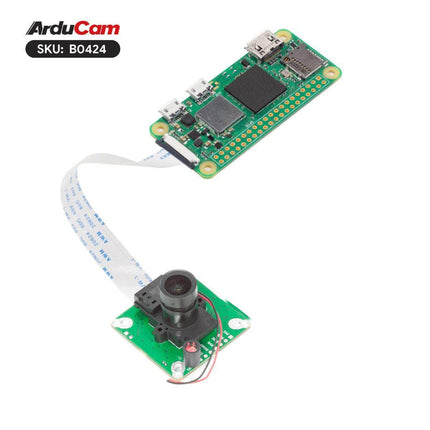

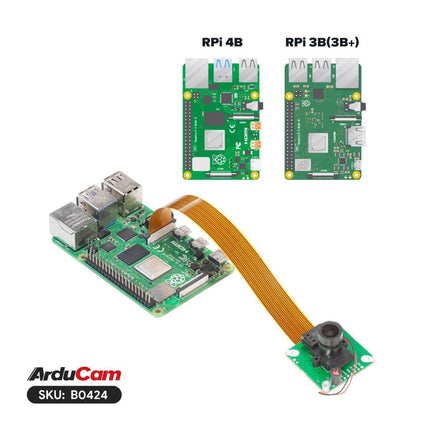

| Supported Platform | Pi 4/3/Zero/CM3/CM4 |
| Output Format | RAW10/RAW12 |
| Focus Type | Manual Focus |
| Lens Mount | M12 Mount |
| F.NO | 1.6±10% |
| Effective Focal Length | 4.3±5%mm |
| MOD. | 2.0 |
| Back Focal Length | 5.43±0.2mm |
| Field of View(FOV) | 80°H |
| IR Sensitivity | Motorized IR-cut |

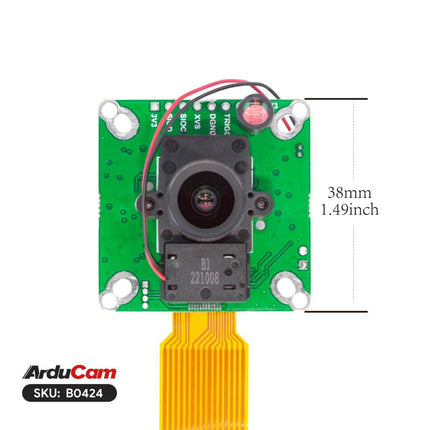

| Camera Board Size | 38mm x 38mm |
Comparison
Among the Sony STARVIS series sensors, IMX290, IMX462, and IMX327 are some of the more popular ones. Though they all belong to the STARVIS series, there are some differences between them. Please see the following table about the similarities and differences:
| Specifications | Sensor | ||
| IMX462 | IMX290 | IMX327 | |
| Mega Pixels | 2.10MP | 2.07MP | 2.07MP |
| Max Resolution | 1920x1080 | 1920x1080 | 1920x1080 |
| Optical Size | 1/2.8'' | 1/2.8'' | 1/2.8'' |
| Pixel Size | 2.9μm×2.9μm | 2.9μm×2.9μm | 2.9μm×2.9μm |
| G Sensitivity* | 10471 | 5486 | 10471 |
| Max Frame Rate | 120fps(sensor) | 120fps(sensor) | 90fps(sensor) |
| NIR Sensitivity(850nm)* | ~1 | ~0.5 | ~1 |
G Sensitivity*: Gravity sensitivity is an important indicator of camera performance in low light conditions. The higher the G sensitivity, the better is the low-light performance.
NIR sensitivity*:NIR imaging performance is one of the most crucial features for smart surveillance, smart traffic monitoring, and agricultural applications.
Package Including
- 1 x IMX290 Motorized IR-CUT Camera Module
- 1 x 150mm 15pin to 22pin flex cable
