Arducam CSI to HDMI Cable Extension Module with 15pin 80mm FPC Cable (Pack of 2)

  • $29.00
  • Save $10
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • Arducam CSI to HDMI Cable Extension Module with 15pin 80mm FPC Cable (Pack of 2)

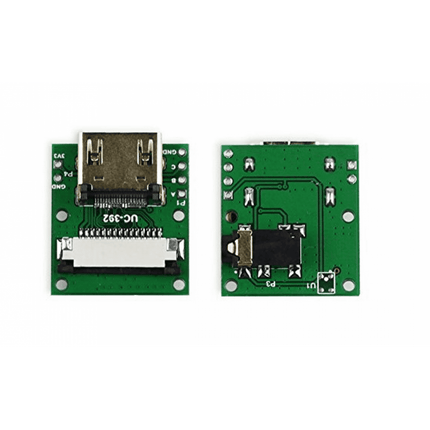

    The CSI-HDMI adapter board is designed for V1 and V2 Raspberry pi camera board to extend the camera over the long cables while keeping the high-speed CSI signals away from noise and interference.

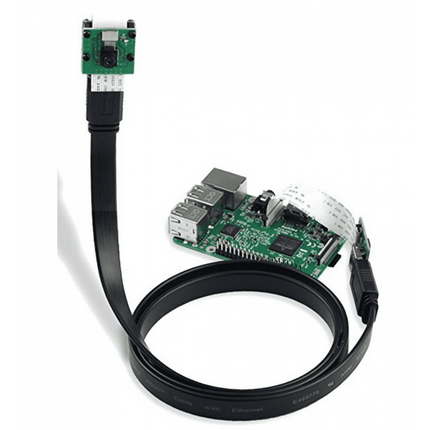

    By using a high-speed HDMI cable, the camera can run over 10 meters, that high extend the usage of the Raspberry Pi cameras.
    In addition, to extend the camera signal, the adapter board provides another 3 signals to be extended with the camera signals together via the headphone jack connector.
    It can be used to extend standard audio signals, GPIO signals or other sensor signals according to users need.
    If you need a longer and stronger cable with solid connections, it is the right thing for you.

    Features:

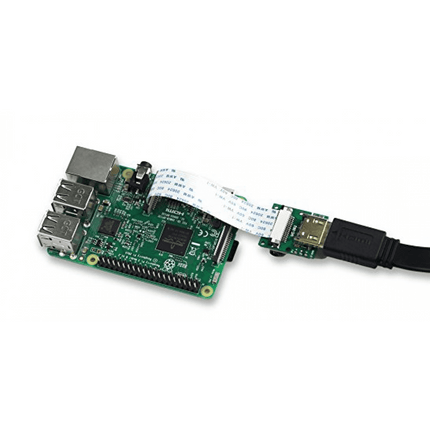

    • Supported for Raspberry Pi A/B/B+ boards or Raspberry Pi 2B board or Raspberry Pi 3B board

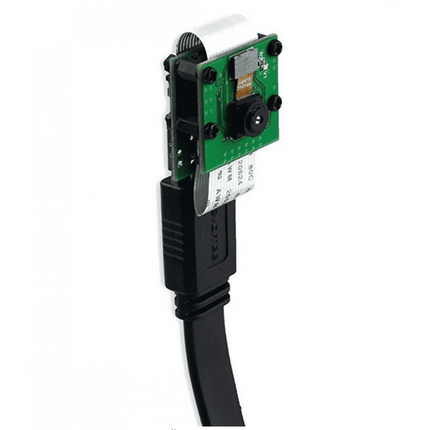

    • Supported for Raspberry Pi camera board V1 (5MP OV5647) or raspberry pi camera board V2 (8MP IMX219)
    • HDMI cables can be up to 10 meters (more than 10 meters wasn't tested)
    • Reserved microphone and headphone jack for audio or GPIO signals
    • Three additional solder pads are available (same signals as a headphone jack)
    • Size:27.63 x 25.00mm


    Package Including:

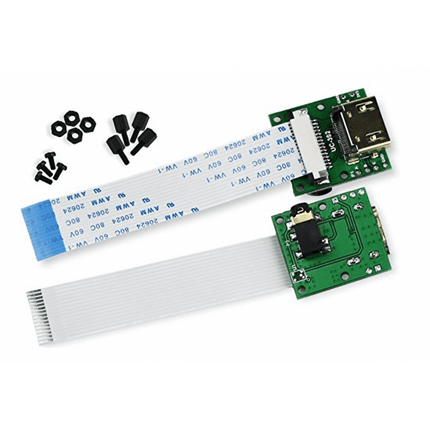

    • 2pcs Arducam CSI to HDMI Cable Extension Module
    • 2pcs 80mm 15pin FPC cable
    • 4sets M2 screw
