- Based on IMX219 CMOS

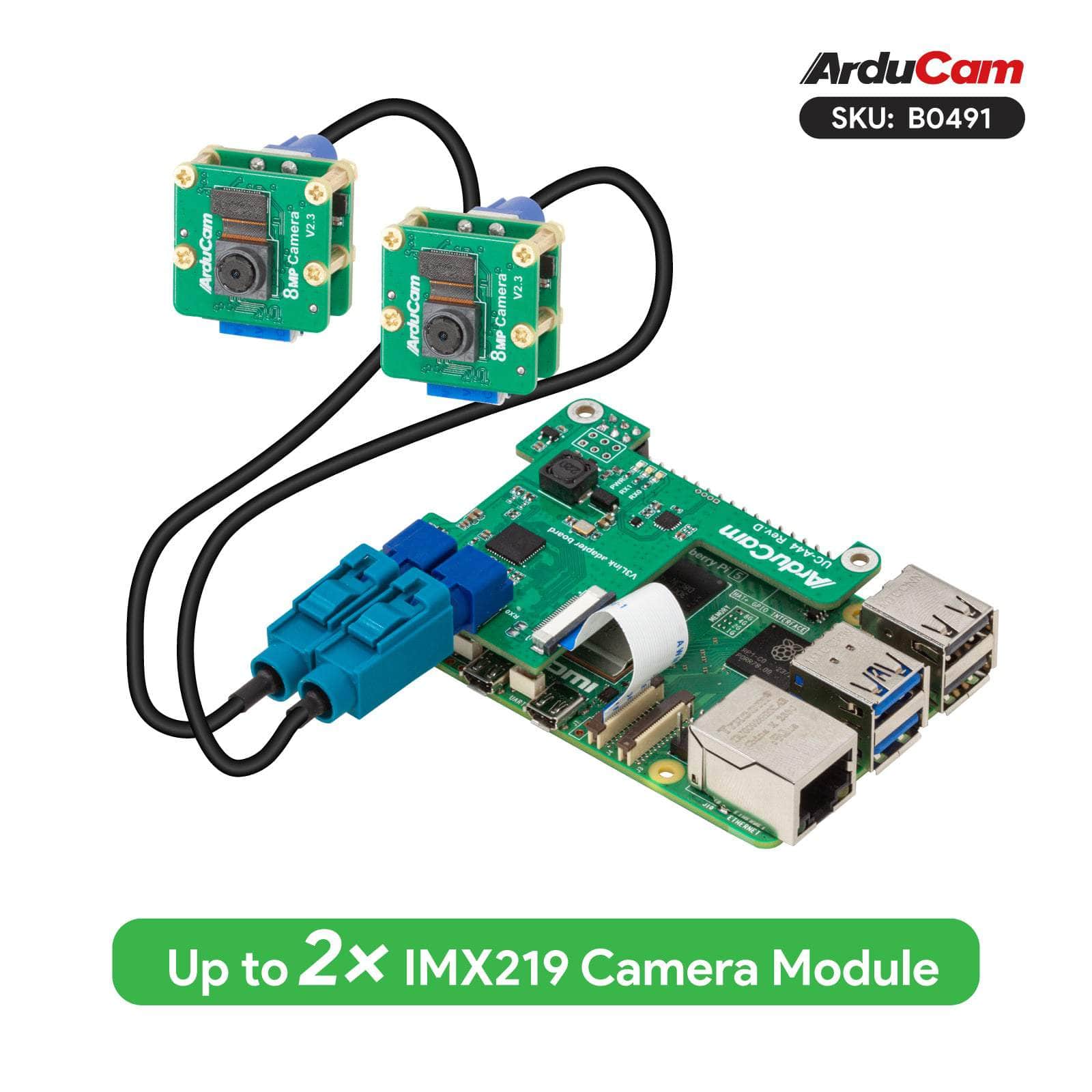

- Switch 2 cameras independently

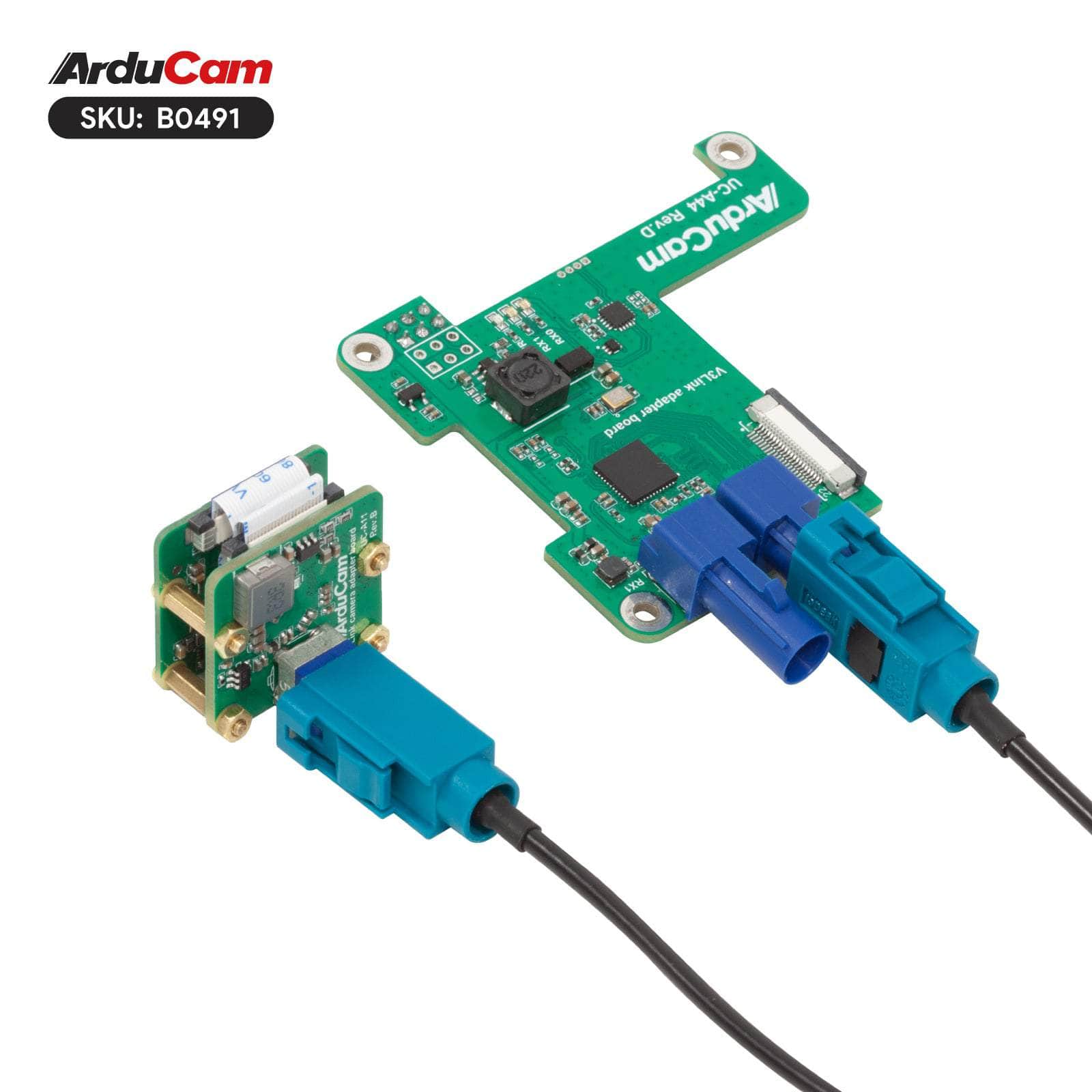

- Hot-swappable Tx board for quick V3LINK camera deployment with simple configuration.

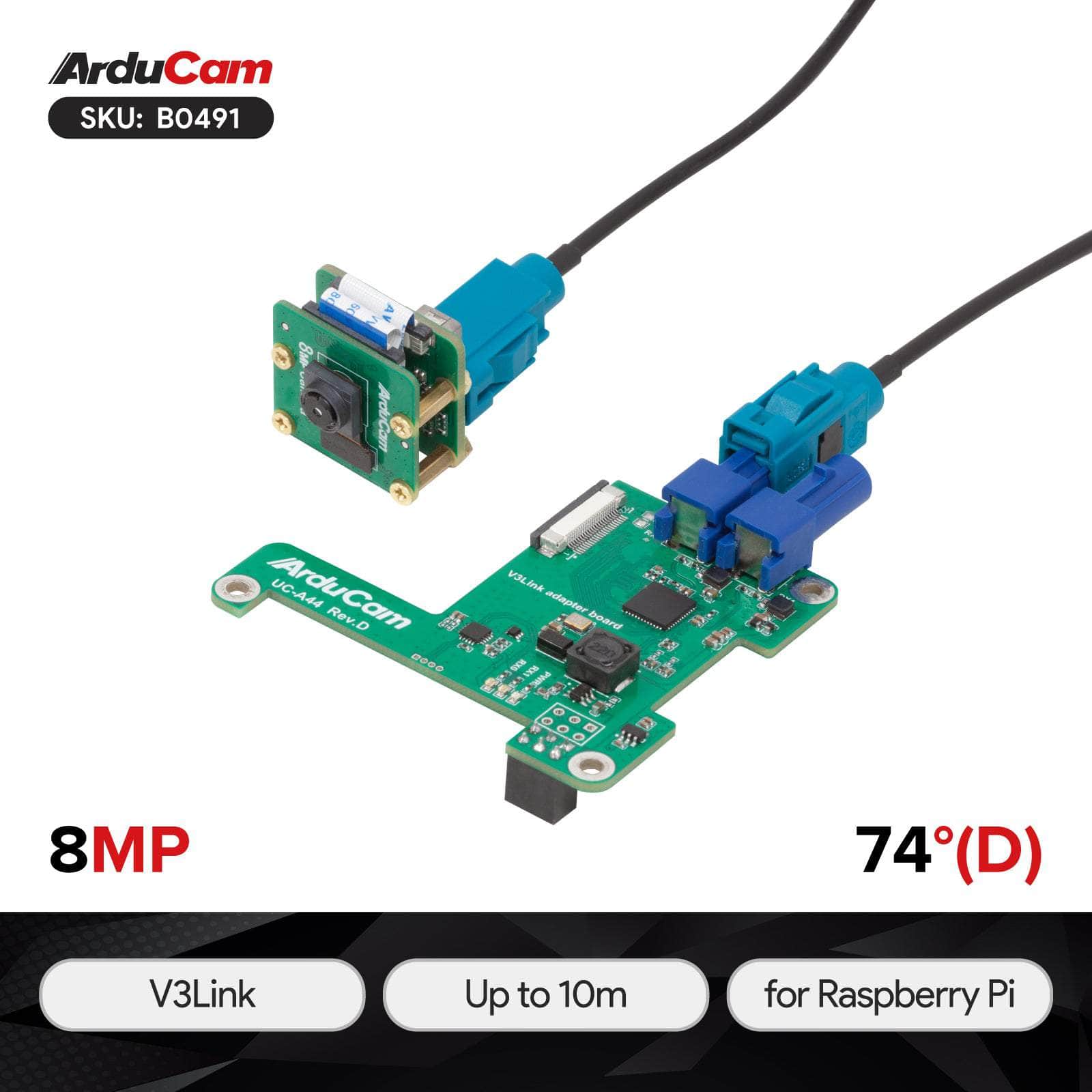

Arducam's V3Link camera kit boasts a Full HD IMX219 sensor following the V3Link protocol, ideal for high-bandwidth, extended-range projects. Shielded coaxial cable ensures reliable power and data transmission up to 10m, ensuring low latency for peak performance.

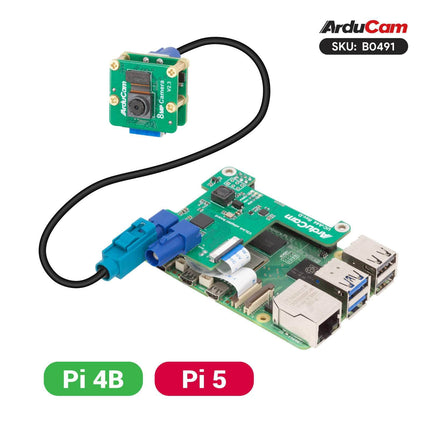

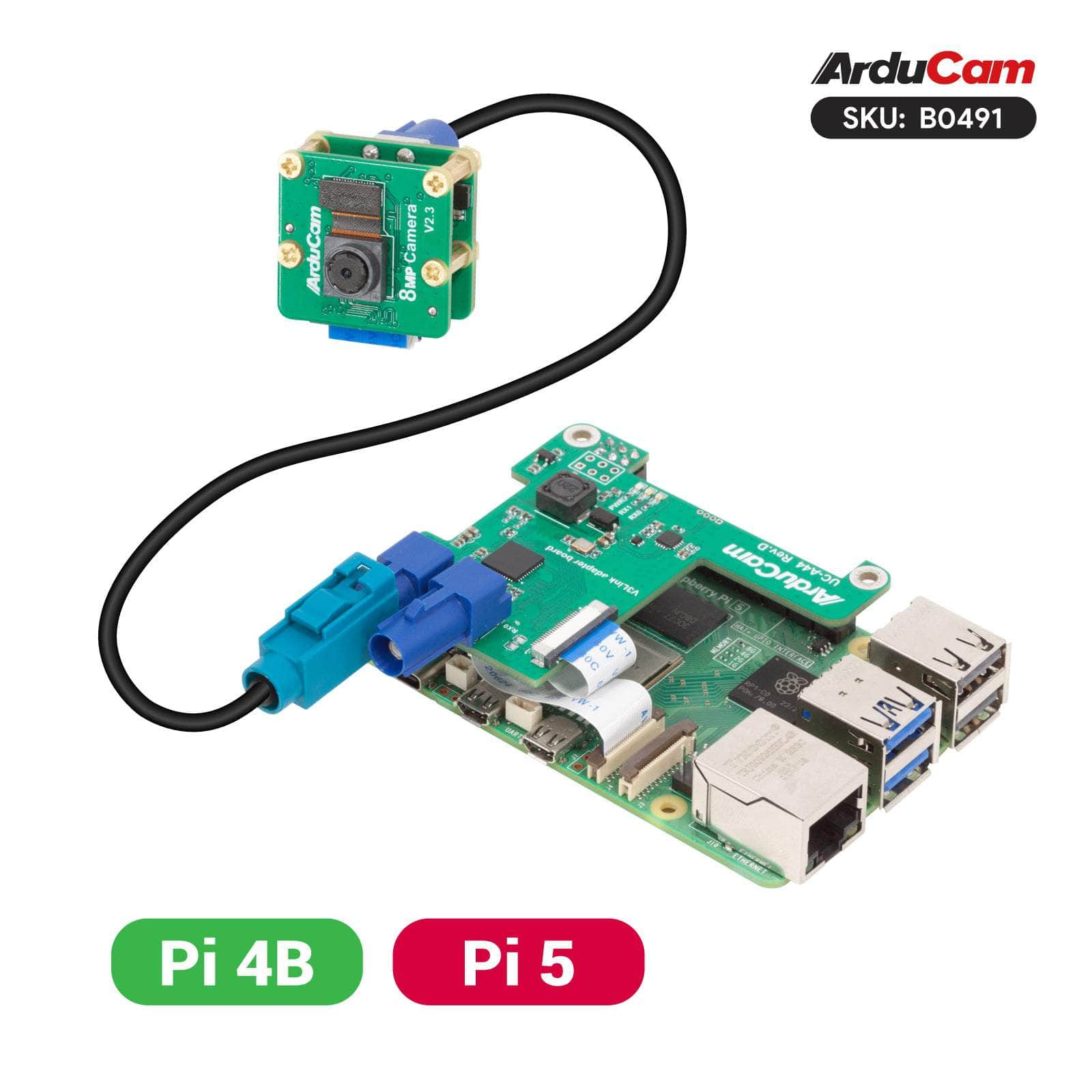

Seamlessly integrating with Raspberry Pi 4B and 5, Arducam’s V3Link kit requires no additional drivers or configuration, ensuring worry-free compatibility.
V3Link, a new technology by Texas Instruments, utilizes FPD-Link’s IP for ADAS, security cameras, industrial systems, and medical imaging. Paired with the Arducam camera kit, it harmonizes cutting-edge technology with a diverse range of vision projects.
Applications
- ADAS
- Automotive
- Security Cameras
- Industrial Systems
- Medical Imaging
Features
- Raspberry Pi Compatibility: Ideal for Pi 5 & 4B, our multi-camera solution ensures high bandwidth and long-range transmission.
- IMX219 CMOS Excellence: Achieve superior imaging with the 8MP sensor, and stable cable connections up to 10m for multi-camera.
- Adaptable Channel Management: Switch between 2 cameras independently for diverse applications, from automotive to medical imaging.
- Cost-Effective 2-Channel System: Cut development costs with 2-channel vision systems, perfect for compact deployments.
- Effortless Plug-and-Play: Simplify integration with our solution – no additional configuration or drivers are needed for fast deployment.
Specifications
| Image Sensor |
| Image Sensor |
IMX219 |
| Still Resolution |
8 Megapixels |
| Video Modes |
1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Sensor Resolution |
3280 × 2464 pixels |
| Sensor image area |
3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size |
1.12 µm x 1.12 µm |
| Optical Size |
1/4" |
| IR Sensitivity |
Integral IR-cut Filter, visible light only |
| Lens |
| FOCUS TYPE |
FIXED FOCUS |
| Focal Length |
3.04mm |
| F.NO |
F2.0 |
| Field of View(FOV) |
62.2°(H)×48.8°(V) |
| Lens Type |
Stock Lens |
| Focus Distance |
200mm to infinity |
| Electrical and Mechanical |
| CAMERA BOARD SIZE |
25 × 24mm |
| Peaking Current |
300mA |

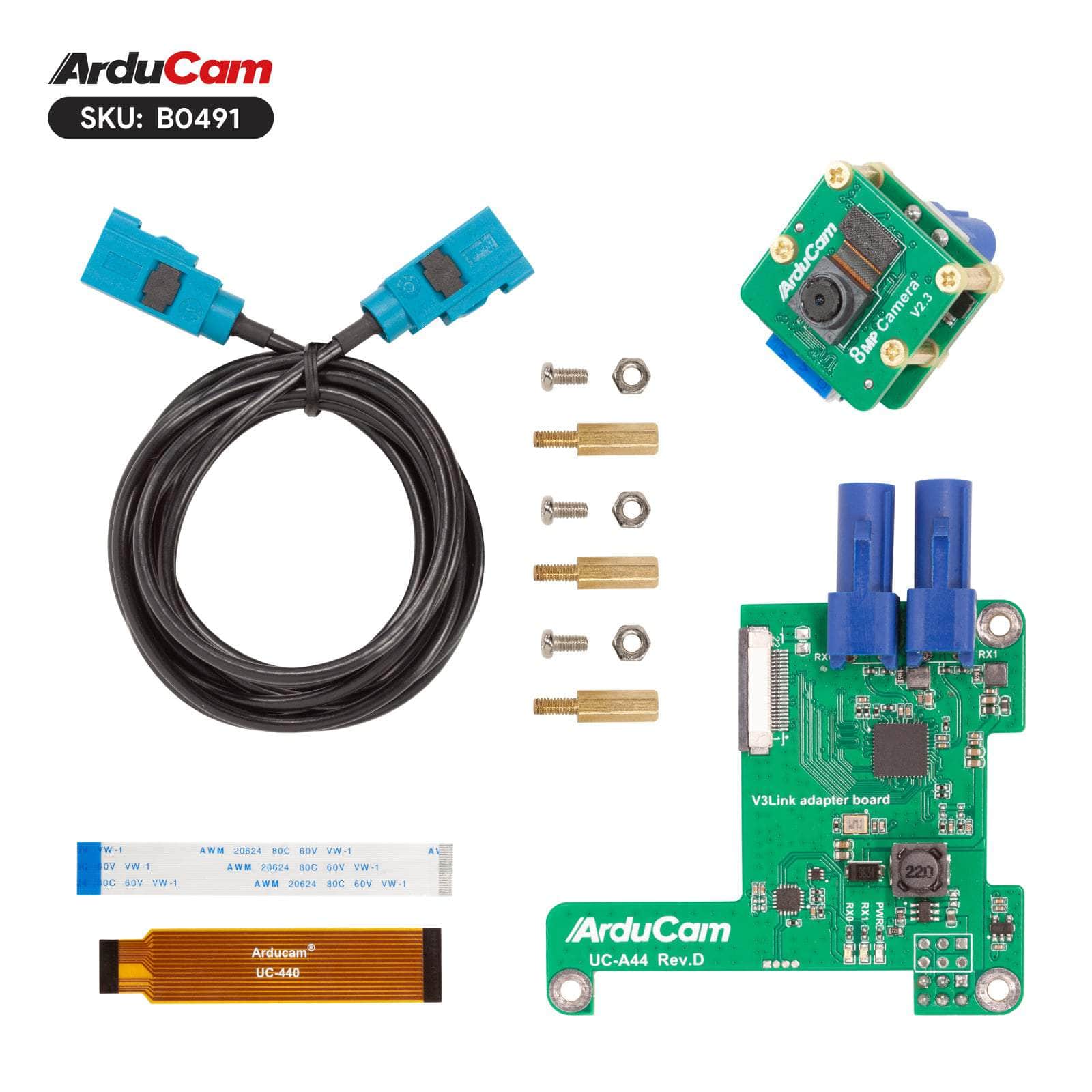

Package Including

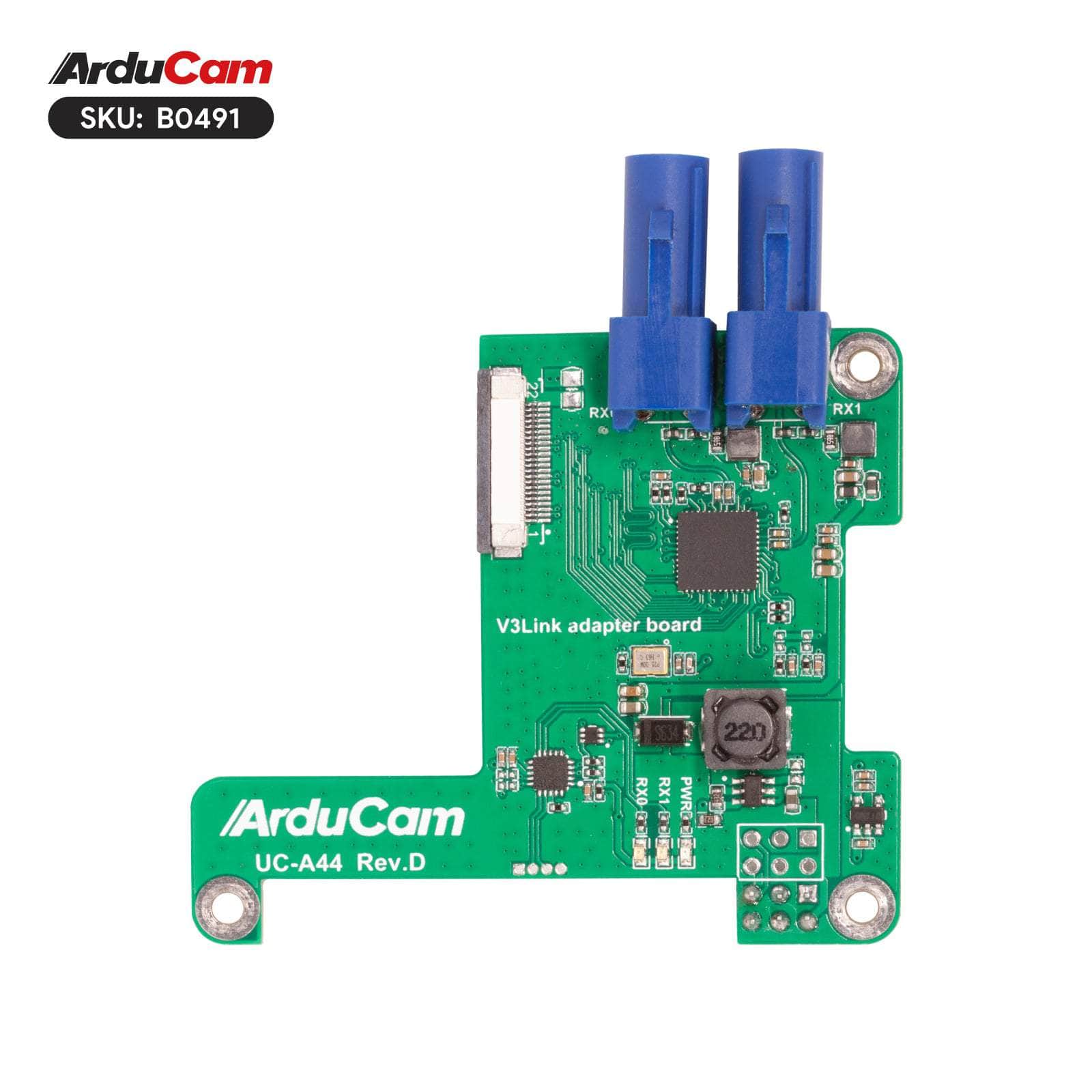

- 1× Arducam V3Link Rx board

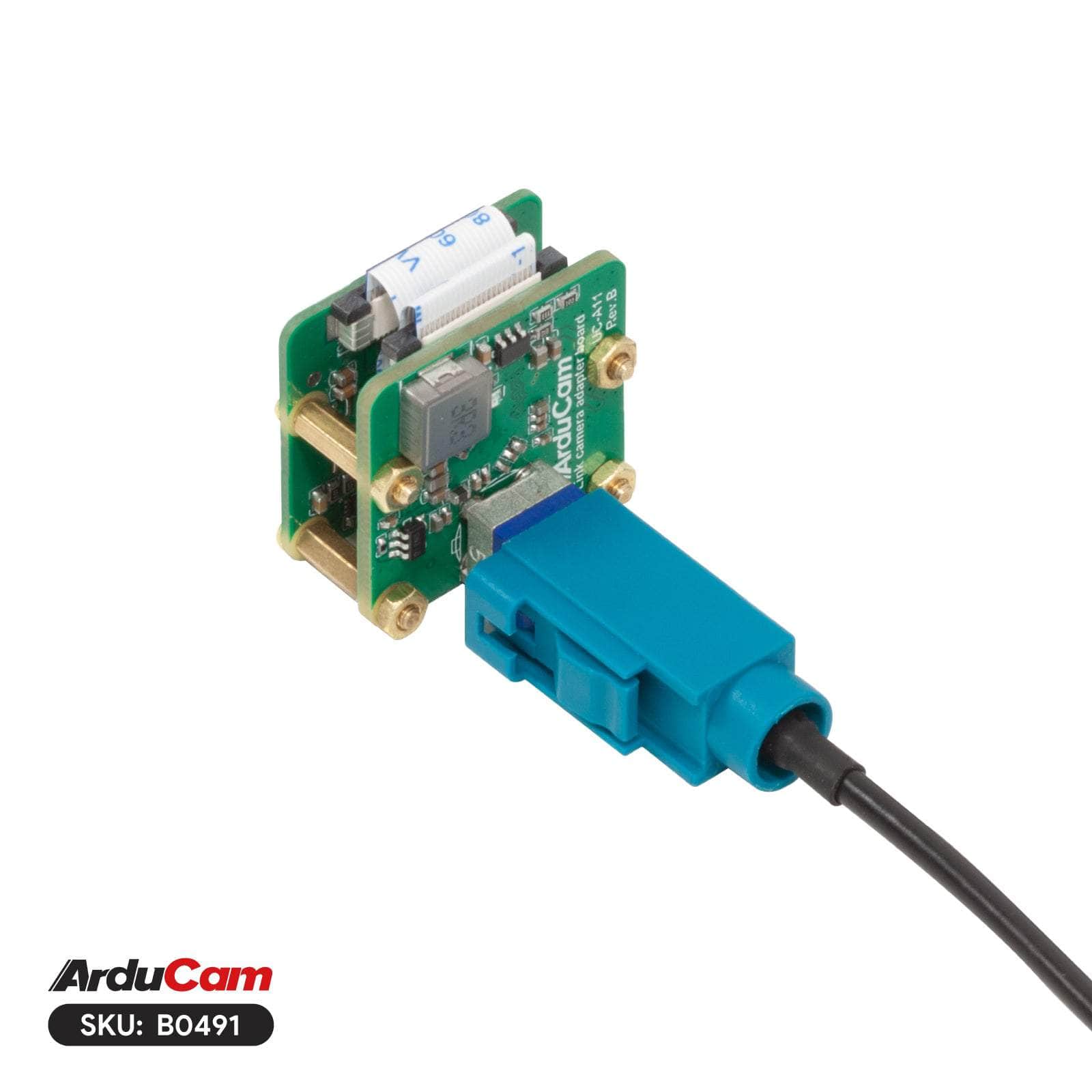

- 1× Arducam V3Link camera Tx board
- 1× 1m Fakra Z Female to Female RF Coaxial Cable

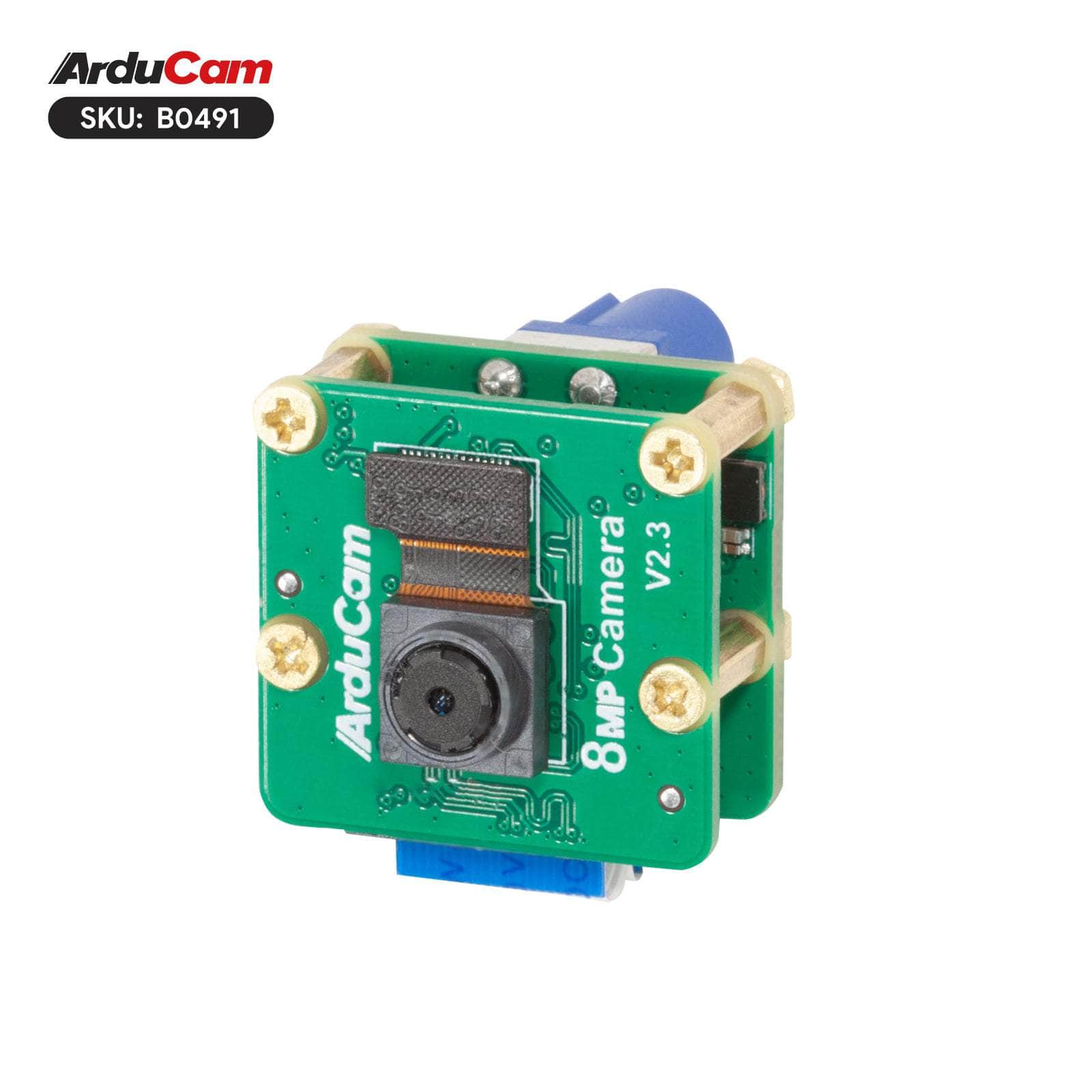

- 1× Arducam IMX219 Camera Module
- 1× 40mm 22-22pin FPC Cable
- 1× 80mm 22-22pin FPC Cable
- 1× 73mm 15-22pin FFC Cable
- 1× Screw Pack
Notes
- Raspberry Pi board is not included in the package.
- This kit includes IMX219 camera modules and cannot be mixed with other sensors.
- The kit currently only supports video streaming mode. Please wait for subsequent updates for the image capture function.
- When hot swapping is required such as switching cameras, please wait 2 seconds before reconnecting the camera.
- The V3LINK solution also supports other camera modules, please contact sales for more details.
