Arducam M12 Mount Lens Kit for Raspberry Pi and Arduino Cameras (LK001)

  • $169.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • Arducam M12 Mount Lens Kit for Raspberry Pi and Arduino Cameras (LK001)

    Includes the Lens Mounts

    In order to meet the increasing market demands for more lens options to address different use cases, Arducam selected and tested a wide range of M12 mount optimal lenses from long focus to fisheye for shooting on your Raspberry Pi or Arduino cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.

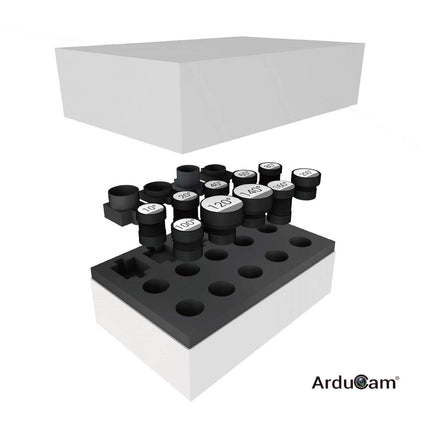

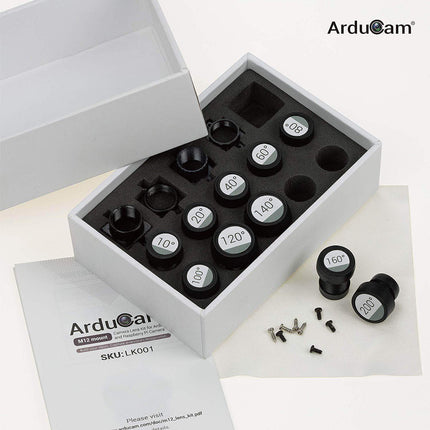

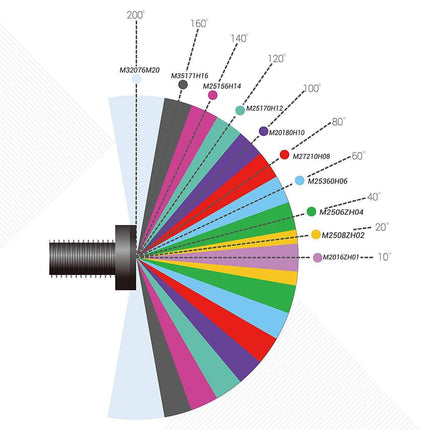

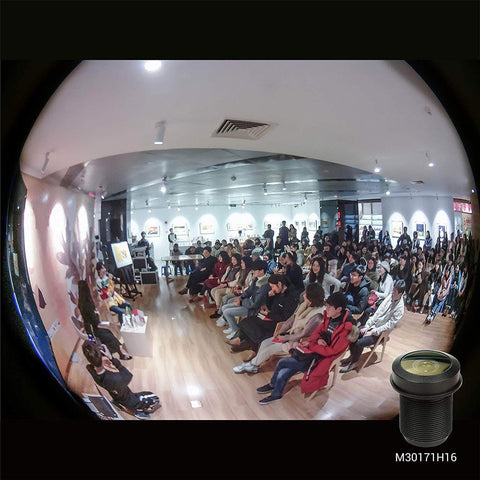

    The lens kit has 10 M12 Mount lenses that we have selected from a wide array of lens options, and the Horizontal Field of View (HFOV) of those lenses from 10 to over 200 degrees (on a 1/4-inch RPi cam or Arduino cam). It comes with labeled caps, four lens holders, a lens cleaning cloth and screws, which allows you to select and change for the best lens you need.

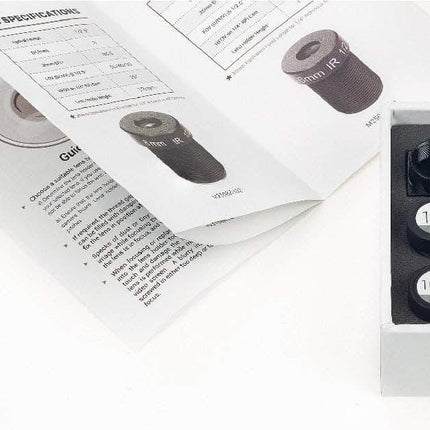

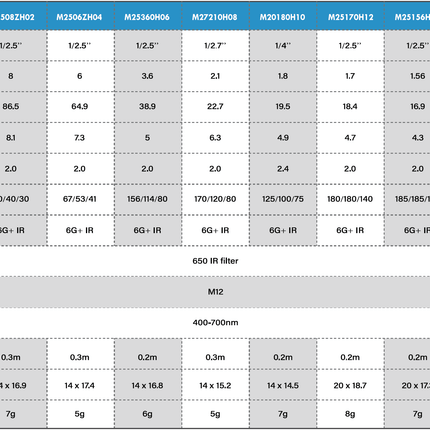

    Arducam has made a PDF document that contains the details specifications of each lens, and a video that shows how to replace the lenses on Arducam Cameras.

    Features

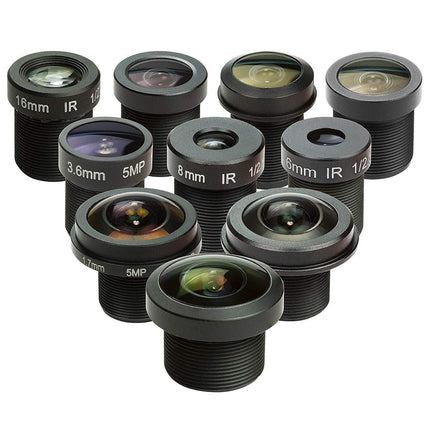

    • 10 M12 Mount lens for your Arduino and Raspberry Pi cameras, HFOV ranging from 10 to 200 degree
    • Compatible with Arducam cameras with M12 Mount, B0067(B012UXNDOY), B0068(B013JUKZ48), B0031 (B013JTY8WY) recommended
    • Selected and tested lenses with labeled caps, much easier for you to select the best lens you need
    • 4 M12 lens holders with 18mm and 20mm hole spacing, 2 heights in metal and plastic.
    • Screws, specifications, and instructions for changing lens provided. Video: youtu.be/23jE0l8PTKA

    Note:

    1. Choose a suitable lens holder as follows:

    a) Determine the lens holder height listed in the lens specifications for your selected lens. If you use a different lens holder height, you might not be able to focus the lens at all.

    b) Ensure that the lens holder matches the screw hole pitch of your camera board. Lens holders are available with18mm and 20mm pitches.

    2. If required, the thread gap between the lens and lens holder can be filled with damping grease or similar glue in order to fix the lens in position after focusing.

    3. Specks of dust or tiny bubblers might be visible on the image while focusing the lens. These will disappear when the lens is in focus, and will not affect image quality.

    4. When focusing or replacing a lens, do not screw the lens into the lens holder too deep, otherwise the lens might touch and damage the image sensor. Often, focusing a lens is performed while monitoring the image quality on a video screen. A blurry image will result if the lens is screwed in either too deep or too shallow from where it is in focus.

    5. You have to manually remove the IR filter at the bottom of the lenses when using them with a NoIR camera
