Arducam M12 Mount Lens Holder, 8 Styles LHK01

  • $30.00
  • Save $10
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    Arducam M12 Mount Lens Holder, 8 Styles LHK01

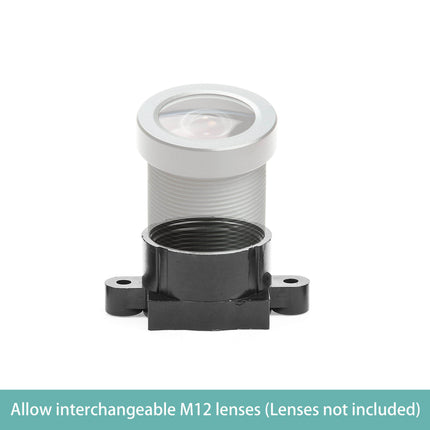

    • M12 lens mount to hold interchangeable lenses with a different back focal length

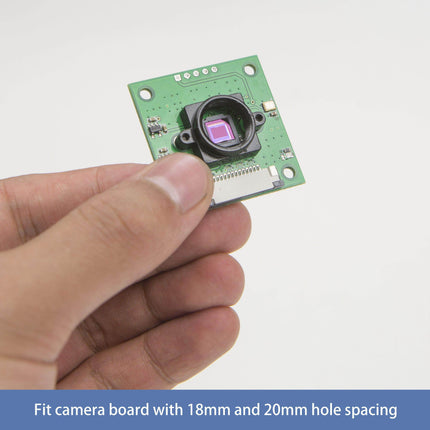

    • Come in 18mm and 20mm hole spacing for different board cameras

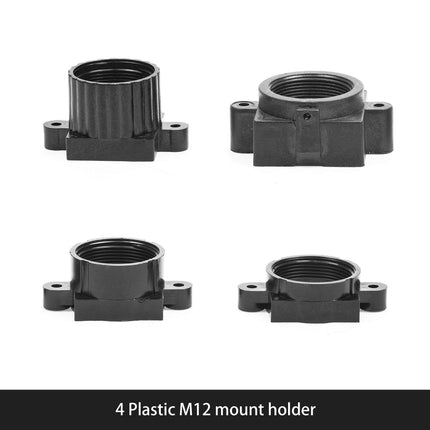

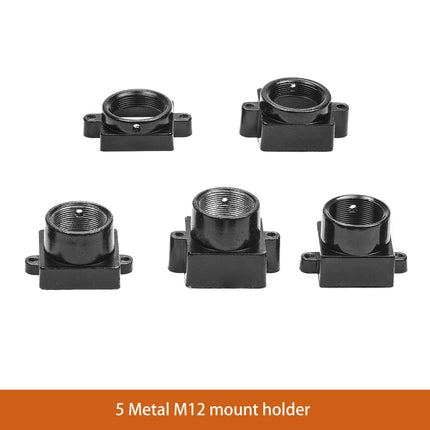

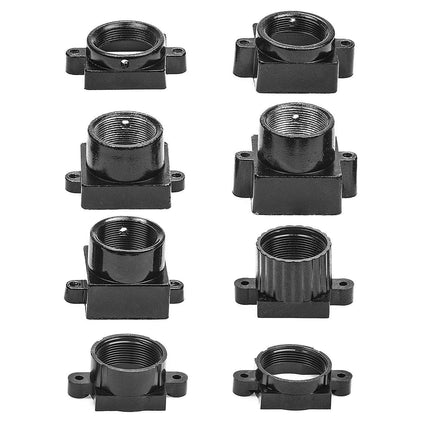

    • 8 styles with different heights in plastic and metal carefully labeled and sorted

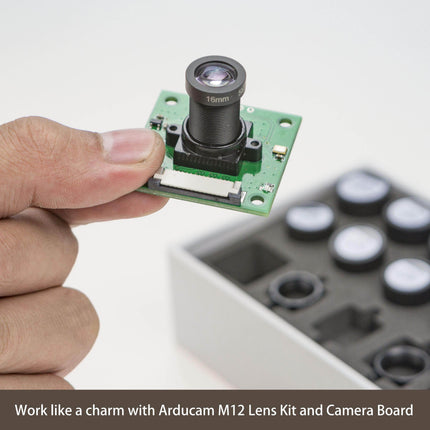

    • Compatible with Arducam Lens Board for Raspberry Pi (Arducam B0031) and Arducam M12 lens set (LK001/LK002)
    • Screws are also included for you to replace the lens mount. Feel free to contact Arducam if you need our further help

    Features:

    SKU: LH001

    • Appearance: Black
    • Materiel: Plastic
    • Height: 6mm
    • The distance between the two screw pitch 18mm

    SKU: LH002

    • Appearance: Black
    • Materiel: Plastic
    • Height: 8.5mm
    • The distance between the two screw pitch 18mm

    SKU: LH003

    • Appearance: Black
    • Materiel: Plastic
    • Height: 12mm
    • The distance between the two screw pitch 18mm

    SKU: U0756

    • Appearance: Black
    • Materiel: Metal
    • Height: 7mm
    • The distance between the two screw pitch 20mm
    • Base diameter: 14mm

    SKU: U0756M10

    • Appearance: Black
    • Materiel: Metal
    • Height: 10mm
    • The distance between the two screw pitch 20mm
    • Base diameter: 14mm

    SKU: U0756M13

    • Appearance: Black
    • Materiel: Metal
    • Height: 13mm
    • The distance between the two screw pitch 20mm
    • Base diameter: 14mm

    SKU: U0756M14

    • Appearance: Black
    • Materiel: Metal
    • Height: 14.5mm
    • The distance between the two screw pitch 20mm
    • Base diameter: 14mm

    SKU: U0756M16

    • Appearance: Black
    • Materiel: Metal
    • Height: 16.5mm
    • The distance between the two screw pitch 20mm
    • Base diameter: 14mm
