Arducam MINI IMX477 High Quality Camera 12.3MP M12 Lens for Jetson (B0251)

  • $110.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

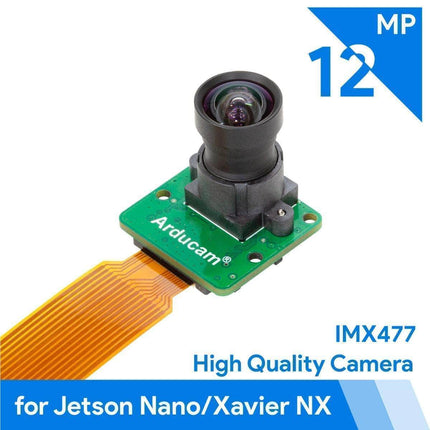

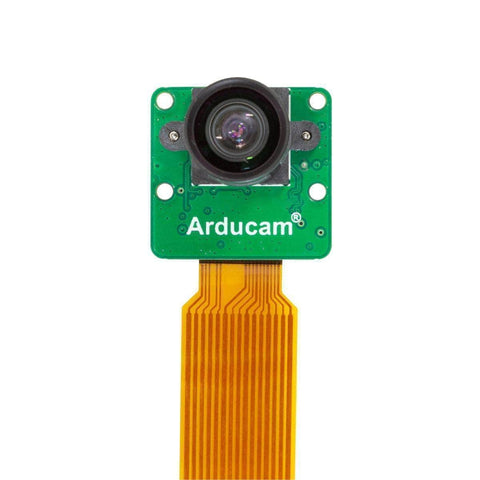

    Arducam MINI IMX477 High-Quality Camera 12.3MP M12 Lens for Jetson (B0251)

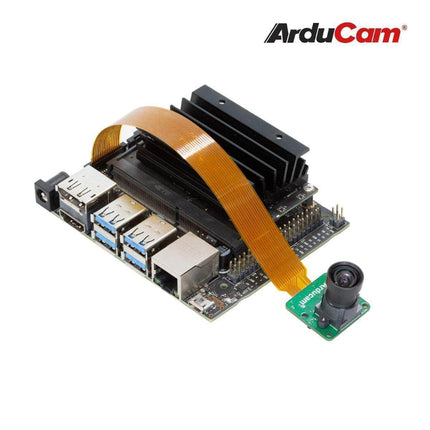

    To make a High-Quality camera module work on applications with size and weight limits, Arducam released this small-size camera module for Jetson Nano/Xavier NX. It is fully compatible with Raspberry Pi V2 module size, a 24mm x 25mm IMX477 camera board, a low distortion M12 mount lens. The customers can use this camera module on Jetson Nano/Xavier NX natively with hardware ISP features.

    This camera relies on kernel drivers to work – one kernel version, one camera driver.

    1. Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
    2. Up or downgrading your OS leads to a kernel bump, and you’ll need to re-install a matching driver.
    3. Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don’t see it released in time, kindly remind us.

    Specification

    Camera
    – Sensor: IMX477
    – Optical Format: 1/2.3″ (diagonal 7.857mm)
    – Resolution: 4056(H) x 3040(V) 12.3MP
    – Pixel Size: 1.55um x 1.55um
    – IR Sensitivity: Visible light
    – Interface: 2-lane MIPI CSI-2
    – Default Lens Mount: M12 Mount
    – Frame Rate:

    Note: Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps encoding, you cannot use it for 4k@60fps h.264/h.265 encoding.

    Lens
    – Format: 1/2.3 inch
    – Focal Length: 3.9mm
    – Aperture (F): F2.8
    – Field of View (FOV): 75° (H)
    – Mount: M12 Mount
    – Back Focal Length: 4.49mm
    – MOD: 0.1m Dimension: Φ14×18.67mm

    – Weight: 5g

    -  Partnumber: LN053

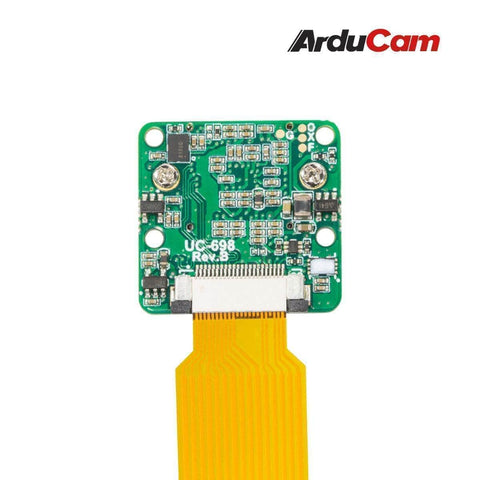

    Camera board

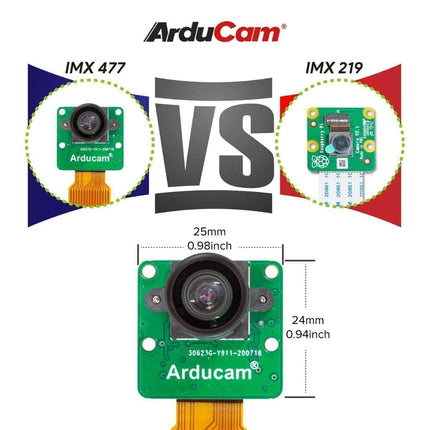

    – Board Size: 24mm×25mm

    Package Including

    • 1 pcs 12.3MP IMX477 color camera module
    • 1 pcs 3.9mm focal length M12 mount camera lens
    • 1 pcs 150mm/12inch 15pin to 22pin camera cable

    Additional Resources:

    Note: For the new version(R32 4.4), please refer to the following link: https://github.com/ArduCAM/MIPI_Camera/releases/tag/v0.0.2

    Video:



    Troubleshooting IMX477 Camera with Nano & NX (Hardware & Driver):

    Mini HQ Camera Module & M12 Lens for Nano & NX Tutorial:
