Arducam 8.3MP Sony STARVIS 2 IMX585 USB 3 Camera B0498

Description

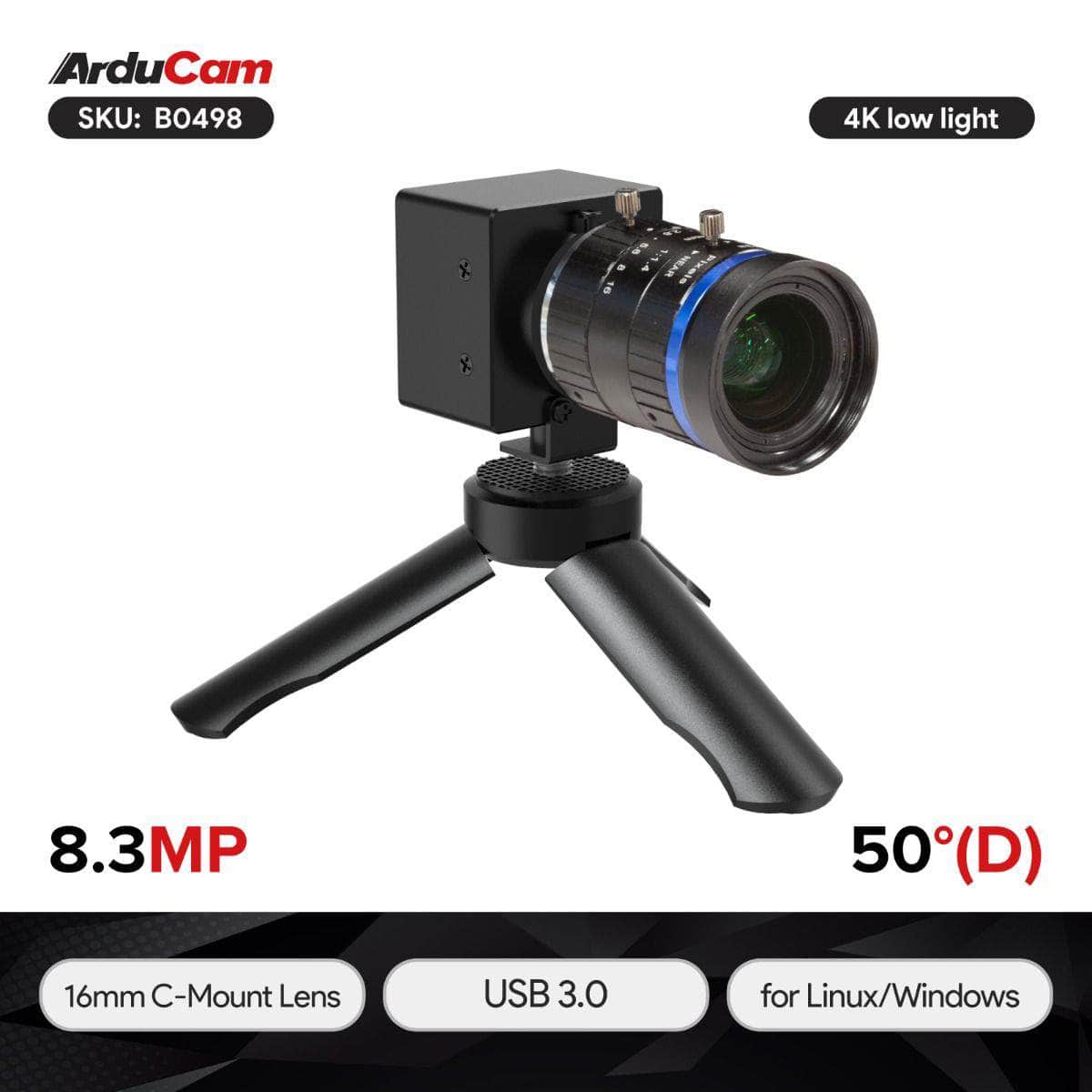

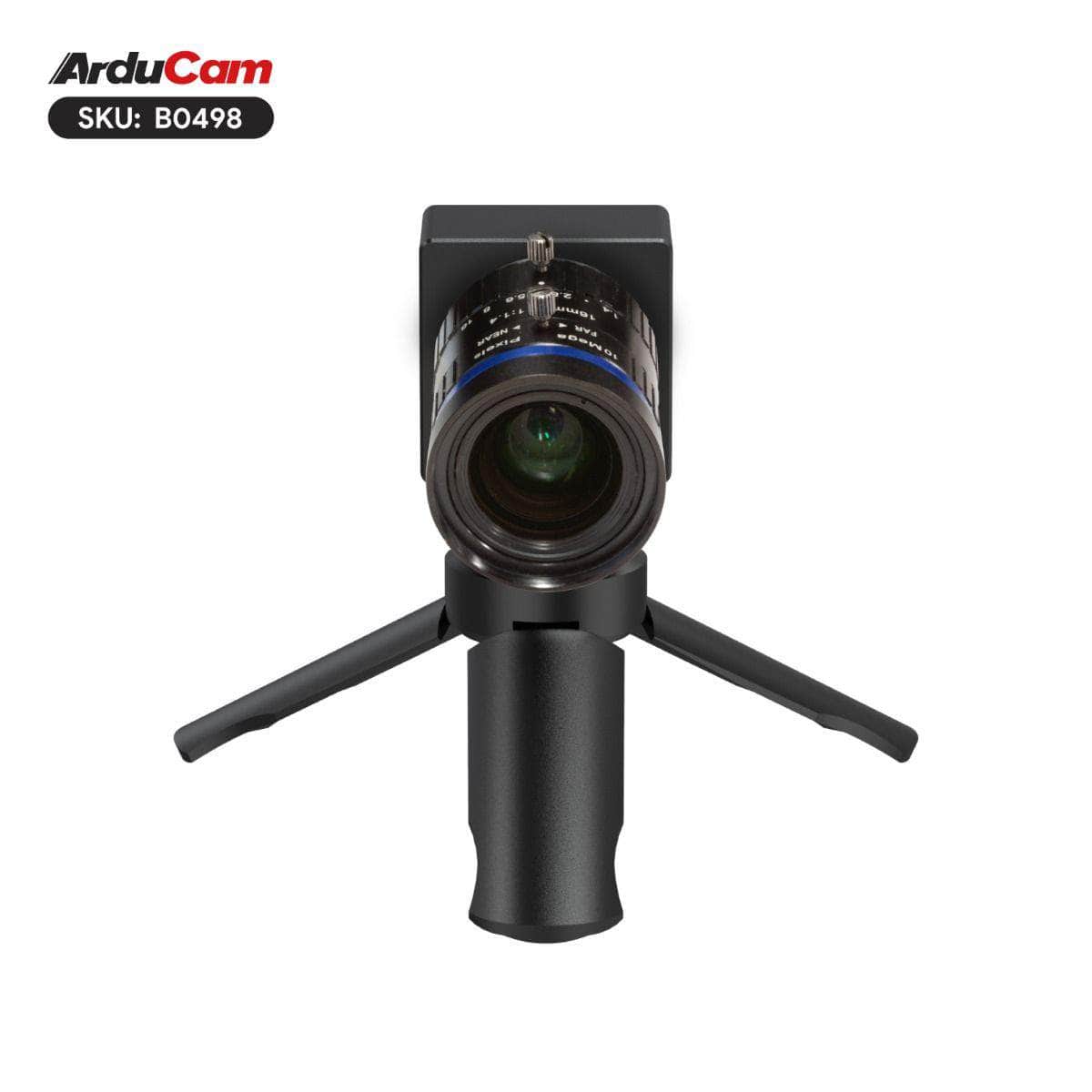

Arducam 8.3MP Sony STARVIS 2 IMX585 Low Light Manual Focus USB 3.0 Camera Module with 16mm C-Mount Lens B0498

Introducing Arducam's USB 3.0 Low-Light Series. With Starvis2 CMOS IMX585, it captures sharp 3840*2160 images in challenging lighting. The on-board ISP enhances image quality, offering flexibility with a USB 3.0 configurable frame rate of up to 90fps.The 1" C-mount telephoto lens provides versatility with adjustable apertures, ensuring clear shots across distances (FOV: 50°D).Arducam's latest USB 3.0 camera excels in user-friendly plug-and-play functionality. Compatible with Windows and Linux, no additional drivers are needed, simplifying setup. Its backward compatibility with USB 2.0 host ports ensures seamless connectivity and flexibility for an enhanced user experience.

Applications

  • Machine Vision
  • Video Surveillance
  • 3D Scanning and Metrology
  • Live Streaming
  • Video Conferencing

Features

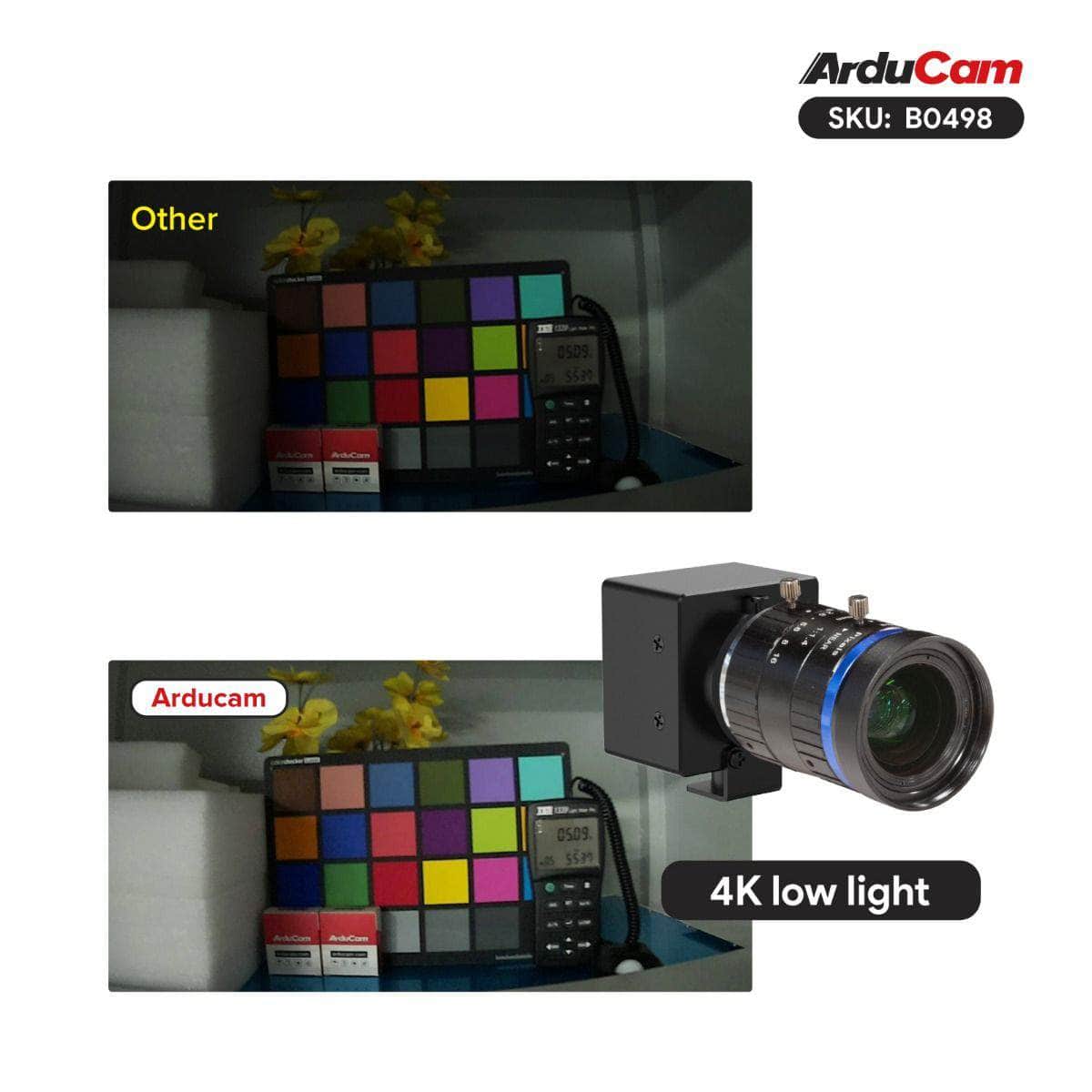

  • Cutting-Edge Sensor: Utilizes the 4K Starvis2 IMX585 CMOS sensor for exceptional low-light performance at 3840x2160 resolution.
  • High-Speed Connectivity: With USB 3.0, it streams at 720p/90fps, ensuring superior video capture even in challenging lighting conditions.
  • Precision Optics: Featuring a 1" 16mm telephoto lens with adjustable apertures, it delivers sharp images across various distances with a FOV of 50°(D).
  • Advanced Image Enhancement: Benefit from onboard ISP with proprietary technologies such as de-Bayer, gamma, BLC, AE, AWB, CCM, and RGB2YUV, ensuring advanced image enhancement and top-notch image quality.

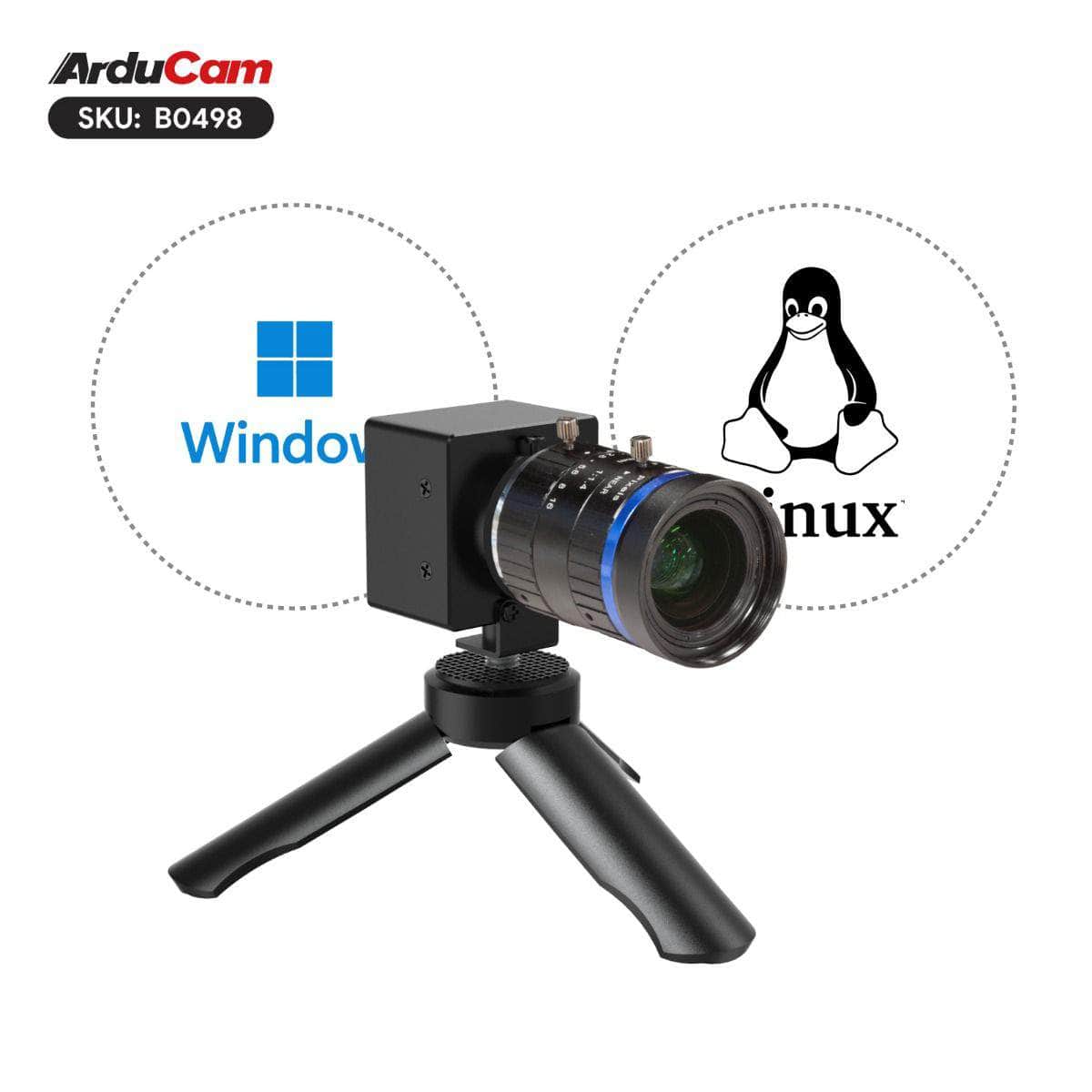

  • Plug and Play: Seamlessly compatible with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers, and ensuring a hassle-free user experience.

Specifications

Image Sensor
Sensor IMX585
Still Resolution 8.3 Megapixels
Color Filter Type Color
Shutter Type Rolling
Optical Size 1/1.2"
Output Format YUY2
Pixel Size 2.9 µm x 2.9 µm
Sensor Active Area 3856(H)×2180(V)
Frame Rate (USB 3.0) 3840x2160@15fps, 1920x1080@60fps, 1280x720@90fps
Frame Rate (USB 2.0) 1280×720@10fps

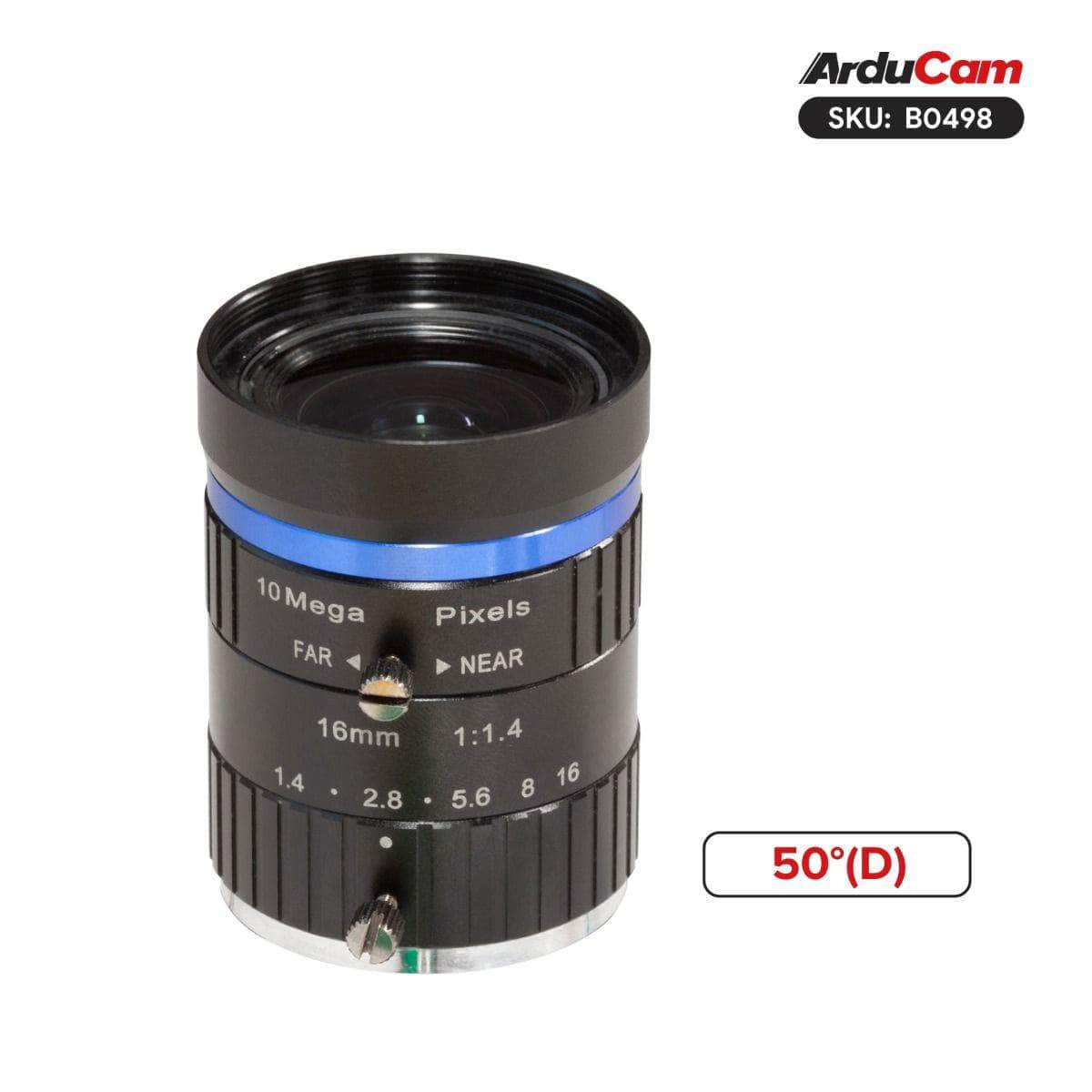

Lens
Focus Type Manual Focus
FOV 50°(D) × 41°(H) × 31 °(V)
Lens Mount C Mount
F.NO F1.4-F16
E.F.L 16mm
IR Sensitivity Integral IR-cut Filter, visible light only
Default Focus Range 5m-∞
USB Interface
Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts

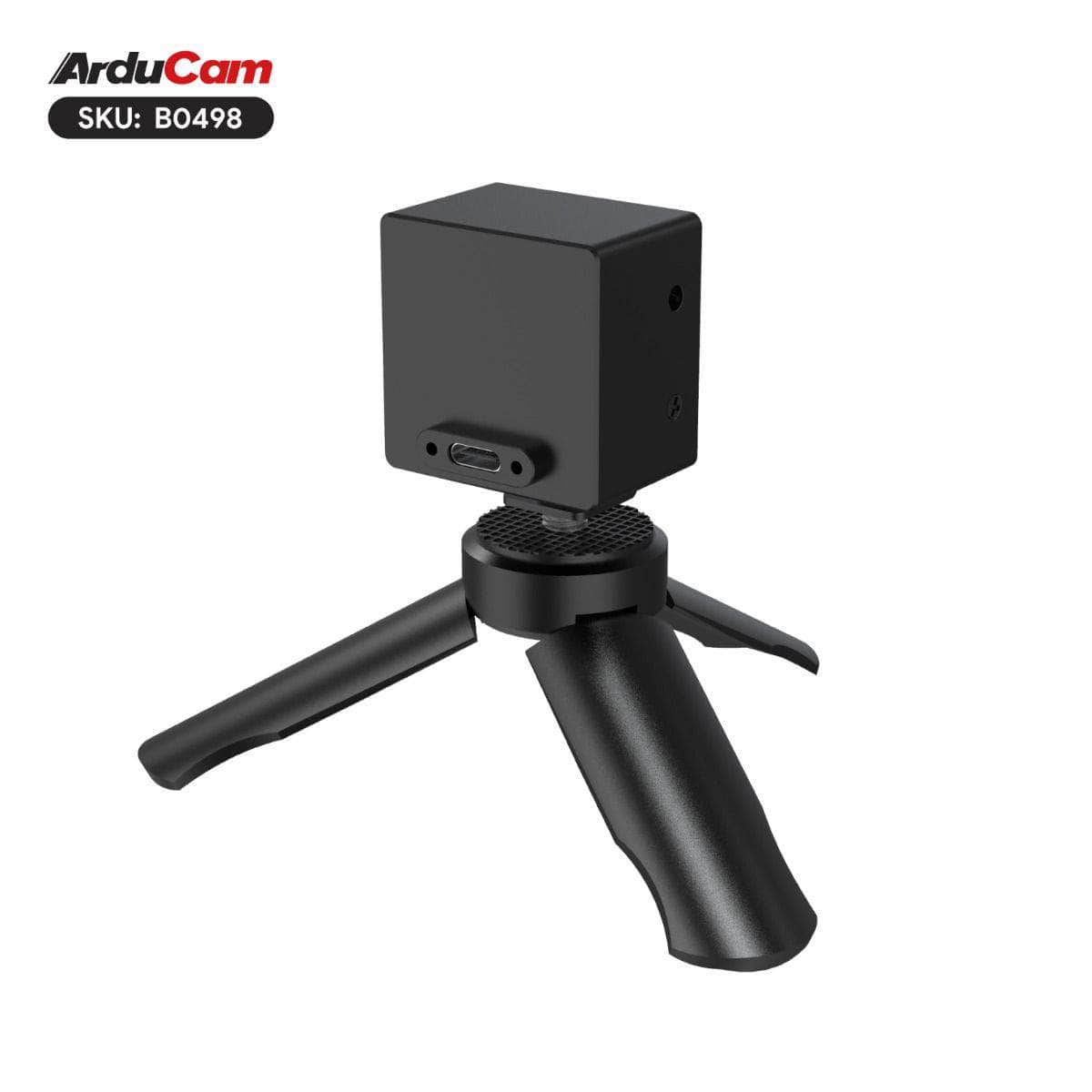

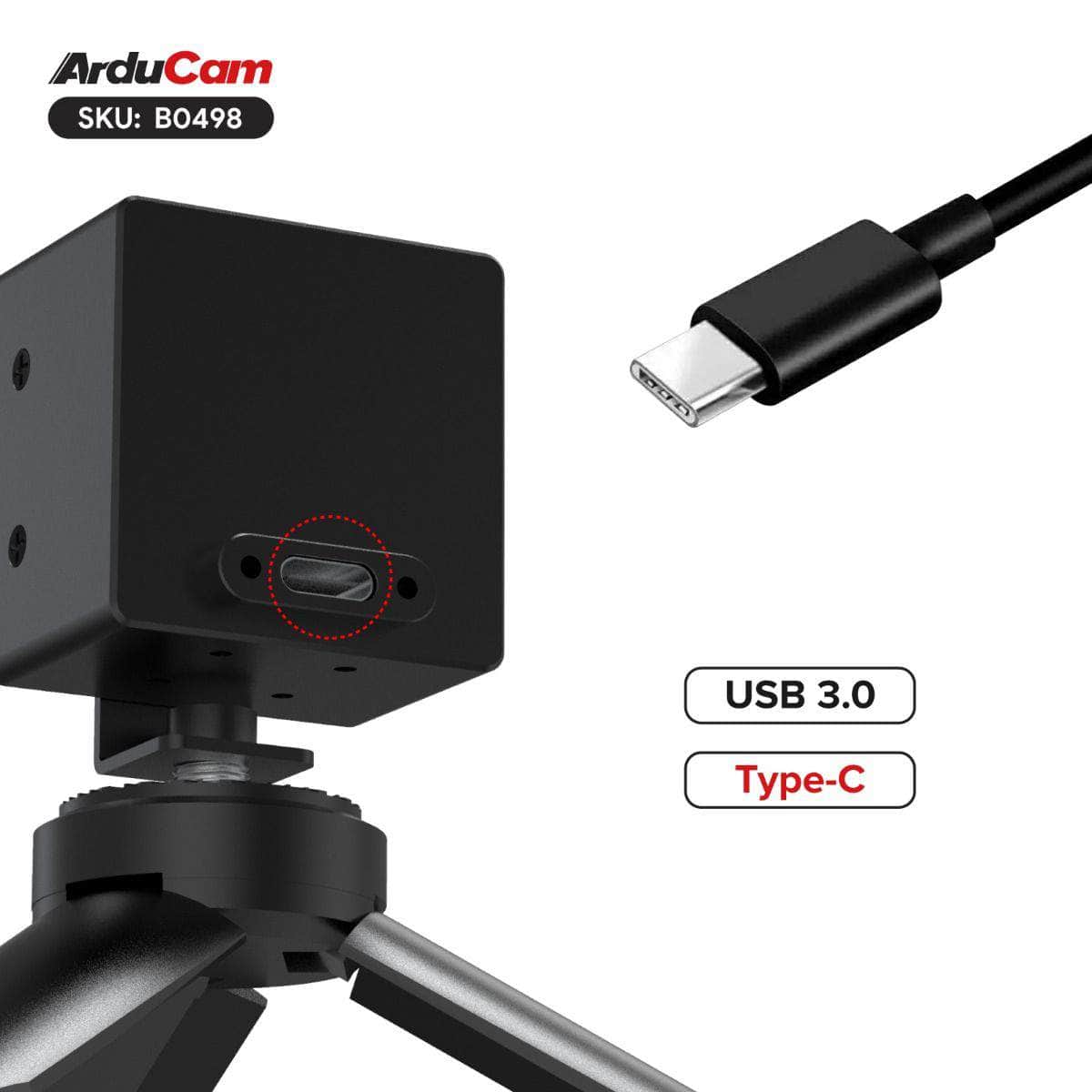

Connector Type-C reversible interface connector
UVC Compliant No additional drivers required
Electrical and Mechanical
Operating Voltage 5 V +/- 5%
Operating Temp. 32°F-158°F (0°C to 70°C)
Power Requirements Max: 1.78W  , Min: 0.9W
Camera Board Size 34×34 mm
Functionality and Compatibility
Supported OS Windows, Linux
Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux
UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Backlight Comp, Exposure (Manual/Auto)

Package Including

  • 1 x IMX585 USB3.0 Camera Module with Case

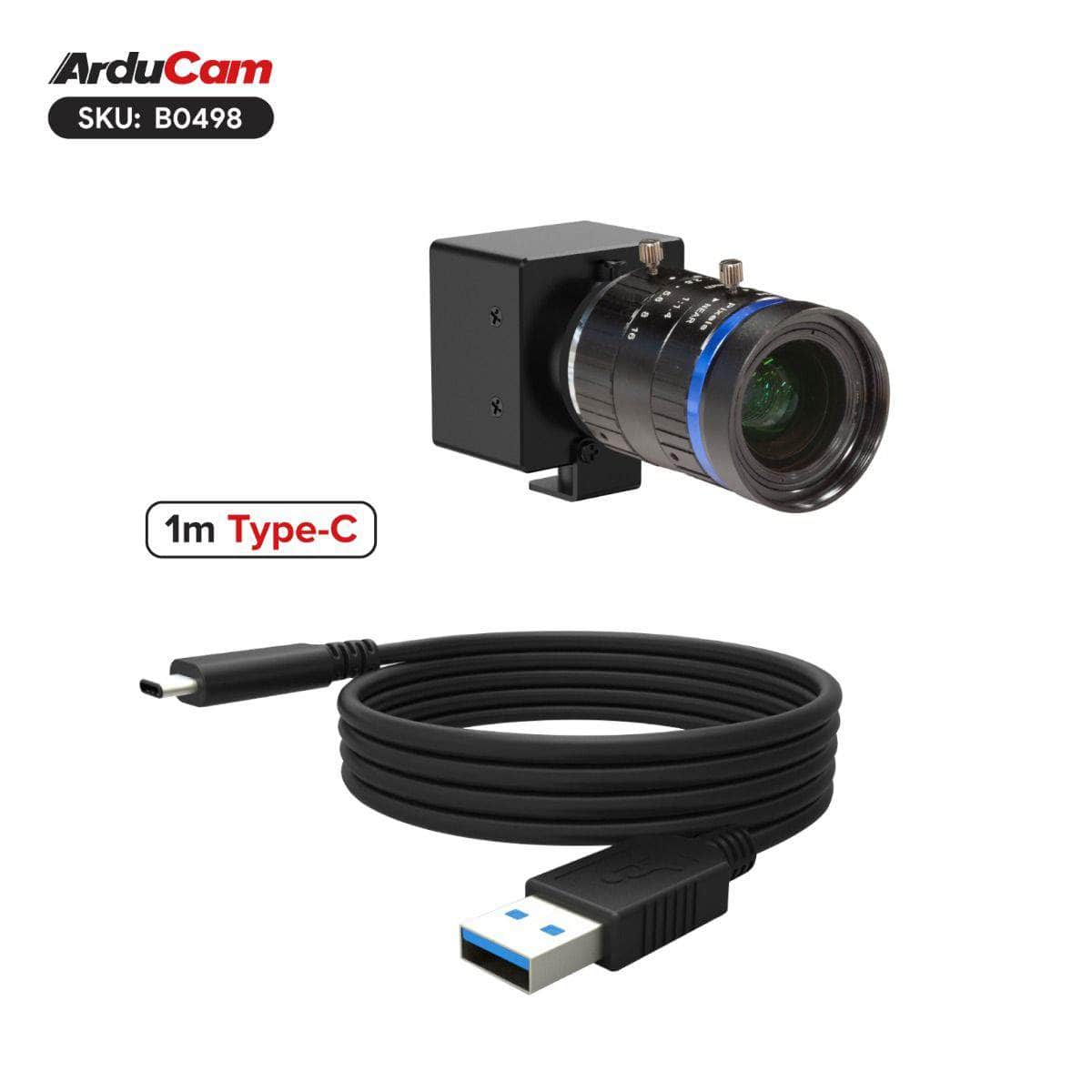

  • 1 x 1m USB A to Type-C Cable

Documentation



Read more
