Arducam Pivistation 5 Klarity 20MP IMX283 Raspberry Pi 5 Camera B0502
Arducam Pivistation 5 Klarity 20MP IMX283 Raspberry Pi 5 Camera B0502

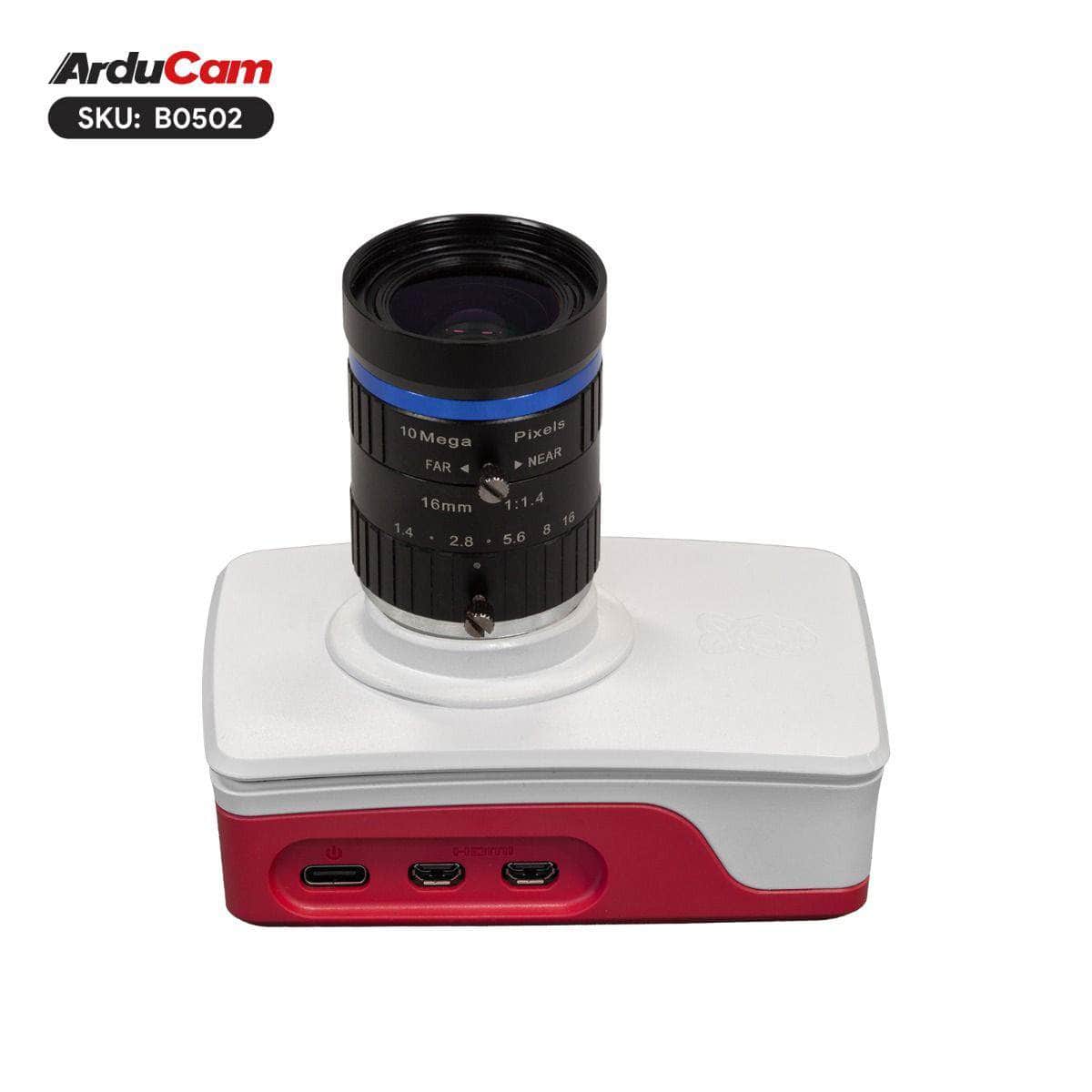

The Arducam Pivistation 5 is a comprehensive embedded vision kit designed to simplify the development of advanced imaging projects. Integrating the Raspberry Pi 5, it addresses the common challenges of setup complexity and compatibility, providing users with a powerful, ready-to-use solution for various vision applications.
Featuring a large size 20MP IMX283 sensor paired with a 16mm C lens, the Pivistation 5 Klarity delivers exceptional image quality with superb clarity and sharpness. This high-performance sensor ensures that users can capture detailed images and videos, making it ideal for both professional and hobbyist projects.
The Pivistation 5 is designed for convenience and efficiency, coming pre-installed with essential software such as OpenCV-Python and TensorFlow. It utilizes the official Raspberry Pi case, which includes a cooling fan for optimal performance and pre-installed tripod holes for easy setup and mobility. This combination of hardware and software ensures a seamless and hassle-free user experience, allowing developers to focus on their projects without worrying about configuration and compatibility issues.
Applications
- Face Recognition
- Fatigue Detection
- Object Recognition
- Anomaly Detection
- Machine Vision
Features
- Advanced Imaging: Utilizes a 20MP IMX283 sensor and 16mm C lens for exceptional image clarity and sharpness.
- Complete Setup: Comes with the Raspberry Pi 5 4GB RAM, 32GB SD card, official case, and cooling fan for optimal performance and durability.
- Extensive Software Support: Pre-installed with essential vision software, including OpenCV-Python, TensorFlow, and PyTorch, enabling advanced application development out of the box.

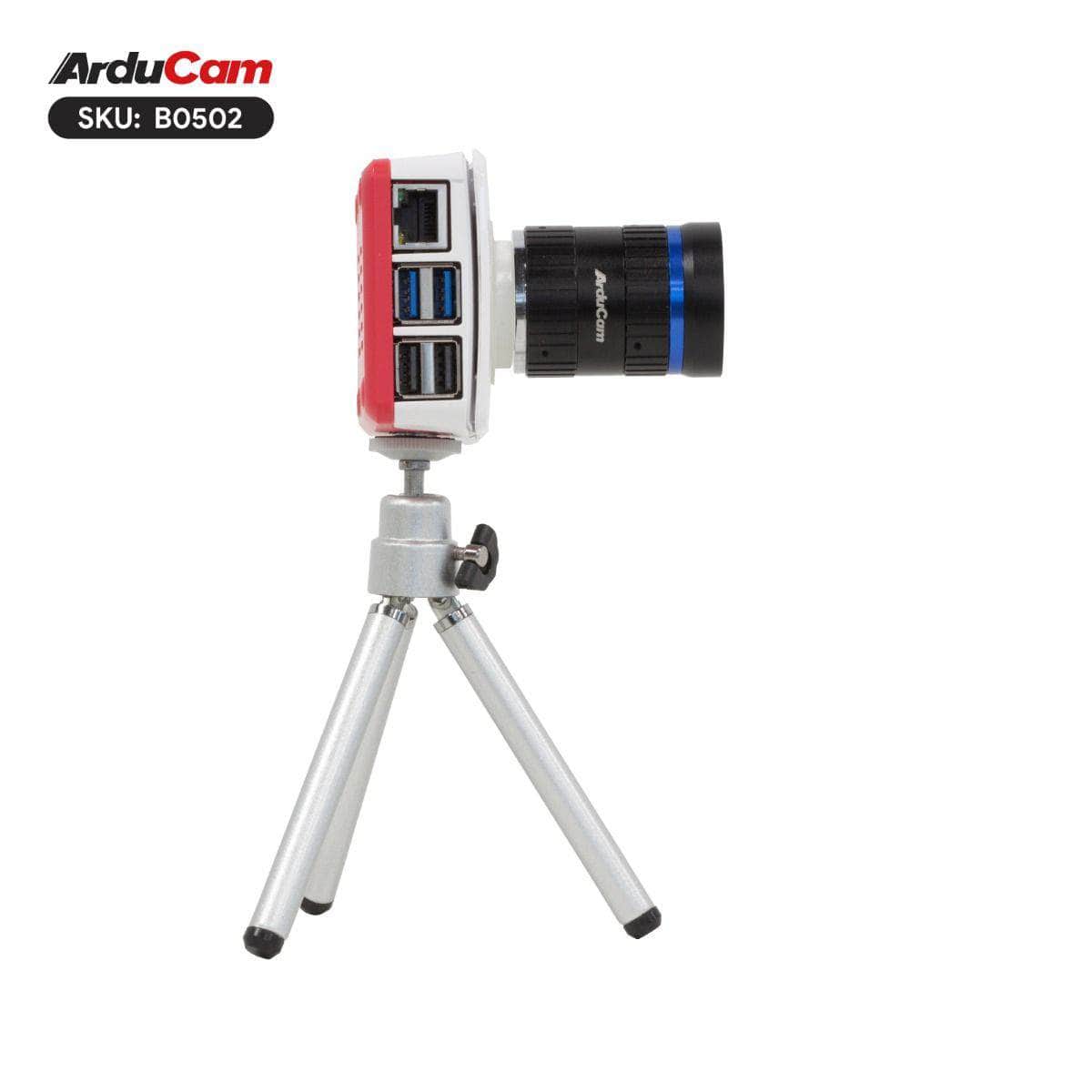

- Robust Enclosure: Housed in an official Raspberry Pi case with a cooling fan, featuring pre-installed tripod holes for easy mobility and setup.
- Versatile Applications: Ideal for a wide range of embedded vision projects, from quick POC, research, and development to hobbyist applications.
Specifications
| Image Sensor | |
| Image Sensor | SONY IMX283 |
| Still Resolution | 20 MP |
| Color Filter Type | Color |
| Shutter Type | Rolling shutter |
| Optical Size | 1" |
| Sensor Output Format | RAW10 |
| Platform Output Format | JPEG/YUV/RGB/RAW10 |
| Sensor Active Area | 5496(H)×3672(V) |
| Pixel Size | 2.4 µm x 2.4 µm |
| Frame Rate | 5472×3648@6fps, 3840×2160@8fps,2732×1538@25fps, 1920×1080@50fps, 1280×720@120fps |

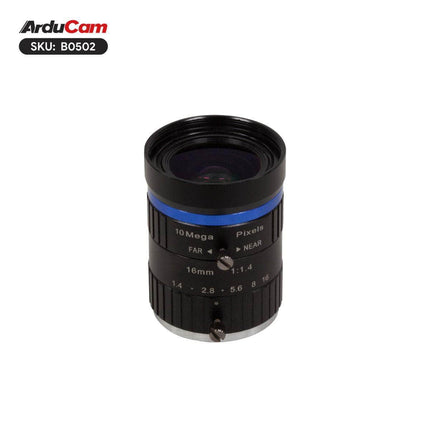

| Lens | |
| Lens Mount | C Mount |
| Focus Type | Manual Focus |
| FOV | 60°(D)×49°(H)×38°(V) |
| F.NO | F1.4-16 |
| E.F.L | 16mm |
| Default Focus Range | 5m-∞ |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | 7.5W |
| Camera Board Size | 38×38mm |
| Overall Size | 99×70×101 mm |
| Functionality and Compatibility | |
| Supported OS | Bookworm |
| Pre-installed Software | opencv-python, libopencv-dev (C++ version) libcamera, rpicam-apps C++ essential tools (building environment) TensorFlow (Python)/ PyTorch camera-streamer, arducacm camera server |
| Supported Platform | Raspberry Pi 5 |
Package Including
- 1× Arducam Pivistation 5 Camera Kit
Notes
- Tripod is not included in the package.
- This product kit includes the Raspberry Pi 5 with 4GB of RAM and a 32GB SD card preloaded with OS and software. It is recommended to use only this platform.
- For optimal performance, we suggest using the official Raspberry Pi 27W power supply.
