Bluetooth Bee HC-06

  • $10.00
  • Save $20
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

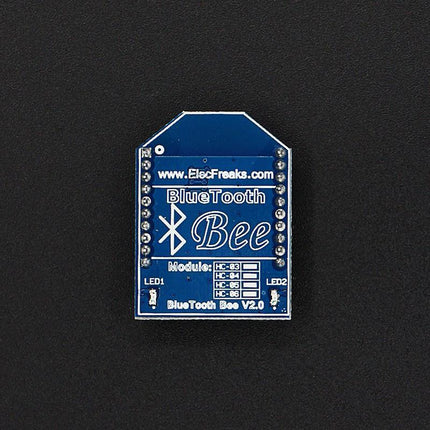

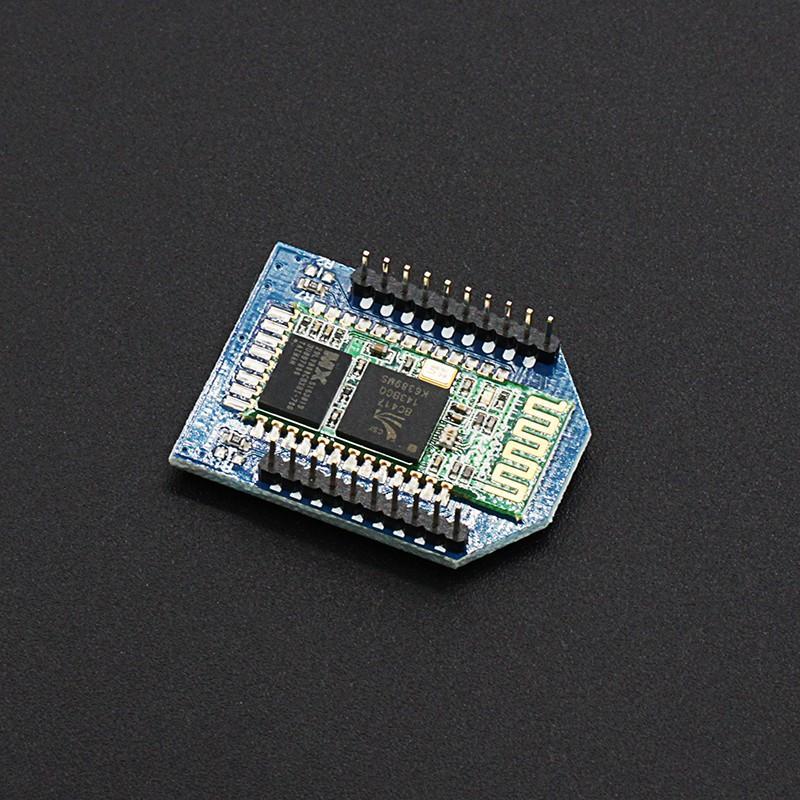

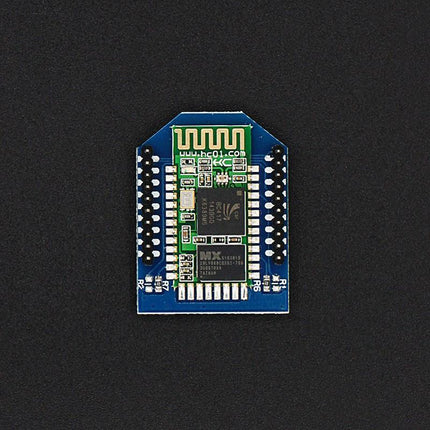

  • Bluetooth Bee HC-06

    Bluetooth Bee is easy to use Bluetooth SPP module compatible with existing Xbee sockets, designed for transparent wireless serial connection setup.

    Bluetooth Bee is designed for transparent wireless serial connection setup. This is a fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps modulation with a complete 2.4GHz radio transceiver. It uses CSR Bluecore4-external single chip Bluetooth system with CMOS technology and with AFH (Adaptive Frequency Hopping).

    It can be configured to Master, Slave or Loopback three different modes(HC-06 just be Slave), and it will connect to or be connected by other devices that support SPP protocol per configuration, and it is a suitable substitute for most applications.



    CSR BC417

    PCB size

    33.7mm * 25.2mm * 1.6mm


    PWR State

    Power supply

    3.3V DC

    Communication Protocol

    UART Bluetooth2.0
