BUZZ 2 click - MikroElektronika Magnetic Buzzer

Description

BUZZ 2 click - MikroElektronika Magnetic Buzzer

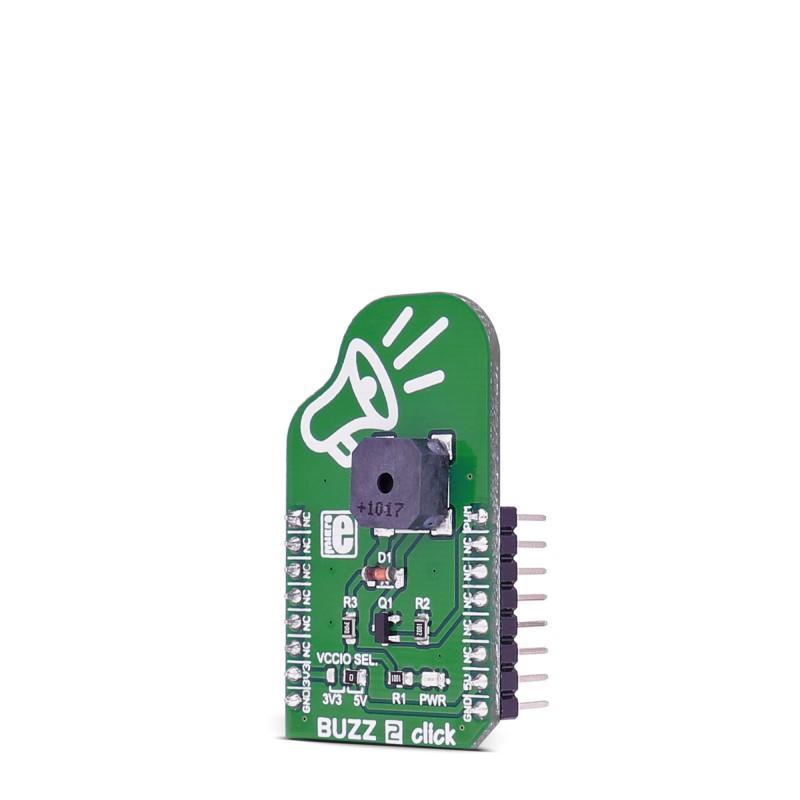

BUZZ 2 click carries the CMT-8540S-SMT magnetic buzzer transducer. The buzzer’s resonant frequency is 4kHz. The click is designed to run on either 3.3V or 5V power supply.

How the click works

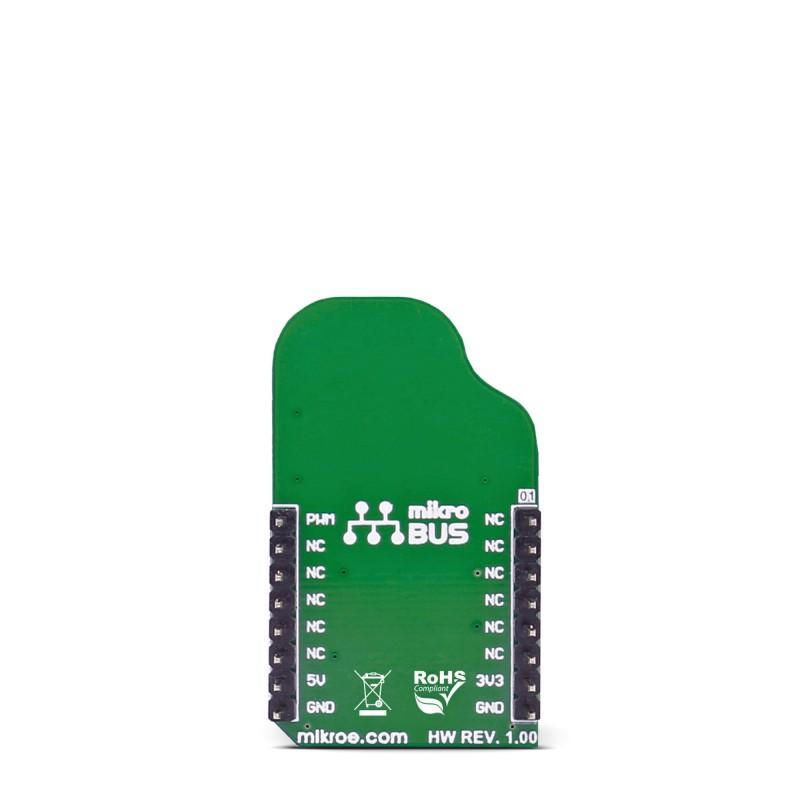

The CMT-8540S-SMT magnetic buzzer is controlled by the PWM pin on the mikroBUS™ line.

You can create different sound patterns using the Sound library supported in our compilers, or utilize the microcontroller internal PWM module to create the signal for the buzzer. Signal frequency determines the sound pitch, and the duty cycle determines the amplitude (sound volume).

Power supply selection

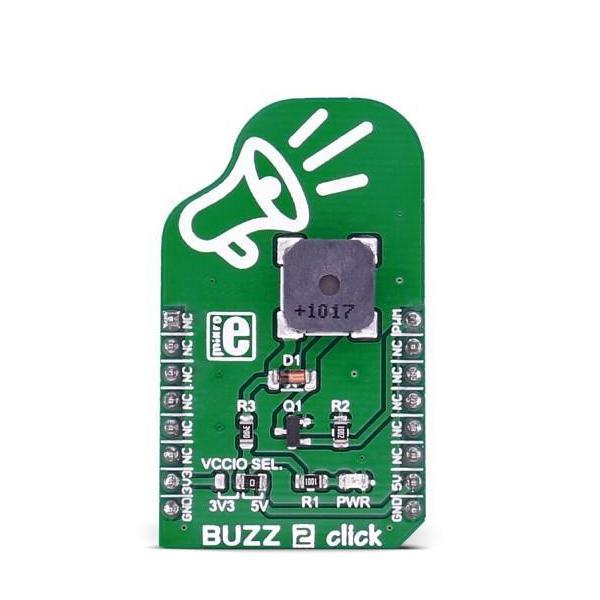

Onboard VCCIO SEL zero-ohm resistor (SMD jumper) is used to determine whether 5V or 3.3V power supply is used. This resistor is placed in 5V position by default.

Specifications

Type Magnetic
Applications The click is ideal for adding audio signalization feature to your prototype device
On-board modules CMT-8540S-SMT magnetic buzzer transducer
Key Features 4kHz resonant frequency
Interface PWM
Input Voltage 3.3V or 5V
Click board size M (42.9 x 25.4 mm)



Downloads

BUZZ 2 click - MikroElektronika Magnetic Buzzer

Product form
Free pickup in our shop(s)

SKU: MIKROE-2720

$30.00 $15.00 Excl. GST

$15.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    BUZZ 2 click - MikroElektronika Magnetic Buzzer

    BUZZ 2 click carries the CMT-8540S-SMT magnetic buzzer transducer. The buzzer’s resonant frequency is 4kHz. The click is designed to run on either 3.3V or 5V power supply.

    How the click works

    The CMT-8540S-SMT magnetic buzzer is controlled by the PWM pin on the mikroBUS™ line.

    You can create different sound patterns using the Sound library supported in our compilers, or utilize the microcontroller internal PWM module to create the signal for the buzzer. Signal frequency determines the sound pitch, and the duty cycle determines the amplitude (sound volume).

    Power supply selection

    Onboard VCCIO SEL zero-ohm resistor (SMD jumper) is used to determine whether 5V or 3.3V power supply is used. This resistor is placed in 5V position by default.

    Specifications

    Type Magnetic
    Applications The click is ideal for adding audio signalization feature to your prototype device
    On-board modules CMT-8540S-SMT magnetic buzzer transducer
    Key Features 4kHz resonant frequency
    Interface PWM
    Input Voltage 3.3V or 5V
    Click board size M (42.9 x 25.4 mm)



    Downloads
