Industrial CAN Bus Data Analyzer, USB To CAN FD Adapter

  • $149.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

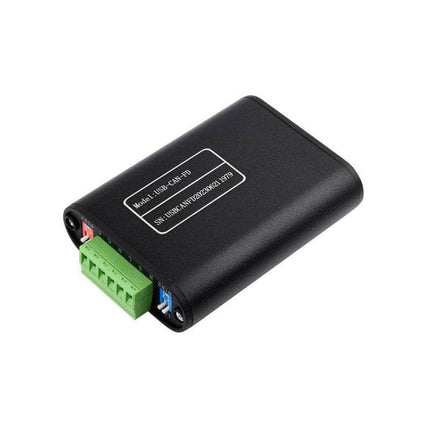

    Industrial CAN Bus Data Analyzer, USB To CAN FD Adapter

    Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card, CAN/CAN FD Protocol Data Analyzer


    The USB-CAN-FD is an industrial-grade high-performance USB to CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Supports Windows XP/7/8/10/11 system, comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.

    It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN/CAN FD bus communication.

    Specifications:

    PRODUCT TYPE Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer
    USB Operating voltage 5V (directly powered by USB port without external power supply)
    Connector USB-B
    CAN/CAN FD INTERFACE CAN/CAN FD channel Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC)
    Connector CAN bus screw terminal (OPEN6 5.08mm pitch)
    Terminal resistor Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch
    Baud Rate 100Kbps~5Mbps (Configurable via software)
    Protocol Support CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0
    Transfer speed The receiving and sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/s
    Transmit buffer 1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails)
    INDICATORS PWR Power indicator
    SYS System status indicator, normally off; keeps on when there is a bus error
    CAN1 CAN1 channel indicator (blinking when sending and receiving data)
    CAN2 CAN2 channel indicator (blinking when sending and receiving data)
    SYSTEM SUPPORT Windows Windows XP/7/8/10/11 (32/64 bits); Does Not support the Linux system now, and the related drivers are under development.
    OPERATING TEMPERATURE -40~85℃
    CASE MATERIAL Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)
    DIMENSIONS 104 × 70 × 25 mm

    Supports Protocol Conversion
    Between USB And CAN/CAN FD Bus

    Onboard High-Speed USB2.0 Interface And 2-Ch CAN/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other





    Programmable Baud Rate, Automatic Detection

    CAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps
    Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool

    Supports Decoding And Analyzing For Multiple CAN Protocols

    Supports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames

    Supports Multi Development Environments

    Provides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-Can

    High-Performance Hardware Solution

    Adopts Microchip Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency. High Performance, Stable And Reliable

    With Electrical Isolation And Multiple Protection Circuits

    Adopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability

    One PC With Multiple Devices

    Supports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.
