  • CAN Isolator Click - MikroElektronika Isolated CAN Transceiver

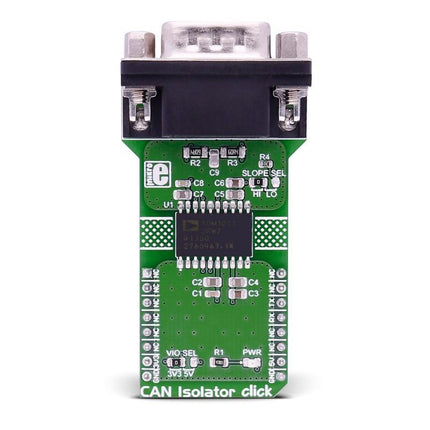

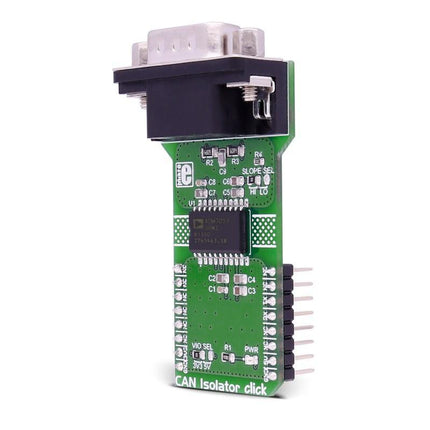

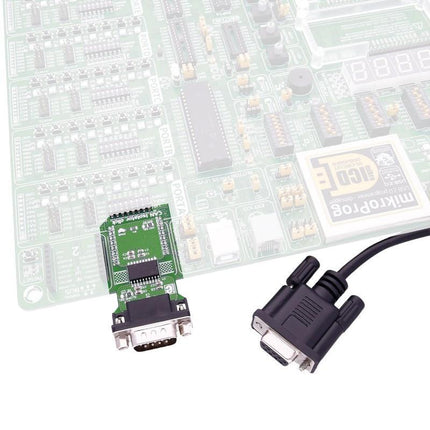

    CAN Isolator click provides isolated CAN communication. It carries the ADM3053 signal and power isolated CAN transceiver with an integrated isolated DC-to-DC converter. The click is designed to run on either 3.3V or 5V power supply. CAN Isolator click communicates with the target microcontroller over UART interface.

    The click carries a DB 9-pin male connector.

    ADM3053 features

    The ADM3053 is an isolated controller area network (CAN) physical layer transceiver with an integrated isolated DC-to-DC converter.

    The ADM3053 creates a fully isolated interface between the CAN protocol controller and the physical layer bus. It is capable of running at data rates of up to 1 Mbps.

    Connector features

    This is a standard DB 9-pin male connector.


    Type CAN,Isolator
    Applications CAN data buses, Industrial field networks
    On-board modules ADM3053 CAN transceiver, DB 9-pin connector
    Key Benefits No need for an external supply for the isolated side
    Interface UART
    Input Voltage 3.3V or 5V
    Compatibility mikroBUS
    Click board size L (57.15 x 25.4 mm)

    Pinout diagram

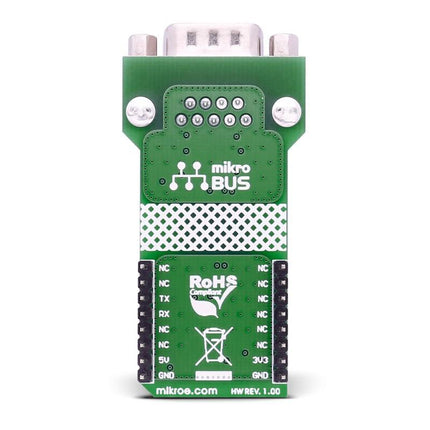

    This table shows how the pinout on CAN Isolator click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

    Notes Pin Mikrobus logo.png Pin Notes
    NC 1 AN PWM 16 NC
    NC 2 RST INT 15 NC
    NC 3 CS TX 14 RXD Receiver Output Data
    NC 4 SCK RX 13 TXD Driver Input Data
    NC 5 MISO SCL 12 NC
    NC 6 MOSI SDA 11 NC
    Power supply +3.3V 7 3.3V 5V 10 +5V Power supply
    Ground GND 8 GND GND 9 GND Ground

    Jumpers and settings

    Designator Name Default Position Default Option Description
    JP1 VIO.SEL. Left 3V3 Power Supply Voltage Selection 3V3/5V, left position 3V3, right position 5V
    JP2 SLOPE SEL Left HI Slope select, default high rate, right option the slope is limited
