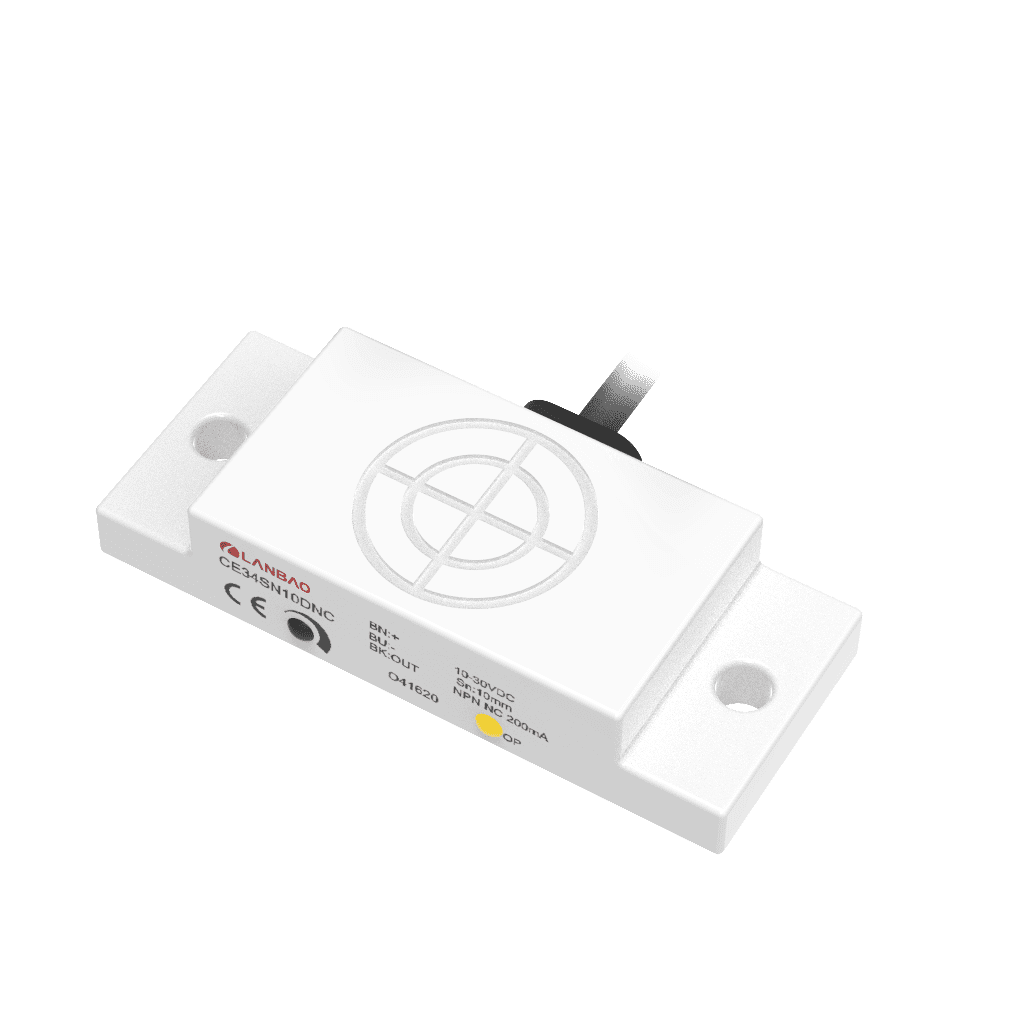

Lanbao Capacitive Proximity Sensor Capacitive Proximity Sensor 10mm CE34SN10DNO

Capacitive Proximity Sensor 10mm CE34SN10DNO

  • $49.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • Capacitive Proximity Sensor 10mm CE34SN10DNO

    Datasheet Link

    Specifications

    Function Standard
    Mounting Non-flush
    Sensing distance 10mm
    Assured distance 0…8mm
    Standard target Fe 34*34*1t
    Rectangular size 20*50*10mm
    Output ways NPN
    Output status NO
    Residual voltage ≤2.5V
    Supply voltage 10…30VDC
    Load current ≤200mA
    Current consumption ≤15mA
    Switching frequency 60Hz
    Assured distance ≤±20%
    Hysteresis range 3…20%
    Repeat accuracy ≤3%
    Ambient temperature -10℃…55℃
    Ambient humidity 35-95%RH
    Circuit protection Reverse polarity protection
    Anti-high pressure 1000V/AC 50/60Hz 60s
    Insulation resistance ≥50MΩ(500VDC)
    Vibration resistance Complex amplitude 1.5mm 10…50Hz(X,Y,Z 2 hours at each direction)
    Protection degree IP 67
    Output indicator Yellow LED
    Housing material PBT
    Certification CE
    Connection Cable 2m
