Cytron SKM53 GPS Starter Kit

  • $49.00
  • Save $50
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

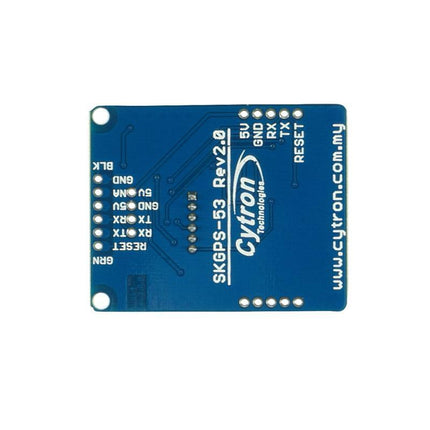

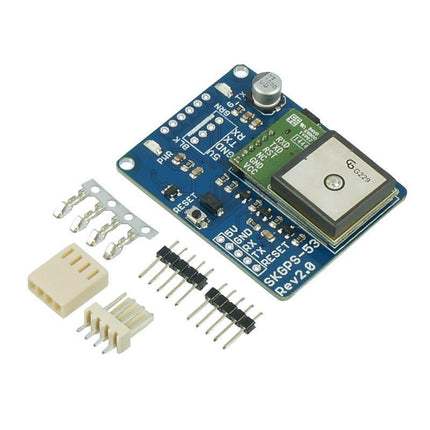

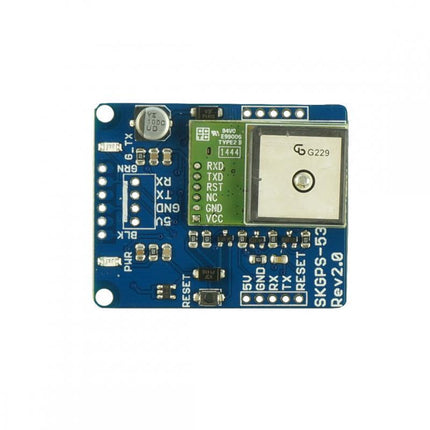

  • Cytron SKM53 GPS Starter Kit

    *Starting from 20th March 2015, SKGPS-53 is Rev2.0, please check Rev2.0 User's Manual.
    The SKM53 GPS module Starter Kit (SKGPS-53) is a special designed starter kit which offer convenient yet safer GPS module for user. Power for SKGPS -53 is supplied from 5V of UART pin. UART communication is provided for user interface this starter kit to PC/laptop or microcontroller.

    The SKM53 Series with embedded GPS antenna enables high-performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments. It is based on the high-performance features of the MediaTek 3329 single-chip architecture. It is -165dBm tracking sensitivity extends positioning coverage into places like urban canyons and dense foliage environment where the GPS was not possible before.

    • Ultra high sensitivity: -165dBm
    • 22 tracking/66 acquisition-channel receiver
    • NMEA protocols (default speed: 9600bps)
    • Internal back-up battery
    • Default Baud Rate: 9600
    • One serial port
    • Embedded patch antenna 18.2 x 18.2 x 4.0 mm
    • Operating temperature range: -40 to 85℃
    Dimension: 39mm x 50mm

    1. Getting Started - SKGPS-53 (SK18B - PIC16F628)
