DDS45-NB NB-IoT Waterproof Distance Detection Sensor

  • $159.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

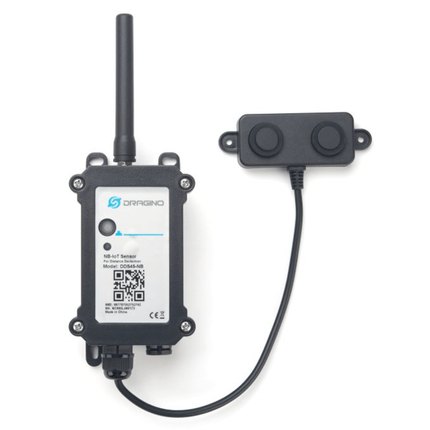

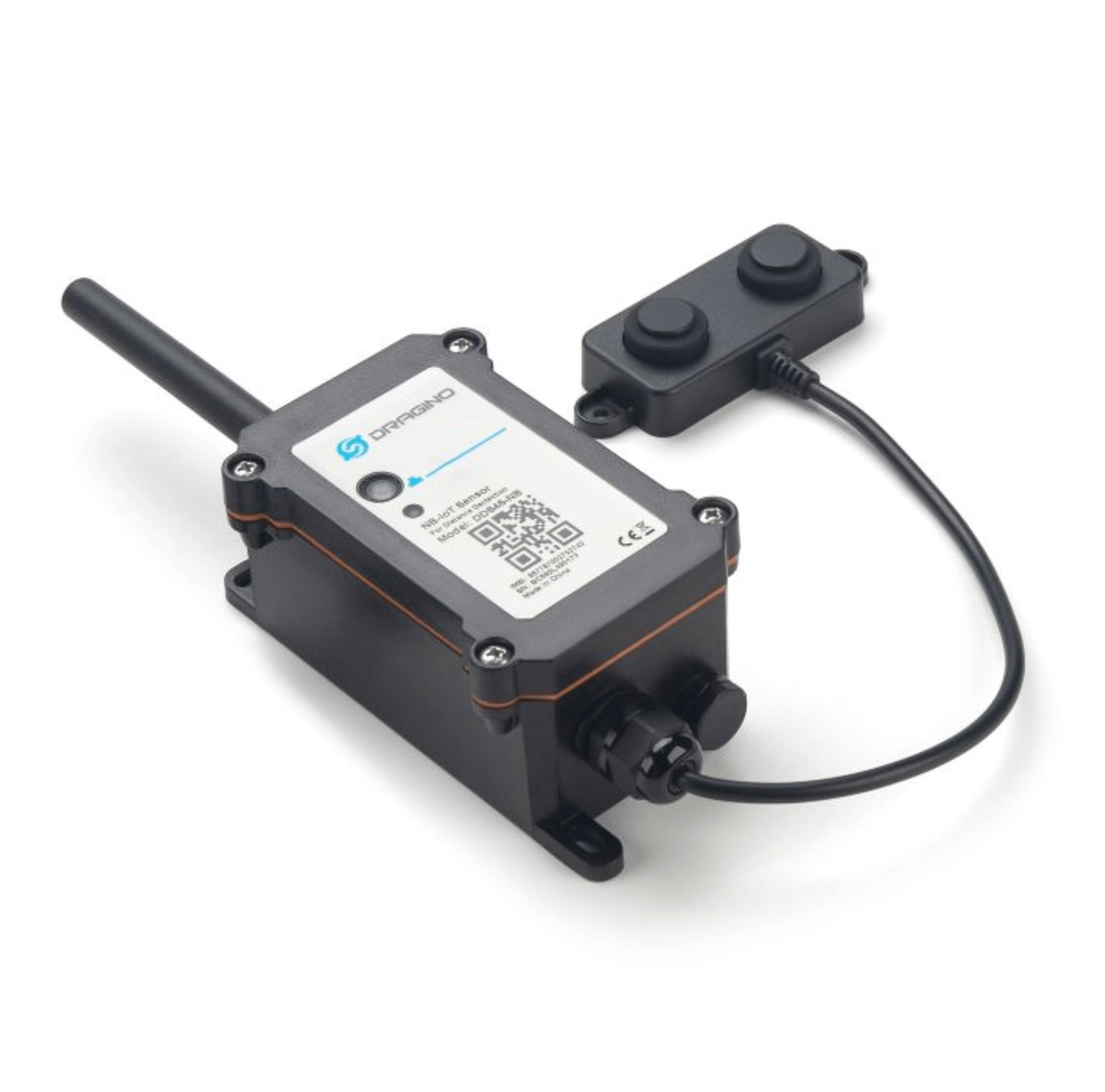

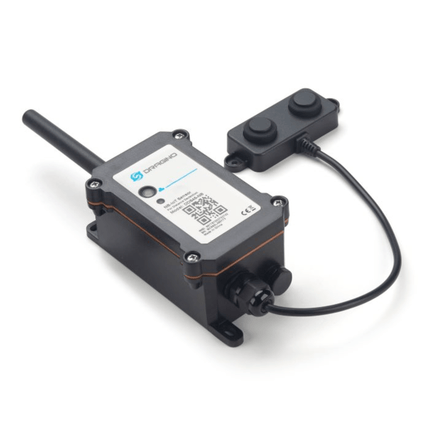

    DDS45-NB NB-IoT Waterproof Distance Detection Sensor



    The Dragino DDS45-NB is an NB-IoT Distance Detection Sensor for Internet of Things solution. It is used to measure the distance between the sensor and a flat object. The distance detection sensor is a module that uses ultrasonic sensing technology for distance measurement, and temperature compensation is performed internally to improve the reliability of data. The DDS45-NB can be applied to scenarios such as horizontal distance measurement, liquid level measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, bottom water level monitoring, etc.

    It detects the distance between the measured object and the sensor, and send the IoT platform via the NB-IoT network.

    DDS45-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and support uplinks to various IoT Servers.

    DDS45-NB supports BLE configure and OTA update which make users easy to use.

    DDS45-NB is powered by an 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

    DDS45-NB has an optional built-in SIM card and default IoT server connection version. Which makes it work with simple configuration.

    Features:

    • NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
    • Ultra-low power consumption
    • Distance Detection by Ultrasonic Technology
    • Flat object range 30mm - 4500mm
    • Accuracy: ±(1cm+S*0.3%) (S: Distance)
    • Measure Angle: 60°
    • Multiply Sampling and one uplink
    • Support BLE remote configure and update firmware
    • Uplink on periodically
    • Downlink to change configure
    • IP66 Waterproof Enclosure
    • 8500mAh Battery for long-term use
    • Nano SIM card slot for NB-IoT SIM

    Applications:

    • Horizontal distance measurement
    • Liquid level measurement
    • Parking management system
    • Object proximity and presence detection
    • Intelligent trash can management system
    • Robot obstacle avoidance
    • Automatic control, sewer
    • Bottom water level monitoring

    Specifications:

    Common DC Characteristics:

    • Supply Voltage: 2.5v ~ 3.6v
    • Operating Temperature: -40 ~ 85°C

    LoRa Spec:

    NB-IoT Module: BC660K-GL

    Support Bands:

    • B1 @H-FDD: 2100MHz
    • B2 @H-FDD: 1900MHz
    • B3 @H-FDD: 1800MHz
    • B4 @H-FDD: 2100MHz
    • B5 @H-FDD: 860MHz
    • B8 @H-FDD: 900MHz
    • B12 @H-FDD: 720MHz
    • B13 @H-FDD: 740MHz
    • B17 @H-FDD: 730MHz
    • B18 @H-FDD: 870MHz
    • B19 @H-FDD: 870MHz
    • B20 @H-FDD: 790MHz
    • B25 @H-FDD: 1900MHz
    • B28 @H-FDD: 750MHz
    • B66 @H-FDD: 2000MHz
    • B70 @H-FDD: 2000MHz
    • B85 @H-FDD: 700MHz

    Battery:

    • Li/SOCI2 un-chargeable battery
    • Capacity: 8500mAh
    • Self-Discharge: <1% / Year @ 25°C
    • Max continuous current: 130mA
    • Max boost current: 2A, 1 second

    Power Consumption:

    • STOP Mode: 10uA @ 3.3v
    • Max transmit power:  350mA@3.3v
