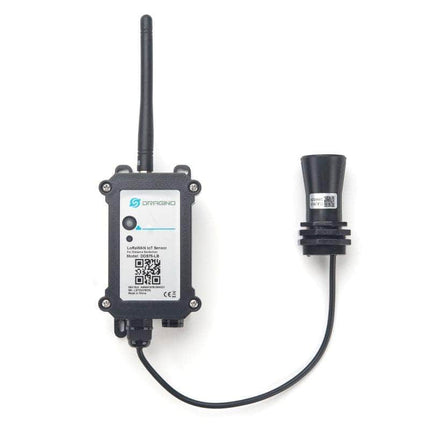

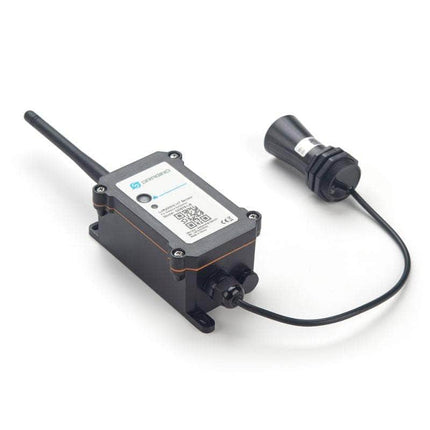

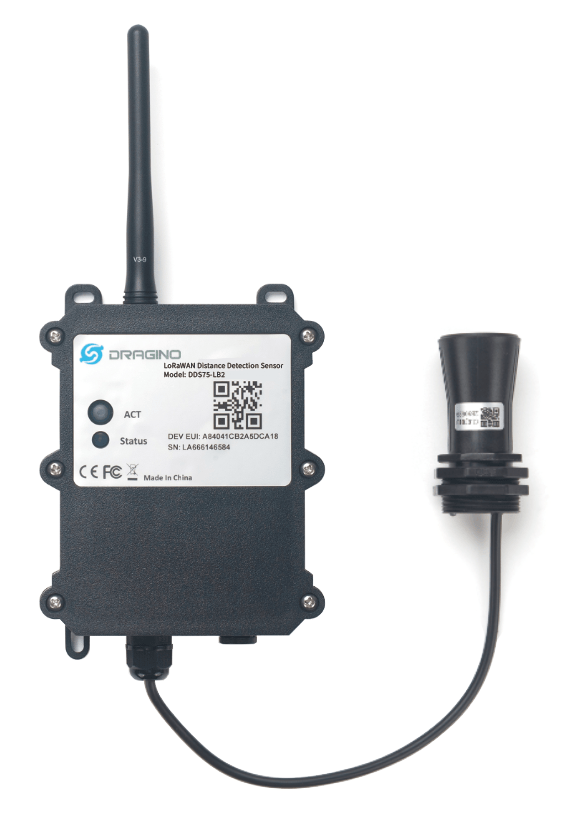

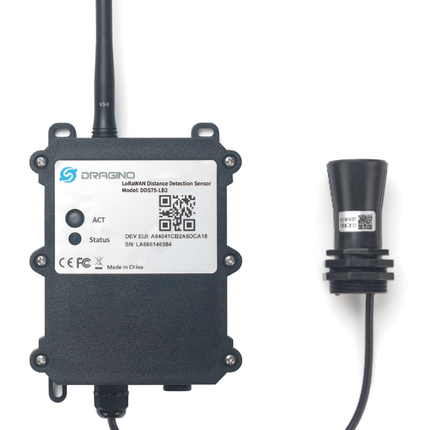

DDS75 LoRaWAN Waterproof Distance Detection Sensor 8500mA Battery

  • $139.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

  • DDS75 LoRaWAN Waterproof Distance Detection Sensor, 8500mA Li-SOCI2 battery

    The Dragino DDS75 is a LoRaWAN Distance Detection Sensor for the Internet of Things solution. It is used to measure the distance between the sensor and a flat object. The distance detection sensor is a module that uses ultrasonic sensing technology for distance measurement, and temperature compensation is performed internally to improve the reliability of data.

    The DDS75 can be applied to scenarios such as horizontal distance measurement, liquid level measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, bottom water level monitoring, etc.

    It detects the distance between the measured object and the sensor and uploads the value via wireless to LoRaWAN IoT Server.

    The LoRa wireless technology used in DDS75 allows the device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

    DDS75 is powered by an 8500mA Li-SOCI2 battery; It is designed for long term use up to 10 years.

    Each DDS75 pre-loads with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto-connect if there is network coverage, after power on.

    Features:

    • LoRaWAN 1.0.3 Class A
    • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
    • Ultra-low power consumption
    • Distance Detection by Ultrasonic technology
    • Flat object range 280mm - 7500mm
    • Accuracy: ±(1cm+S*0.3%) (S: Distance)
    • Measure Angle: 40°
    • Cable Length : 25cm
    • Support Bluetooth v5.1 and LoRaWAN remote configure
    • Support wireless OTA update firmware
    • AT Commands to change parameters
    • Downlink to change configure
    • IP66 Waterproof Enclosure
    • 8500mAh Li/SOCl2 Battery (DDS75-LB)

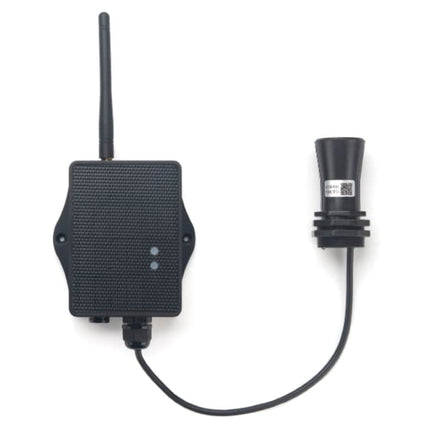

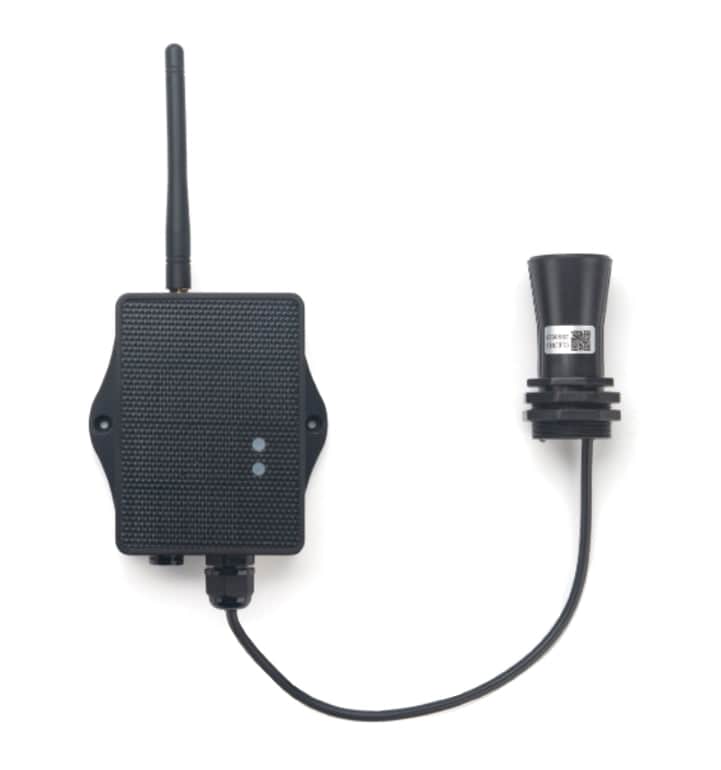

    • Solar panel + 3000mAh Li-on battery (DDS75-LS)

    Applications:

    • Horizontal distance measurement
    • Liquid level measurement
    • Parking management system
    • Object proximity and presence detection
    • Intelligent trash can management system
    • Robot obstacle avoidance
    • Automatic control, sewer
    • Bottom water level monitoring

    Documents:

    Download Directory
