DFRobot Gravity: Analog Adjustable Infrared Proximity Sensor

  • $12.90AUD
  • Save $3.10AUD
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Resellers & Large Orders
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes

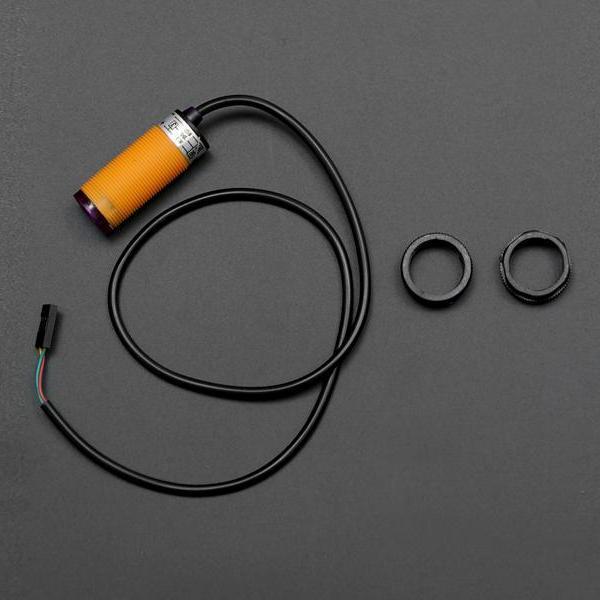

  • DFRobot Gravity: Analog Adjustable Infrared Proximity Sensor

    This is an Arduino infrared distance sensor. It has an adjustable detection range, 3cm - 80cm.  It is small, easy to use, assemble, and inexpensive.

    Useful for robotics, interactive media, industrial assembly line, etc. Infrared wave length is part of the Sun's natural light spectrum. While is a nice fit for indoor projects, outdoors with plenty of sunlight and reflective surfaces on it's sight is not adviced. It's incredibly repurposable and can be used for a lot of different projects. The adjustable screw on it's back makes it very convenient for different purposes. Digital read on your Arduino pin and you are ready to go. Good sensor choice for quick prototyping.


    Use it on a robot for wall detection and wall follower, or as some of the projects listed below as a trigger system. It's round shape with the screwable holders make it a good choice for a home made assembled robot, with a hole of it's diameter and the holders you can place it aiming at different positions on a robot. Or even place it near your PC to turn on and off your monitor.


    To ease the difficult of using this sensor,  a Gravity Interface is adapted to allow plug&play.  The IO expansion shield is the best match for this sound senor connecting to your Arduino.

    SPECIFICATION

    • Power supply: 5V
    • Current: 100mA
    • Range: 3 - 80cm adjustable
    • Red: +5V; Yellow: Signal; Green: GND
    • Dimension: 45 x 18 x 18 mm (1.8 x 0.7 x0.7 in)

    DOCUMENTS

    PROJECTS

    • Trigger detection system by Chanseok (youtube)
    • Light trigger system by NosIreland (youtube)
    • Quick Sensor test (youtube)
    Project 1. Summer inspiration-DIY automatic curtain lift

    List of hardware:
