ECG 2 Click - MikroElektronika ECG Heart Health Tracking

  • $35.00
  • Save $35
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • ECG 2 Click - MikroElektronika ECG Heart Health Tracking

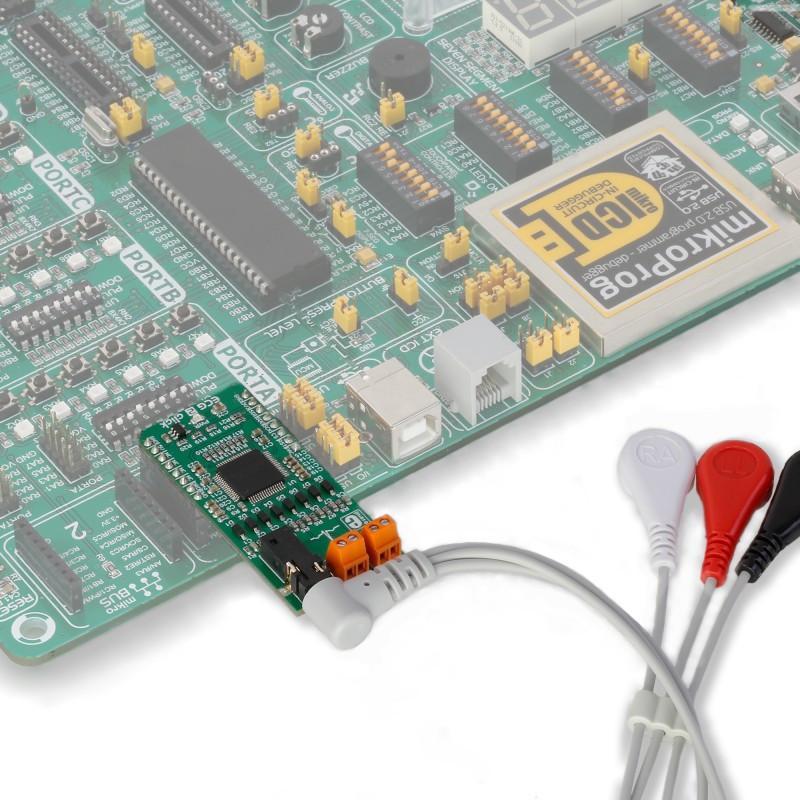

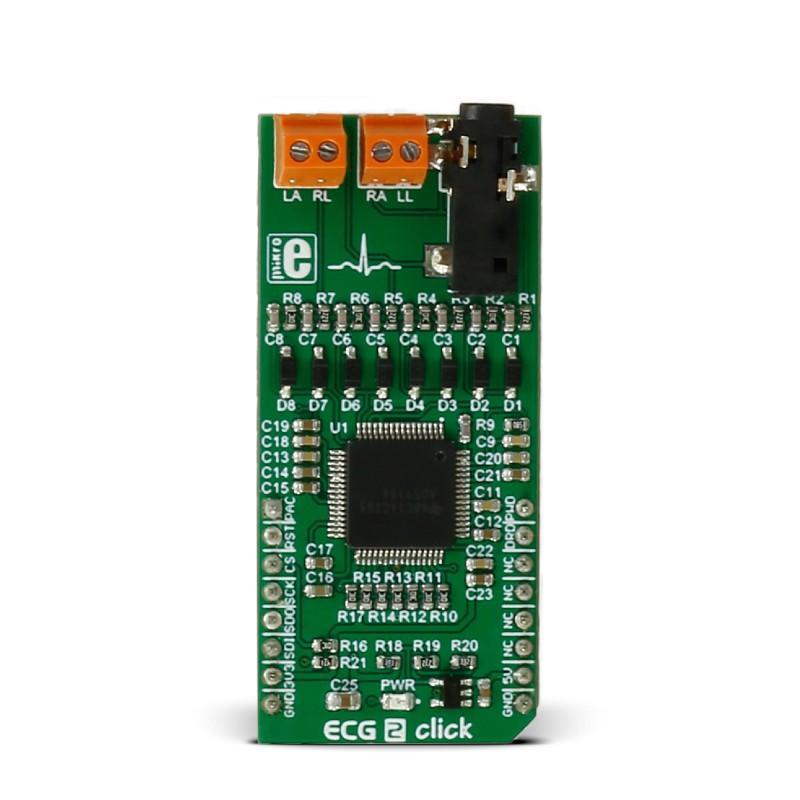

    Track the patterns of your beating heart with ECG 2 click. ECG 2 click contains ADS1194 16-bit delta-sigma analog-to-digital converters from Texas Instruments, a built-in programmable gain amplifier (PGA), an internal reference, and an onboard oscillator.

    The click communicates with the target MCU over SPI and the following mikroBUS pins: PWM, AN and INT. ECG 2 click runs on 3.3V and 5V power supply.

    Note: We offer cables for three electrodes measuring (using 3.5mm jack onboard)

    Setup guide – How to use the ECG 2 click

    You will need the following things to start recording your ECG:

    Of course, you will also need a target board with an MCU (preferably powered from an external battery).

    There are two available measuring options:

    1. For 3 wire measurement, a 3.5mm jack is used.

    You can connect the click to a person using three electrodes placed on the left arm, right arm and the left side of the abdomen (below the heart) or alternatively on the left leg.

    We offer cables and electrodes that are marked (left leg (LL) – red, left arm (LA) – black, right arm (RA) – white).

    2. For 4 wire measurement, screw terminals are used.

    ECG 2 click can also be connected by 4 electrodes that are placed on both arms and legs.

    MikroPlot application

    MikroPlot is a free data visualization tool (Windows) that can be used to generate an ECG.

    The graph is generated from data sent from the MCU (ADC values from ECG click input + time stamp). A UART-USB connection is required.

    See the learn.mikroe.com article for more information.

    Power supply

    ECG 2 click uses both 3.3V and 5V power supply — 3.3V is used as digital power supply and 5V is used for analog power supply (via linear regulator which gives stabilized 3V at output).

    OverVoltage and OverCurrent protection

    OverVoltage and OverCurrent protection is realized over 22k resistors and diodes.

    Application

    Measures the electrical activity of a beating heart through electrodes taped to the skin.

    DISCLAIMER: ECG 2 click is a prototyping tool, not a medical-grade device. Do not use it to diagnose patients.

    Specifications

    Type Biomedical
    Applications Measures the electrical activity of a beating heart through electrodes taped to the skin
    Key Features ADS1194 IC, Onboard 3.5mm jack, Mikro Plot application, SPI interface, 3.3V and 5V power supply
    Key Benefits Ready-to-use example and free software tool to generate ECG plot, record ECG while you watch TV, read email, talk over the phone – study patterns to see what excites you (HRV - heart rate variability is a good indicator of state of mind).
    Interface SPI,GPIO
    Input Voltage 3.3V or 5V
    Click board size L (57.15 x 25.4 mm)
