EdgeBox-ESP-100 Industrial Edge Controller, WiFi BLE 4G LTE Ethernet CAN RS485

  • $289.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

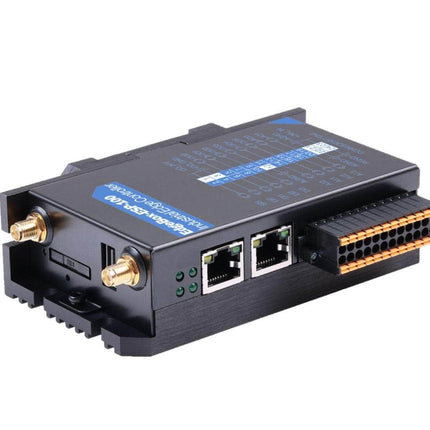

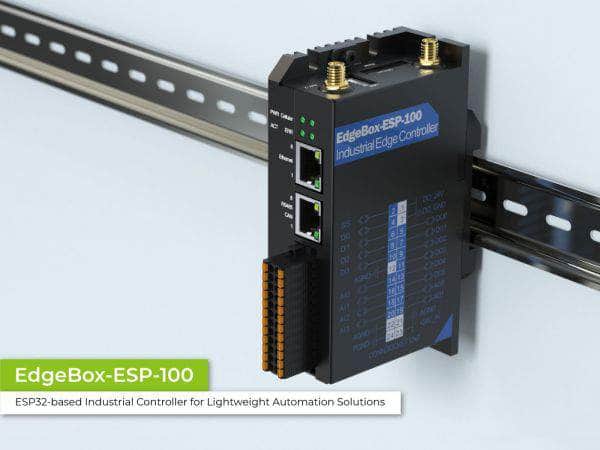

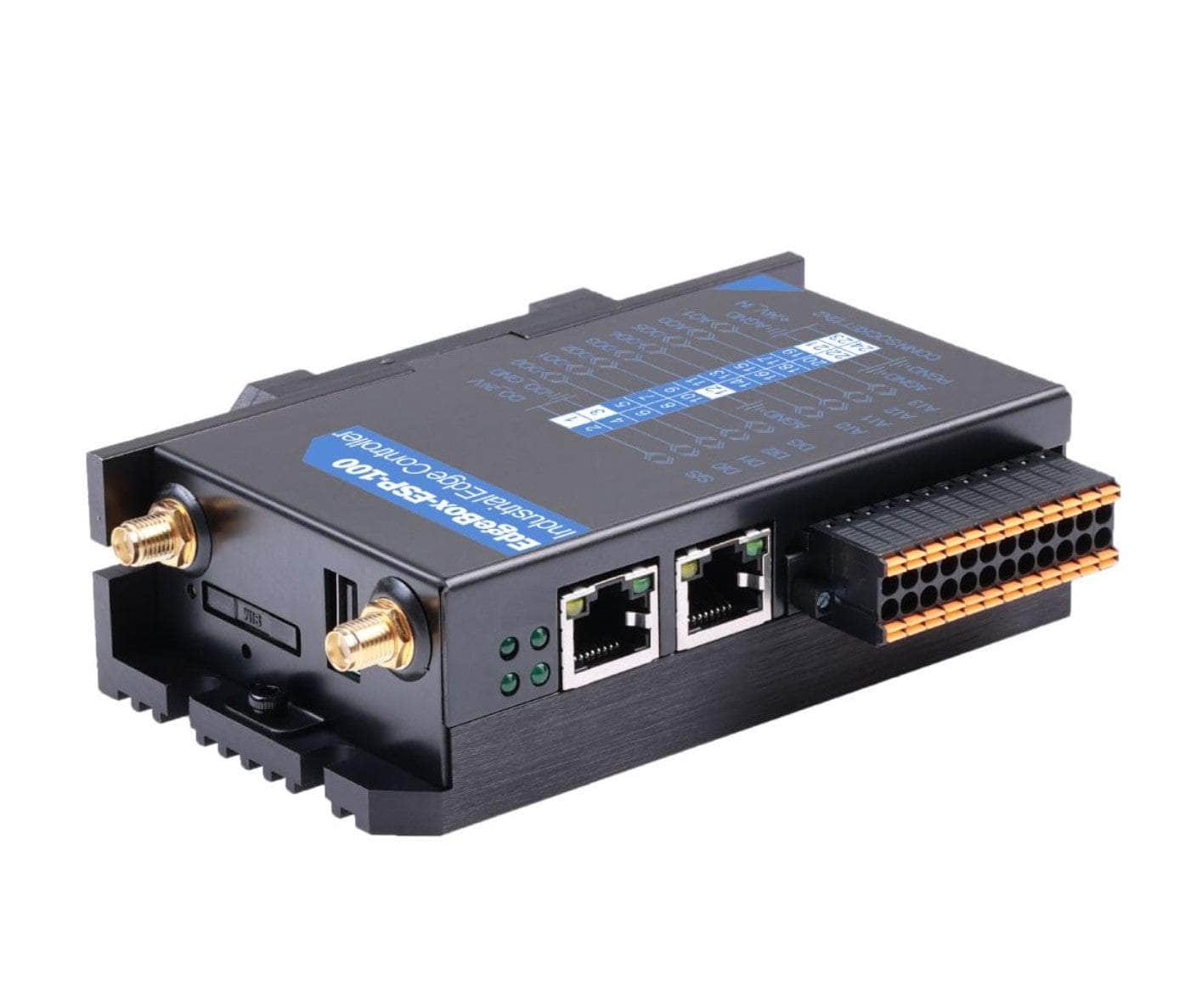

  • EdgeBox-ESP-100 Industrial Edge Controller, WiFi BLE 4G LTE Ethernet CAN RS485

    EdgeBox-ESP-100 represents the lightweight, multi-functional controller. It carries various wireless capabilities and multiple Fieldbus, which makes it an independent PLC for field automation applications, or enables it as an industrial gateway for offering the original PLC the communicated ability to network and cloud.

    Feature

    • Multi-Fieldbus Support: CAN, RS485, Ethernet
    • Multi-wireless Capability: On-chip Wifi, BLE connectivity; built-in Cellular 4G LTE module
    • Reliable Hardware Design: Rugged, maintenance-reduced structure
    • Reliable Electrical Design: High isolation, High surge, and short circuit protection
    • IEC 61131-3 compliant programs support (under development)
    • Programmable with ESP-IDF

    EdgeBox-ESP-100 is an ESP32-based controller designed for lightweight automation solutions. It supports analog input, effectively monitoring and controlling in a remote environment, ideal for PID control loops, logic sequencing control, or a gateway with flexible wireless and field sensors expansion.

    It offers isolated CAN, RS485 Fieldbus connections, and rich IO resources for extensive facilities and sensors input, for both digital and analog signals. It is perfectly satisfactory to the PLC and field automation applications.

    Since it contains on-chip Wi-Fi and BLE functions, and also includes a 4G LTE module Cellular, EdgeBox-ESP-100 can be utilized to establish an industrial gateway, enabling the original PLC to connect the network or cloud.

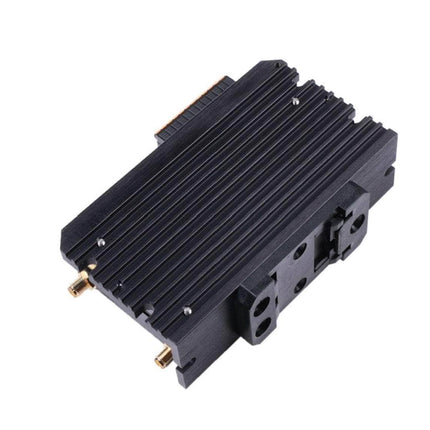

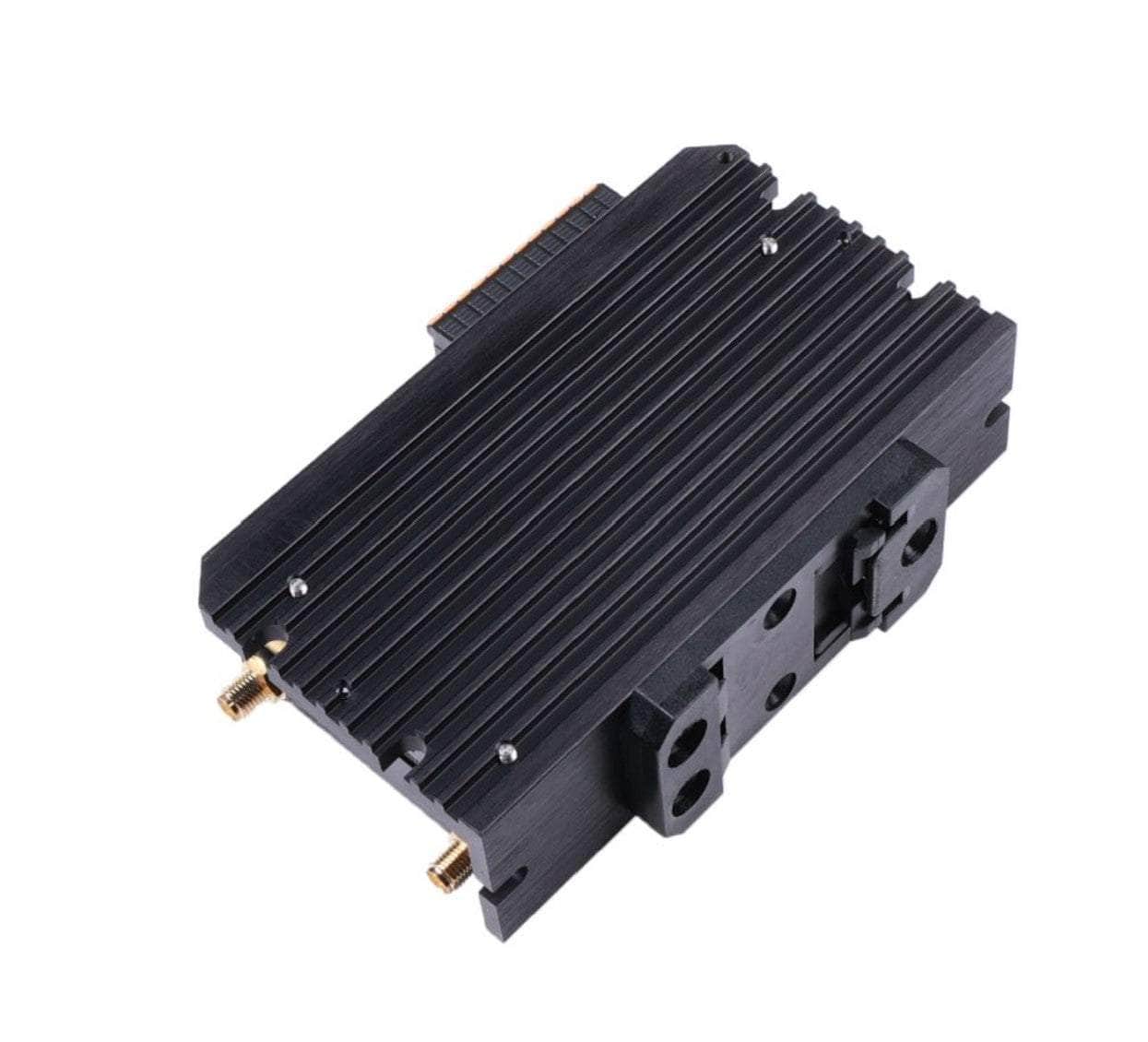

    This portable box comes with rugged hardware, an electrical design, and an aluminum alloy enclosure, by which it maintains its function in a wide temperature range and provides high surge and short circuit protection, for diverse deployment methods based on your business.

    Specification

    Parameters

    Detail

    Basic

    CPU

    ESP32S3

    Memory

    512KB + 8MB RAM

    Storage

    16MB Flash

    Wireless

    WiFi

    on-chip 2.4 GHz

    Bluetooth

    on-chip Bluetooth 5.0, BLE

    Cellular

    4G - A7670G SIMCom LTE Cat 1 module

    LoRa

    Supported*

    Interface

    Ethernet

    100M RJ45 *1

    USB

    USB2.0 A*1

    CAN BUS

    CAN BUS *1 (Isolated)

    RS Serial

    RS485 *1 (Isolated)

    Digital Input

    4 (Isolated) onboard

    DC input Voltage - 24V

    Digital Output

    6 (isolated)

    Recommended Voltage - 24V

    Analog Input

    4 (Isolated)

    Input: 0 ~ 20 mA default, 0-10V optional

    Analog Output

    2 (Isolated)

    Output: 0 ~ 5 V

    Power Supply

    10.8 ~ 36 V

    Extra features

    RTC

    RTC

    Encryption Chip

    Atecc608a(optional)

    Operation temperature

    -20 to +60 °C

    Certification

    RoHS, CE, FCC, UKCA

    Warranty

    2 Years


    Note

    • The box supports LoRaWAN® communication but requires soldering to replace the 4G module. If you want to customize it in LoRaWAN® communicating or customize features marked as 'Optional'.

    Application

    • SCADA
    • Industrial Controller
    • Proportional, Integral, and Derivative (PID) control loops;
    • Logic Sequencing Control
    • Industrial Gateway
