EdgeBox-RPi4 Industrial Edge Computing Controller WiFi

  • $439.00
  • Save $50
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

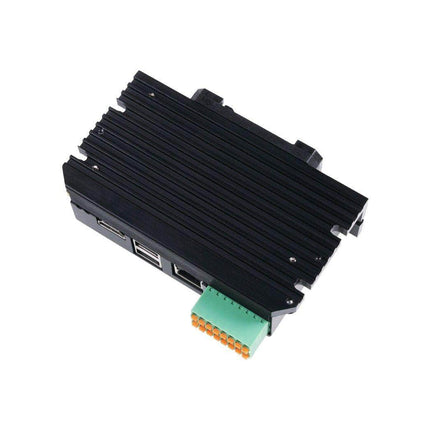

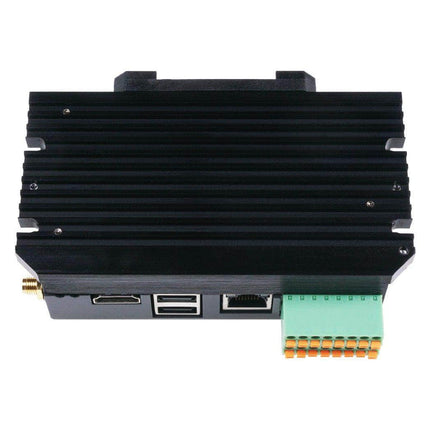

    EdgeBox-RPi4 Industrial Edge Computing Controller WiFi

    Rugged, Fanless Edge Computing Controller powered by the Raspberry Pi Compute Module 4 (CM4) for harsh industrial environments. It can be used to connect field networks in cloud or IoT applications.

    EdgeBox-RPi4 Designed as high-scalability and rugged industrial hardware, mounted with rich IO resources and supported by the great Raspberry Pi industrial software ecosystem, it is an ideal choice for smart automation and Industrial Internet of Things(IIoT) solutions.

    Features

    • All-in-one Industry Controller:
      • More than just a PLC, PAC, more can it implement functions of the IIoT Gateway, OPC UA Server and Industry PC.
    • Powerful and Flexible Processors:
      • Powered by Raspberry Pi Compute Module 4 (CM4), performing real-time operation and multi-process.
    • Rich IO resources and Industrial Interfaces Mounted:
      • Support a wide range of industrial bus protocols and standards
    • Multiple Communication Capabilities:
      • Carry full-featured wireless interconnectivity and a RJ45 Gigabit Ethernet, supported by multiple cloud services
    • Rugged Industrial-grade Hardware Design:
      • Integrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN and wall mount
    • Great Raspberry Pi Industrial Software Ecosystem:
      • Support a variety of industrial software and platforms, including Codesys, Node Red, MQTT, OPC UA, Ignition and etc.
    • Powered by Raspberry Pi Compute Module 4 (CM4) running up to 1.5GHz
    • Rich interfaces for industrial applications

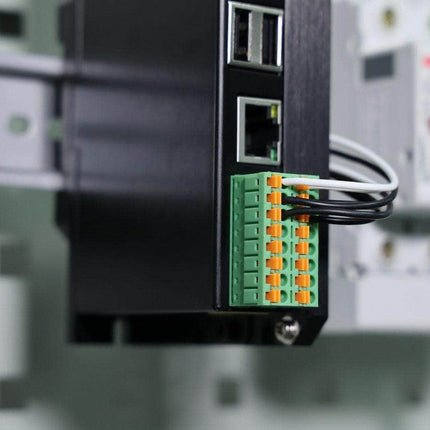

      • Industrial-grade isolated DI/DO terminal
      • Industrial-grade isolated RS-485 interface
    • Diverse network connectivity options
      • Dual-band 2.4GHz/5GHz Wi-Fi
      • Gigabit Ethernet
      • 4G/LTE communication
    • Designed for reliability with built-in uninterruptible power supply (UPS) with supercap
    • Integrated thermal management with full Aluminum heatsink enclosure
    • Convenient form factor with 35mm DIN and wall mount

    The EdgeBox-RPI4 is an edge computing controller powered by the versatile Raspberry Pi CM4. Equipped with industrial-grade DI/DO & RS-485 interfaces, it was designed for easy setup and quick deployment of typical industrial applications, such as status monitoring, facility management, digital signage, and remote control of public utilities. Furthermore, it can be utilized as a user-friendly gateway solution by leveraging compatibility with industry-standard protocols, saving you on deployment costs like electrical power cabling and reducing deployment time.

    The EdgeBox-RPI4’s ultra-lightweight and compact design is the answer for applications in environments with limited space and can operate reliably in a variety of extreme conditions including in-vehicle applications. With the EdgeBox-RPI4, you can build IoT Gateways, a 4G/LTE Router, or even use it as a programmable logic controller in industrial automation and control systems!

    Rich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards

    This high-scalability equipment has been engineered with multiple isolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers extended SSD storage and enhanced display output, for more data acquisition and improved visual presentation.

     IO resources

     Protocols and standards



    • 2x isolated DI; 2x isolated DO
    • 1x isolated RS485; 1x RS232
    • 2x USB2.0 A1x M.2 slot support 2242 NVME SSD
    • 1x HDMI 2.0 up to 4k@60fps



    • RS485/RS232
    • TCP IP
    • Modbus
    • OPC UA
    • IEC 61131-3 compliant

    Applications

    • IoT Gateway
    • 4G/LTE Router
    • Edge Computing Controller
    • Software-defined PLC (Programmable Logic controller)
    • Industrial Controller
    • Automation and Control Systems

    Specifications

    Specification Details
    CPU Broadcom BCM2711, Quad-core Cortex-A72 64-bit SoC @ 1.5GHz
    Memory 2GB, 4GB or 8GB LPDDR4 SDRAM
    Storage 32GB eMMC, or 8GB
    M.2 socket for NVMe SSD up to 2TB
    Wireless 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac
    Bluetooth 5.0, BLE
    Video Interface HDMI 2.0a (up to 4kp60 supported)
    Interfaces 1 × RJ45 ethernet port support 10/100M/1000M
    2 x USB 2.0 Port
    1 x HDMI 2.0a
    2 × DI
    2 x DO
    1 x isolated RS485
    1 x RS232

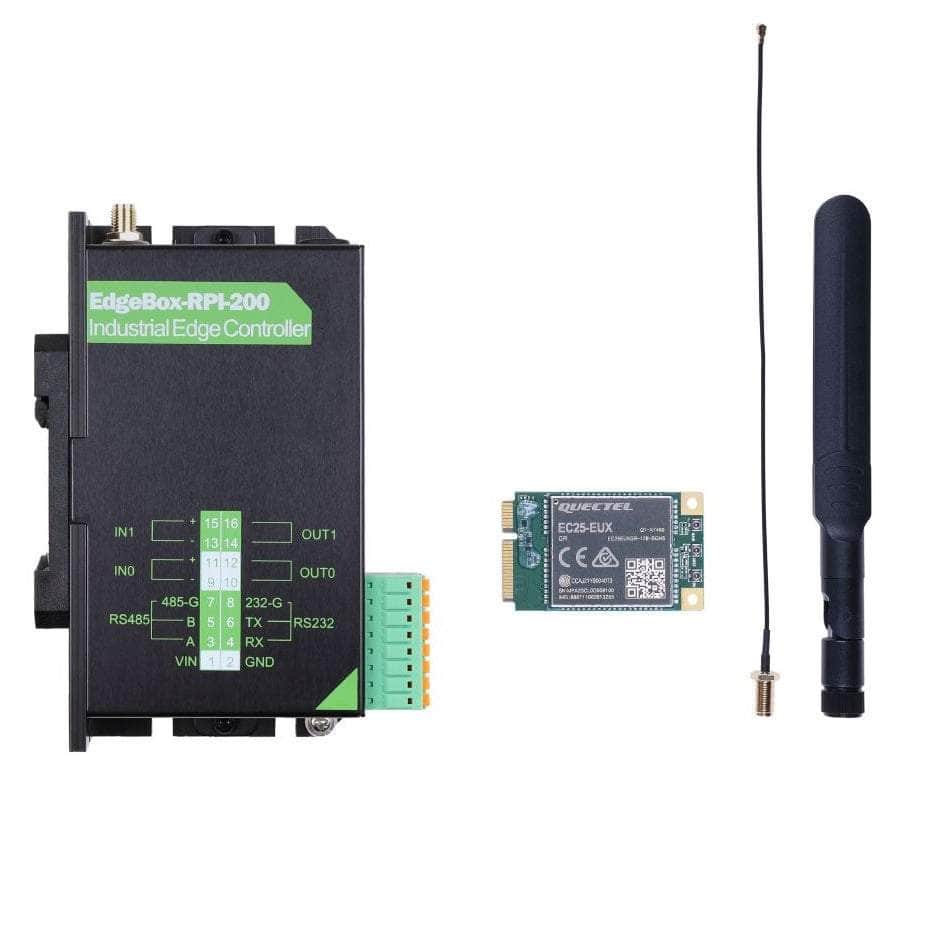

    1 x mini-PCIe socket with sim card support
    1 x M.2 socket with 2242 NVME SSD card support
    Dual-Band 802.11ac Wi-Fi (optional)
    Wide Range of Supported Power Supply Voltages 10.8-36V DC
    Dimensions 124mm x 76mm x 35mm
    Operating Temperature -20°C to +60°C
    Storage Temperature 1 x Mono AMIC
    1 x Dual channel DMIC
    1 x LINEOUTR/L, supports 8K/16K/32K/48KHz Sampling Rate
    EMI IEC 61000-6-2
    ESD Protection 4 kV/8 kV with IEC 61000-6-2
    IEC61000-4-4
    Peripherals 4 x UART(PM_UART is used as Debug Serial by default)
    1 x SDIO2.0 (Data bus 1/4 bit mode, compatible with SD Specification 2.0)
    2 x I2C, 1 x I2S, 1 x SPI, 4 x PWM, several GPIOs



    Documents:

    Edgebox Broadsheet

    User Manual

    EdgeBox 3D File

    EdgeBox CE Certificates

    EdgeBox FCC Certificates

    Edge Series Warranty Regulations

    EdgeBox-RPi-200 Backup Image

    Installation Guide

    EdgeBox RPi 200 Azure IoT EDGE
