EMAX Skyline32 Mini Flight Controller (Advanced V1.1)

  • $25.00
  • Save $25
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • EMAX Skyline32 Mini Flight Controller (Advanced V1.1)

    The skyline32 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.

    Selling points:

    • Cleanflight & Baseflight supported. (SKYLINE32 is loaded with Baseflight-Configurator)

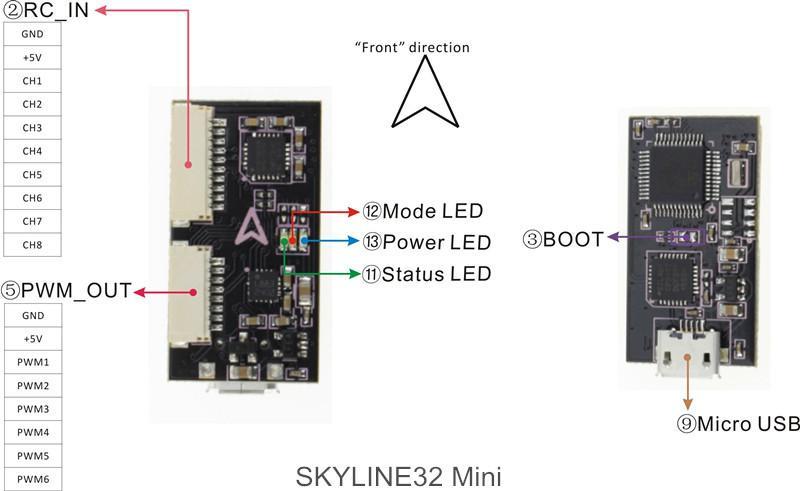

    • Unique wire-to-board connectors, wiring easier!
    • Thin and light design, reducing overall weight saving mounting space!
    • With compass sensor, no deviation!
    • Adapting high-quality electronic components & high precision SMT.


    • 32-bit ARM microprocessor running at 3.3V / 72MHZ.
    • With gyro, compass, extended reservation position for accelerometer, barometer.
    • Manual mode, Angle mode, Horizon mode, heading hold mode, head-free mode, Altitude hold mode (this mode is available in advanced version)
    • Support Quad-,Tri-,Hex- ,various multirotor.
    • Flexible RC input: standard, CPPM (PPM SUM)
    • Micro-USB: Flashing firmware & adjusting parameter
    • Parameters adjustment interface: Baseflight-Configuration.
    • GPS position hold / “Go home” function(GPS Optional).

    Dimension: 30mm x 16 mm x 7.5 mm
    Weight: 2.6g (W/O wires)


    1x SKYLINE32 mini Advanced

    2x RC breakout cable

    Note: SKYLINE32 hardware is compatible with NAZE32 firmware, including clean flight, base flight. Below are the links to the source codes:

    SKYLINE32 is loaded with base flight and Baseflight-Configurator GUI. This manual is a base flight Setup Tuning Guide for SKYLINE32.
    If you are using clean flight firmware, please refer to the below link to download and install clean flight Configurator:
    Note: with firmware and configuration based on “MultiWii” software, the processor used is not Atmel AVR, and can not be compiled via Arduino or other AVR tools.
    Below is some information about STM32 development:
