ESPresso Lite V2.0 IoT Starter Kit - IoT Store Australia

ESPresso Lite V2.0 IoT Starter Kit

  • $49.00AUD
  • Save $10AUD


  • Available in Stock
  • $ We Ship Asia Pacific from AU, and Prices (AUD) are Exc. GST
  • $ Contact Us! We Offer Further Discounts for Resellers & Large Orders
  • $ Further Special Discounts for Educational Institutes & Net30 Payment
  • ESPresso Lite V2.0 IoT Starter Kit

    ESPresso Lite V2.0 is the first low-cost Arduino-compatible ESP8266 WiFi development board to be manufactured in Malaysia. Working together with ESPert, a Singapore IoT technology company, this board allows anyone to learn, experiment and build their IoT projects easily and quickly.

    This is specially packed IoT Starter Kit according to the tutorial at www.espressolite.com. It comes with all the necessary component for you to kick start your IoT project. Do refer to the official ESPert tutorial to get started.

    Cytron Technologies as the manufacturing partner is excited to announce the design of V2.0 is finalised and the pre-launch promotion is also ended. 1st batch of ESPresso Lite has been shipped out to the customer early of March 2016.

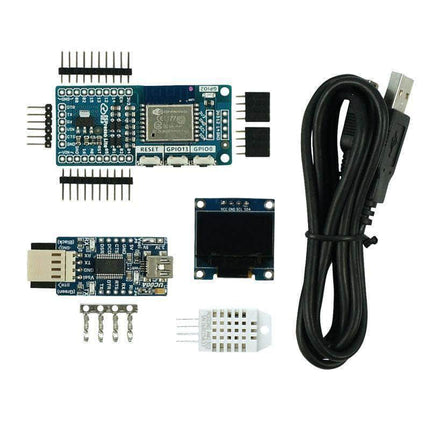

    The core hardware inside ESPresso Lite V2.0 is Espressif System's ESP8266 WROOM-02 WiFi module and is programmable using the Arduino IDE like how anyone would run their programs in other Arduino boards. With this kit, we have included the ESPresso Lite V2.0 main board, UC00A (USB to UART Converter), OLED display, DHT22 sensor and USB mini B cable (for UC00A).

    Espresso Lite V2.0 Specs and Features:
    • Features Espressif System's ESP8266 WROOM-02 Wi-Fi module (with 4Mb flash)
    • Design for IoT with free espert.io cloud and app service
    • Support the Arduino IDE (boards manager) and libraries
    • Auto program loading from Arduino IDE, using UC00A (or other compatible USB to Serial)
    • Vin: 5 to 12VDC
    • Operating Voltage: 3.3VDC
    • On board 3.3V Voltage Regulator with maximum current of 800mA continuous, 1A peak
    • One Reset button, two User Programmable buttons
    • WROOM-02 module is FCC, CE & TELEC certified
    • Breadboard friendly breakout pins
    • Ready pads for I2C OLED panel
    Packing List:
    Documents:

    For more information, please visit the product page of ESPresso Lite V2.0
