Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45, 3x USB

  • $25.00
  • Save $10
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45, 3x USB

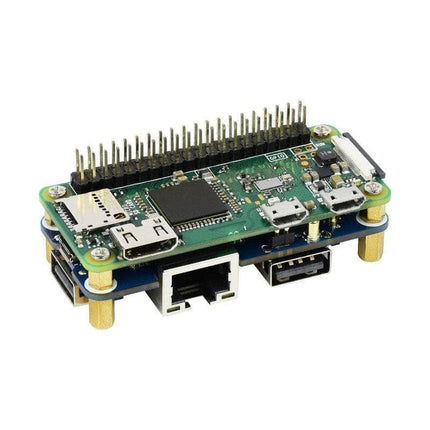

    This Raspberry Pi hub HAT provides more USB capability to your Pi, plus an RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

    It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

    Features

    • 3x USB ports, compatible with USB2.0/1.1
    • 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
    • Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

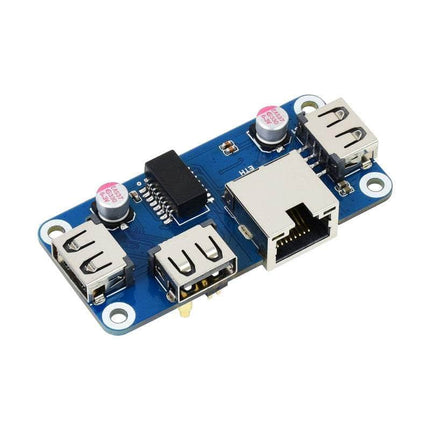

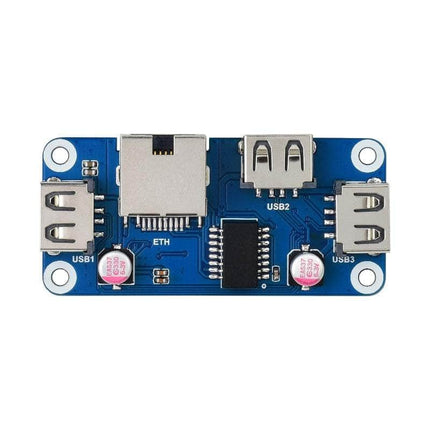

    What's on Board

    Raspberry Pi Expansion Board on board resource

    1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
    2. USB extended ports: USB1~USB3
    3. RJ45 port: 10/100M Ethernet interface

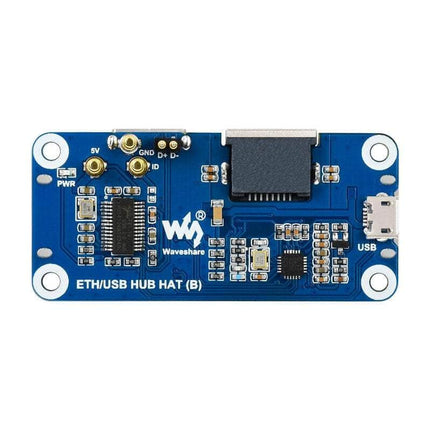

    4. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
      • Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
      • Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
    5. TS8121A: Ethernet wave filter
    6. RTL8152B: 10/100M Ethernet chip
    7. FE1.1S: USB HUB chip
    8. LED indicators:
      • PWR: power indicator
      • ACT: Ethernet indicator
      • D1~D3: a dedicated indicator for USB1~USB3 respectively

    Specifications

    • Operating voltage: 5V
    • Dimension: 65mm × 30mm
    • Mounting hole size: 3.0mm

    Dimensions

    ETH/USB HUB HAT dimensions

    Development Resources

    Wiki: www.waveshare.com/wiki/ETH/USB_HUB_HAT
