EZO Complete-Conductivity - Atlas Scientific
The EZO-Complete USB Conductivity meter makes building a custom monitoring system easy. Simply connect the EZO-Complete to a PC and install the free Atlas Desktop software. Connect multiple EZO-Complete conductivity modules to read conductivity from multiple locations. Embedded systems engineers can use EZO-Complete Conductivity with any USB-enabled microcontroller. EZO-Complete will create a virtual comport and is controlled using simple serial strings.
| Reads |
Conductivity = μS/cm
|
|
Total dissolved solids = ppm
|
|
Salinity = PSU (ppt) 0.00 – 42.00
|
|
Specific gravity (sea water only) = 1.00 – 1.300
|
|
|
| Range |
0.07 − 500,000+ μS/cm |
| Accuracy |
+/ – 2% |
| Response time |
1 reading per sec |
| Supported probes |
K 0.1 – K 10 any brand |
| Calibration |
2 or 3 point |
| Temp. compensation |
Yes |
| International standard |
ISO 7888 compliant
(determination of electrical conductivity)
|
| Dimensions |

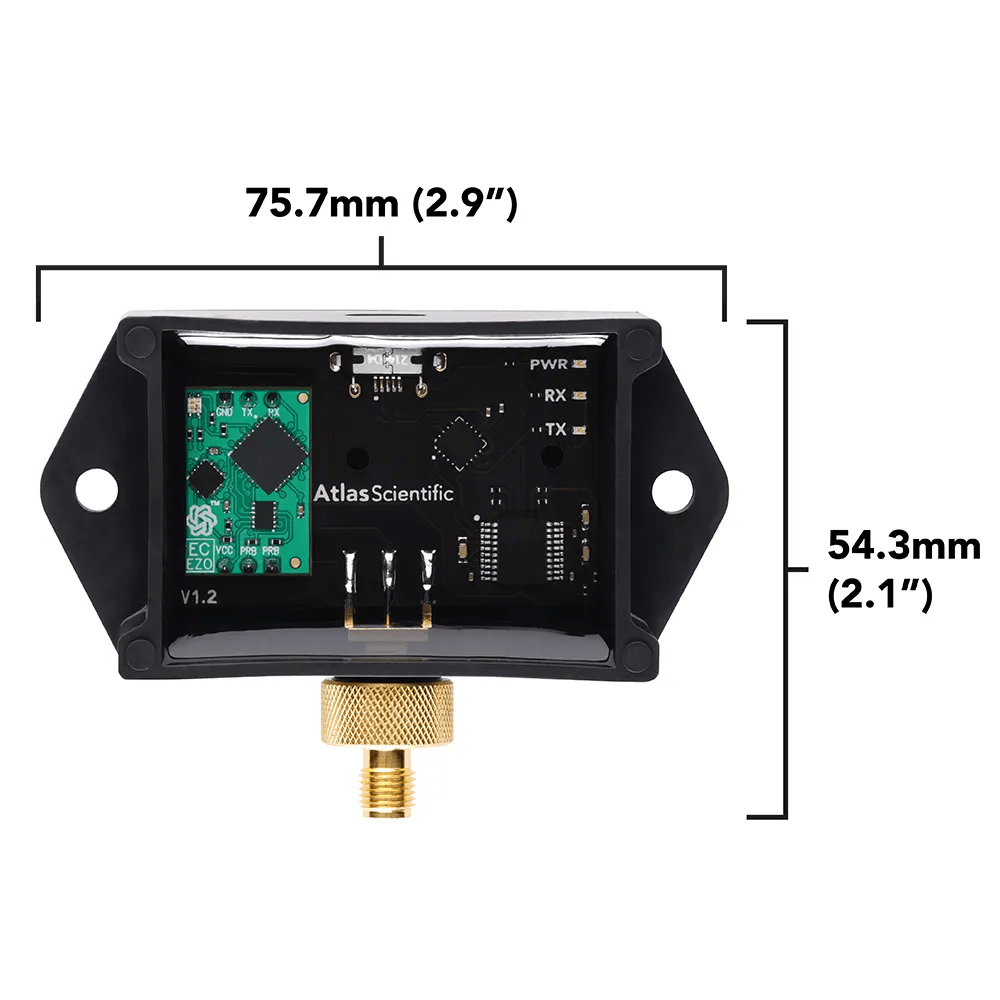

75.7mm x 54.3mm (2.9″ x 2.1″) |
| Weight |
~54 grams |
| Data protocol |
Serial strings through FTDI virtual comport |
| Data format |
ASCII |
| Operating voltage |
5V USB |
