EZO-HUM™ Embedded Humidity Probe - Atlas Scientific

  • $149.00
  • Save $20
  • (Exc. GST)


  • Available to order with a short lead time. Ship within 4-5 weeks.

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    EZO-HUM™ Embedded Humidity Probe - Atlas Scientific

    From industrial processes to environmental monitoring, this humidity probe can be used in countless applications. With a weather-resistant housing that allows for multiple mounting options, the EZO Embedded Humidity Probe is ready to go, whether you’re monitoring the humidity levels inside a home, workspace or even outside. The EZO Embedded Humidity Probe gives the same readings as our EZO-HUM Circuit. There is no difference in the readings or accuracy, only the design.

    This probe comes fully calibrated and ready to use right out of the box.

    The EZO-HUM™ comes with:
    One embedded Humidity probe, one data cable with 5 pin male header, and one Locknut & O-ring.

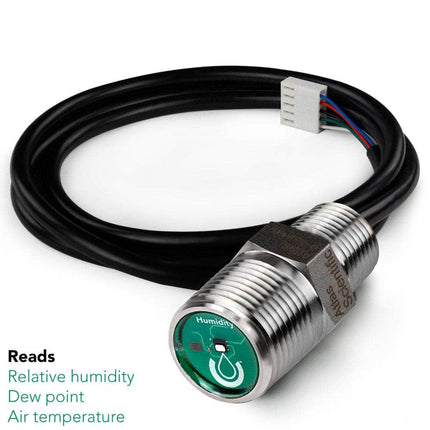

    Reads Relative humidity
    Dew point
    Air temperature
    Range 0 – 100%
    Calibration Factory calibrated
    Response time 1 reading per second (UART mode)
    1 reading per 300 milliseconds (I2C mode)
    Accuracy +/- 2%

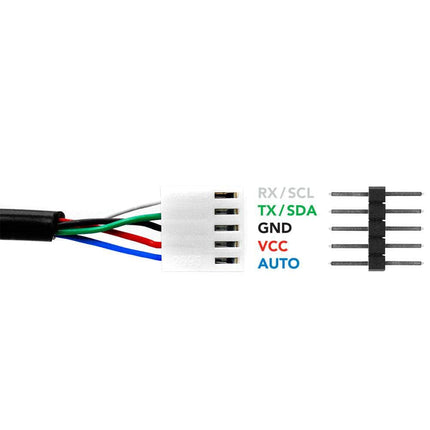

    Connector 5 lead data cable
    Cable length 1 meter
    Data protocol UART & I2C
    Default I2C address 111 (0x6F)
    Data format ASCII
    Operating voltage 3.3V − 5V
    IP rating IP67 (waterproof up to 1 meter)
    Life expectancy 10 years



    Documents

    Downloads
    Basic Sample Code
    Library
    3D files
