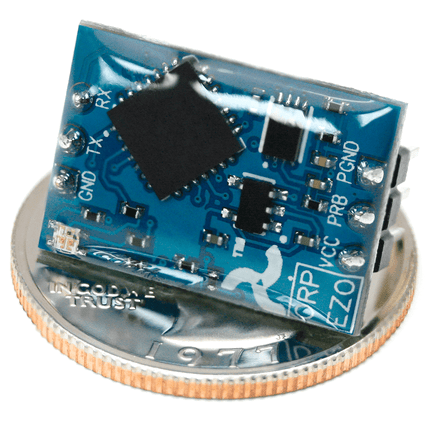

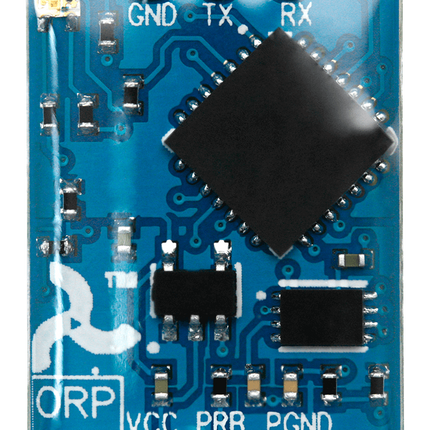

EZO™ ORP Circuit - Atlas Scientific

  • $109.00
  • Save $10
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • EZO™ ORP Circuit - Atlas Scientific

    From water sterilization to chemical production, the reasons for needing to know the ORP of water are many.  Fortunately, Atlas Scientifics EZO-ORP circuit makes taking high accuracy ORP readings easy. From calibration to timed readings, the Atlas Scientific EZO-ORP circuit is a drop-in solution to a complex measurement.

    Connect an ORP probe to your microprocessor that supports UART or I2C. Wide range readings from -1019.9mV to +1019.9mV with an accuracy down to the tenths place (+/- 1mV). Made by Atlas Scientific.


    • Wide range ORP readings from -1019.9mV to +1019.9mV
    • Accurate ORP readings down to the tenths place (+/- 1mV)
    • Flexible calibration protocol supports single point calibration to any value
    • Calibration required only once per year with Atlas Scientific ORP probe
    • Single reading or continuous reading modes
    • Data format is ASCII

    Two data protocols

    • UART asynchronous serial connectivity (RX/TX voltage swing 0-VCC)
    • I2C (default I2C address 0x62)
    • Compatible with any microprocessor that supports UART, or I2C protocol
    • Operating voltage: 3.3V to 5V
    • Works with any off-the-shelf ORP probe
    • Sleep mode power consumption
    • 0.995mA at 3.3V

    Circuit Specs

    • Dimensions: 13.97mm X 20.16mm (0.55″ X0.79″)
    • Weight: 1.86 grams
