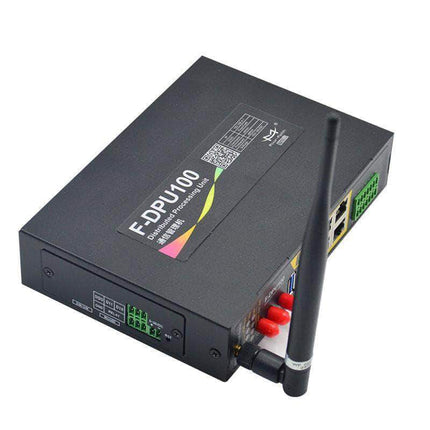

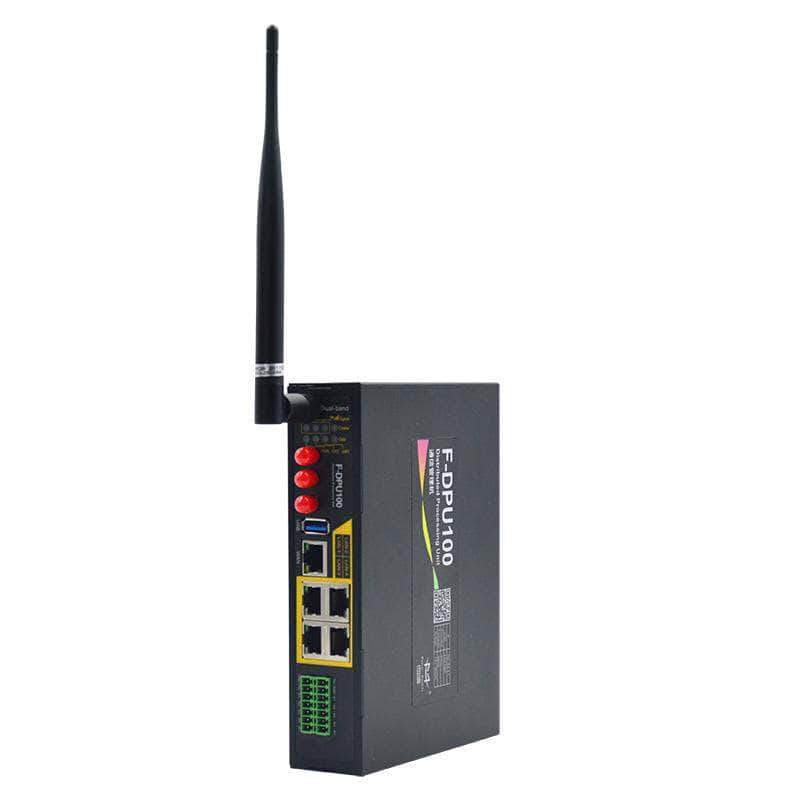

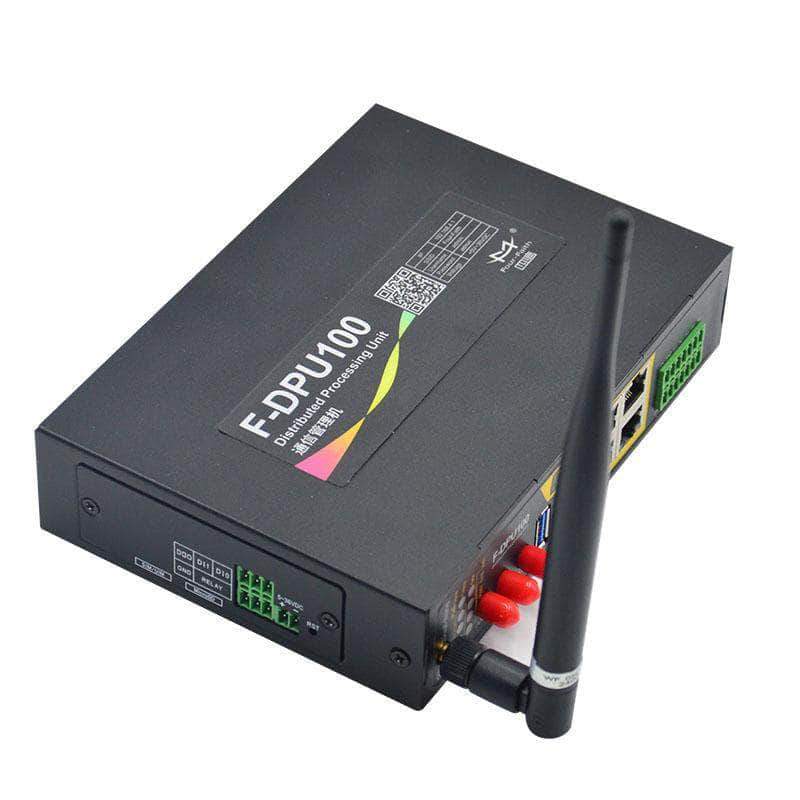

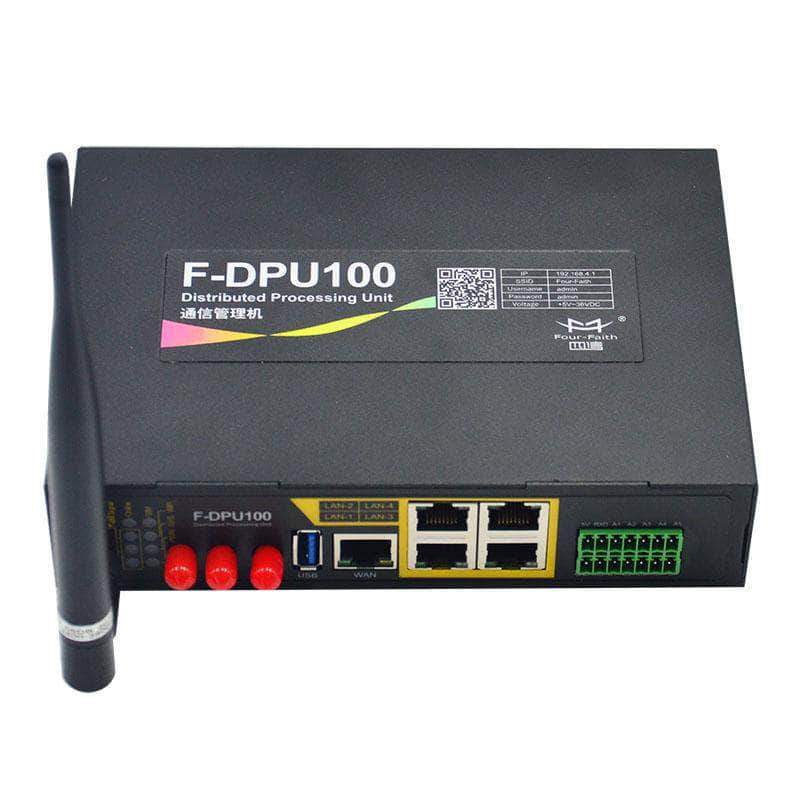

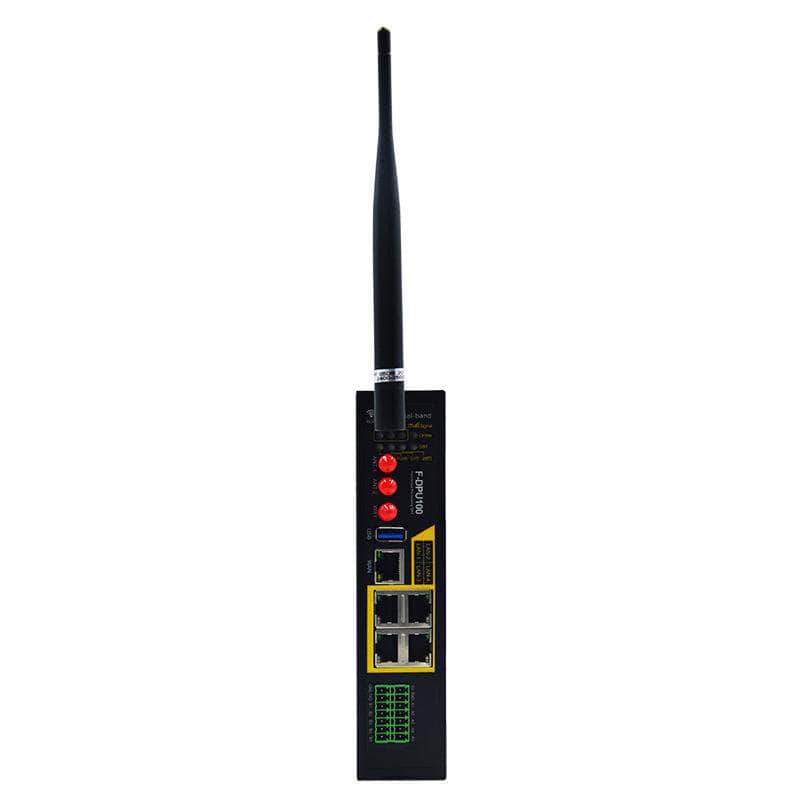

F-DPU100 Interface Protocol Converter Distributed Processing Unit M2M 4G LTE

  • $299.00
  • Save $200
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • F-DPU100 Interface Protocol Converter Distributed Processing Unit M2M 4G LTE

    F-DPU100 Protocol Converter is an IoT Distributed Processing Unit designed for the wireless remote and large data transmission. The Interface protocol converter provides the powerful processing ability of data from Ethernet, Standard RS232, Standard RS485, WIFI or other different communication interfaces for different SCADA platforms, Power protection devices, Intelligent equipment, Different management systems etc. The main function of the Interface gateway protocol converter is to process UL and DL data, complete different protocols' forwarding, and achieve transparent transmission of application software communication between different systems and protocols.

    Benefits:
    • Protocols Supported: IEC101, IEC104, ModBus, DNP3.0 etc.
    • Advanced Failover: Maximizes uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, WIFI, dual-SIM).
    • Multiple Tunneling Schemes: Secure your data using a variety of VPN tunneling schemes, including IPSec, L2TP, PPTP, OpenVPN and GRE.
    • Ethernet, serial and I/O for connecting diverse field assets.
    • Flexible WIFI: 802.11b/g/n(2.4GHz) and 802.11ac(5GHz) dual-band WIFI, configurable WIFI as WAN or access point, WIFI Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID.
    • Gigabit Ethernet ports.
    • Four-Faith Remote Manager provides mass configuration, device management, OTA update, and troubleshooting tools

    F-DPU100 Interface Protocol Converter

    Packing List

    F-DPU100 Protocol Converter Cellular Antenna WIFI Antenna Power Terminal Block Line
    F-DPU100 Cellular Antenna WIFI Antenna Power Terminal Block Line


    CELLULAR WAN • Supported Frequency Bands WIFI • IEEE802.11 ac, compatible IEEE 802.11 b/g/n.
    -- LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28 • AP and client mode.
    -- WCDMA: 2100(B1), 1900(B2), 850(B5) • Adjustable output power (Max: 26dBm)
    -- EV-DO/CDMA: 800(BC0) • Access point for up to 30 clients
    -- GSM/GPRS/EDGE: 850/900/1800/1900 • Simultaneous access point/client mode
    • Automatic SIM based network operator switching • WEP, WPA-PSK, WPA2-PSK etc. Security
    HOST INTERFACES • 10/100/1000 Base-T RJ45 Ethernet port NETWORK  AND ROUTING • Network Address Translation (NAT)
    • (1)RS-232 ,(5)RS-485 Serial Console Port • Port Forwarding
    • 3 SMA antenna connectors (WIFI and Double-cellular) • Host Port Routing
    • (6) pin,(14)pin 3.5mm terminal block • VRRP
    INPUT/OUTPUT • (6) pin 3.5mm terminal block. • Reliable Static Route
    • (2) DI, (1) DO, (1) Relay. • Dynamic DNS
    • Input ON Voltage: 5 to 30 VDC. VPN • IPSec, GRE, and OPENVPN Client
    • Input OFF Voltage: 0 to 3 VDC. • Up to 10 concurrent tunnels
    • Output < 50mA @ 30VDC. • Split Tunnel
    • Relay:1A 250VAC/30VDC • Dead Peer Detection (DPD)
    LAN • DNS, DNS Proxy • Multiple Subnets
    • DHCP Server • VPN Failover
    • IP Passthrough (option) SECURITY • Remote Authentication
    • VLAN • DMZ
    • Host Interface Watchdog • Inbound and Outbound Port filtering
    • PPPoE • Inbound and Outbound Trusted IP
    SERIAL • TCP/UDP PAD Mode • MAC Address Filtering.
    • Modbus (ASCII, DTU, Variable) GPS (Option) • Antenna Interface: SMA Female, 50 ohms impedance
    • PPP • Tracking Sensitivity: better than -144 dBm
    • Reverse Telnet • Horizontal position accuracy: 2.5 m
    EVENTS ENGINE (Option) • Custom event triggers and reports. • Time-To-First-Fix: 29 s
    • Configurable interface, no programming. • Protocol: NMEA-0183 V2.3
    • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature. OPERATION ENVIRONMENT • Operating Temperature: -35°C to +75°C / -31°F to +167°F
    • Report Types: TCP, UDP, SMS, SNMP Trap, HTTP, JSON. • Storage Temperature: -40°C to 85°C / -40°F to 185°F
    • Event Actions: Drive Relay Output. • Humidity: 90% RH @ 60°C


    Specification

    MANAGEMENT SERVICE • Secure cloud-based device management application MANAGEMENT INTERFACES • Web-Based User Interface
    • Remote provisioning • Device Configuration Templates
    • Gateway configuration and template management • Software and radio module firmware updates
    • Configurable monitoring and alerting • AT Command Line Interface (Telnet/SSH/Serial)
    • Software and radio module firmware updates • SMS Commands (Option)
    • Auto configuration • SNMP
    DIMENSIONS • Housing & Weight: Metal, 700g
    • Dimension: (L x W x H): 172 x 122 x38 mm
    • Installation: 34.6 mm Din-Rail or wall mounting or desktop


    Selection and Ordering Data

    Model No. Description
    F-DPU100-W Cellular (WCDMA/HSDPA/HSUPA/HSPA+), WIFI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.), 1*RS-232,5*RS-485
    F-DPU100-FL Cellular (LTE/WCDMA), WIFI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.), 1*RS-232,5*RS-485
    F-DPU100-L Cellular (LTE), WIFI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.), 1*RS-232,5*RS-485
    F-DPU100-W/W Cellular (WCDMA/HSDPA/HSUPA/HSPA+, Dual-Module), WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) ,1*RS-232,5*RS-485
    F-DPU100-FL/FL Cellular (LTE/WCDMA, Dual-Module), WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.), 1*RS-232,5*RS-485
    F-DPU100-L/L Cellular (LTE, Dual-Module), WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.), 1*RS-232,5*RS-485
