3/4" Flow Meter Kit - Atlas Scientific
3/4" Flow Meter Kit - Atlas Scientific

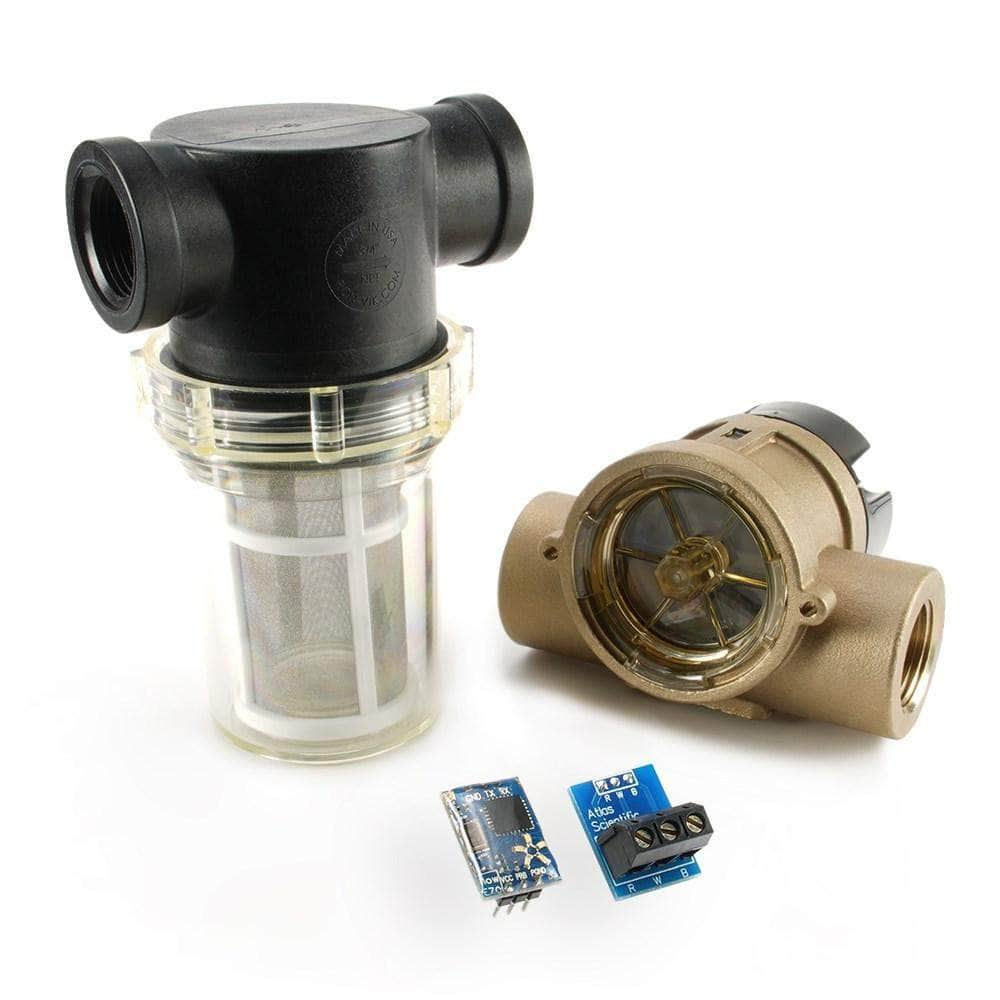

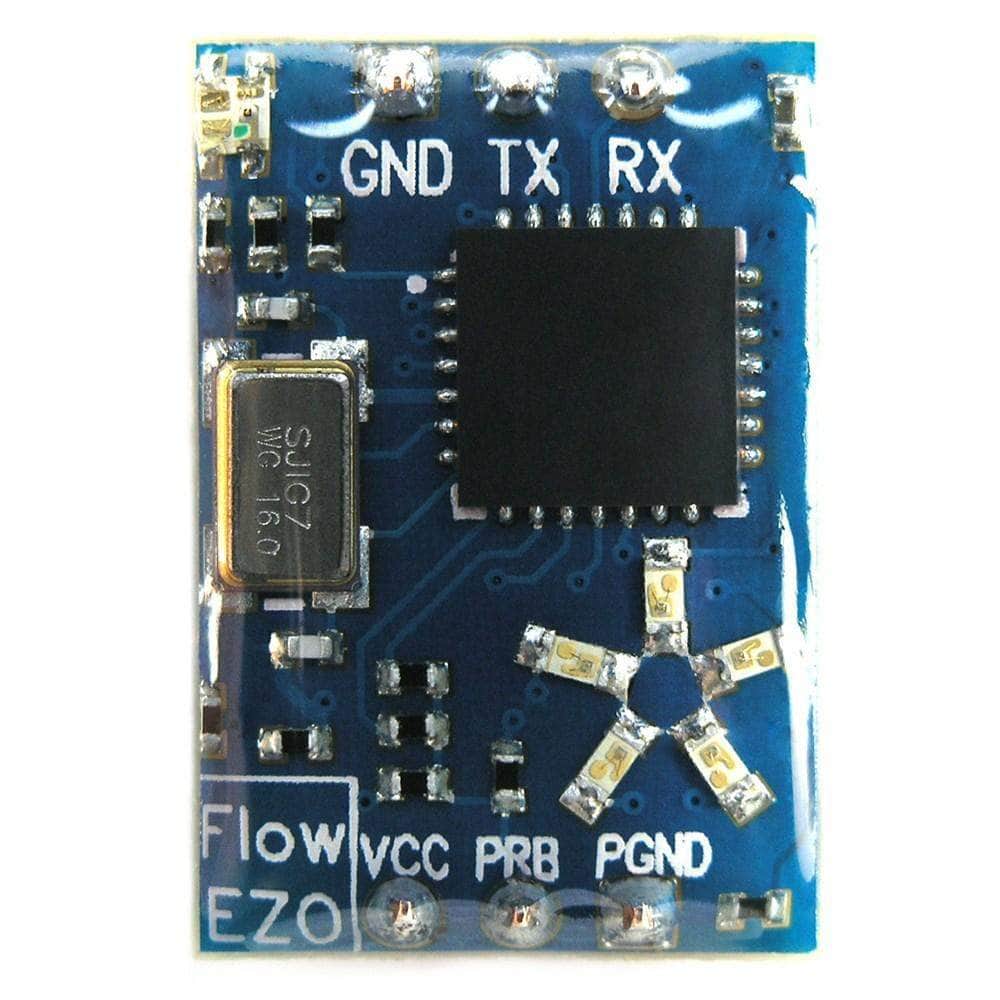

• 1x EZO™ Universal Flow Meter Totalizer Circuit

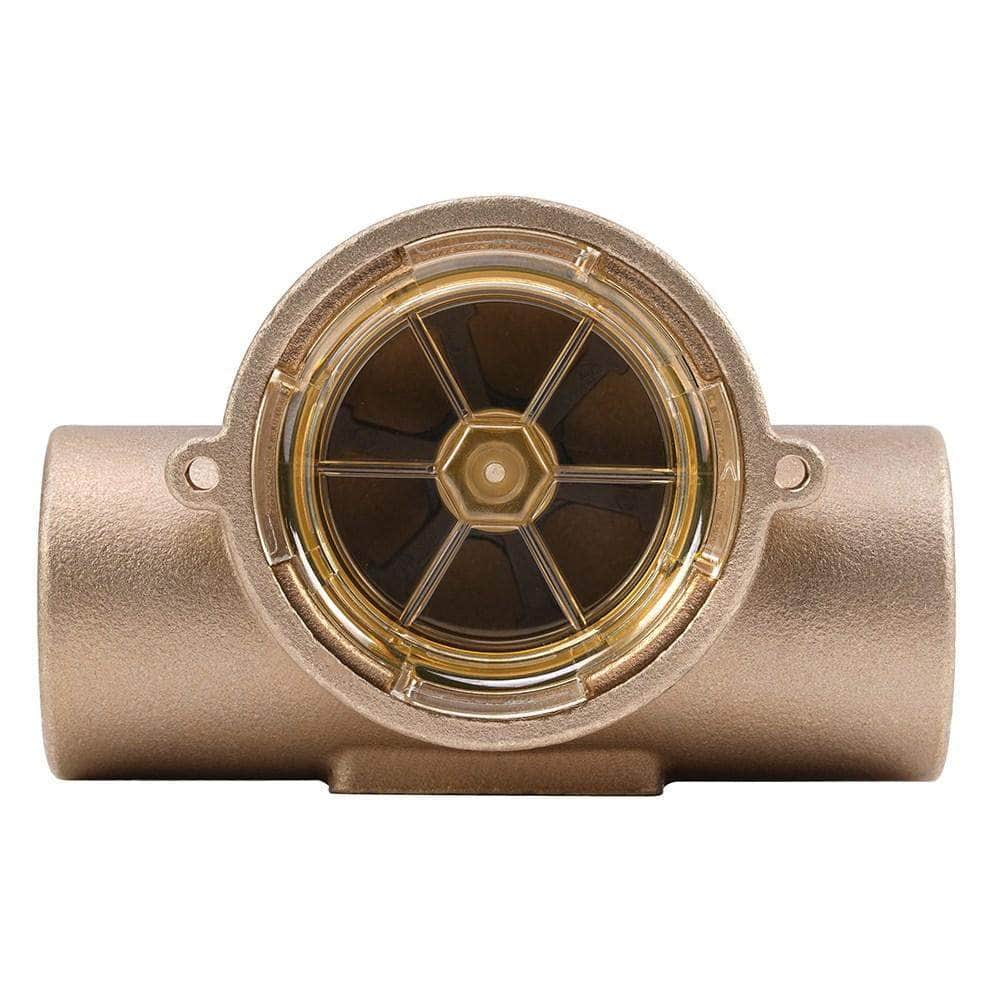

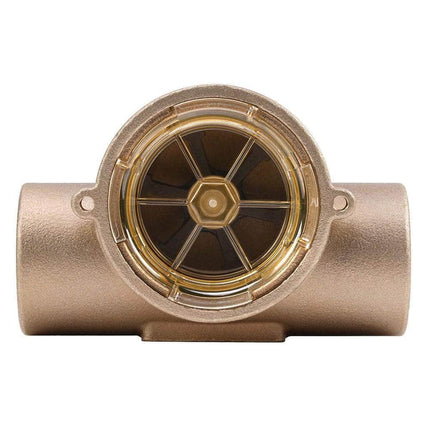

• 1x 3/4″ Female NPT Flow Meter – 19 L / min to 114 L / min

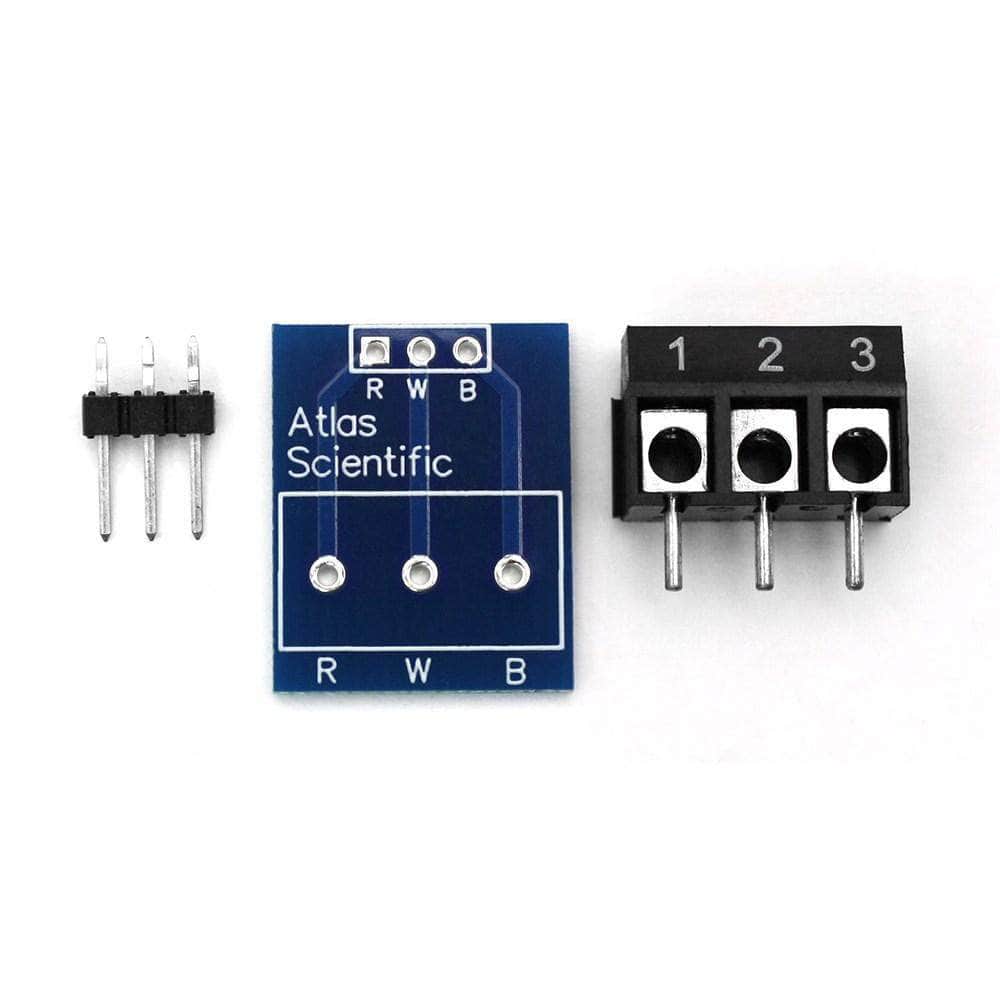

• 1x Flow Connector Board (soldering required)

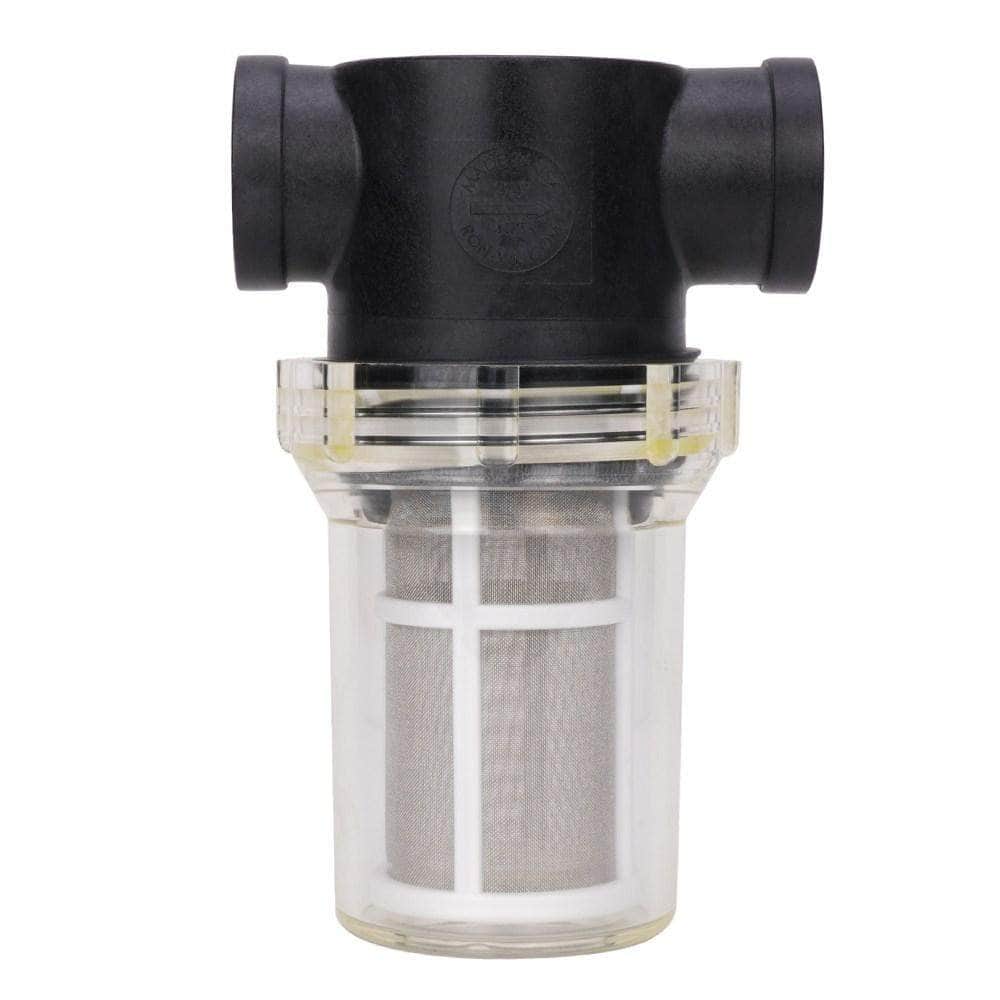

• 1x 80 Mesh stainless steel pre-filter (178 microns)
• Food Safe
• Gasoline Safe
• Diesel Safe
• Kerosene Safe
• Reads flow rate per second, minute, hour and total flow.
• Works with any off the shelf pulsed DC flow meter regardless
of manufacture
• Works with any DC pulse per volume flow meter
• Works with any DC pulse frequency to volume flow meter
• Programmable with up to 16 integer or floating point K factors
• On the fly linear interpretation between K factors
for maximum accuracy
• Visual display indicating real-time turbine rotation
• 1K, 10k or 100k on-board pull-up or pull-down resistors
(for flow meters that require external pull-up or pull-down)
• Comes pre-programmed with 4 different Atlas Scientific
flow meters
• Data format is ASCII
Data protocol
• UART asynchronous serial connectivity
• (RX/TX voltage swing 0-VCC)
• Operating voltage: 3.3V to 5
Downloads
-
EZO™ Universal Flow Meter Totalizer Datasheet
- 3/4" Flow Meter Datasheet
- Wiring Diagram
- Arduino Sample Code
- Arduino Mega Sample Code
- Raspberry Pi Sample Code
