* the Raspberry Pi CM5 is NOT included.
Version Options
IPCBOX-CM5-A
Dual Ethernet ports, onboard 4 × RS485 interfaces
IPCBOX-CM5-B
Dual Ethernet ports, onboard 2 × RS485 + 2 × RS232 interfaces
All versions come with an aluminium alloy case and power supply adapter
Specifications
| CM5 socket |
Suitable for all variants of Compute Module 5 |
| Networking |
1000M Ethernet RJ45 port × 1
2500M Ethernet RJ45 port × 1 |
| USB |
USB 3.2 Gen1 port × 1 |
| USB 2.0 port × 3 |
| Video |
HDMI interface × 1, supports 4K display output |
| M.2 |
M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242) |
| M.2 B KEY, supports connecting 4G / 5G communication module |
| Storage |
TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Serial Interface |
Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version |
| 1 × CAN with up to 1Mbps communication rate |
| Digital Input/Output |
2 × digital outputs + 2 × digital inputs |
| Audio |
3.5mm audio jack (microphone support), PH2.0 speaker header |
| Fan header |
5V, 4PIN JST-SH PWM fan header |
| Buzzer |
1-ch controllable buzzer |
| Other |
Onboard EEPROM and encryption chip |
| Power Input |
7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port |
| Dimensions |
136.00 × 92.00 × 39.50 (mm) |
Connecting with Compute Module 5
standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for the detailed part list
4G / 5G module compatibility
compatible with communication modules with M.2 B KEY interface
* An additional communication module is required to enable 5G/4G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.
Supports connecting to M.2 NVMe Drive
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list
Applicable M.2 drive sizes
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.

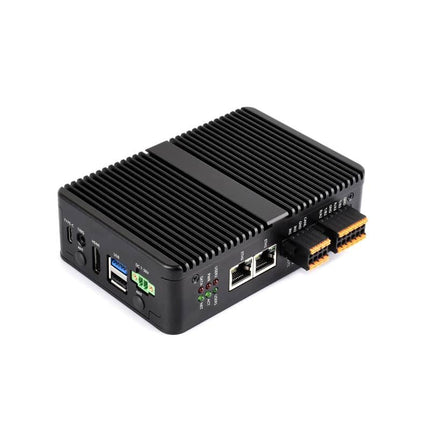

More rich interfaces
Precise cut-out with clear label each cut-out is completely aligned with the connector
Heat Dissipation Design
Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

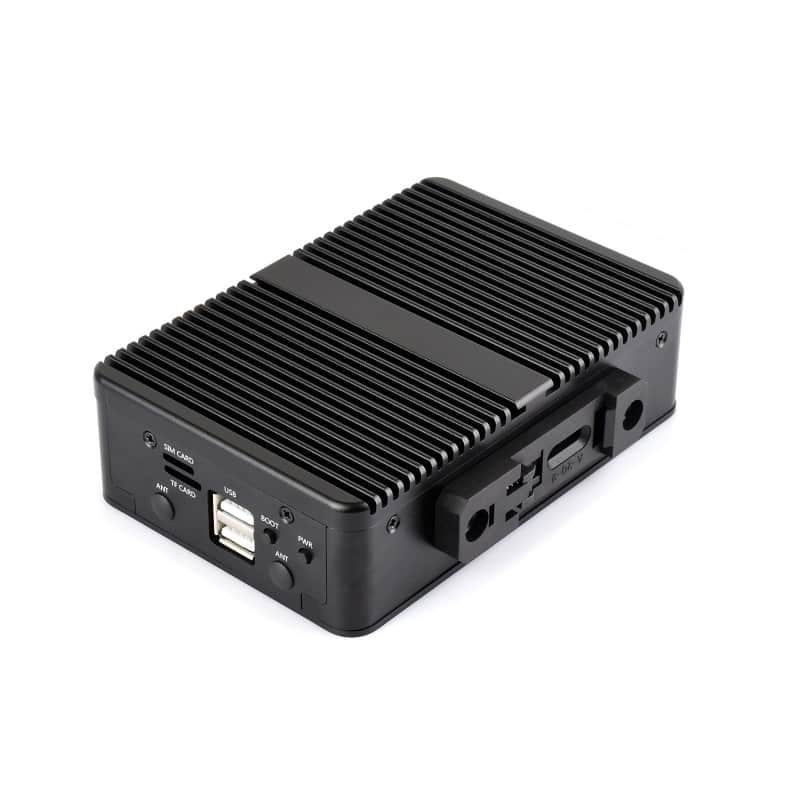

supports Rail mounting and VASE mounting
Reserved Rail-mount buckle and VASE mounting holes for more convenient installations
* for reference only, comes with rail-mount buckle and is compatible with VESA mounting.

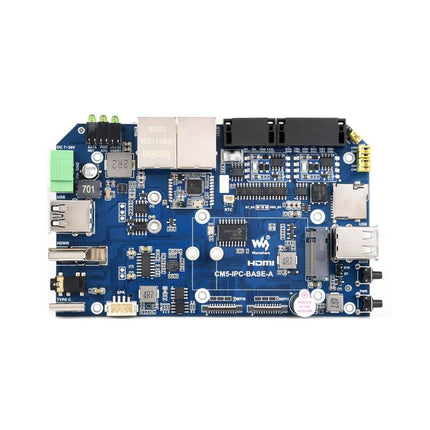

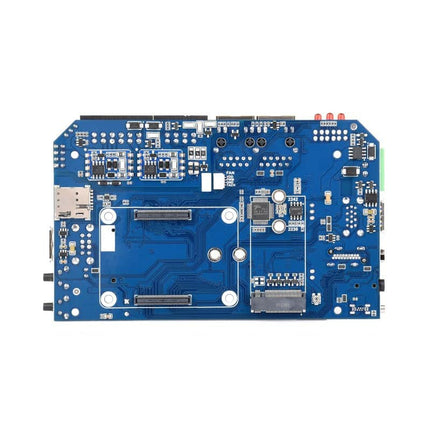

What's On Board
-
CM5 socket
suitable for all variants of Compute Module 5
-
M.2 M KEY
supports 2242 / 2230 NVMe Solid State Drives or AI modules
- Nano SIM card slot
-
TF card slot
for connecting a TF card with pre-burnt system (Lite variant ONLY)
-
Dual USB 2.0 ports
standard USB 2.0 ports
-
BOOT button
press before powering on to enter the burning mode
-
PSW power button
Long press to force power off, short press to soft power off or on
-
M.2 B KEY
supports connecting 4G/5G communication module
- Buzzer
-
PH2.0 speaker header
supports connecting to 8Ω 5W speaker
-
Programming port
used for eMMC burning
-
3.5mm Jack
supports audio input and output
-
HDMI interface
supports 4K outputs
-
USB ports
1 × standard USB 2.0 port, 1 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
-
DC power screw terminal
supports DC 7V ~ 36V power supply
- Indicators
-
1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections
-
2500M Ethernet RJ45 port
supports 10M / 100M / 1000M / 2500M network connections
-
RTC Batt header
for connecting with compatible RTC Batt to power the RTC chip
-
Multi-function interface
1 × CAN interface with up to 1Mbps and 2 × digital outputs + 2 × digital inputs
-
RS485 / RS232 interface
Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
-
120R Jumper
RS485 and CAN terminal resistor selection (No function for RS232)
Application Example
Suitable for Raspberry Pi applications in remote communication or other industrial situations
* for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.
How to install
Outline dimensions
About Compute Module 5
Newly upgraded, more powerful
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface allows connecting more useful modules
