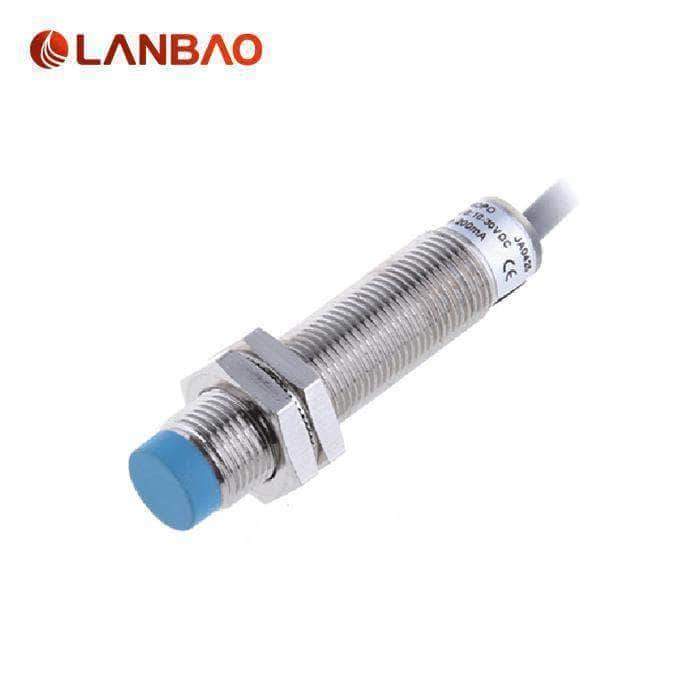

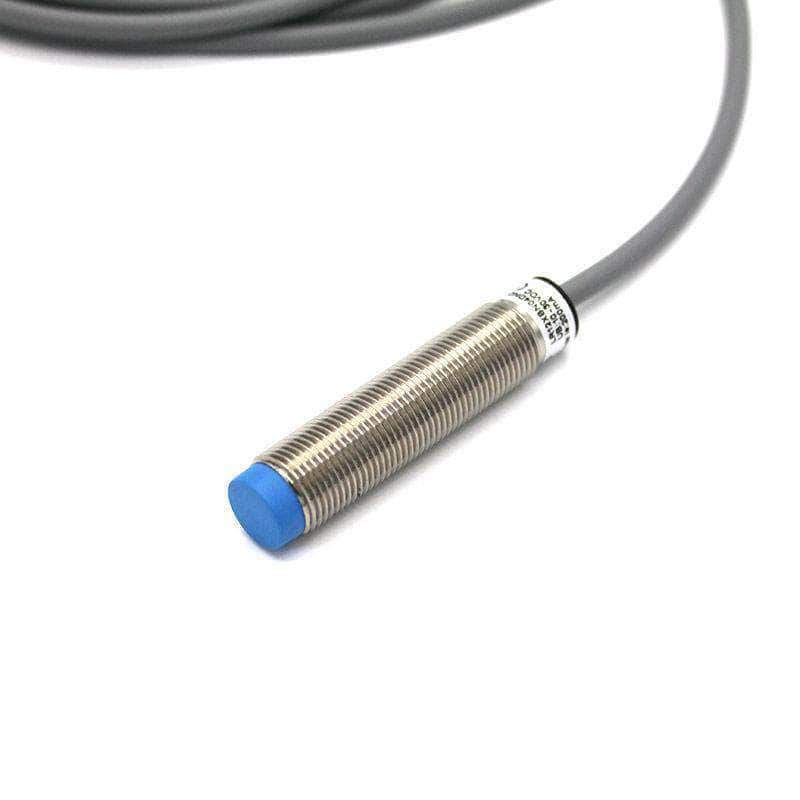

Inductive Proximity Sensor 8mm LR18XBN08DPO

  • $35.00
  • Save $25
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • Inductive Proximity Sensor 8mm LR18XBN08DPO

    Datasheet Link


    Function Standard
    Mounting Non-flush
    Sensing distance 8mm
    Assured distance 0…6.4mm
    Standard target Fe 24*24*1t
    Cylindrical size M18*1*51mm
    Output ways PNP
    Output status NO
    Residual voltage ≤2.5V
    Supply voltage 10…30VDC
    Load current ≤200mA
    Current consumption ≤15mA
    Switching frequency 800Hz
    Assured distance ≤±10%
    Hysteresis range 1…20%
    Repeat accuracy ≤3%
    Ambient temperature -25℃…70℃
    Ambient humidity 35-95%RH
    Circuit protection Short circuit protection, overload protection, reverse polarity protection
    Insulation resistance ≥50MΩ(500VDC)
    Vibration resistance Complex amplitude 1.5mm 10…50Hz(X,Y,Z 2 hours at each direction)
    Protection degree IP 67
    Output indicator Yellow LED
    Housing material Nickel-copper Alloy
    Certification CE+UL
    Connection Cable
