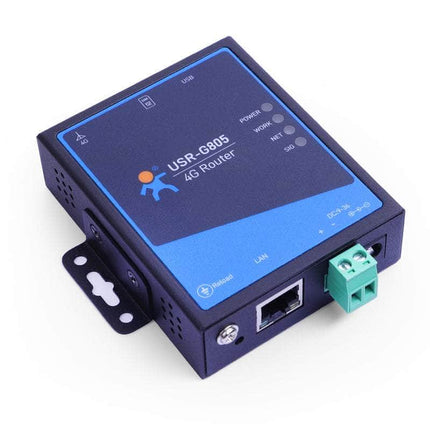

Industrial Compact 4G LTE Router USR-G805
Industrial Compact 4G LTE Router USR-G805
USR-G805 is a very small and economical 4G industrial cellular router. It integrates 4G LTE, Ethernet port and VPN technology. It uses 4G Cat 4 Qualcomm solution module, and embeds a CPU with a working frequency up to 1GHz, provides reliable, secure and high speed mobile connectivity with VPN supported.
● Compact design
● Support 4G/3G/2G network
● Support L2TP/PPTP VPN
● 9-36V DC Wide range power input
● Support Dynamic DNS (DDNS)
● Hardware Watchdog
● Support USR cloud, remote access to device’s GUI
● Support local/remote firmware update
● Support configuration backup and import
● Local/Remote log for easy debugging
Specifications:
|
Hardware Specifications |
||
|
Cellular interface
|

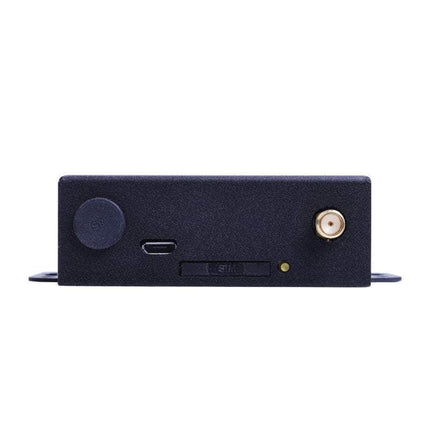

Antenna |
1 × SMA-K |
|
SIM card |
1 x（3 V/1.8 V）Standard 2FF SIM, drawer-type sim card slots |
|
|
Ethernet |
NO. |
1 × LAN |
|
Spec. |
RJ45 connector:10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
|
Indicators |
POWER |
always on after powered on |
|
WORK |
blinking when the router is ready and working properly |
|
|
NET |
2/3/4G mode indicator:2G-red,3G-blue,4G-purple |
|
|
SIG |
Signal strength:weak-red,medium-blue,strong-purple |
|
|
Power supply |
Adaptor |
DC 12V/1A |
|

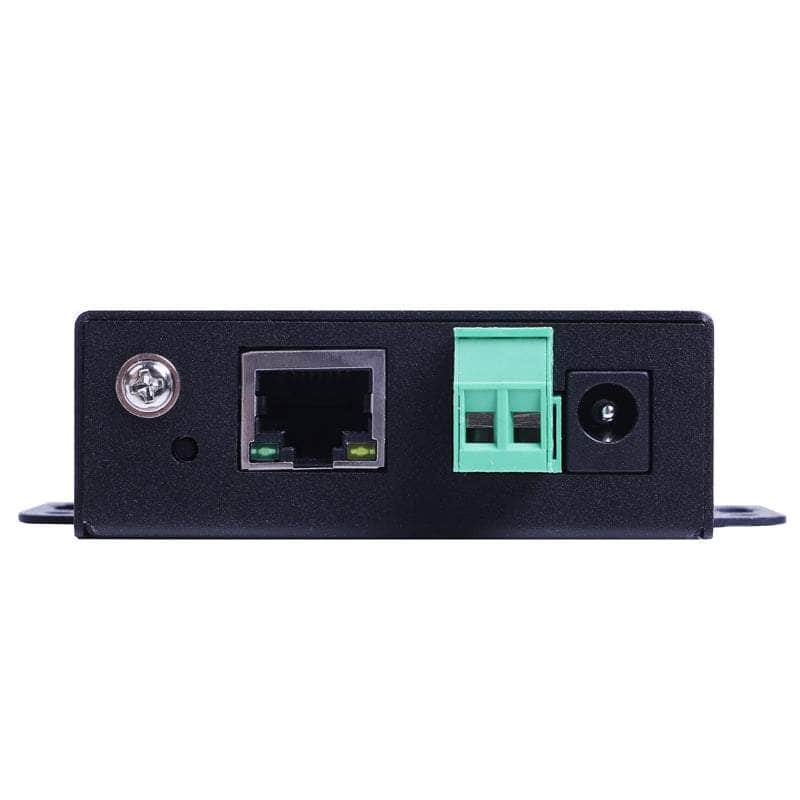

Connector |
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection |
|
|
Input voltage |
DC 9-36V |
|
|
Rated power consumption |
3.5W |
|
|
Physical |
Housing |
Metal shell,IP30 |
|
Dimensions |
86.0mm * 70.0mm* 25.0mm |
|
|
Installation method |
Panel mounting, DIN-Rail mounting,desktop |
|
|
Operating temperature |
-20℃~70℃ |
|
|
Storage temperature |
-40℃～+125℃ |
|
|
Operating humidity |
5%~95%RH（non-condensing） |
|
|
Others |
Reload |
Pinhole reset button |
|
USB |
Firmware upgrading |
|
Embedded with high-performance CPU
more outstanding
It adopts 4G Cat 4 Qualcomm solution module and is equipped with a CPU
with working frequency up to 1GHz.
Excellent processing capability can easily support fast data transmission
and enjoy a smoother Internet experience
Faster access and faster speed
Your device can be in normal operation after 30s of power-on,
which is obviously about 20s earlier than that of ordinary routers.
High speed 4G LTE access, up to 150Mbps download
rate and 50Mbps upload rate
Strong Security Protection
Support VPN (PPTP and L2TP) virtual private network tunnels,
and support APN/VPDN card private network access to provide protection for
your data security.
PUSR cloud platform,Remote Centralized Management
Using PUSR cloud service, you only need a computer or a mobile phone to monitor
and control thousands of mission-critical devices through very simple operations.

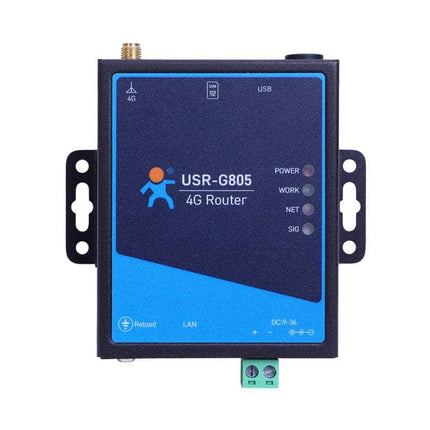

Ultra-small size, multiple installations
Dimensions : 70.0mm*86.0mm*25.0mm; and compatible
with a variety of installation methods,
making it easy to deploy and implement in various scenarios.
Documents
[Specification] Specification of Cellular Routers USR-G805
[Datasheet] USR-G805 Datasheet
[Certificate] RoHS Certificate 4G Router
[Certificate] IC Certificate USR-G806
[Certificate] PTCRB Certificate USR-G806
[Certificate] CE-RED Certificate 4G Router
