Industrial Dual SIM 4G/3G LTE WiFi Wireless Router USR-808-AU
Industrial Dual SIM 4G/3G LTE WiFi Wireless Router USR-808-AU
Freq. Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Telstra and all other AU providers)
USR-G808 is a dual SIM LTE cellular router with SIM Card Slot. Dual SIM cards provide an auto fail-over for higher stability and convenience.
- Industrial 4G LTE Router, secure wireless routing for industrial remote access
- Providing reliable, seamless connectivity for M2M & IoT applications
- Supports PPTP L2TP IPSEC OPENVPN GRE
- Supports 5 10/100Base-T(X) self-adaptive Ethernet interface
- Hardware watchdog, rugged metal casing and Din-Rail mounting
- Supports 802.11 b/g/n WLAN
- DIN-Rail Installing
List of LTE networks: https://en.wikipedia.org/wiki/List_of_LTE_networks
Features of Dual SIM 4G LTE Router
| Wired Ethernet Port | |
| WAN port | WAN * 1 |
| LAN port | LAN * 4 |
| Both LAN port and WAN port with a rate of 10/100Mbps, Auto MDI/MDIX | |
| WIFI | |
| WIFI Network | Support 802.11b/g/n |
| Antenna | WIFI antenna *2 |
| Specification | |
| TDD-LTE | download rate of 130 Mbps; Upload rate of 35 Mbps |
| FDD-LTE | download rate of 150 Mbps; Upload rate of 50 Mbps |
| WCDMA | download rate of 42 Mbps; upload rate of 5.76 Mbps |
| TD-SCDMA | download rate of 4.2 Mbps; upload rate of 2.2 Mbps |
| CDMA2000 1x/EVDO | download rate of 3.1 Mbps; upload rate of 1.8 Mbps |
| GSM/GPRS/EDGE | download rate of 236.8 kbps; upload rate of 236.8 kbps |
| Frequency Band | |
| TDD-LTE |
Australia version: Band 1/3/4/5/6/7/8/28 |
| FDD-LTE |
Australia version: Band 40 |
| WCDMA |
Australia version: Band 1/2/5/8 |
| TD-SCDMA | |
| CDMA2000 1x/EVDO | |
| GSM/GPRS/EDGE |
Australia version: Band 2/3/5/8 |
| SIM card&Antenna | |
| SIM/USIM Card | Standard 6 pin SIM card, 3V/1.8V SIM card |
| Antenna | 3/4G full-frequency antenna * 1 |
| Temperature | |
| Working Temp | -20℃~ +70℃ |
| Storage Temp | -40℃~ +75℃ |
| Humidity | |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
| Power Supply | |
| Working Voltage | DC9~36V |
| Working Current | Average: 391mA; Max: 578mA (DC12V) |
4G LTE Router
- Industrial, stable and reliable
- Suitable for the unattended environment, built-in EMC protection circuit likes ESD protection, surge protection, and power anti-reverse connection.
- Safe Network deployment
- Support operator’s APN modification, VPN access, a built-in firewall which ensure the network safety.
- DHCP, DNS, static routing
- Port forwarding, automatic disconnection monitoring
- Restart regularly, send Syslog remotely…
Note: This kit includes all the antennas (4 Pcs), AU power adapter, DB9 cable and adaptor to Ethernet RJ45.
Downloads
Specification of 4G cellular router G808-Datasheet_V1.0.11USR-G808-user manual-V1.0.6
USR-G808 Datasheet

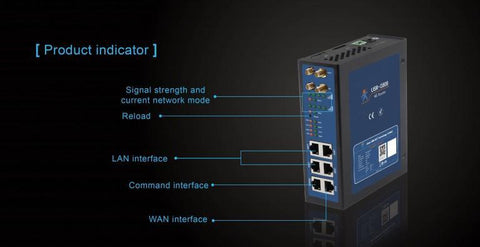

Product Indicator
Designed for Industrial
Metal shell,
degree of protection IP30
High Quality Antenna
Wi-Fi uses 3dBi Antenna
4G uses 5dBi antenna
Wider Signal Coverage
Open space, Wi-Fi communication distance up to 150. Using high-performance wifi module
transmission performance is more superior, Supports 802.11b/g/n protocol
Circuit Protection
Watchdog
Hardware circuit
Non-stop working in 24 hours
Security Performance / Firewall
Excellent security, providing firewall protection, to improve the security of the internal network
greatly, reducing the risk.
Intelligent QOS Flow Control
Clock Proofreading
RTC + NTP To provide precise time positioning
whether in the network environment or not
More Functions
DHCP, DNS, static routing
Port forwarding, automatic disconnection monitoring
Restart regularly, send syslog remotely
Application
[ Smart Parking Lot ]
Field network moning,security and safety.
To provide parking inquires,booking services.
Dual-mode dual-card work mode,stable and no downtime,anti-dropped.
[ Smart Environmental ]
To conduct real-time monitoring of dispersed pollution discharge points.
Special area can use VPN private network transmission,to ensure security.
To achieve the unified management of sewage units or individuals,
and improve work efficiency.
