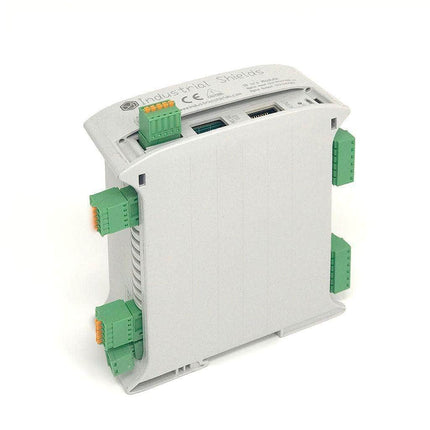

Industrial Shields Open PLC Industrial Open PLC 10 I/Os Modulo Digital Arduino NANO

Industrial Open PLC 10 I/Os Relay Module Arduino NANO

  • $299.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    Industrial Open PLC 10 I/Os Relay Module Arduino NANO

    10 I/O's optoisolated configurable by jumper
    Inputs: 5-24 Vdc (10 Hz)
    Outputs: 5-24 Vdc 0.3A
    Power supply voltage 12-24V
    MCU: Arduino Nano
    Ethernet Port
    RS485 half/full-duplex
    TCP IP
    Modbus TCP
    Modbus RTU



    Arduino-based PLC
    It has 10 digital inputs/outputs. 10x digital optoisolated inputs (see specifications), and 10x digital outputs (see specifications) configurable by jumpers.

    This basic Controllers family offers the possibility of communication between two industrial PLCs using I2C, RS485 or Ethernet obtaining a master-slave connection.

    Instant connection and programming
    The Basic Controllers family, as it uses an Arduino NANO, lets you program it through the USB. This feature lets immediate access in order to program, maintain and prepare it for its set up. It lets you control your equipment with no limits.

    Standarised modules
    The different Basic Controllers devices are programmed exactly in the same way. Once you have used one of them, the rest can be configured using the same methodology.

    Expandable
    Using the I2C connection, that all the Basic Controllers family has, you can connect up to 127 modules, which means that you can have up to 2.540 Input / Ouputs in Master Slave connection. NOTE: for I2C you need to tell us that requirement.

    Flexible and dynamic
    All the components are configurable to make your jobs as Master or Slave when used on Master-Slave connection through I2C.

    Use the module for:

    Monitoring, control and automation of your machines, alarms, elevator control, product lines, installations among the most typical applications such as fans, pumps, air conditioning, full HVAC solutions, control of AC and DC motors.

    The 10IOs Input, Output, and Relay family of modules provide a flexible, cost-effective means to expand the Input/ Output functionality of Industrial controllers.

    It is easy to install and configure, and very flexible thanks to the Open Source based hardware.








    Specifications for 10 I/O's Modulo Digital

    Device PLC
    CPU Arduino Nano
    Inputs 1-10
    Digital Optoisolated Inputs 10
    Outputs 1-10
    Relay Outputs (240Vac-5A) 10
    Ethernet Yes
    RS485 Yes



    Download Datasheet | User Guide

    ⬇️ 202104-10IOS-ENG-LR.pdf
    ⬇️ 20220512 - 10 IOs User Guide - Relay - Arduino NANO.pdf
    ⬇️ 20220512_Datasheet_10 IOs Relay NANO.pdf
    ⬇️ CE - 10 IOs Nano Relay.pdf
