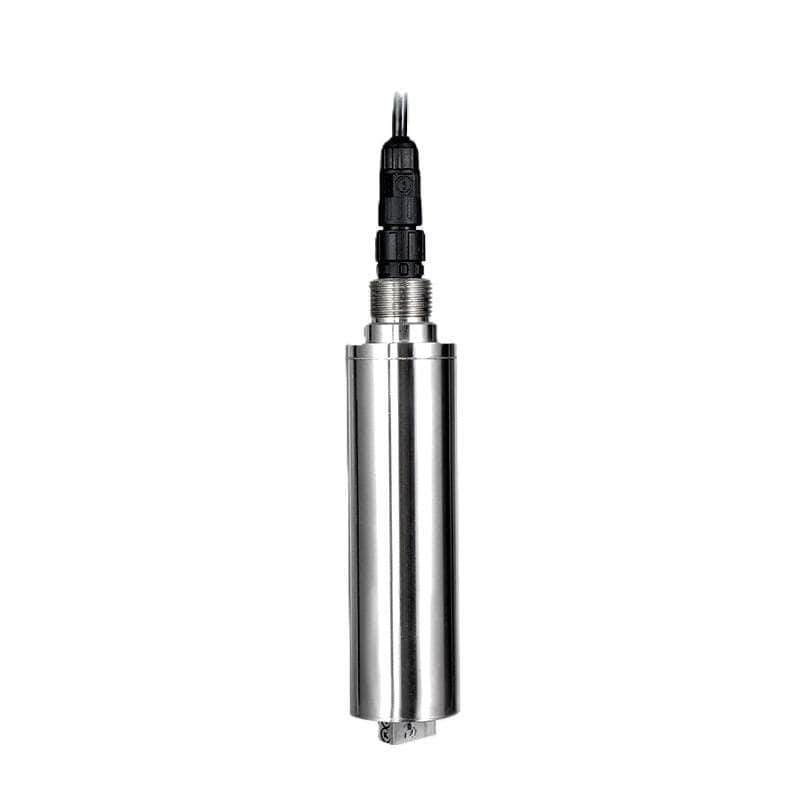

IQTB-NTU Smart Turbidity Sensor 4-20mA and Modbus RS485, 5m cable
The IQTB-NTU Smart Turbidity Sensor is designed for precision in various industries including metallurgy power pharmaceuticals chemical petroleum and water quality treatment. It features a measurement range of 0 - 1000 NTU with high accuracy and resolution. Constructed with 316 stainless steel it operates under a wide temperature range and offers reliable data communication via 4-20mA or RS485 (MODBUS-RTU). Its robust design ensures durability and consistent performance in demanding environments.
Application scope:
- Metallurgy, power, pharmaceutical, chemical, petroleum;
- Water quality treatment, food and other industries.
Technical Parameters:
| Turbidity measurement range |
0 - 1000NTU |
| Resolution |
0.01% |
| Measurement accuracy |
±1.0%FS |

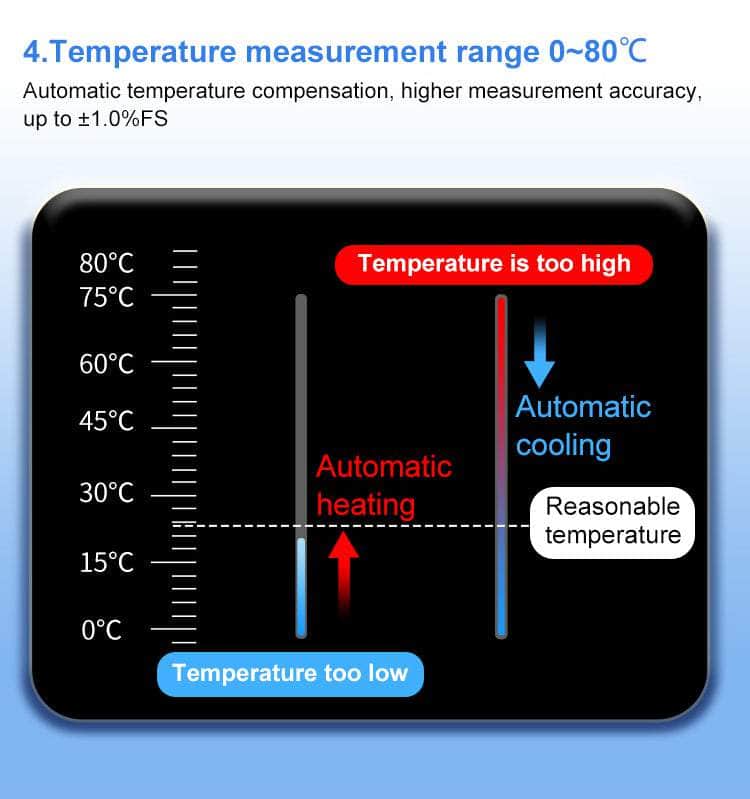

| Temperature measurement range |
0...80℃ |
| Resolution |
0.1℃ |
| Temperature measurement accuracy |
±0.2 ℃ |
| Withstand voltage range |
0... 3bar |

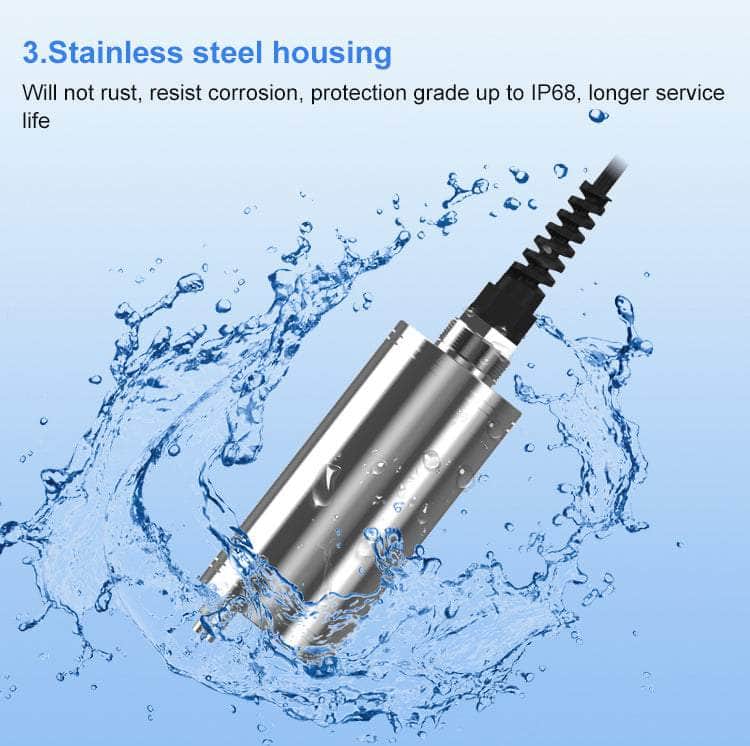

| Shell material |
316 stainless steel |
| Power |
≤10W |
| Current signal output |
4-20mA and RS485 |
| Current accuracy |
1%FS |
| Output load |
Less than 750 Ω |

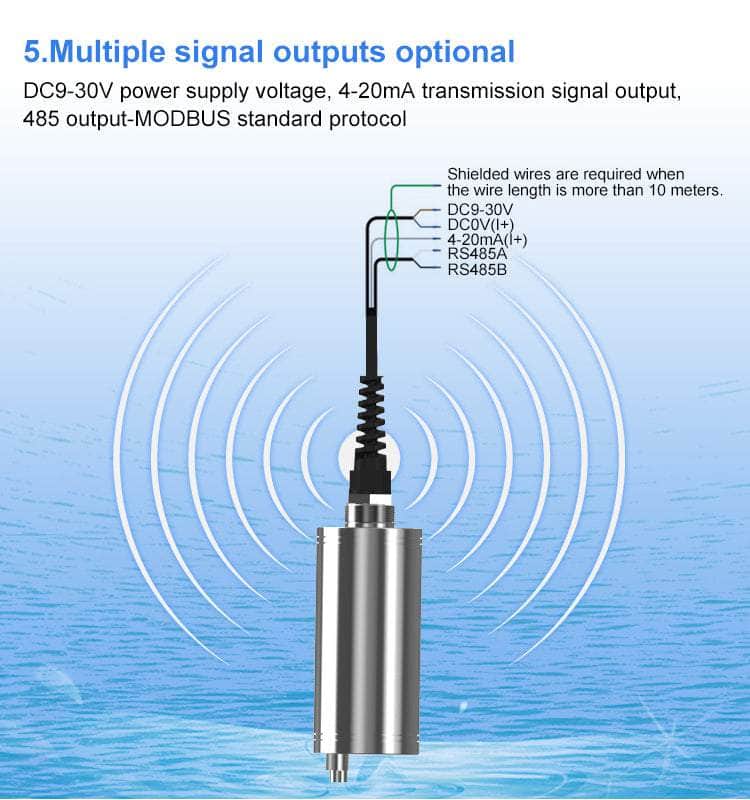

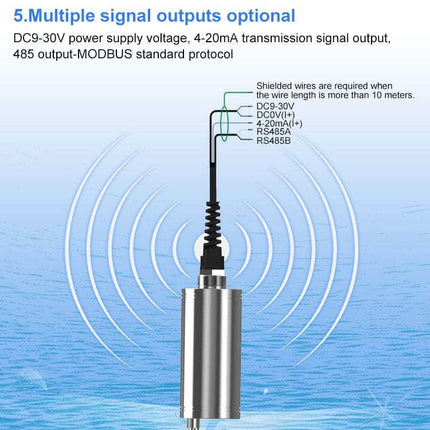

| Data communication |
4-20mA and RS485 (MODBUS-RTU) |
| Working power |
9~30VDC(12VDCrecommended) |
| Working humidity |
Relative humidity<90% |
| Process connection |
G 3/4 |

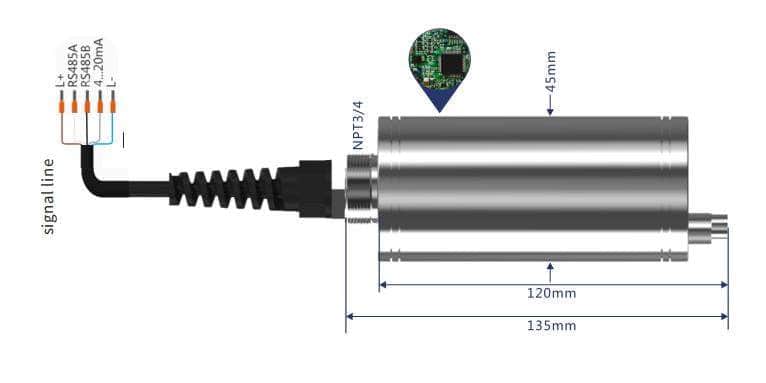

| Electricalconnections |
Direct leadwith 5 meter cable |
| Protection class |
IP68 |
