JNCRADIO VNA 4.3 Inch 3GHz Vector Network Analyzer 50kHz-3GHz

  • $349.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    JNCRADIO VNA 4.3 Inch 3GHz Vector Network Analyzer 50kHz-3GHz

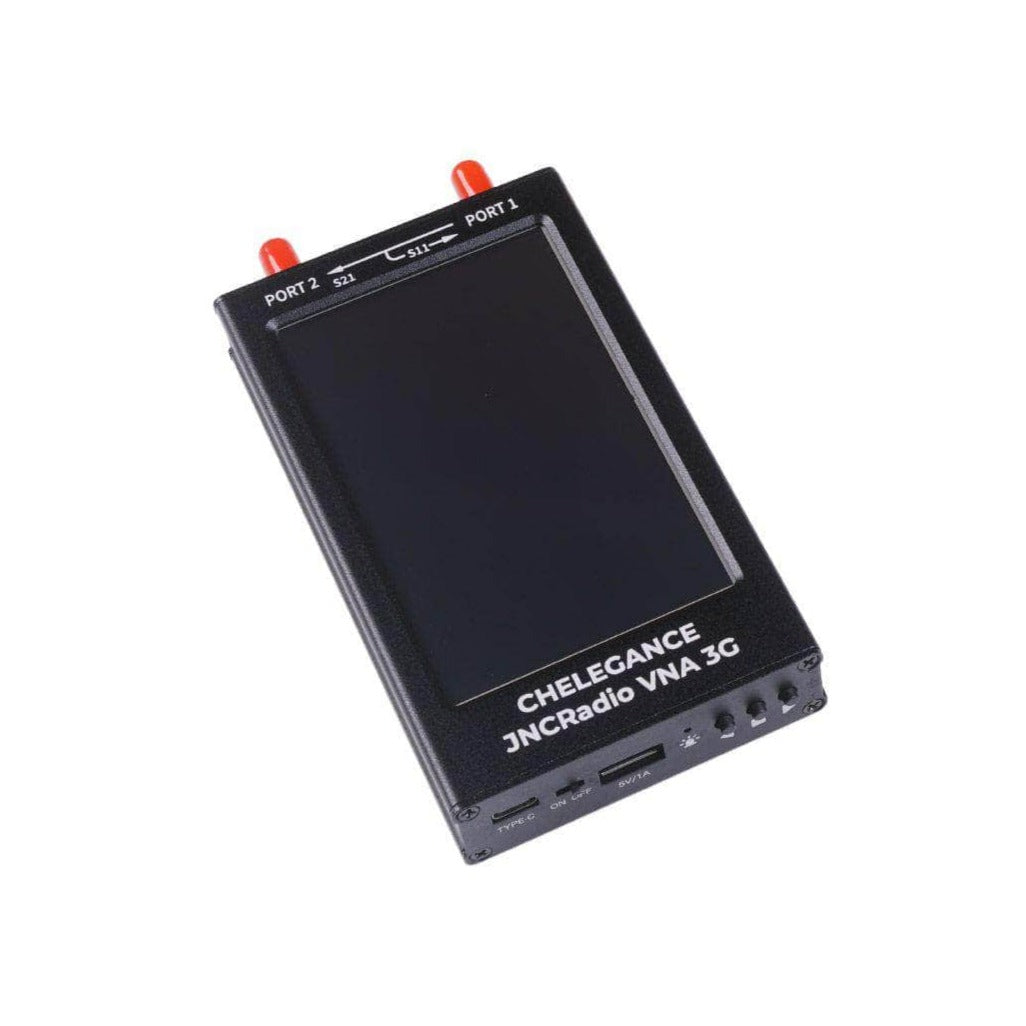

    JNCRadio VNA 3G is a portable Vector Network Analyzer with a frequency range of 50KHz - 3GHz designed with the 4.3-inch full touching screen in the all aluminium alloy case. With the performance of 70dB dynamic range for S21 and 50dB dynamic range for S11, it is very suitable for field measurement.

    Features

    • Wide frequency coverage: 50KHz - 3GHz
    • Fast operating speed: 400 points/s
    • Portable device for field operation
      • Large screen: 4.3-inch IPS LCD
      • Pocket size: 130mmx75mmx22mm
      • light weight: 610g
      • Built-in 5000mAh battery: up to 5 hours operation
    • Guaranteed quality: CE(EMC,LVD), FCC and RoHS compliance

    JNCRadio VNA 3G is a portable Vector Network Analyzer with a frequency range of 50KHz - 3GHz. It is designed with a 4.3-inch IPS LCD in the all aluminium alloy case. The sweep speed of JNCRadio VNA 3G reaches 400 pts/s, and the number of sweep points is up to 501. With the performance of 70dB dynamic range for S21 and 50dB dynamic range for S11, JNCRadio VNA 3G is very suitable for field measurement, such as measuring HF/VHF/UHF antennas, filters, attenuators, duplexers, etc.

    The SMA RF connectors have been applied in the VNA to make connecting DUTs(Device Under Test) easier. The built-in RF signal generator output is up to 4.4 GHz and the output power is adjustable. For convenience and efficiency, the operating screen has been designed as full touching where the UI design has also been optimized.

    The VNA supports Touchstone file save and export with RTC time named. It can save more than 10 times calibration with a built-in high quality SMA calibration kit. Additionally, it has been added up Time Domain Reflectometry function to enhance the performance. The built-in lithium battery ensures the device stand-by up to 5 hours. It is compatible with Nanovna-Save PC software and its firmware upgraded is through virtual U-disk with Type-C cable.

    Upgrade the Firmware

    You can get the tutorial of upgrading the firmware here.

    Application

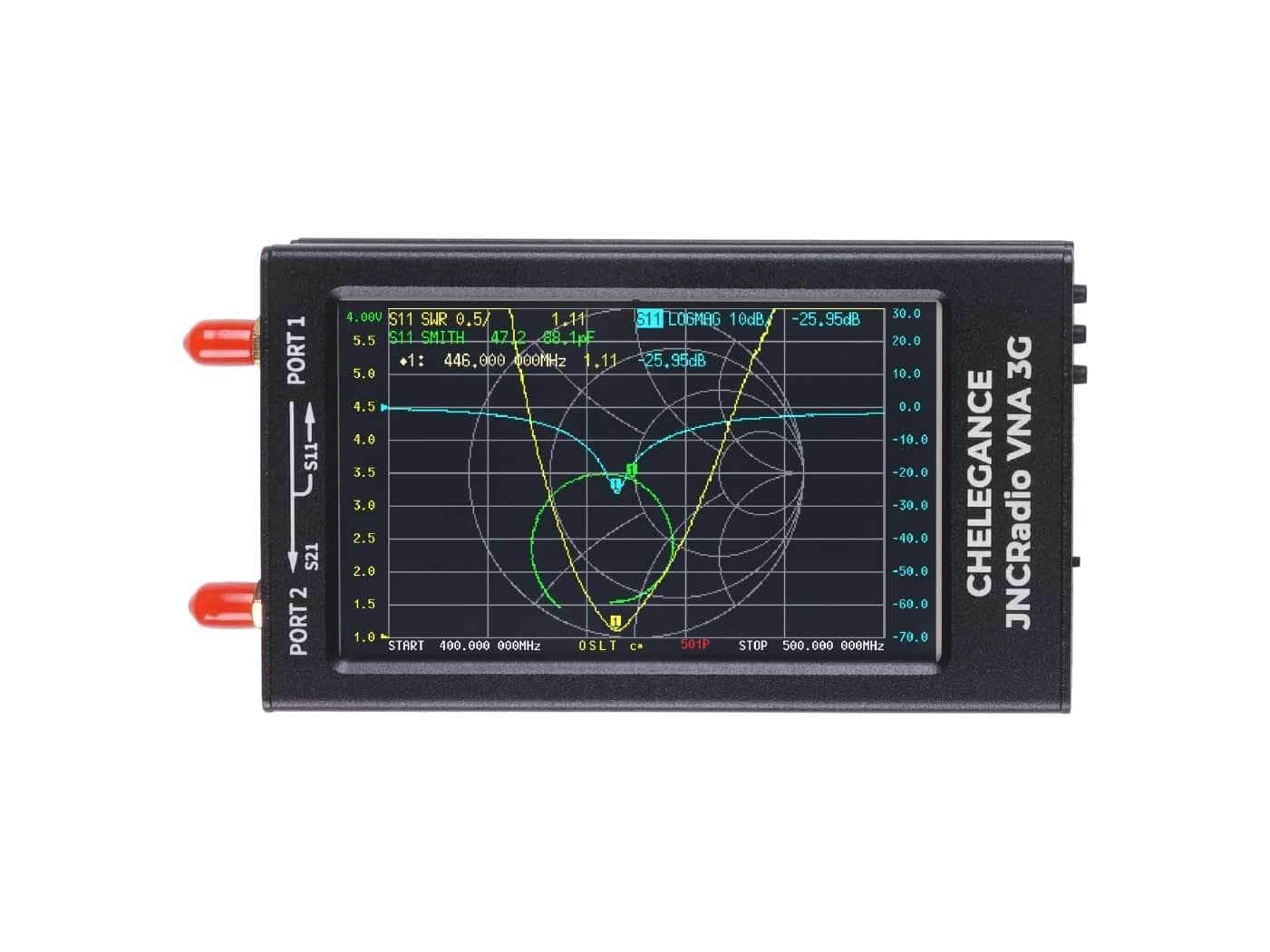

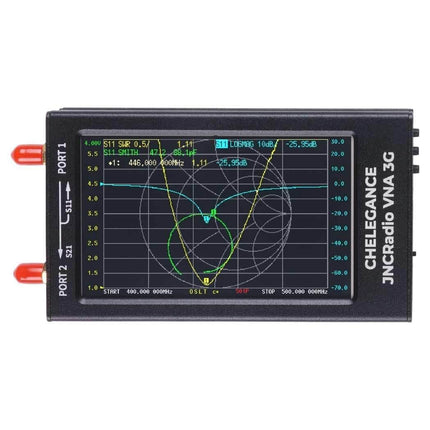

    S11, S21 Characters:

    • VSWR, SMITH CHART
    • LOGMAG
    • PHASE, DELAY
    • Q FACTOR, POLAR, LINEAR

    Measurement:

    • HF/VHF/UHF antennas
    • Amplifier
    • Attenuators
    • Cable
    • Duplexers
    • Filters

    SPECIFICATION

    Parameter

    Specification

    Conditions

    Frequency range

    50KHz~3GHz



    RF output power

    -10dBm

    50KHz – 140MHz



    -9dBm

    140MHz – 1GHz



    -12dBm

    1GHz – 2GHz



    -14dBm

    2GHz – 3GHz

    Frequency accuracy

    <±0.5ppm



    S21 dynamic range

    80dB

    50kHz – 1.5GHz



    70dB

    1.5GHz – 3GHz

    S11 dynamic range

    50dB

    50kHz – 1.5GHz



    40dB

    1.5GHz – 3GHz

    Sweep points

    501

    11-501 configurable

    Traces

    4



    Markers

    4



    Calibration storage

    >10



    Sweep speed

    400 pts/s



    Display

    4.3-inch IPS LCD

    Resolution: 800*480

    Touch screen

    RTP



    Battery

    3.7V 5000mAh



    Charging/Data port

    USB Type-C



    Charging voltage

    4.7V – 5.5V



    Power output

    USB-A 5V/1A



    RF connector

    SMA



    Dimensions

    130*75*22mm



    Shell material

    Aluminum alloy



    Operation temperature

    0℃-45℃

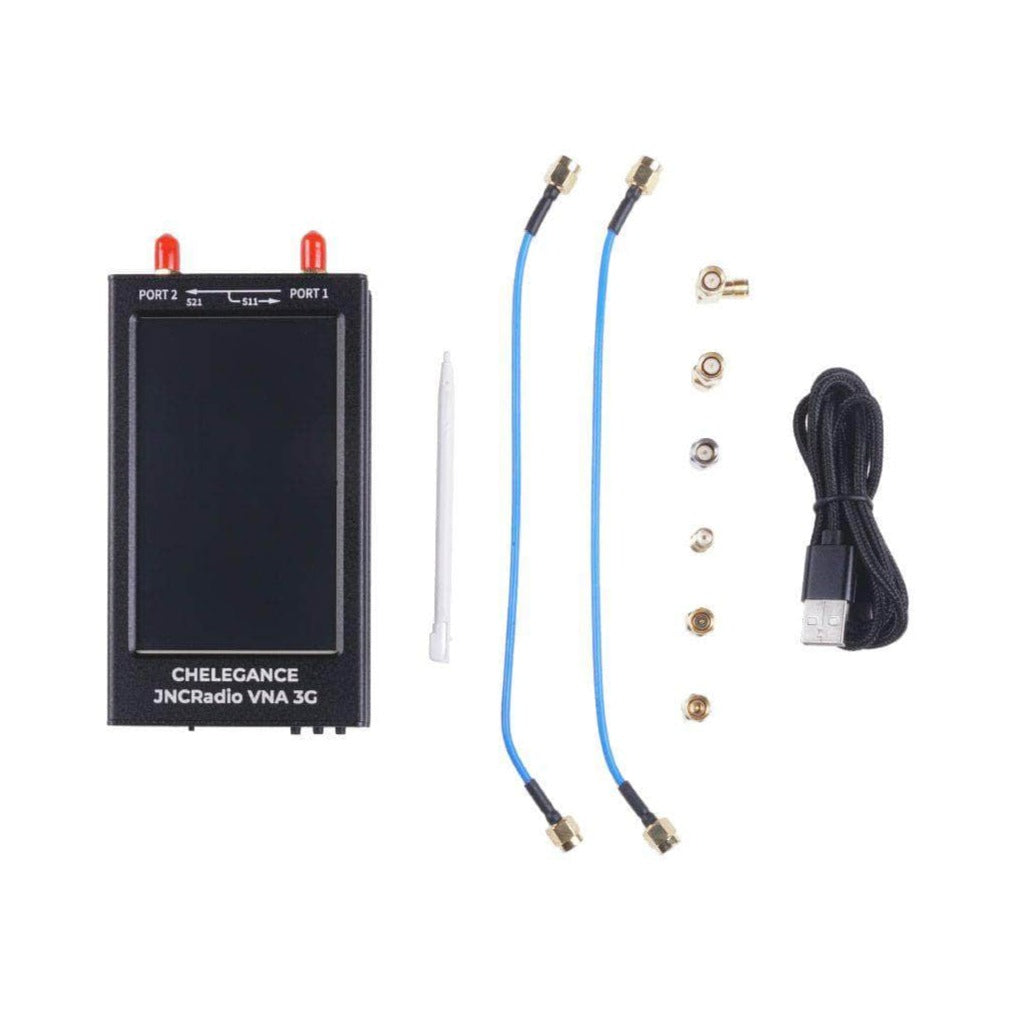

    PART LIST

    JNCRadio VNA 3G x1 x1
    20cm SMA-JJ RG316 cable x2
    Calibration kit: SMA OPEN/SHORT/50ohm LOAD x1
    SMA-KK adapter x1
    SMA-JJ adapter x1
    SMA-JKW adapter x1
    USB Type-C cable x1
    Stylus x1
