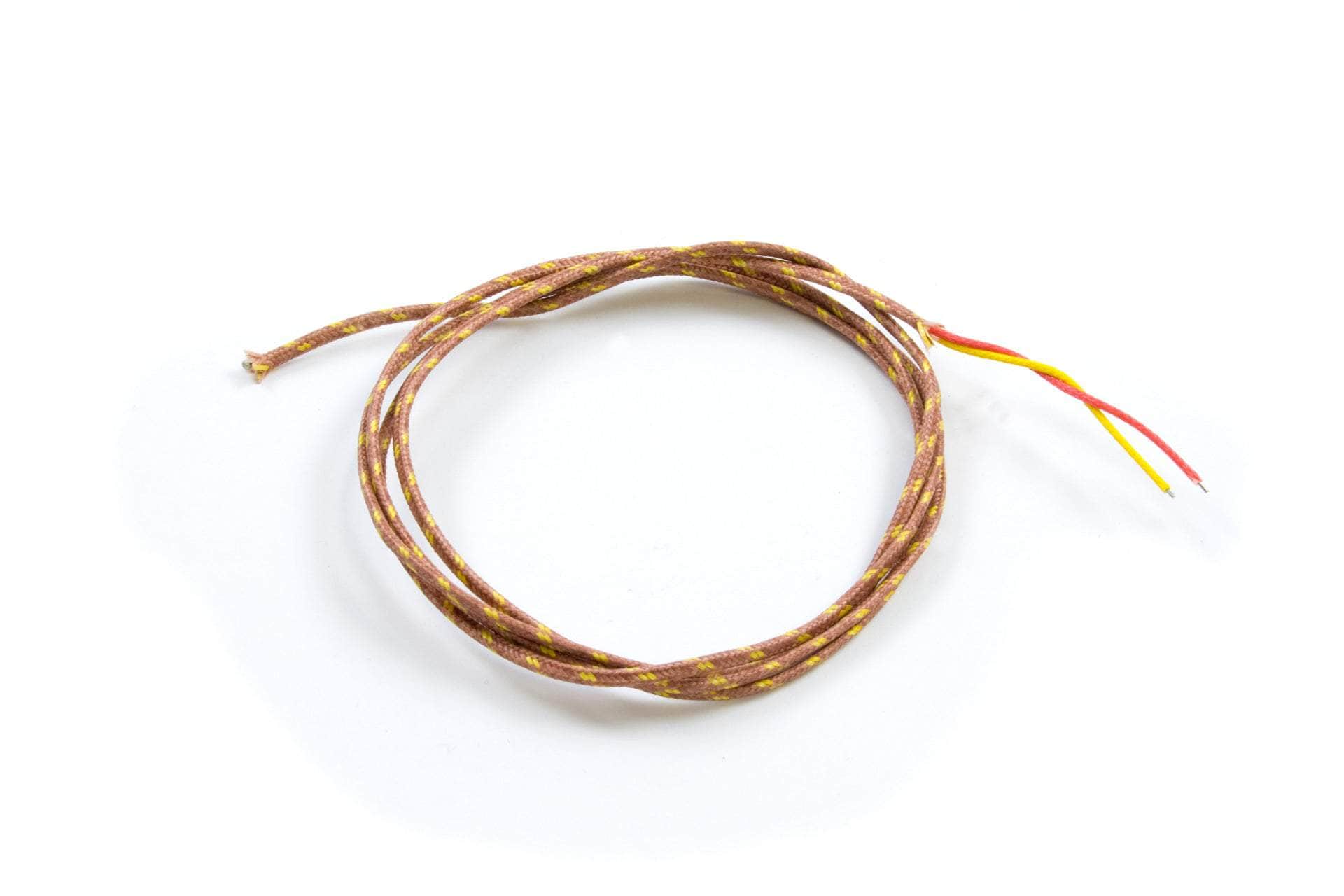

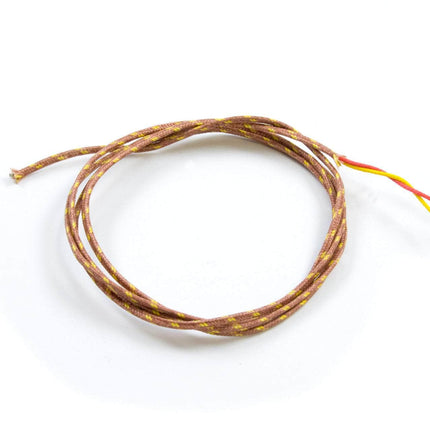

K-Type Fiberglass Bead Probe Thermocouple TMP4104

Description



K-Type Fiberglass Bead Probe Thermocouple TMP4104

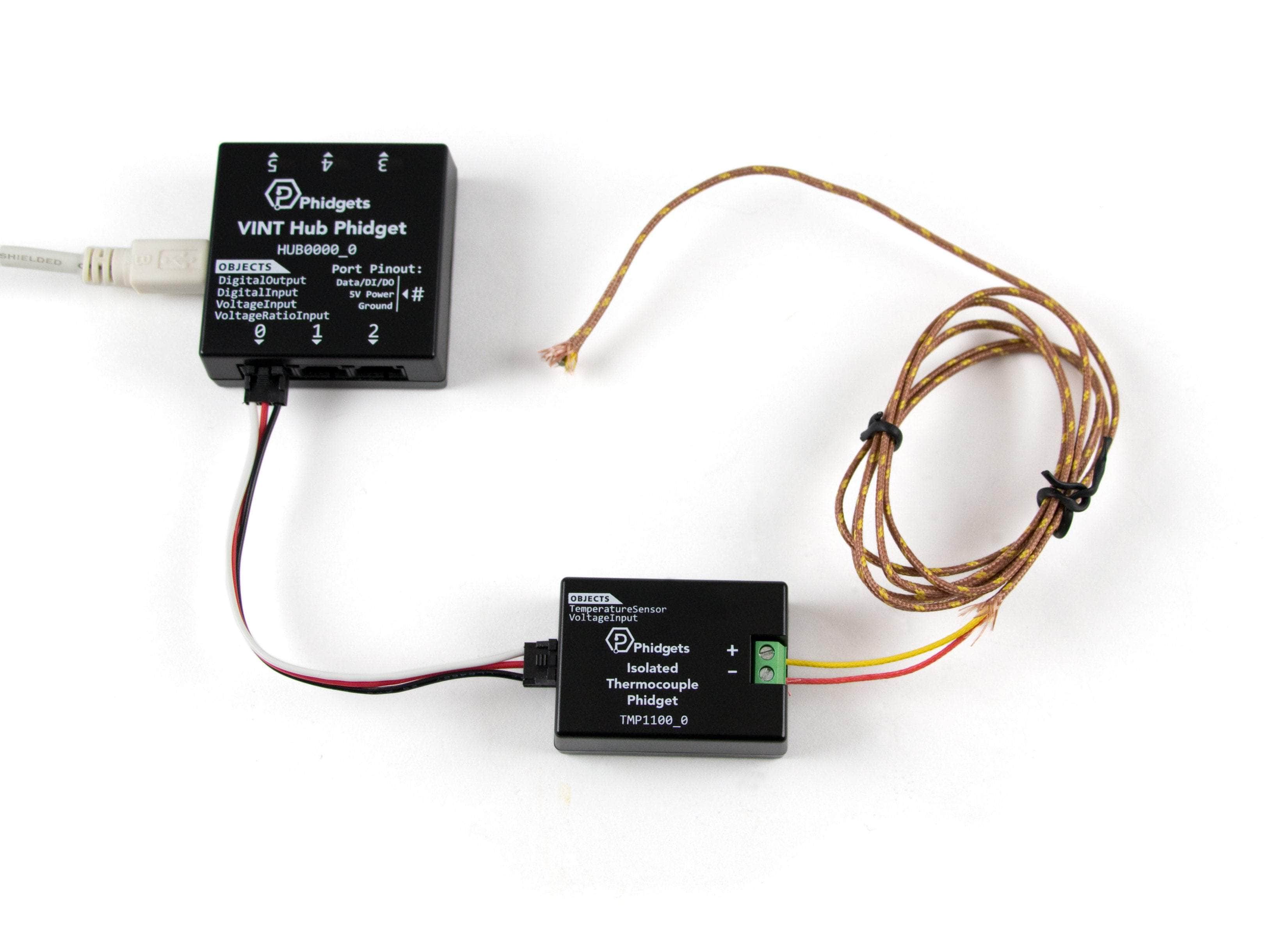

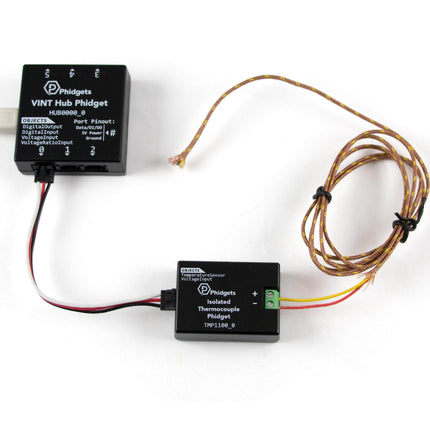

This thermocouple can measure temperatures between -40°C to +400°C with a ±0.75°C accuracy. The thermocouple wire is insulated with fiberglass, allowing it to withstand greater temperatures than those with plastic insulation. You can read it using a Phidgets thermocouple interface.

Features

  • Measure -40 to 400 degrees Celsius
  • K-type bead thermocouple
  • 1 meter length

Product Specifications

Sensor Properties
Controlled By Thermocouple Interface
Sensor Type Thermocouple
Temperature Sensor
Thermocouple Type K
Probe Type Bead
Ambient Temperature Min -40 °C
Ambient Temperature Max 400 °C
Ambient Temperature Error Max ± 0.75 °C
Physical Properties
Connector Type Stripped Leads
Cable Length 1 m
Cable Gauge 24 AWG
Insulation Material Fiberglass



Read more

K-Type Fiberglass Bead Probe Thermocouple TMP4104

Product form
Free pickup in our shop(s)

SKU: TMP4104_0

$39.00 $29.00 Excl. GST

$29.00
New stock coming, dispatch in 4-5 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
