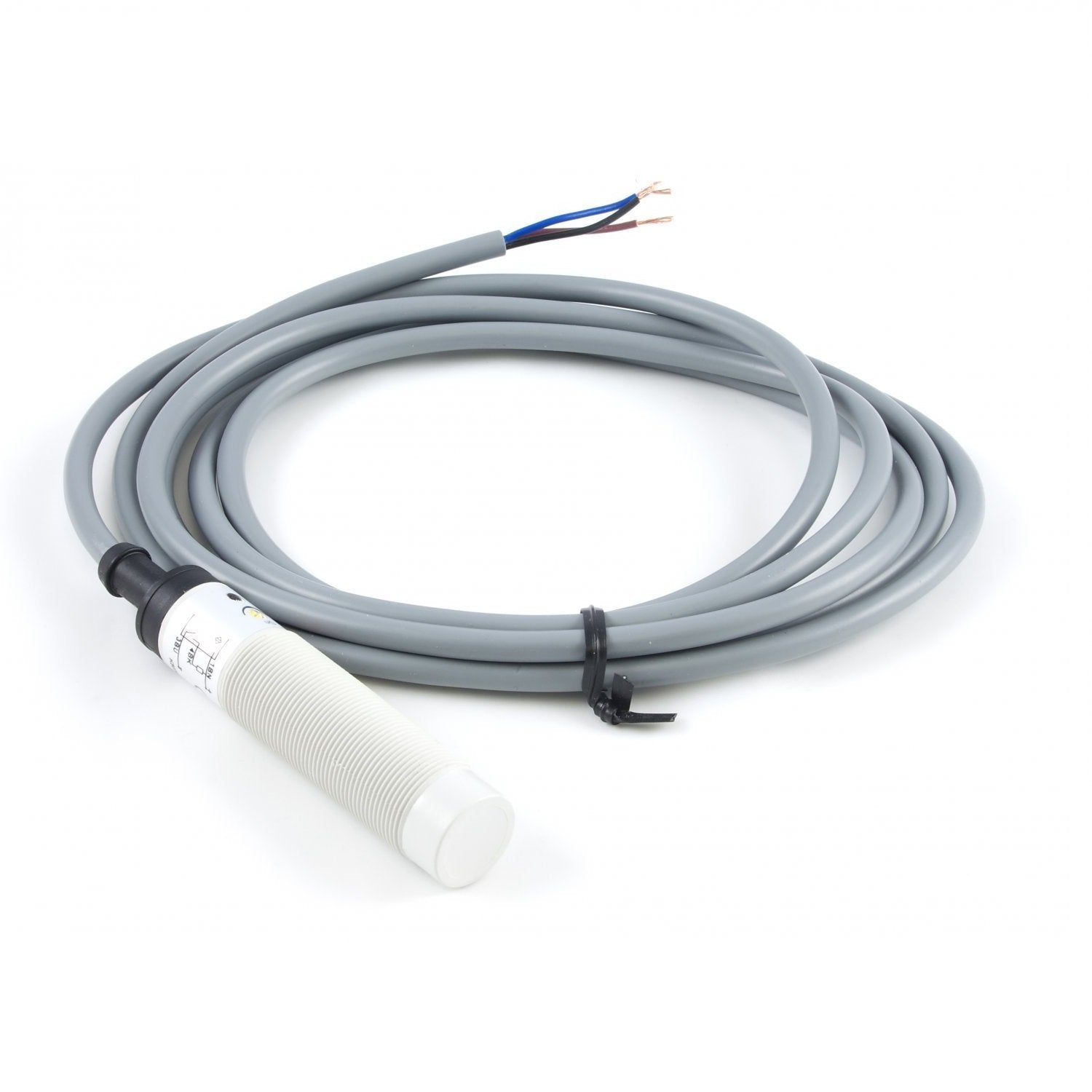

  • Capacitive Proximity Sensor 4mm CR12SCN04DNO

    This capacitive sensor will switch when it detects metals and some other materials within 4mm.

    This capacitive proximity sensor is used for non-contact detection of metallic and non-metallic objects such as liquid, powder and granular materials; it can also detect materials through glass or plastic walls.

    Note that the standard detecting distance is based on a standard shape approaching the sensor in a standard way. The real detecting distance will vary depending on the shape, thickness and type of material being detected.

    You can adjust the operating distance by turning a screw placed on the side of the sensor.

    Comes packaged with

    • 2 plastic rings
    • a screwdriver


    Product Specifications

    Sensor Properties
    Controlled By Digital Input (5V)
    Detecting Distance Max 4 mm
    Sensor Type Proximity (Capacitive)
    Sensor Output Switch Type Normally Open
    Detection Hysteresis Min 3 %
    Detection Hysteresis Max 20 %
    Sensor Response Time Max 20 ms
    Electrical Properties
    Supply Voltage Min 10 V DC
    Supply Voltage Max 30 V DC
    Current Consumption Max 15 mA
    Protection Circuitry Reverse Polarity, Surge, Overload and Short-Circuit
    Physical Properties
    Cable Length 2 m
    Material PBT
    Operating Indicator Yellow LED
    IP Rating IP67
    Operating Temperature Min -25 °C
    Operating Temperature Max 70 °C
    Operating Humidity Min 35 %RH
    Operating Humidity Max 95 %RH

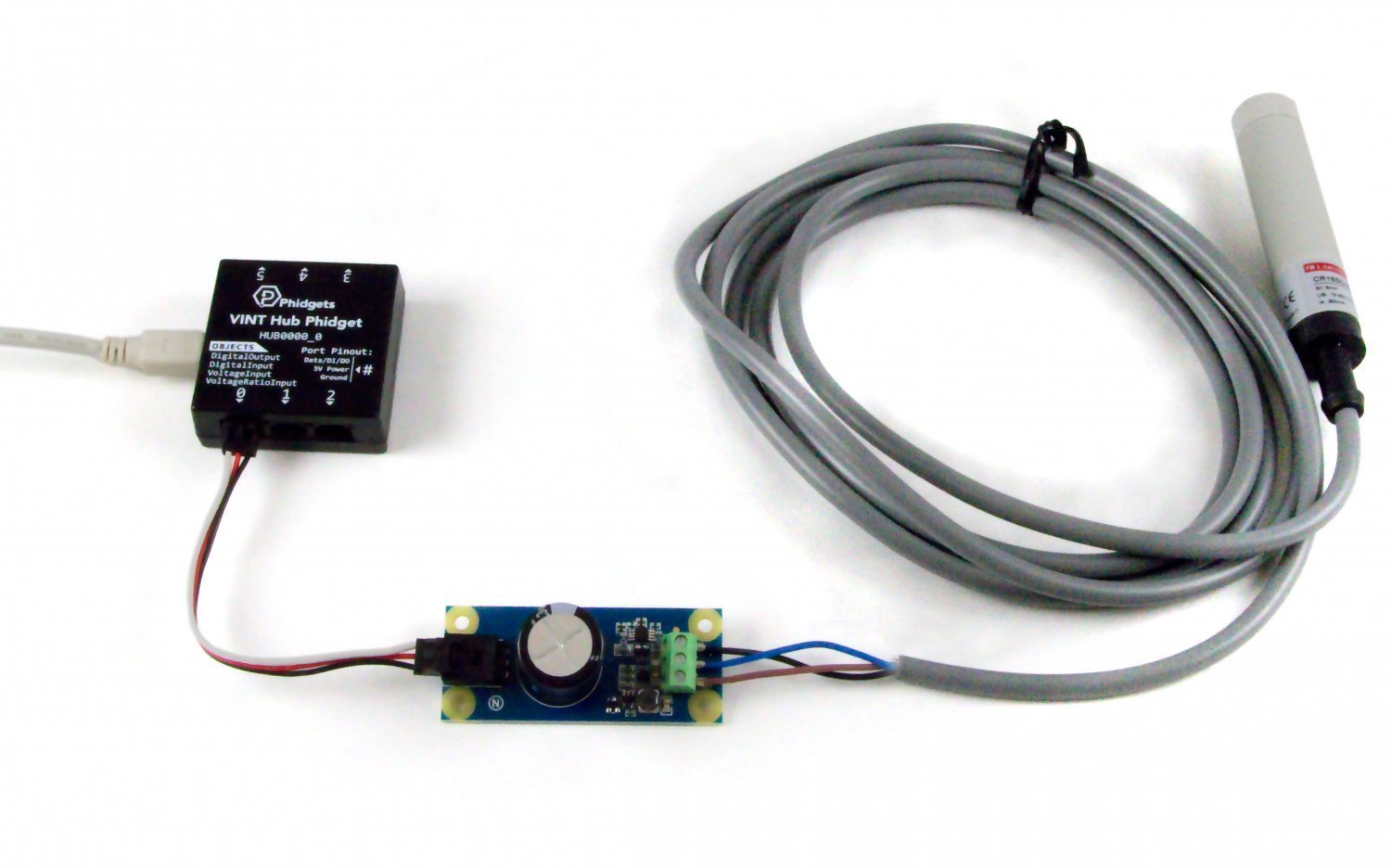

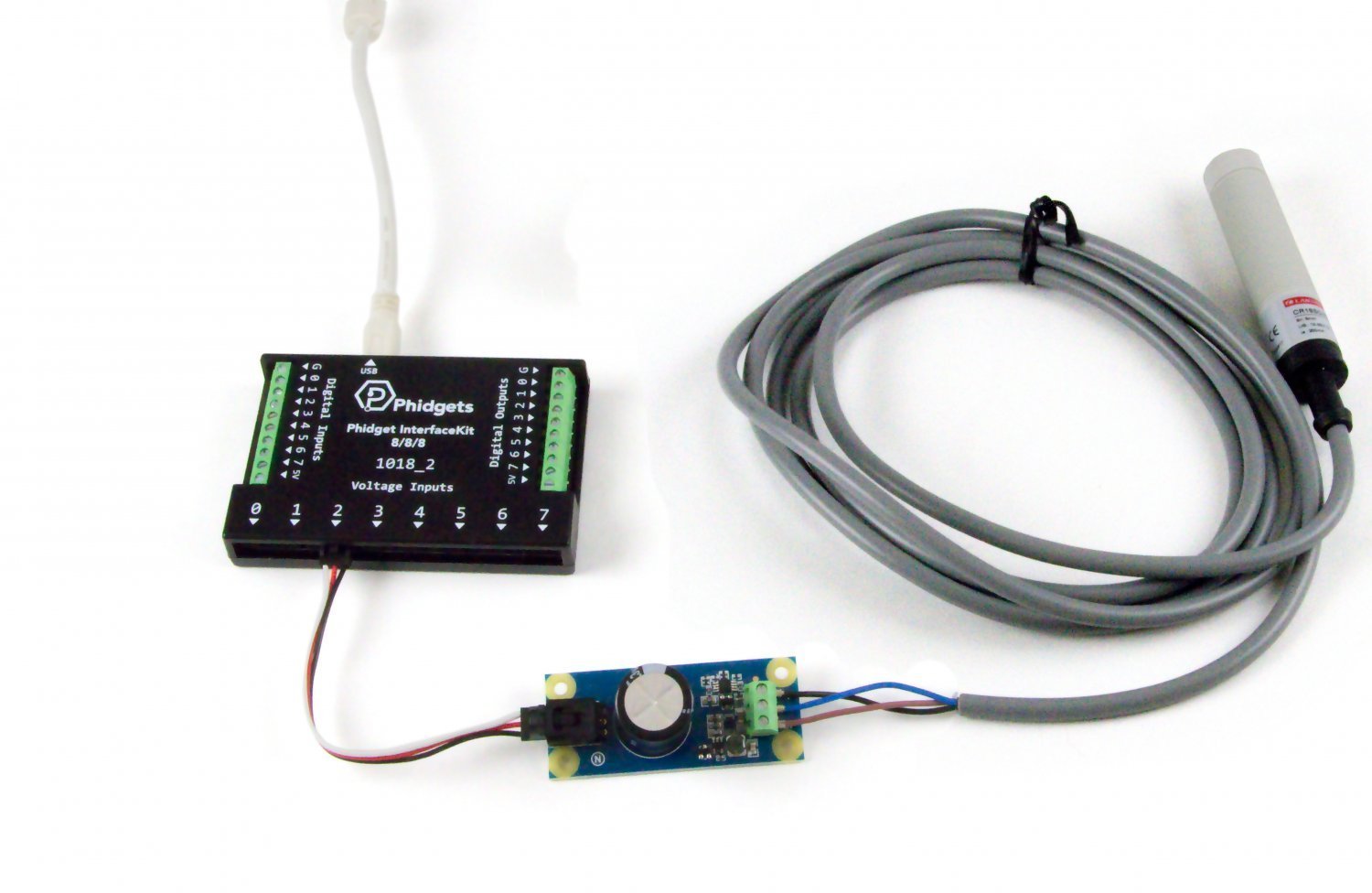

      This sensor requires a 12V power supply and outputs a 0-5V signal depending on whether the sensor is triggered. For a simple way to provide 12 volts, you can use our 12V sensor adapter. It uses the 5V supply from your InterfaceKit or Hub and steps it up to 12V while simultaneously passing the 0-5V signal from the sensor into the Phidget cable.
