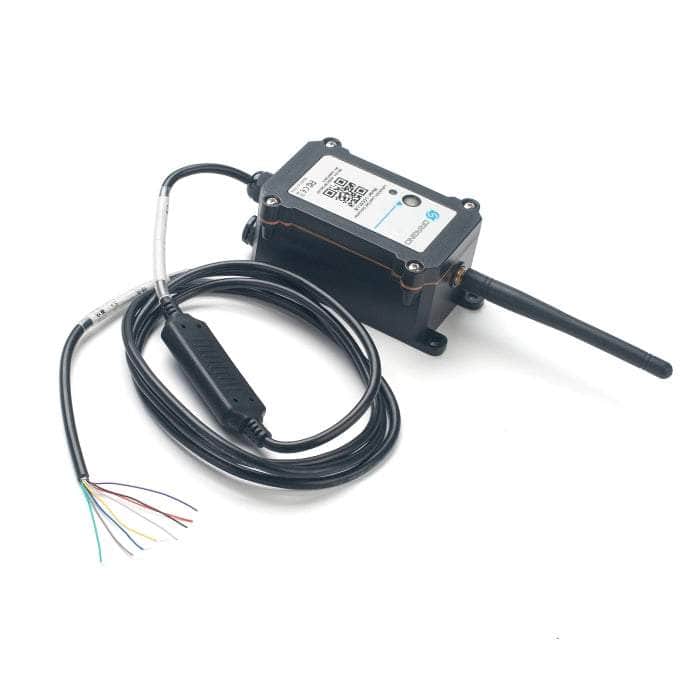

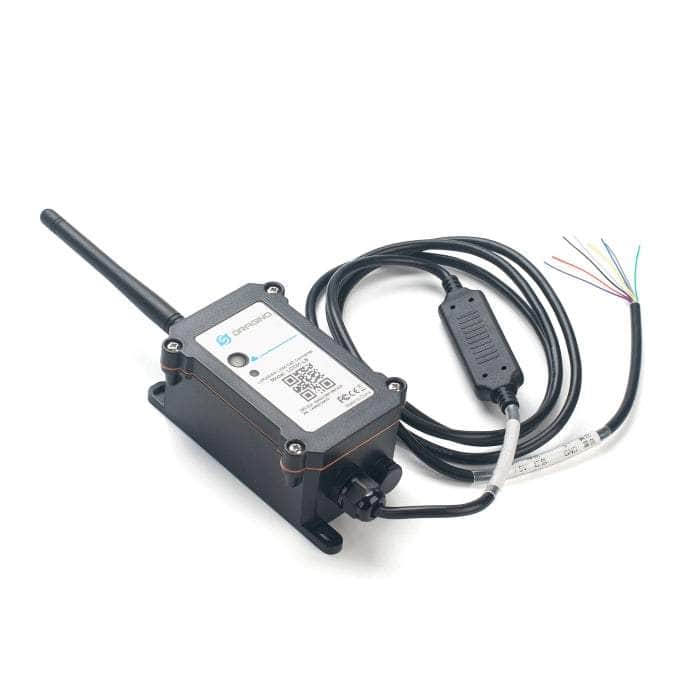

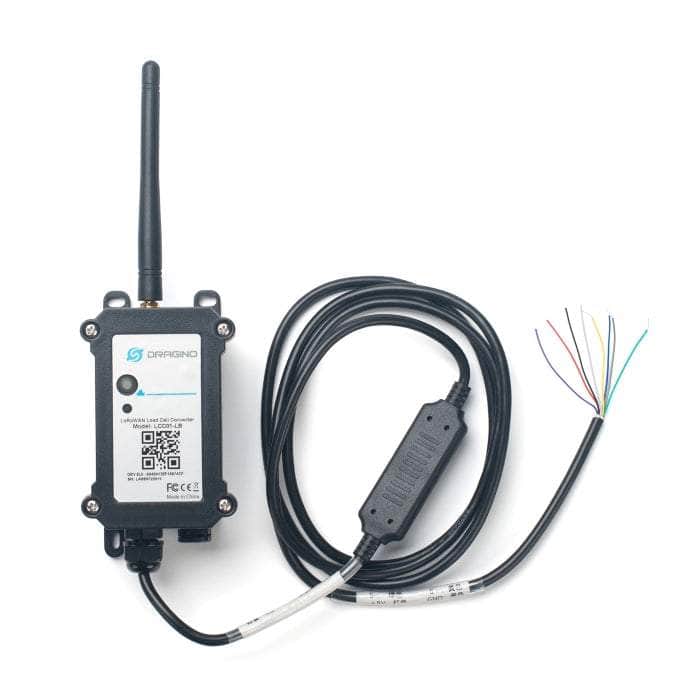

LCC01 LoRaWAN Load Cell Converter
Dragino LCC01 is a LoRaWAN Load Cell Converter for IoT solutions. It is used to accurately measure the weight of objects and then upload it to the IoT server through the LoRaWAN wireless protocol.
The LCC01-LB has a standard 4-wire interface that can connect to different types of load cell. It supports different scaling from gram to ton.
With LCC01-LB and a suitable load cell, the user can build up a weight measurement loT solution. Applications are suitable for such as: truck scales, railway scales, supermarket scales, bench scales, heavy-duty scales or any type of standard scale.
The LoRa wireless technology used in the LCC01-LB allows the device to send data at low data rates and reach extremely long distances. It provides ultra-long-distance spread spectrum communications and high interference immunity while minimizing current consumption.
LCC01-LB supports BLE configure and wireless OTA update which make user easy to use.
LCC01-LB is powered by 8500mAh Li-SOCI2 battery , which can last up to 5 years of long-term use.
Each LCC01-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to LoRaWAN server and it will auto connect after power on.
Features:
- LoRaWAN 1.0.3 Class A
- Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- Standard 4-wire interface to 3rd party load cell
- Weigh Measurement, scale from 100g to 10T
- Uplink on periodically
- Downlink to change configure
- Support BLE and LoRaWAN remote configure
- Support wireless OTA update firmware
- 8500mAh Li/SOCl2 Battery
Applications:
Specification:
Common DC Characteristics:
- Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
-
Operating Temperature: -40 ~ 85°C
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
-
Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
