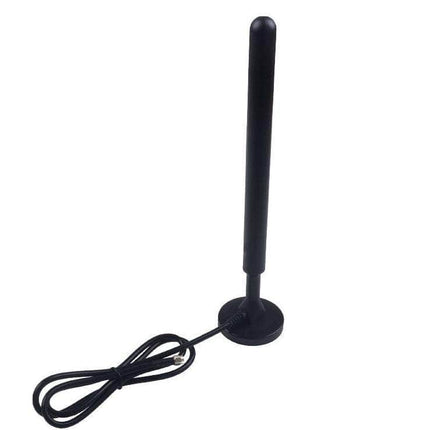

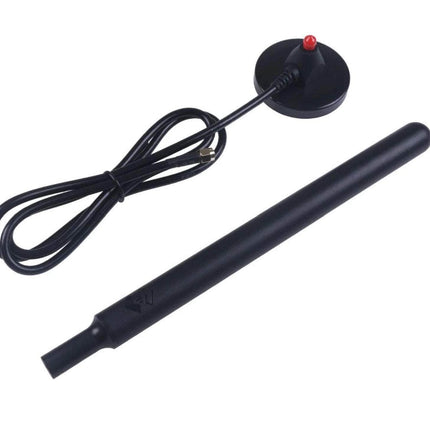

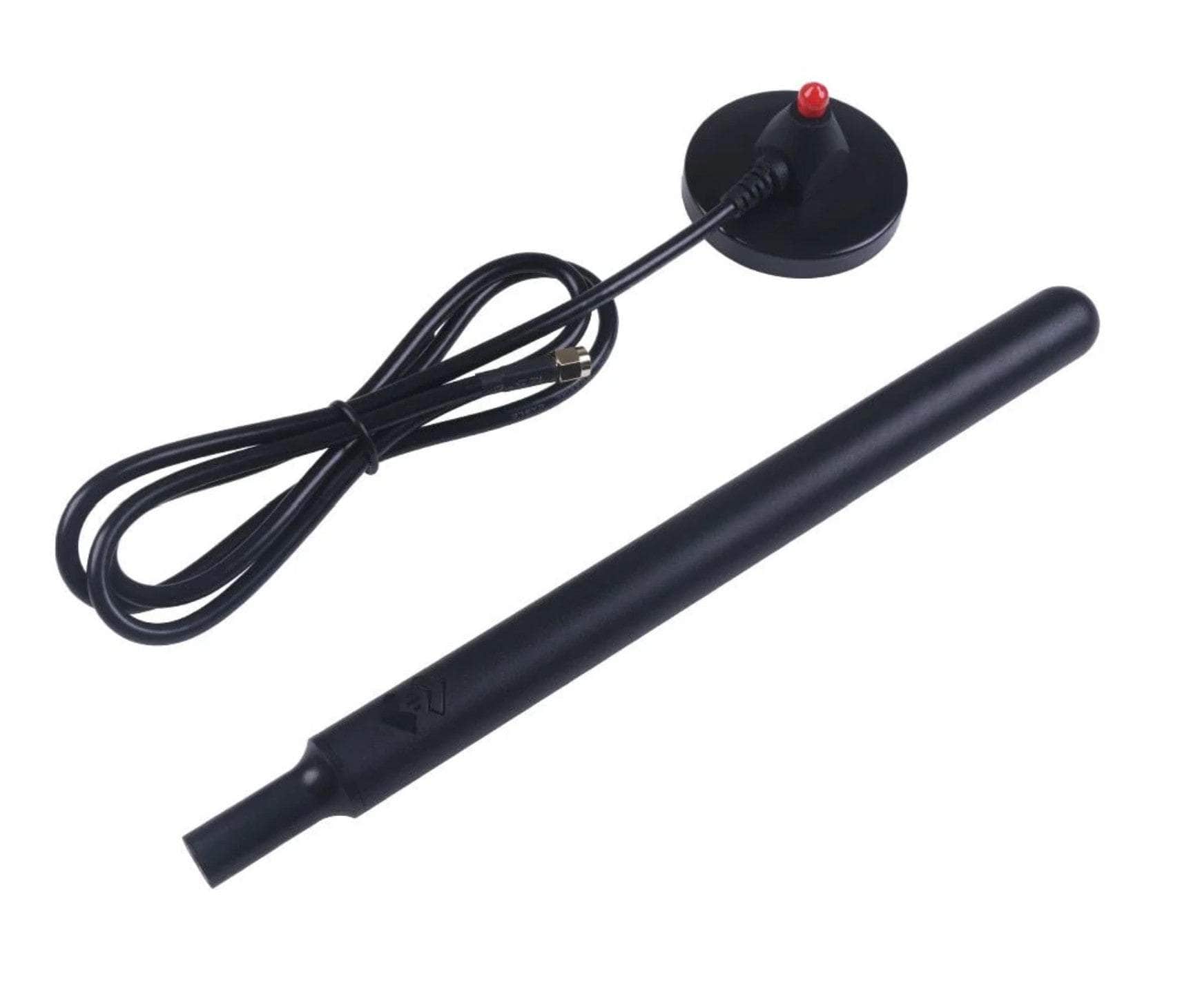

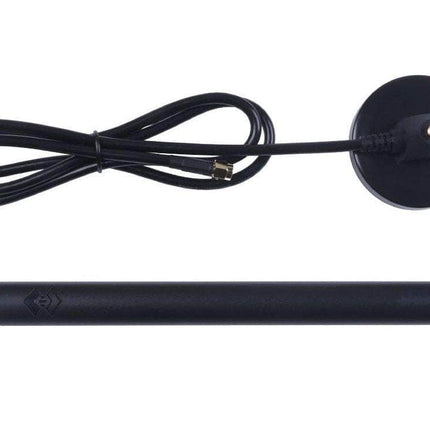

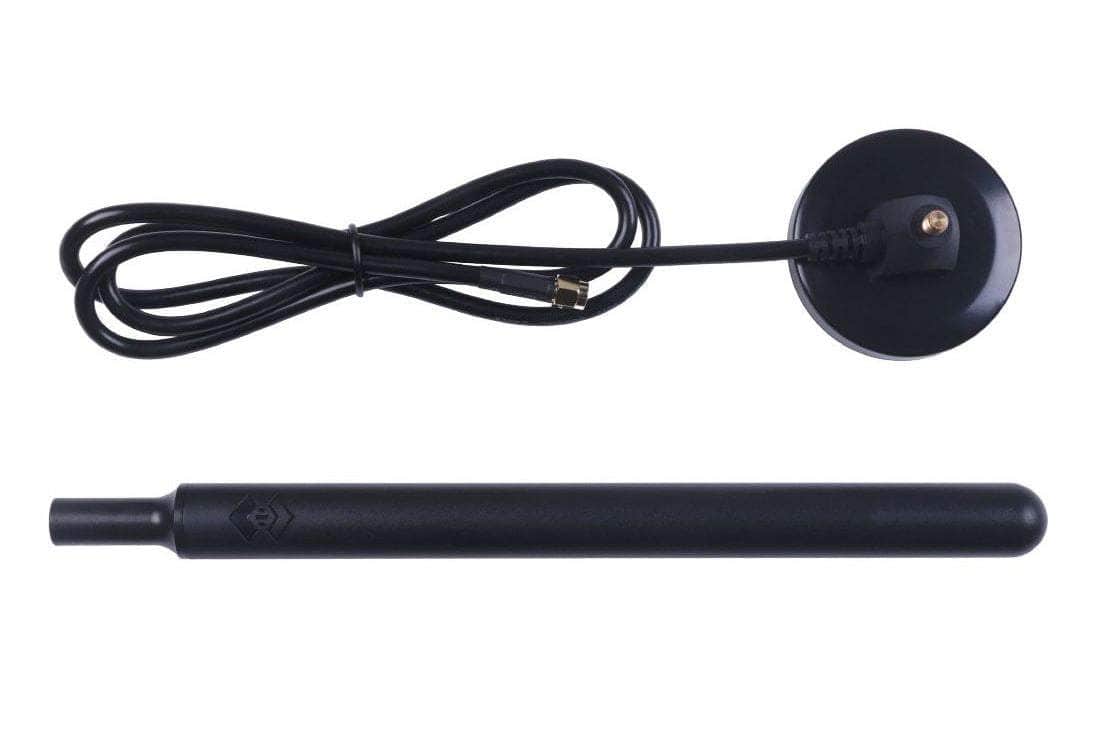

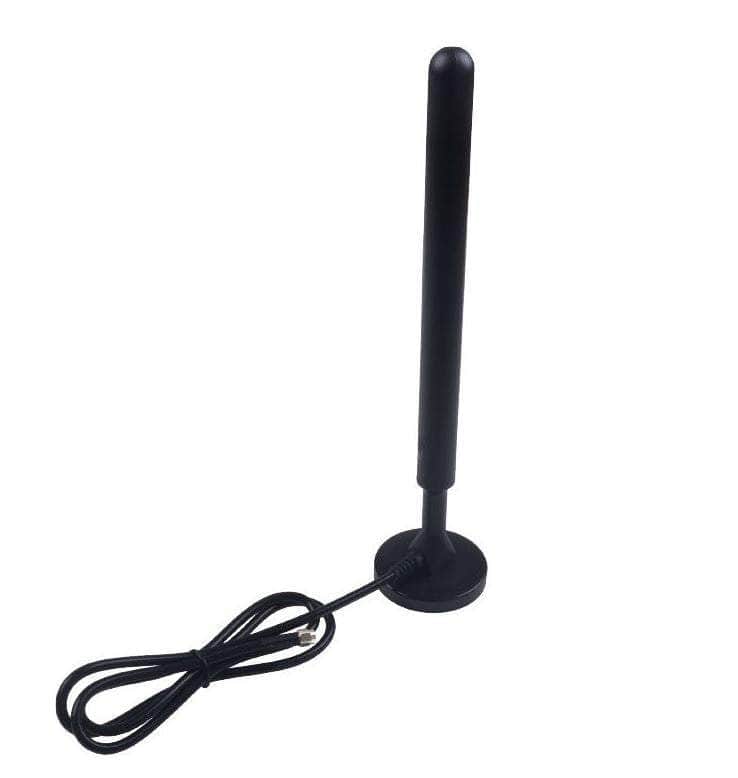

LoRa Long Range Antenna Kit 860-930MHz 3dBi 295mm

Description



LoRa Long Range Antenna Kit 860-930MHz 3dBi 295mm

  • High gain 3dBi dual-band for 868MHz and 915MHz

  • High efficiency vertical polarized monopole

  • Robust hermetic construction for outdoor usage and small compact size for indoor usage

  • Include easy-to-use magnetic support

  • CE RoHS certified

Specification

Frequency Range 860-930MHz
impedance  50Ω
VSWR

1.5 @ 868MHz typical

1.5 @ 915MHz typical

<2.2 max

Gain 3dBi
Efficiency Maximum 75%
Polarization Linear Vertical
Radiation pattern 360° Omni directional
Physical length 295 mm
Radiator Material Nickel Steel
Covering Material  ABS Black

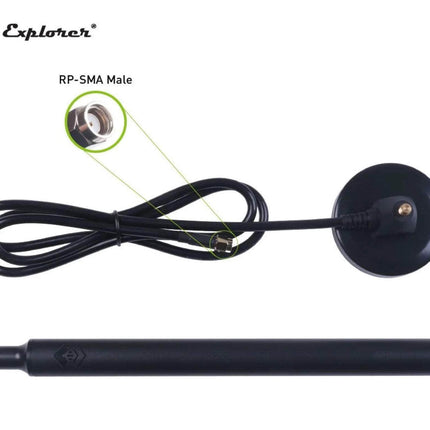

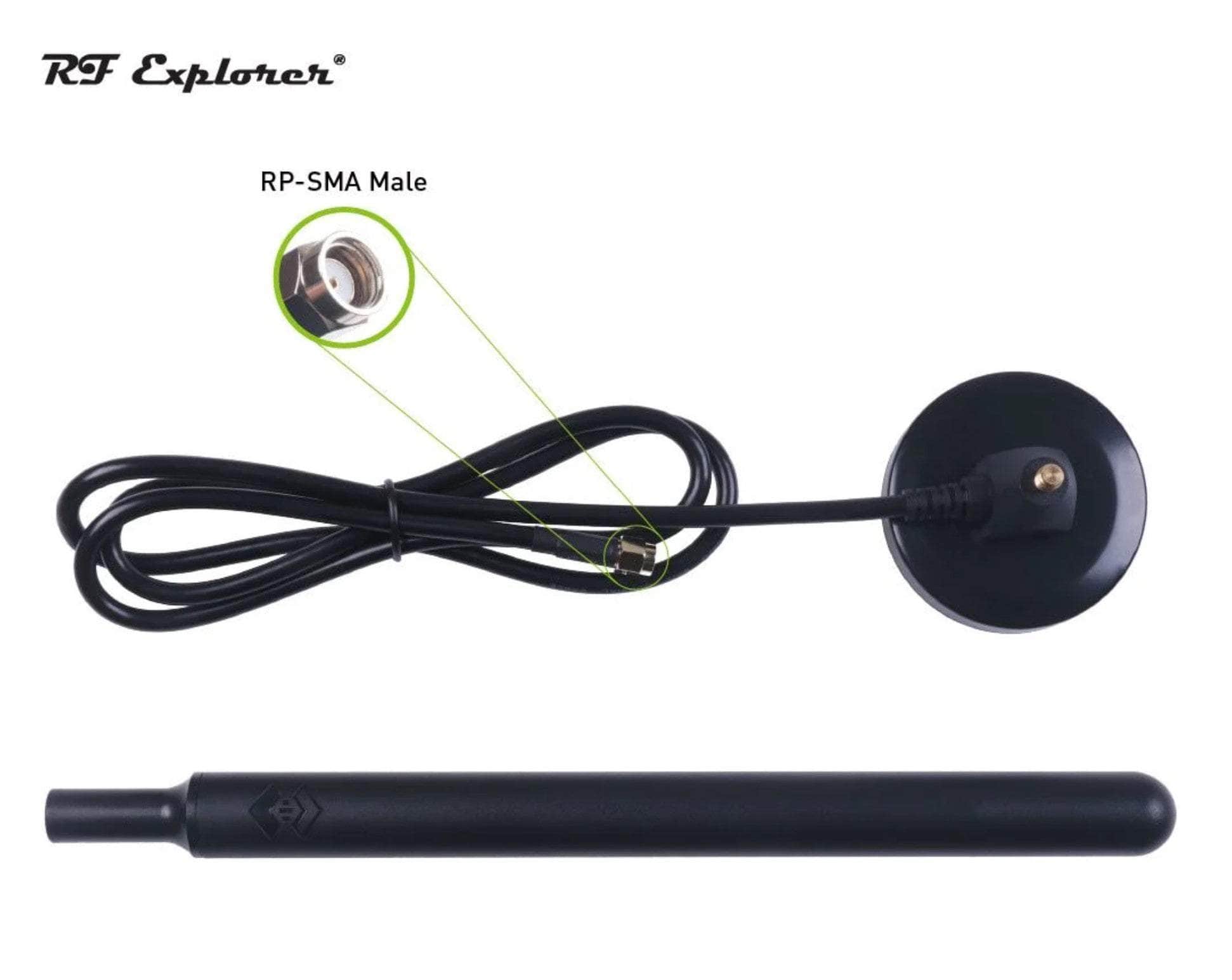

Cable Connector RP-SMA Male
Cable Type RG-58
Cable Length 1000 mm
Temperature operation -20℃ to +65℃ / -4℉ to +150℉
Waterproof IP65



VSWR

Antenna Gain





Antenna Efficiency



Radiation Pattern

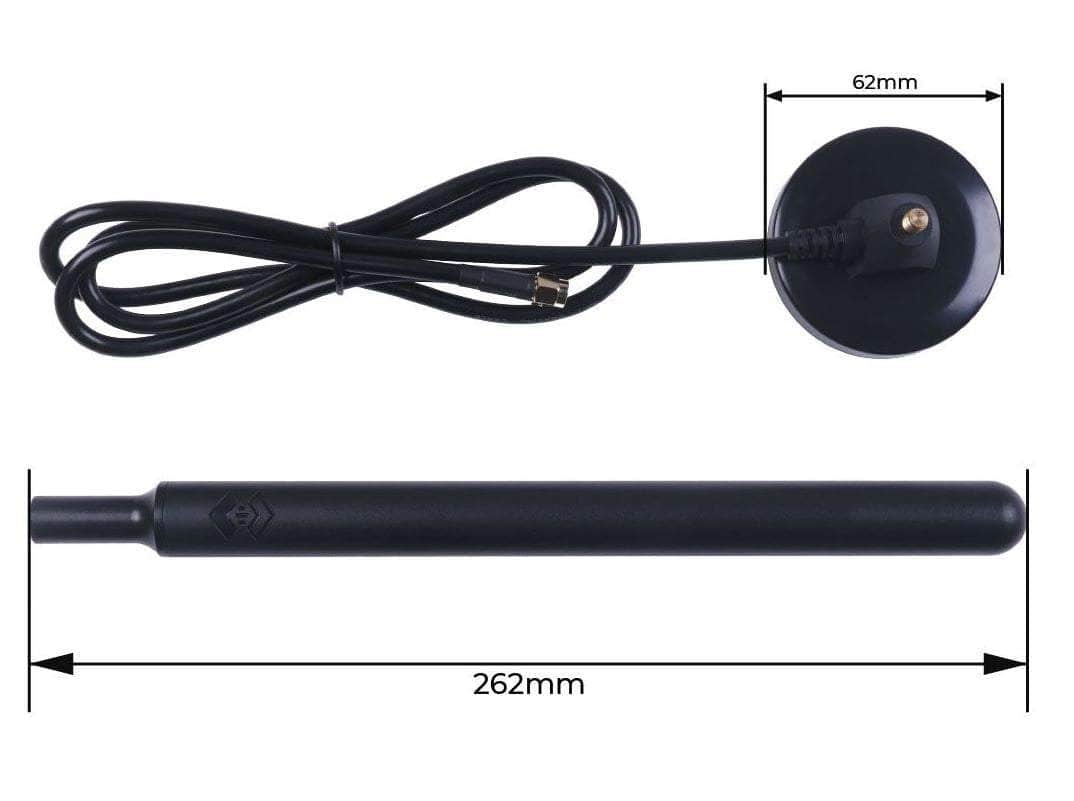

Dimension



Usage Scenario



LoRa Long Range Antenna Kit 860-930MHz 3dBi 295mm

Product form
Free pickup in our shop(s)

SKU: 110991765

$69.00 $49.00 Excl. GST

$49.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    LoRa Long Range Antenna Kit 860-930MHz 3dBi 295mm

    • High gain 3dBi dual-band for 868MHz and 915MHz

    • High efficiency vertical polarized monopole

    • Robust hermetic construction for outdoor usage and small compact size for indoor usage

    • Include easy-to-use magnetic support

    • CE RoHS certified

    Specification

    Frequency Range 860-930MHz
    impedance  50Ω
    VSWR

    1.5 @ 868MHz typical

    1.5 @ 915MHz typical

    <2.2 max

    Gain 3dBi
    Efficiency Maximum 75%
    Polarization Linear Vertical
    Radiation pattern 360° Omni directional
    Physical length 295 mm
    Radiator Material Nickel Steel
    Covering Material  ABS Black
    Cable Connector RP-SMA Male
    Cable Type RG-58
    Cable Length 1000 mm
    Temperature operation -20℃ to +65℃ / -4℉ to +150℉
    Waterproof IP65



    VSWR

    Antenna Gain





    Antenna Efficiency



    Radiation Pattern



    Dimension



    Usage Scenario
