LPS8v2 Indoor LoRaWAN Multichannel Gateway

  • $295.00
  • Save $40
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

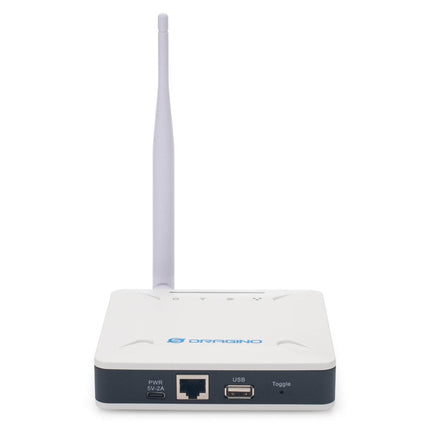

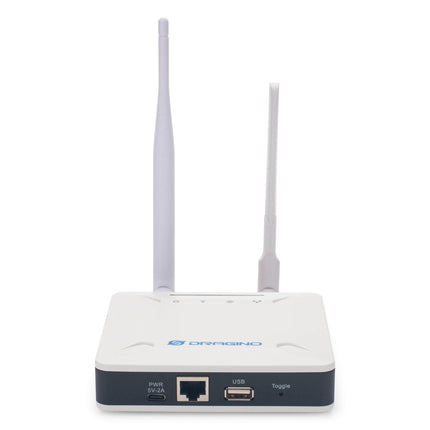

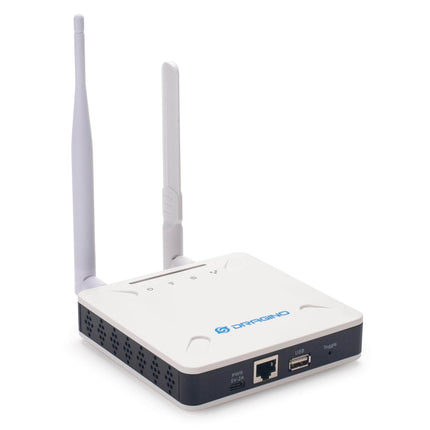

    LPS8v2 Indoor LoRaWAN Multichannel Gateway

    The LPS8v2 is an open-source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi , Ethernet or Cellular Network (via Optional 4G module). The LoRa wireless allows users to send data and reach extremely long ranges at low data rates.

    The LPS8v2 is fully compatible with LoRaWAN protocol. It supports different kinds of LoRaWAN Network Connections such as: Semtech UDP Packet Forwarder, LoRaWAN Basic Station, ChirpStack MQTT Bridge, and so on. This makes LPS8V2 work with most LoRaWAN platforms in the market.

    LPS8v2 also includes a built-in LoRaWAN Server and IoT server, which provide the possibility for the system integrator to deploy the IoT service without cloud service or 3rd servers.

    Different countries use different LoRaWAN frequency bands. LPS8v2 has these bands pre-configured. Users can also customize the frequency bands to use in their own LoRa network.

    LPS8v2 supports remote management. System Integrator can easy to remote monitor the gateway and maintain it.


    • Open Source Debian system
    • Managed by Web GUI, SSH via WAN or WiFi
    • Remote Management
    • Auto-provisioning for batch deployment and management
    • LoRaWAN Gateway
    • 10 programmable parallel demodulation paths
    • Pre-configured to support different LoRaWAN regional settings.
    • Allow customizing LoRaWAN regional parameters.
    • Different kinds of LoRaWAN Connections such as:
      • Semtech UDP Packet Forwarder
      • LoRaWAN Basic Station
      • ChirpStack-Gateway-Bridge (MQTT)
    • Built-in The Things Network local LoRaWAN server.
    • Built-in  Node-Red local Application server.


    • Smart Buildings & Home Automation
    • Logistics and Supply Chain Management
    • Smart Metering
    • Smart Agriculture
    • Smart Cities
    • Smart Factory


    Hardware System:

    • CPU: Quad-core Cortex-A7 1.2Ghz
    • RAM: 512MB
    • eMMC: 4GB


    • 10M/100M RJ45 Ports x 1
    • Multi-Channel LoRaWAN Wireless
    • WiFi 802.11 b/g/n

    Operating Condition:

    • Work Temperature: -20 ~ 65°C
    • Storage Temperature: -20 ~ 65°C
    • Power Input: 5V, 2A, DC
