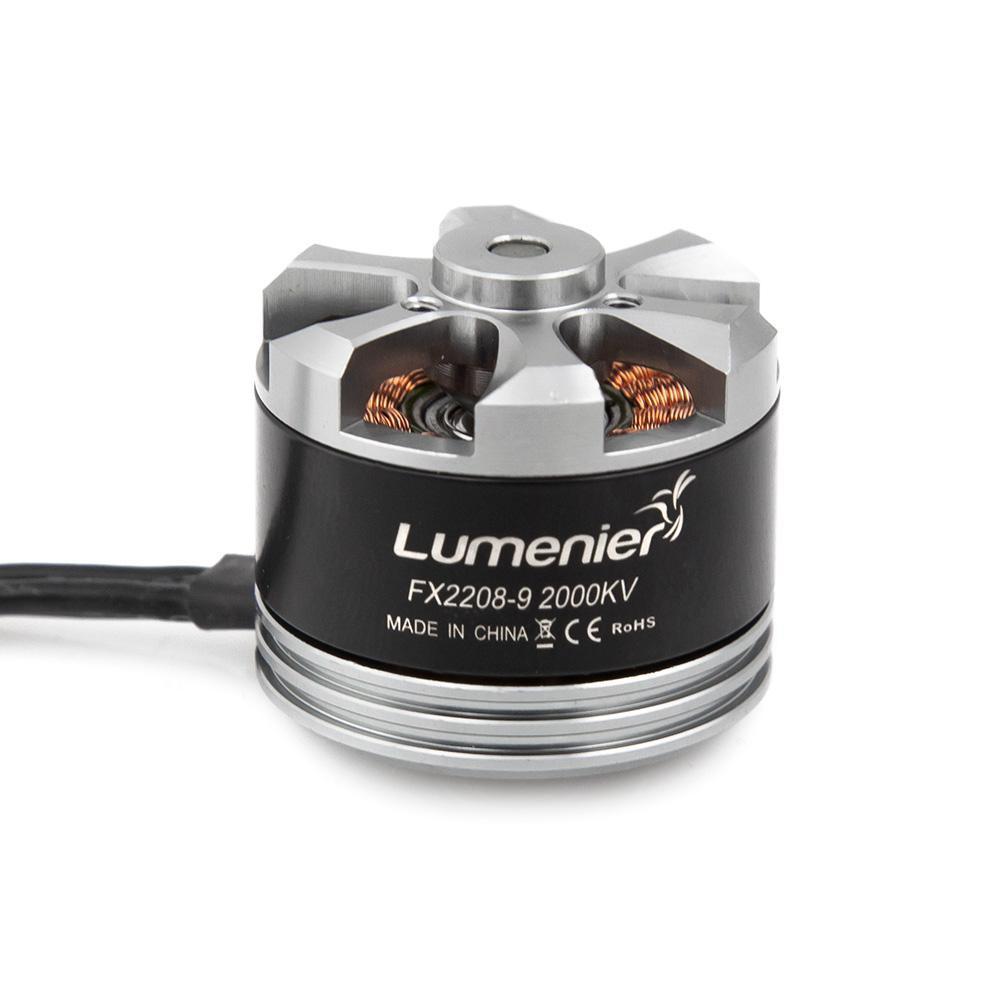

Lumenier FX2208-9 2000kv Multi-Rotor Motor
Lumenier FX2208-9 2000kv Multi-Rotor MotorDetails
The Lumenier FX2208-9 2000kv Multi-Rotor motor was designed for those with speed in mind. This motor features a high 2000 KV giving you tons of top end power. Combine this motor with a high C rated LiPo battery and compatible ESCs for an extreme mini-multirotor racer.
The FX2008-9 2000kv motor is best suited for 5-6" props on 4s, and 6-7" props on 3s LiPo batteries.

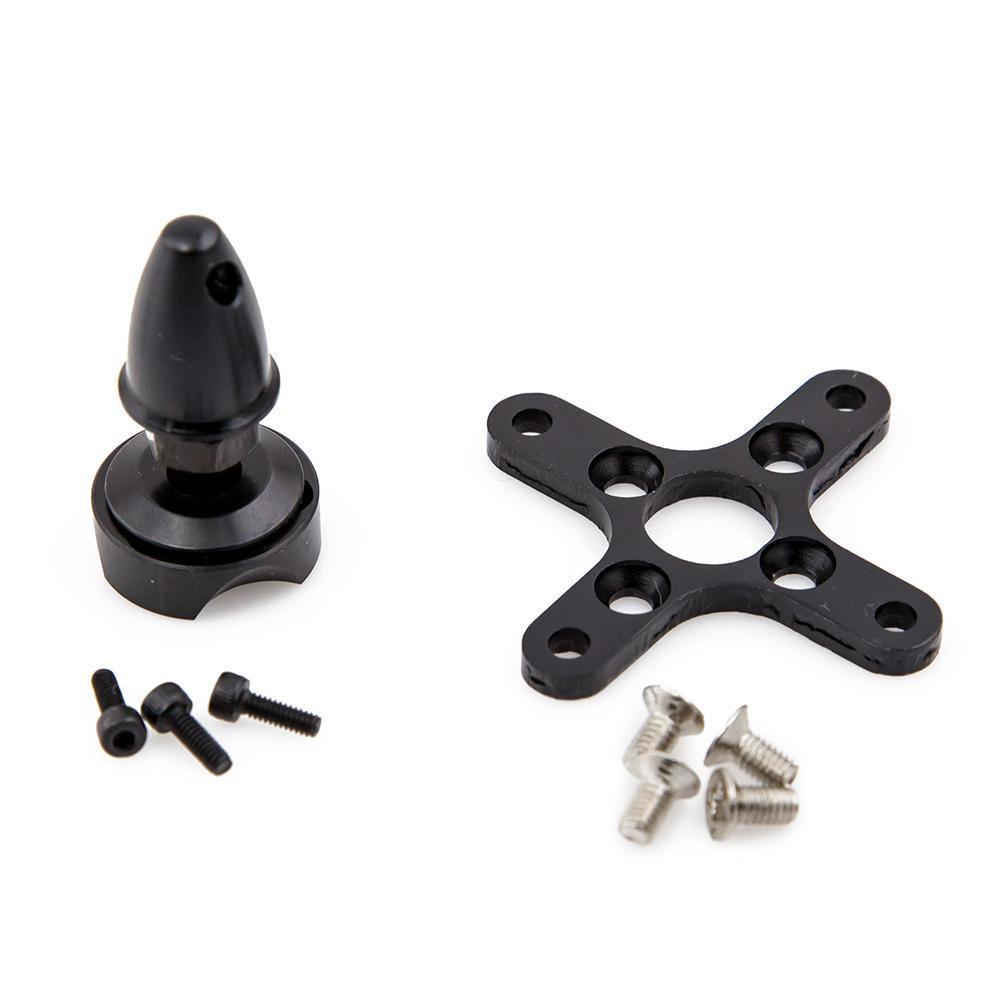

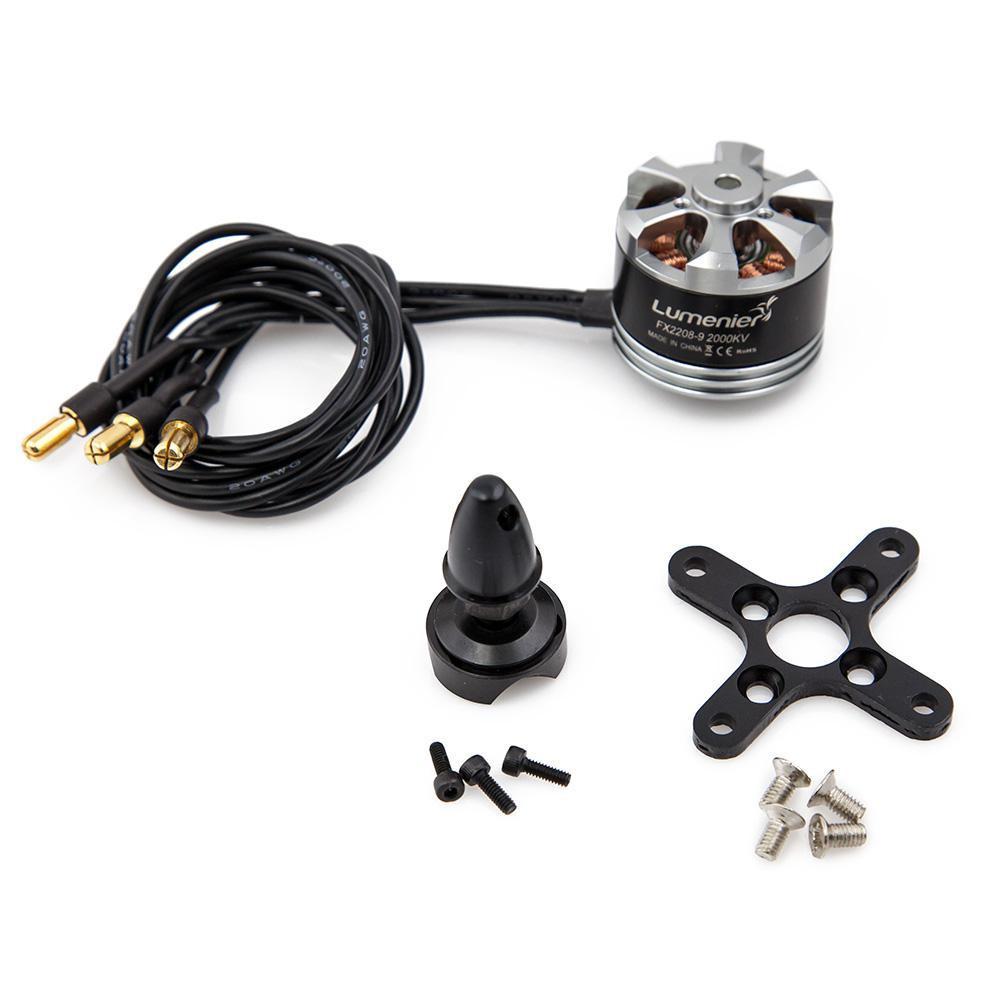

The motor has a 5mm diameter prop adapter and comes with a spinner and mounting plate with screws. Rated for use with 3-4S LiPo. Comes with 110mm long motor wires and male 3.5mm bullet connectors. This motor uses high quality parts and bearings.
Stator Diameter: 22mm
Stator Length: 8m
Shaft Diameter: 3.175mm
Motor Dimension (Diameter x Length): Φ27.5×24.5mm
ldle current(10)@10v(A): 0.1A
No.of Cells(Lipo): 3-4S
Max Continuous current(A)180S: 18A (bursts of 22A)
Max Continuous Power(W)180S: 300W
Max. efficiency current: (2-6A)>80%
Internal resistance: 165mΩ
Note: this motor is capable of pulling 18-22a on a 6x4.5 prop on 4s. You may need a higher C rated battery and ESCs that can support this high amperage.
