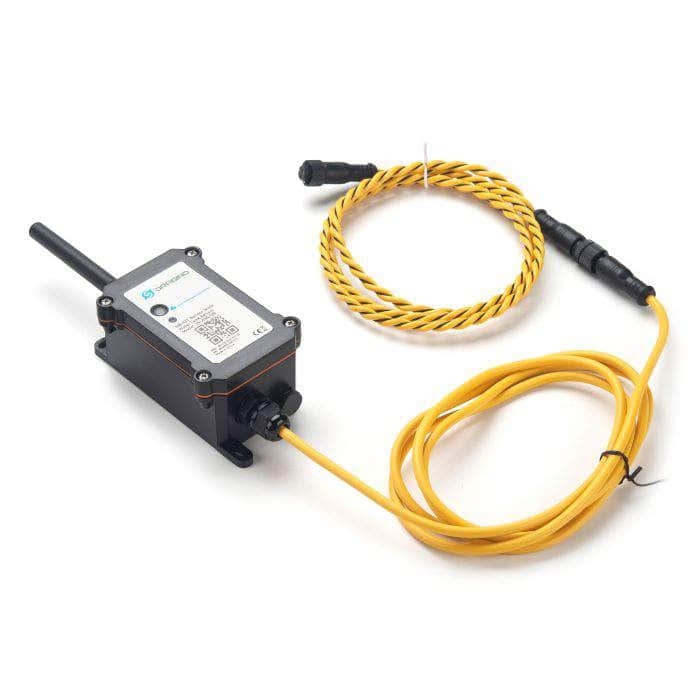

The Dragino LWL03A is a LoRaWAN None-Position Rope Type Water Leak Sensor. Users can lay the LWL03A + Water Leak Cable on the ground to detect water leakage. The water leak cable is sensitive when there is water over the leak cable. LWL03A will indicate a water leak event and uplink to the IoT server via the LoRaWAN network.
LWL03A is powered by an 8500mAh battery and targets for long time use of up to 10 years.
The LWL03A will send periodically data every 2 hours as well as for each water leak event. It also counts the water leak times and calculates the last water leak duration.
Each LWL03A is pre-load with a set of unique keys for LoRaWAN registration, register these keys to the LoRaWAN server and it will auto-connect after powering on.
Features:
- LoRaWAN v1.0.3 Class A protocol.
- Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864
- Water Leak detect
- 8500mAh Li-SoCI2 battery
- AT Commands to change parameters
- Uplink on periodically and leakage event
- Remote configure parameters via LoRa Downlink
- Firmware upgradable via program port
Documents:
Package Includes:
- LWL03A x 1
- 1 x 1m water lead cable
- 1 x termination end
