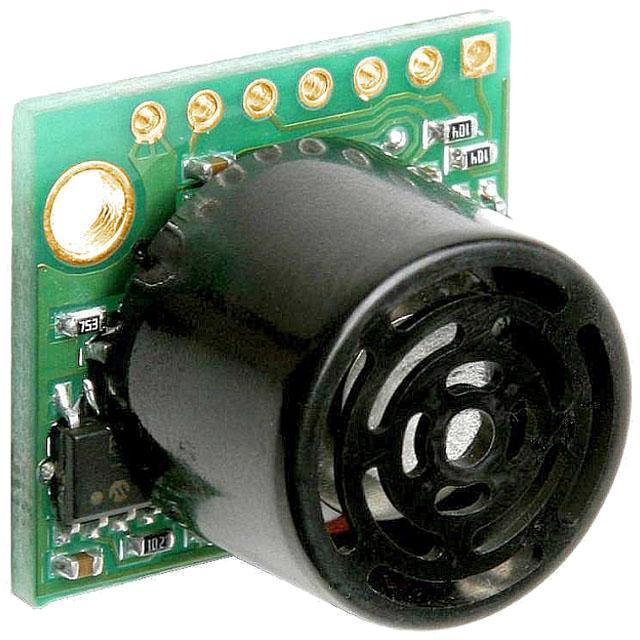

MB1030 LV-MaxSonar-EZ3 MaxBotix Ultrasonic Sensor

  • $39.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • MB1030 LV-MaxSonar-EZ3 MaxBotix Ultrasonic Sensor

    MB1030 is the fantastically easy to use sensor from Maxbotix. We are extremely pleased with the size, quality, and ease of use of this little range finder. The serial interface is a bit odd (it’s RS232 instead of standard TTL), but the PWM and Analog interfaces will allow any micro to listen easily enough. The sensor provides very accurate readings of 0 to 255 inches (0 to 6.45m) in 1-inch increments with little or no dead zone!

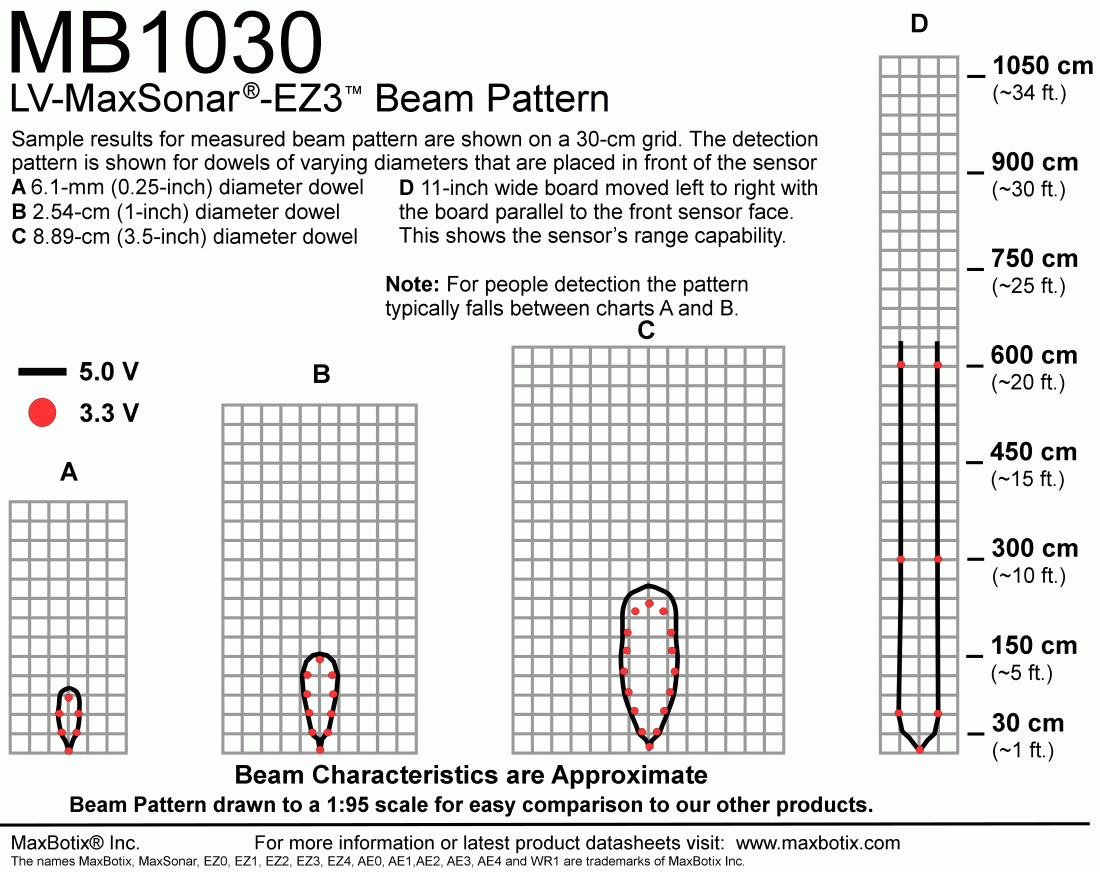

    Maxbotix is offering the EZ0, EZ1, EZ2, EZ3, and EZ4 with progressively narrower beam angles allowing the sensor to match the application. Please see beam width explanation below.

    Control up to 10 sensors with only two pins!

    The LV‑MaxSonar‑EZ3 is a narrow beam sensor with good side object rejection. The LV‑MaxSonar‑EZ3 has slightly wider beam width than the MB1040 LV‑MaxSonar‑EZ4 which makes it a good choice for when the LV‑MaxSonar‑EZ4 does not have enough sensitivity for the application.

    Product Specifications

    • Resolution of 1 inch
    • 20Hz reading rate
    • 42kHz Ultrasonic sensor measures distance to objects
    • RoHS Compliant
    • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
    • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
    • Maximum Range of 254 inches (645 cm)
    • Operates from 2.5-5.5V
    • Low 2.0mA average current requirement
    • Small, light weight module
    • Designed for easy integration into your project or product
    • Narrow beam and good side object rejection
    • Best for large object detection applications

    Documents and Downloads

    LV-MaxSonar-EZ3-datasheet
    Chaining Application Guide
    LV-MaxSonar-EZ Quick Start Guide
    Sensor Selection Guide
    RoHS Declaration of Conformity
    CE Declaration of Conformity
    MTBF Report
    High Resolution Pictures.zip
